0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#14830) — 45 parça

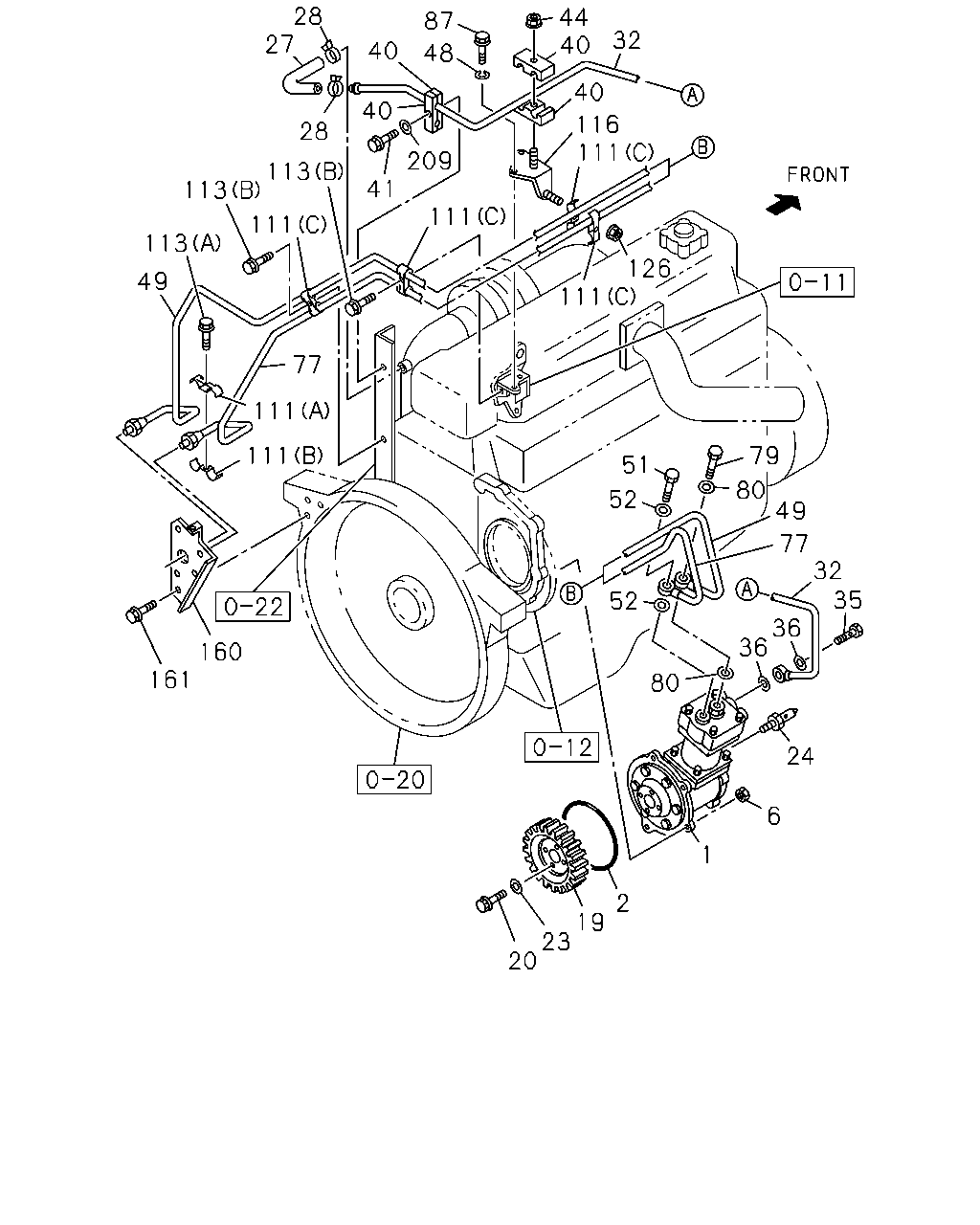

28 27 44 40 87 32 40 48 40 40 116 111 28 209 113 113 41 111 111 113 126 111 49 77 111 111 79 51 80 49 52 77 32 35 52 36 36 160 161 80 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	0711-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0711-
6	NUT; AIR CMPR M12 FLANGE IDN	0-91180-112-0	04	1	0711-
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0711-
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0711-
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0711-
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0711-
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	0711-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0711-
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	0711-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0711-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0711-
40	CLIP; AIR PIPE	1-09701-210-0	04	1	0711-
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0711-
44	NUT M6 FLANGE	0-91180-106-0	01	1	0711-
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0711-
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0711-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0711-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0711-
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0711-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0711-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0711-1312
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0711-
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0711-
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0711-
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0711-
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0711-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0711-
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0711-
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0711-
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0711-
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0711-
209	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	0711-

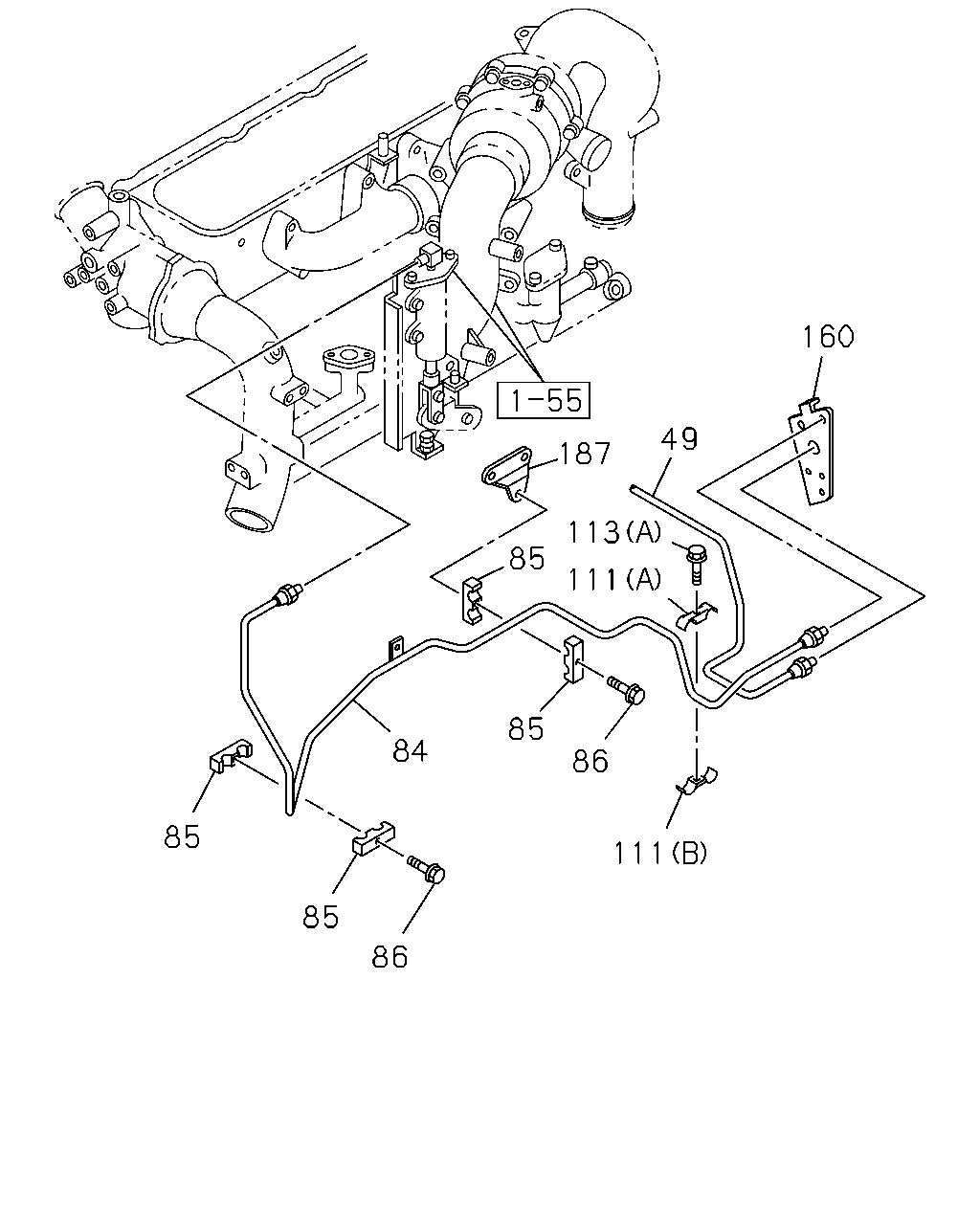

160 49 187 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; AIR,CHARGE	1-19192-963-0	01	1	0711-
84	PIPE; AIR	1-19192-964-0	01	1	0711-
85	CLIP; PIPE	1-09701-240-0	04	1	0711-
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0711-
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0711-
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0711-
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0711-
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0711-
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0711-
160	BRACKET; AIR PIPE	1-19199-251-1	01	1	0711-
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0711-
