6-47 — MUD GUARD AND INSULATOR (#1483) — 109 parça

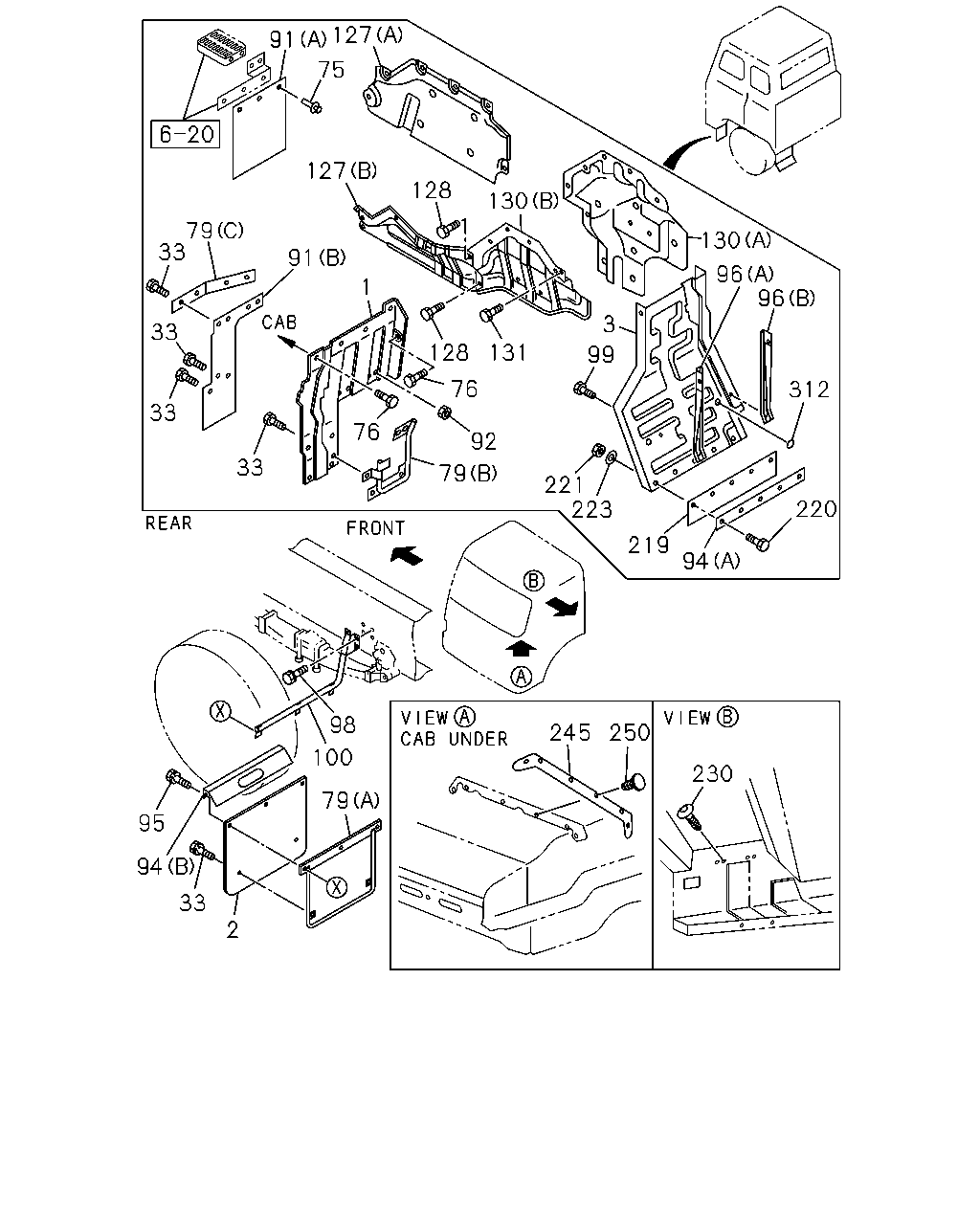

127 91 75 127 128 130 79 33 130 91 96 96 1 3 33 128 131 99 76 312 33 76 92 33 79 221 223 220 219 94 98 245 250 100 230 79 95 94 33 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9203-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9203-
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9203-
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9203-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9203-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9203-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9203-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9203-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9308-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9203-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-
75	RIVET; MUD COVER	1-09983-105-0	06	1	9203-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9203-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9203-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9203-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9203-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9203-
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9203-9307
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9203-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9203-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9203-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9203-
94	RETAINER; FLAP RUBBER (A)	1-79930-586-0	01	1	9203-
94	RETAINER; FLAP RUBBER (B)	1-79930-649-1	01	1	9203-
95	BOLT; STAY TO RET M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9203-
96	STAY; MUD GUARD (A)	1-79938-643-1	01	1	9203-
96	STAY; MUD GUARD (B)	1-79938-645-1	01	1	9203-
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28010-830-0	04	1	9203-9204
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28080-830-0	04	1	9205-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9203-
100	STAY; UPR,MUD GUARD	1-53497-407-0	01	1	9203-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53192-417-0	01	1	9203-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53192-104-0	01	1	9203-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-79938-623-3	01	1	9203-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-79938-621-3	01	1	9203-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-418-0	01	1	9203-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-108-0	01	1	9203-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-79938-627-5	01	1	9203-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-79938-625-5	01	1	9203-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9203-
219	FLAP; MUD GUARD	1-79930-650-0	01	1	9203-
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50000-616-0	05	1	9203-9204
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50080-616-0	05	1	9205-
221	NUT; COVER,MUD GUARD RR	8-94238-948-0	05	1	9203-
223	WASHER; PL,RET	8-94238-949-0	05	1	9203-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9204-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9204-
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L)	1-79938-858-0	01	1	9203-
250	FASTENER; SHUTTER 6SA1 STD ENG(06L)	1-09987-189-0	06	1	9203-
312	SEAL; DUMMY HOLE OD=36	1-76778-007-0	02	1	9203-

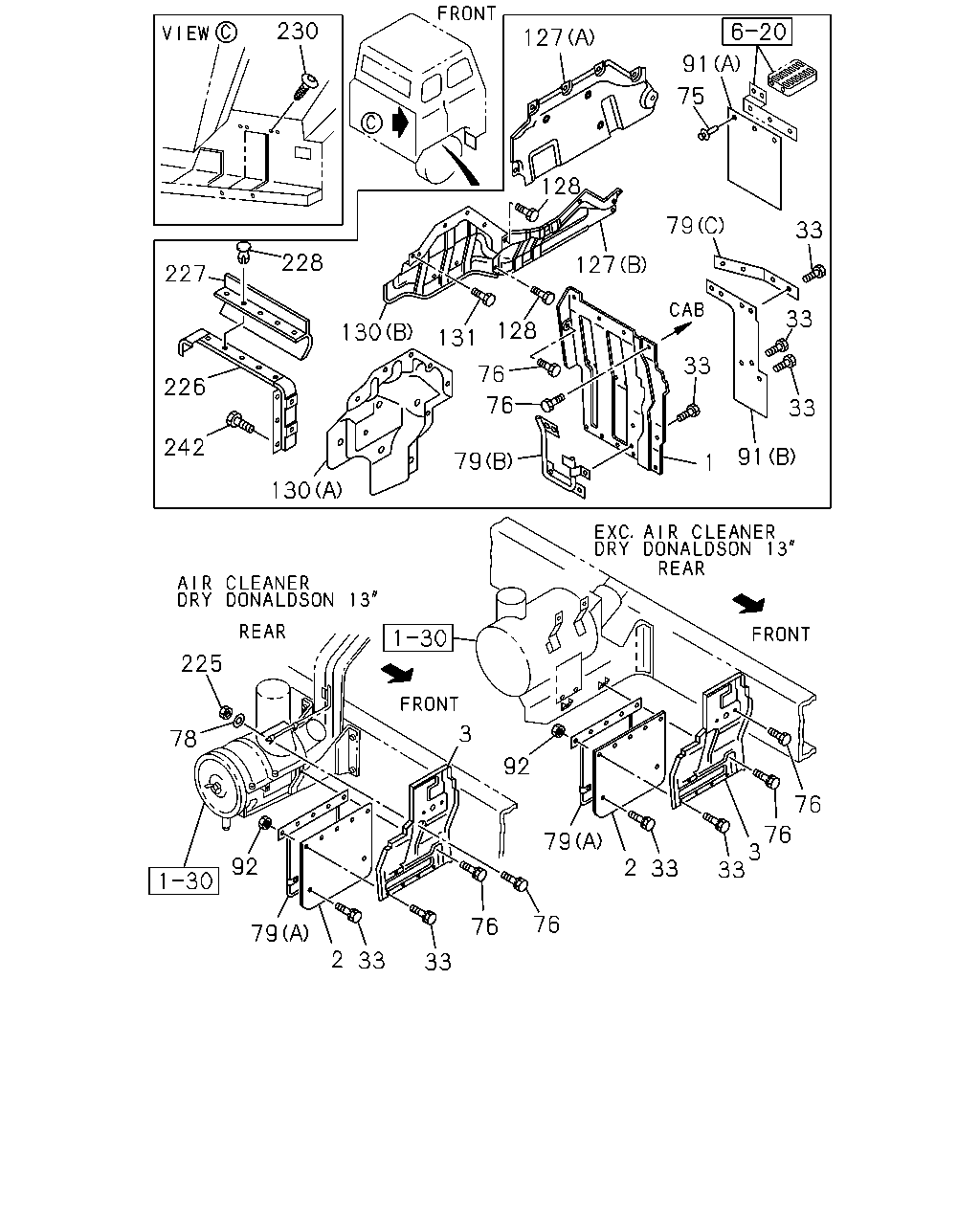

230 127 91 75 128 79 33 228 127 227 130 33 128 131 33 76 226 76 33 242 91 79 1 130 225 3 78 92 76 76 3 33 79 92 2 33 76 76 79 2 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9203-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9203-
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9203-
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9203-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9203-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9203-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9203-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9203-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9308-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9203-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-
75	RIVET; MUD COVER	1-09983-105-0	06	1	9203-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9203-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9203-
78	WASHER; PL,MUD GUARD 6SA1TC ENG(28L) ID=8.4 OD=22	9-09160-708-0	02	1	9203-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9203-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9203-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9203-
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9203-9307
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9203-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9203-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9203-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9203-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53192-417-0	01	1	9203-
127	APRON; FRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-53192-104-0	01	1	9203-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-79938-623-3	01	1	9203-
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-79938-621-3	01	1	9203-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-418-0	01	1	9203-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3) (A)	1-53192-108-0	01	1	9203-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-79938-627-5	01	1	9203-
130	PANEL; SHUTTER NOISE EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-79938-625-5	01	1	9203-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9203-
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9203-
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9203-
227	SEAL; MUD GUARD L=342	1-79938-765-0	01	1	9203-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	04	1	9203-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9204-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9204-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9203-9402
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9403-

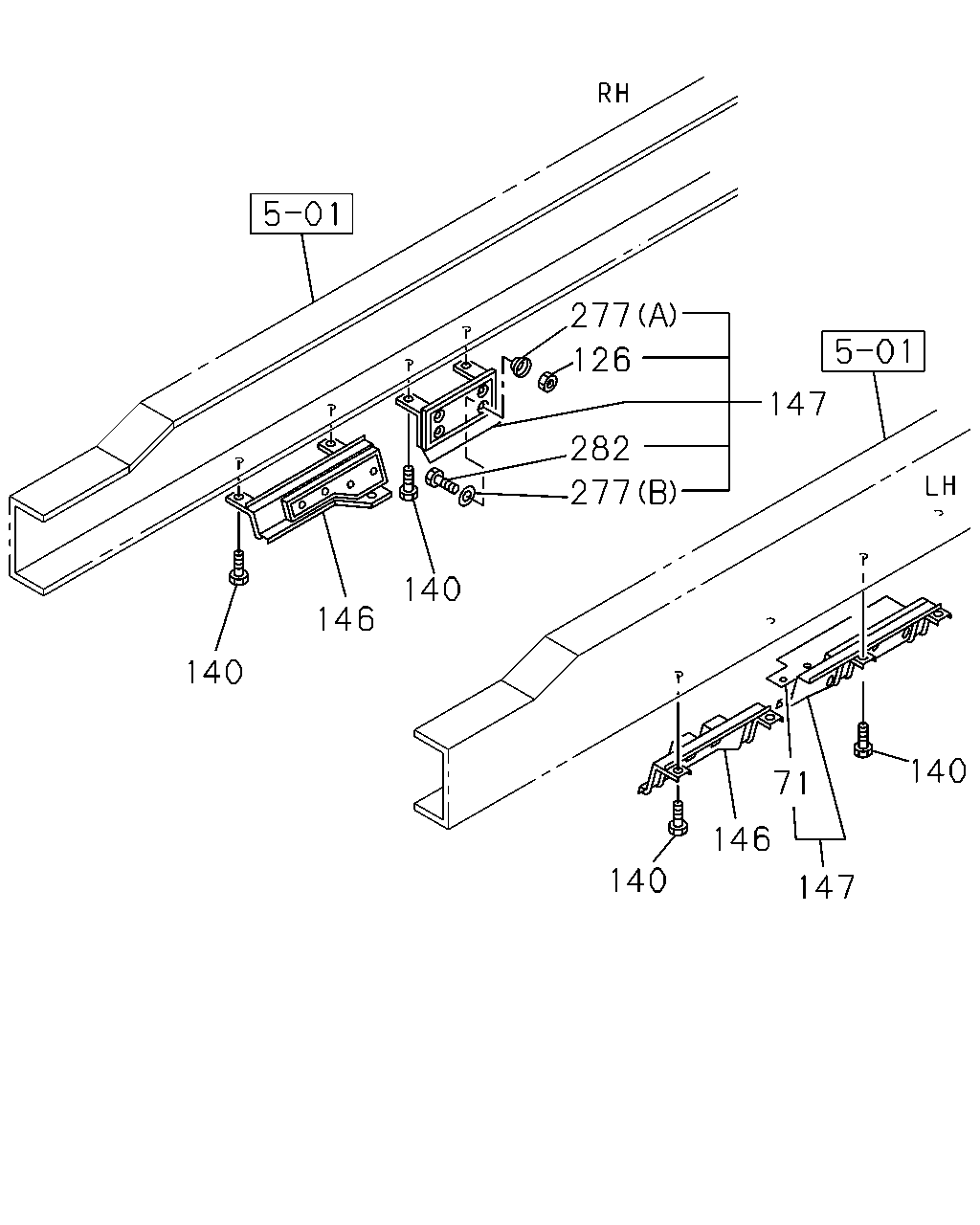

277 126 147 282 277 140 146 140 140 71 146 140 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	RUBBER; SEAL ANTI NOISE EQUIPMENT VAR E<SLK>	1-53446-210-0	01	1	9206-9404
126	NUT; PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M6	9-09110-406-0	04	1	9203-9404
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28080-825-0	08	1	9203-9404
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR E<SLK> M8X18	1-09030-034-1	02	1	9203-9404
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53191-243-5	01	1	9203-9404
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-53191-443-1	01	1	9203-9404
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-426-0	01	1	9203-9404
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-425-0	01	1	9203-9404
277	WASHER; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-73377-052-1	04	1	9203-9404
277	WASHER; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=6.1	9-09150-506-0	04	1	9203-9404
282	BOLT; NOISE INSULATOR ANTI NOISE EQUIPMENT VAR E<SLK> M6X20 FLANGE	0-28080-620-0	04	1	9208-9404
