3-55 — BRAKE PIPING; OIL,REAR (#148299) — 109 parça

119 60 8 1 12 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HOSE; FLEX,RR BRK THA	8-98067-084-1	01	1	1409-	●	●	●	●
1	HOSE; FLEX,RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98067-084-1	01	1	1409-					●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-97947-133-1	01	1	1409-					●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-98067-085-1	01	1	1409-					●	●
8	CLIP; RR BRK IMA	8-97360-054-0	01	1	1409-	●	●	●	●
8	CLIP; RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	01	1	1409-					●	●
8	CLIP; RR BRK ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	04	1	1409-					●	●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-453-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-453-0	01	1	1409-			●	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-453-0	01	1	1409-						●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-454-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-454-0	01	1	1409-			●	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-454-0	01	1	1409-						●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98103-451-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-451-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98103-452-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-452-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98103-455-1	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-455-1	01	1	1409-						●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98103-456-1	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-456-1	01	1	1409-						●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98151-580-0	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98151-581-0	01	1	1409-					●
12	BOLT; FLEX HOSE TO RR AXLE M8X30 FLANGE THA	0-28650-830-0	01	1	1409-	●	●	●	●
12	BOLT; FLEX HOSE TO RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE THA	0-28650-830-0	01	1	1409-					●	●
60	PIPE ASM; BRK HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-723-4	01	1	1409-	●				●
60	PIPE ASM; BRK (C) THA	8-98099-723-4	01	1	1409-			●	●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-723-4	01	1	1409-						●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-715-4	01	1	1409-	●				●
60	PIPE ASM; BRK (C) THA	8-98099-715-4	01	1	1409-		●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98099-741-4	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-741-4	01	1	1409-						●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (B) THA	8-98099-742-4	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-742-4	01	1	1409-						●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98155-587-2	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98155-588-2	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-722-4	01	1	1409-			●	●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98099-714-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-714-4	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98099-740-4	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-740-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98155-586-2	01	1	1409-					●

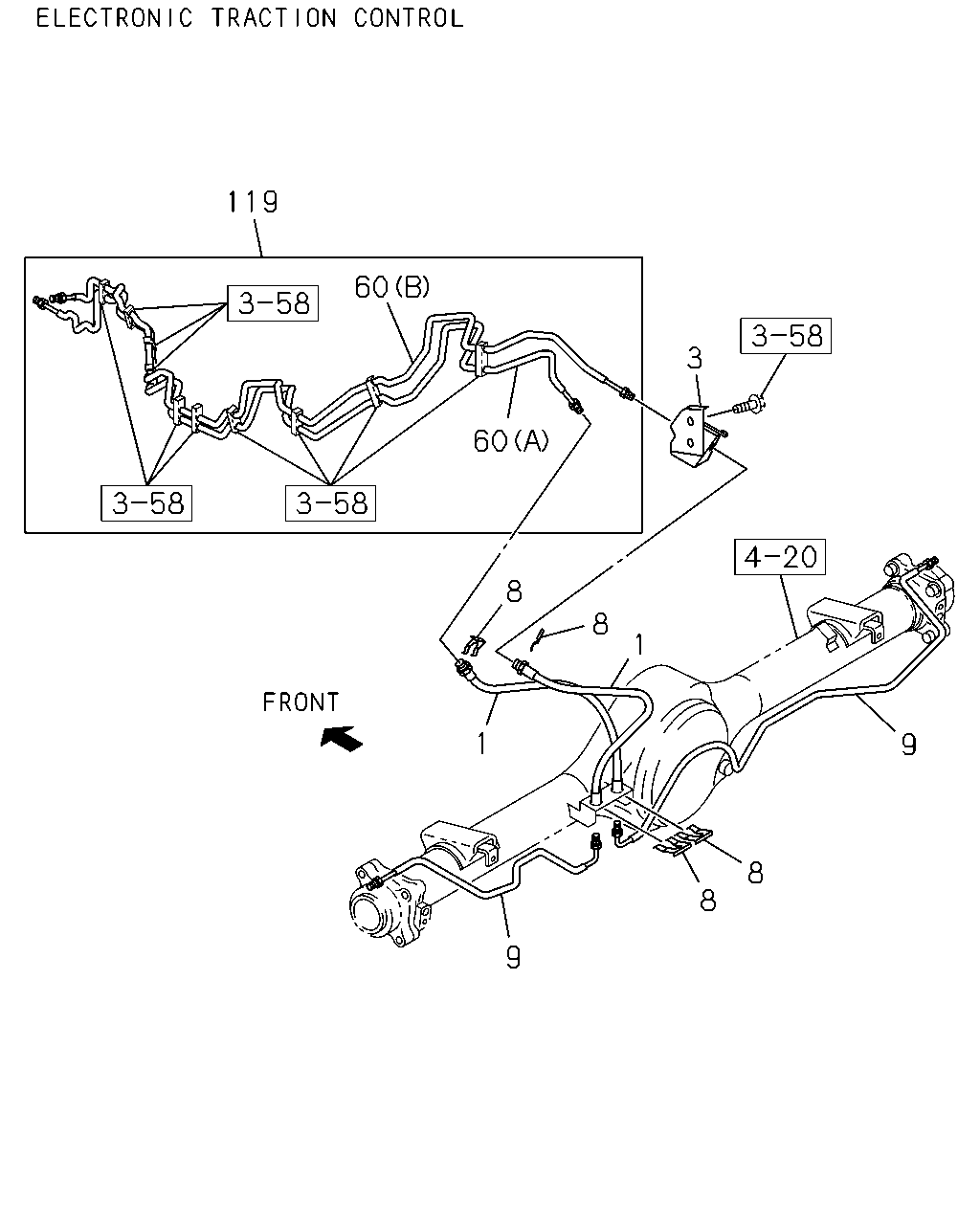

119 60 60 3 8 8 1 1 9 8 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HOSE; FLEX,RR BRK THA	8-98067-084-1	01	1	1409-	●	●	●	●
1	HOSE; FLEX,RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98067-084-1	01	1	1409-					●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-97947-133-1	01	1	1409-					●	●
1	HOSE; FLEX,RR BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-98067-085-1	01	1	1409-					●	●
3	BRACKET; FLEX HOSE,RR BRK ELECTRONIC TRACTION CONTROL<NW9> THA	8-98102-358-1	01	1	1409-					●	●
8	CLIP; RR BRK IMA	8-97360-054-0	01	1	1409-	●	●	●	●
8	CLIP; RR BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	01	1	1409-					●	●
8	CLIP; RR BRK ELECTRONIC TRACTION CONTROL<NW9> IMA	8-97360-054-0	04	1	1409-					●	●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-453-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-453-0	01	1	1409-			●	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-453-0	01	1	1409-						●
9	PIPE; BRK,RR AXLE HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-454-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-454-0	01	1	1409-			●	●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-454-0	01	1	1409-						●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98103-451-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-451-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98103-452-0	01	1	1409-	●				●
9	PIPE; BRK,RR AXLE THA	8-98103-452-0	01	1	1409-		●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98103-455-1	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-455-1	01	1	1409-						●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98103-456-1	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> THA	8-98103-456-1	01	1	1409-						●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98151-580-0	01	1	1409-					●
9	PIPE; BRK,RR AXLE ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98151-581-0	01	1	1409-					●
60	PIPE ASM; BRK HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-723-4	01	1	1409-	●				●
60	PIPE ASM; BRK (C) THA	8-98099-723-4	01	1	1409-			●	●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) THA	8-98099-723-4	01	1	1409-						●
60	PIPE ASM; BRK EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA	8-98099-715-4	01	1	1409-	●				●
60	PIPE ASM; BRK (C) THA	8-98099-715-4	01	1	1409-		●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (A) THA	8-98099-741-4	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-741-4	01	1	1409-						●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (B) THA	8-98099-742-4	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-742-4	01	1	1409-						●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98155-587-2	01	1	1409-					●
60	PIPE ASM; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-98155-588-2	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-722-4	01	1	1409-			●	●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98099-714-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-714-4	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98099-740-4	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-740-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98155-586-2	01	1	1409-					●

119 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	CONNECTOR (A) THA	8-98099-784-1	01	1	1409-	●	●	●	●
25	CONNECTOR EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-784-1	01	1	1409-					●	●
25	CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-					●	●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-722-4	01	1	1409-			●	●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98099-714-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-714-4	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98099-740-4	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-740-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98155-586-2	01	1	1409-					●

119 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	CONNECTOR (A) THA	8-98099-784-1	01	1	1409-	●	●	●	●
25	CONNECTOR EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) THA	8-98099-784-1	01	1	1409-					●	●
25	CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) THA	8-98099-785-1	01	1	1409-					●	●
119	PIPE; BRK,2WAY TO RR HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-722-4	01	1	1409-			●	●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-722-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA	8-98099-714-4	01	1	1409-	●				●
119	PIPE; BRK,2WAY TO RR THA	8-98099-714-4	01	1	1409-		●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> THA	8-98099-740-4	01	1	1409-					●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98099-740-4	01	1	1409-						●
119	PIPE; BRK,2WAY TO RR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98155-586-2	01	1	1409-					●
