3-30 — BRAKE MASTER CYLINDER (#148295) — 7 parça

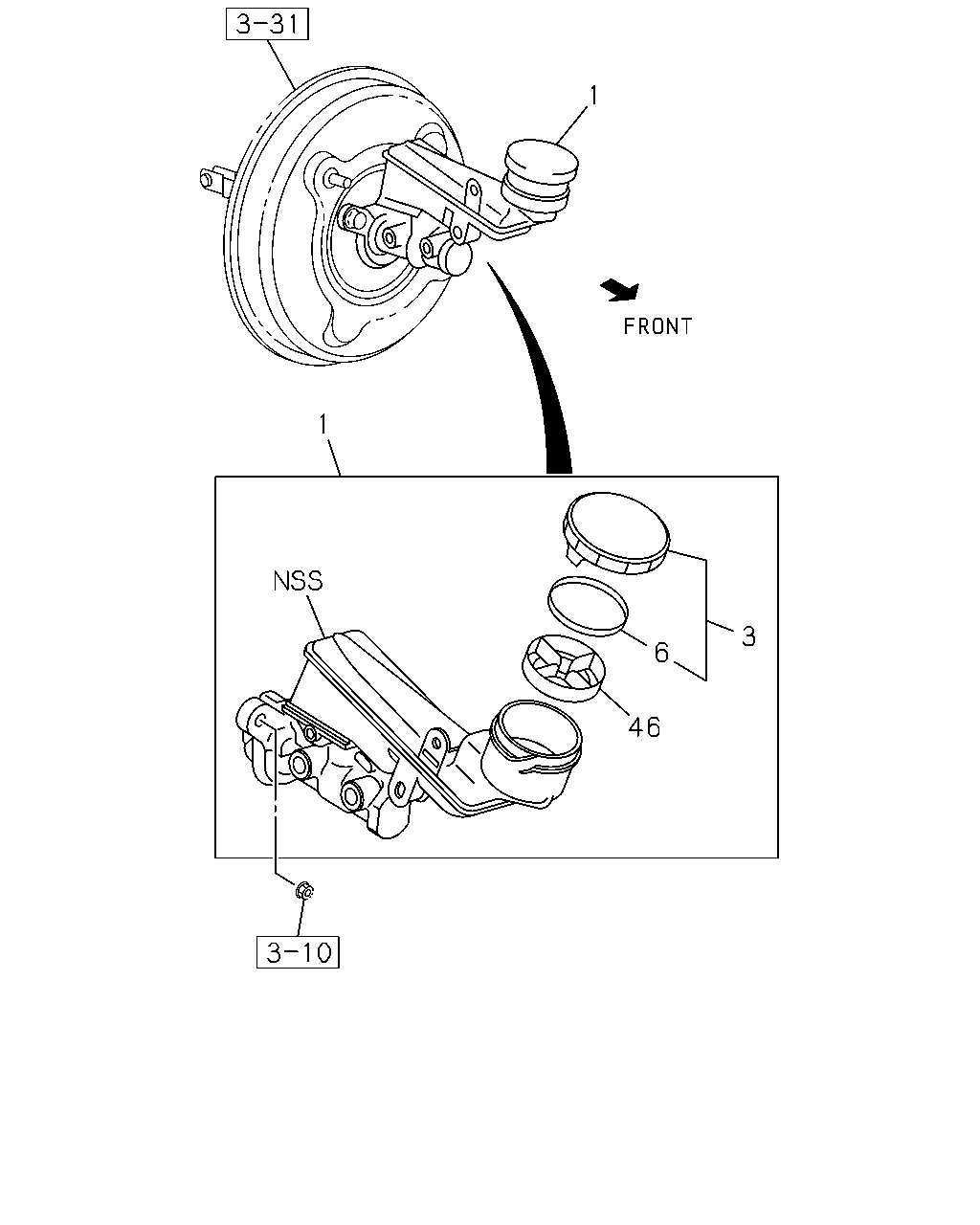

çizim 443438
6 3 46 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-228-0 01 1 1409- ● ● ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-227-0 01 1 1409- ● ● ● ● ● ●
1 CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-230-0 01 1 1409- ● ●
1 CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98163-229-0 01 1 1409- ● ●
3 CAP; OIL TANK
THA 		8-98047-704-0 01 1 1409- ● ● ● ● ● ●
6 DIAPHRAGM; BRK M/CYL
THA 		8-98047-706-0 01 1 1409- ● ● ● ● ● ●
46 FILTER; OIL TANK,M/CYL
THA 		8-98047-702-0 01 1 1409- ● ● ● ● ● ●
