3-10 — BRAKE PEDAL AND CONTROL (#148293) — 22 parça

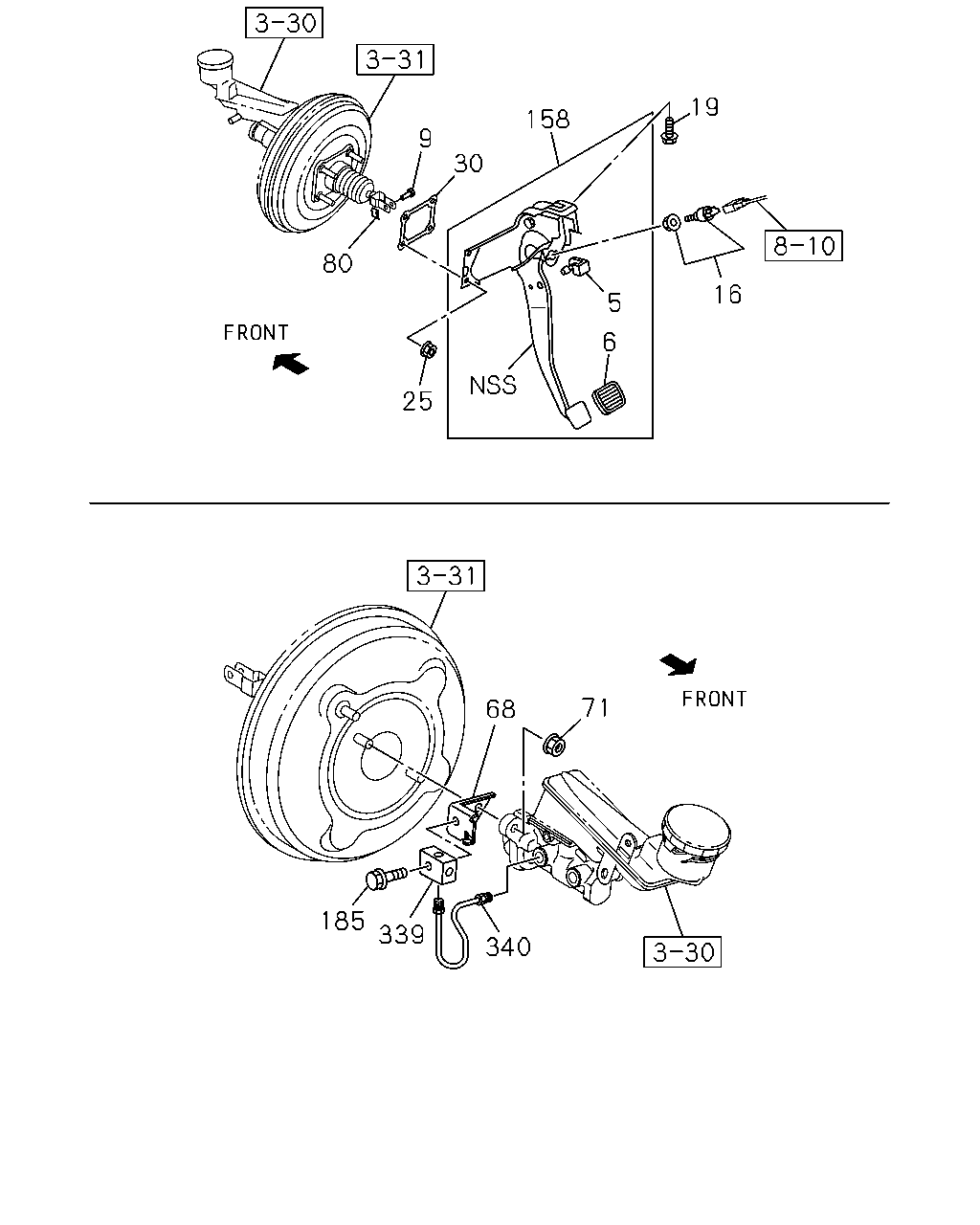

çizim 443549
340 71 68 339 185 5 6 16 19 158 30 9 80 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 STOPPER; BRK PEDAL
THA 		1-73996-231-1 01 1 1409- ● ● ● ● ● ●
6 COVER; BRK PEDAL
A/T 5 SPEED-AISIN<MA1> THA 		8-97263-035-0 01 1 1409- ● ● ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-97318-799-0 01 1 1409- ● ● ● ● ● ●
9 PIN; JAW JOINT
IMA 		8-97311-602-0 01 1 1409- ● ● ● ● ● ●
16 SWITCH; STOP LAMP
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98140-487-0 01 1 1409- ● ● ● ● ● ●
16 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98140-486-0 01 1 1409- ● ● ● ● ●
16 SWITCH; STOP LAMP
4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98140-486-0 01 1 1409- ● ● ● ●
19 BOLT; BRKT
M8X22.5 W/PL WASHER THA 		8-97947-104-1 01 1 1409- ● ● ● ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		8-97581-233-0 04 1 1409- ● ● ● ● ● ●
30 GASKET; M/VAC TO BODY
THA 		8-97943-457-0 01 1 1409- ● ● ● ● ● ●
68 BRACKET; SERVO TO DASH PANEL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-234-0 01 1 1409- ● ● ● ●
68 BRACKET; SERVO TO DASH PANEL
THA 		8-98163-234-0 01 1 1409- ● ●
71 NUT; BRK M/CYL
THA 		8-98031-675-0 02 1 1409- ● ● ● ● ● ●
80 PIN; SNAP,BRK PEDAL
IMA 		8-98007-161-0 01 1 1409- ● ● ● ● ● ●
158 PEDAL ASM; BRK
A/T 5 SPEED-AISIN<MA1> THA 		8-98061-818-1 01 1 1409- ● ● ● ●
158 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98061-817-1 01 1 1409- ● ● ● ● ● ●
185 BOLT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X35 FLANGE THA 		8-97947-755-0 01 1 1409- ● ● ● ●
185 BOLT; BRKT
M8X35 FLANGE THA 		8-97947-755-0 01 1 1409- ● ●
339 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98163-269-0 01 1 1409- ● ● ● ●
339 CONNECTOR; OIL PIPE
THA 		8-98163-269-0 01 1 1409- ● ●
340 PIPE; BRK M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97947-756-0 01 1 1409- ● ● ● ●
340 PIPE; BRK M/CYL
THA 		8-97947-756-0 01 1 1409- ● ●
