3-02 — FRONT DISC BRAKE CALIPER (#148291) — 18 parça

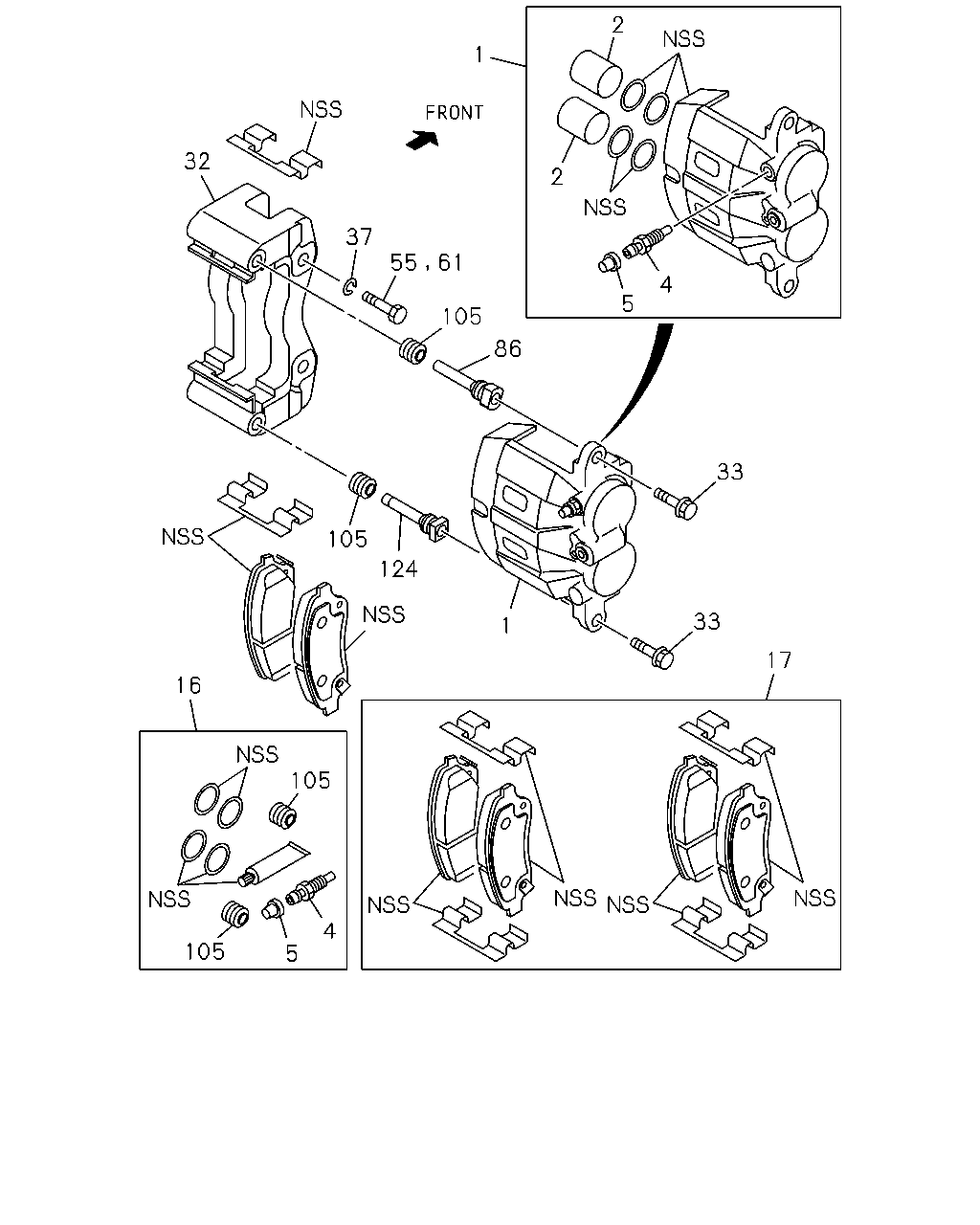

çizim 443459
1 2 2 4 5 86 105 55 37 32 61 124 105 16 105 105 5 4 17 33 1 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CALIPER; FRT DISC BRK
THA 		8-98077-996-0 01 1 1409- ● ● ● ● ● ●
1 CALIPER; FRT DISC BRK
THA 		8-98077-997-0 01 1 1409- ● ● ● ● ● ●
2 PISTON; CALIPER,DISC BRK,FRT
THA 		8-98078-000-0 04 1 1409- ● ● ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
IMA 		8-98050-476-0 02 1 1409- ● ● ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT
IMA 		8-98050-479-0 02 1 1409- ● ● ● ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
THA 		8-98079-105-0 01 1 1409- ● ● ● ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-571-0 01 1 1409- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
THA 		8-97947-571-0 01 1 1409- ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-466-0 01 1 1409- ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
THA 		8-97947-466-0 01 1 1409- ●
32 SUPPORT; FRT DISC BRK
THA 		8-97947-221-0 02 1 1409- ● ● ● ● ● ●
33 BOLT; SUPPORT BRKT TO DISC BRK
THA 		8-98078-192-0 04 1 1409- ● ● ● ● ● ●
37 WASHER; LK
ID=14.2 IMA 		0-91510-814-0 04 1 1409- ● ● ● ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
THA 		8-98037-731-0 02 1 1409- ● ● ● ● ● ●
61 BOLT; SUPPORT BRKT TO KNUCKLE
THA 		8-98037-731-0 02 1 1409- ● ● ● ● ● ●
86 PIN; GUIDE
THA 		8-98078-175-0 02 1 1409- ● ● ● ● ● ●
105 BOOT; CALIPER
THA 		8-98078-193-0 04 1 1409- ● ● ● ● ● ●
124 PIN ASM; W/BUSH
THA 		8-98078-176-0 02 1 1409- ● ● ● ● ● ●
