0-37 — TURBOCHARGER (#14829) — 27 parça

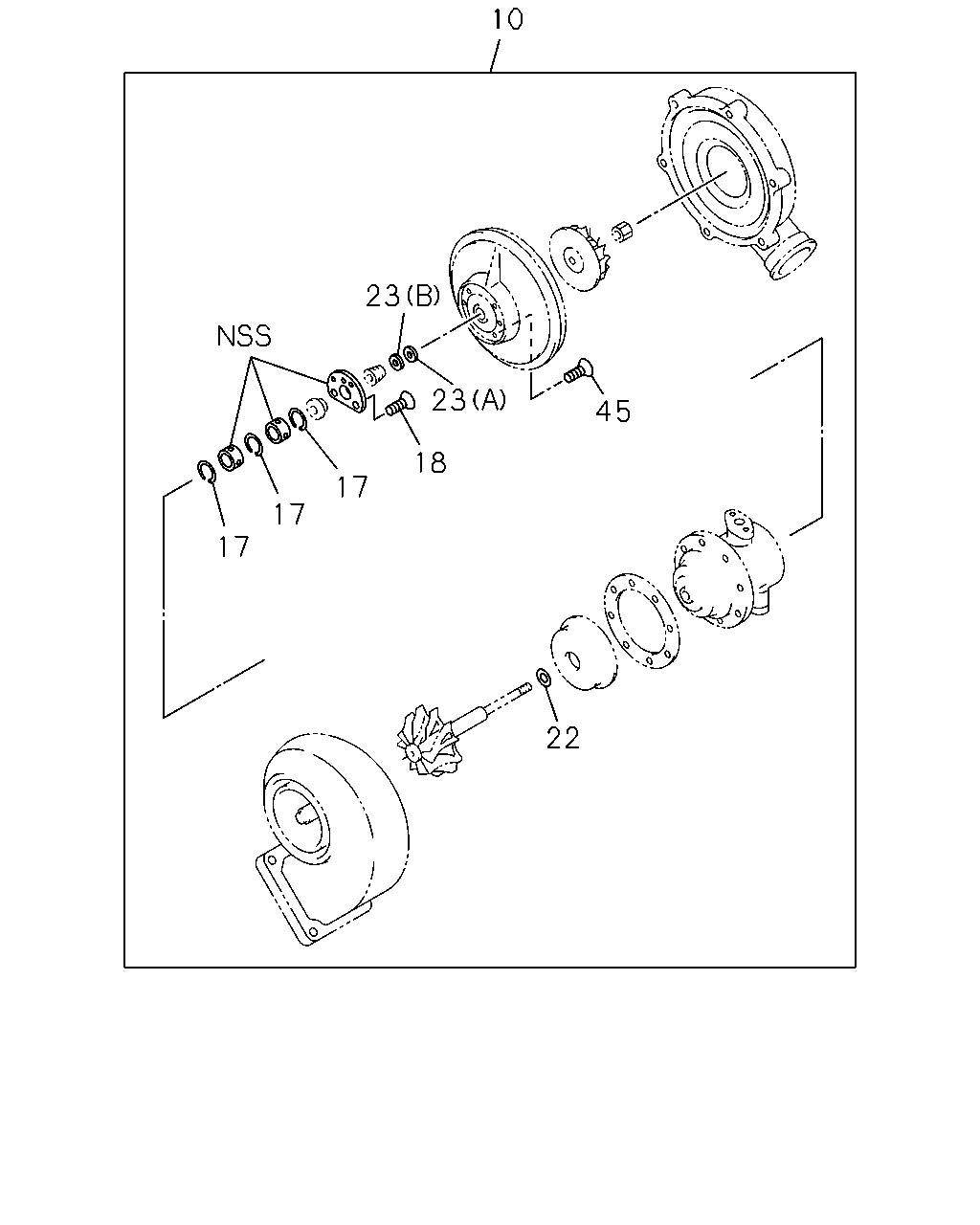

çizim 144291
10 23 23 45 18 17 17 17 22
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14453-082-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14455-025-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-09100-016-0 04 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14453-037-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-356-1 		1-14453-035-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-356-1 		1-14453-036-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-09100-026-0 04 1 -

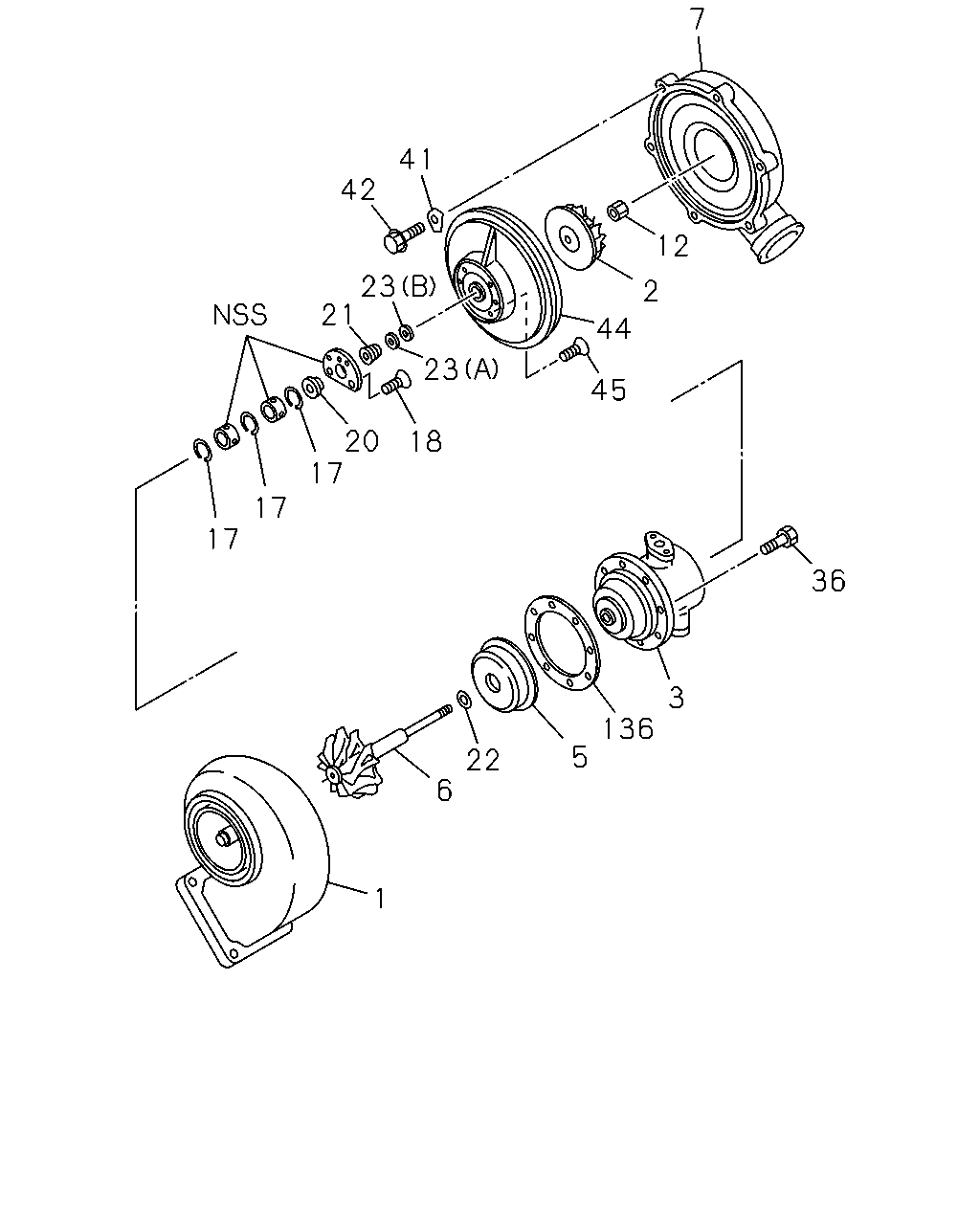

çizim 144294
7 41 42 12 23 21 2 44 23 45 20 17 18 17 17 36 3 136 5 22 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14415-102-1 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14451-058-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14411-056-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14425-027-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14450-051-1 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14414-098-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-356-1 		1-09400-041-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14455-025-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-09100-016-0 04 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14453-073-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14455-037-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14453-037-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-356-1 		1-14453-035-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-356-1 		1-14453-036-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 1-14400-356-1 		1-09000-611-0 08 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14421-016-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-09000-404-0 06 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14425-026-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-09100-026-0 04 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-356-1 		1-14412-007-0 01 1 -
