2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#148288) — 26 parça

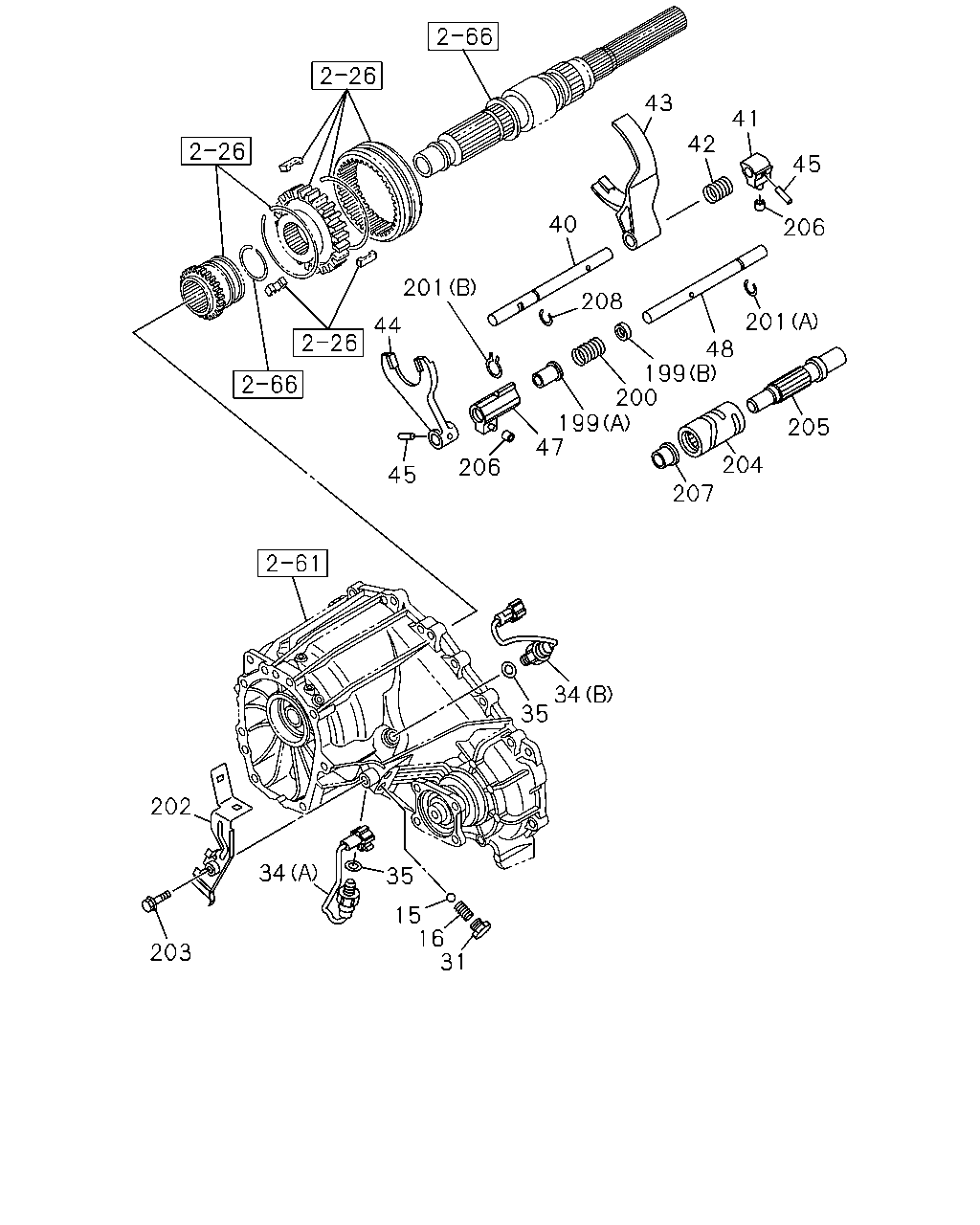

çizim 443546
201 44 45 206 47 199 200 199 48 201 206 45 41 42 43 40 208 35 34 35 34 202 203 15 16 204 207 205 31
BalonParca AdiParca NoAdetTipApplied Date A B C
15 BALL; DETENT,SHIFT ROD,TRANSFER
IMA 		8-94435-335-0 02 1 1409- ● ● ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 IMA 		8-97145-374-0 02 1 1409- ● ● ●
31 PLUG; DETENT BALL,TRANSFER
M12X9 IMA 		0-92002-412-0 02 1 1409- ● ● ●
34 SWITCH; TRANSFER INDICATOR
(A) IMA 		8-98181-233-0 01 1 1409- ● ● ●
34 SWITCH; TRANSFER INDICATOR
(B) IMA 		8-98181-234-0 01 1 1409- ● ● ●
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 THA 		9-09571-414-0 02 1 1409- ● ● ●
40 ROD; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-229-0 01 1 1409- ● ● ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-233-1 01 1 1409- ● ● ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER
IMA 		8-97239-010-1 01 1 1409- ● ● ●
43 ARM; SHIFT,4X2-4X4,TRANSFER
IMA 		8-97234-231-0 01 1 1409- ● ● ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER
IMA 		8-97300-106-1 01 1 1409- ● ● ●
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 IMA 		8-94171-541-0 02 1 1409- ● ● ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER
IMA 		8-98161-034-0 01 1 1409- ● ● ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER
IMA 		8-97234-230-0 01 1 1409- ● ● ●
199 COLLAR; TRANSFER CONTROL
(A) IMA 		8-97234-662-1 01 1 1409- ● ● ●
199 COLLAR; TRANSFER CONTROL
(B) IMA 		8-97234-663-1 01 1 1409- ● ● ●
200 SPRING; SHIFT HIGH-LOW
IMA 		8-97239-011-0 01 1 1409- ● ● ●
201 RING; SNAP,SHIFT
(A) ID=12 IMA 		8-94460-357-0 01 1 1409- ● ● ●
201 RING; SNAP,SHIFT
(B) ID=23 IMA 		8-97305-011-1 01 1 1409- ● ● ●
202 BRACKET; SWITCH
IMA 		8-98118-922-1 01 1 1409- ● ● ●
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE THA 		0-28650-825-0 01 1 1409- ● ● ●
204 DRUM; SHIFT
IMA 		8-98158-123-0 01 1 1409- ● ● ●
205 SHAFT; SHIFT DRUM
IMA 		8-98063-364-1 01 1 1409- ● ● ●
206 ROLLER; GUIDE,SHIFT
IMA 		8-97234-499-0 02 1 1409- ● ● ●
207 BUSH; CONTROL SHAFT
IMA 		8-98158-124-0 01 1 1409- ● ● ●
208 RING; SNAP,SHIFT
ID=12 IMA 		8-94460-357-0 01 1 1409- ● ● ●
