◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#148280) — 61 parça

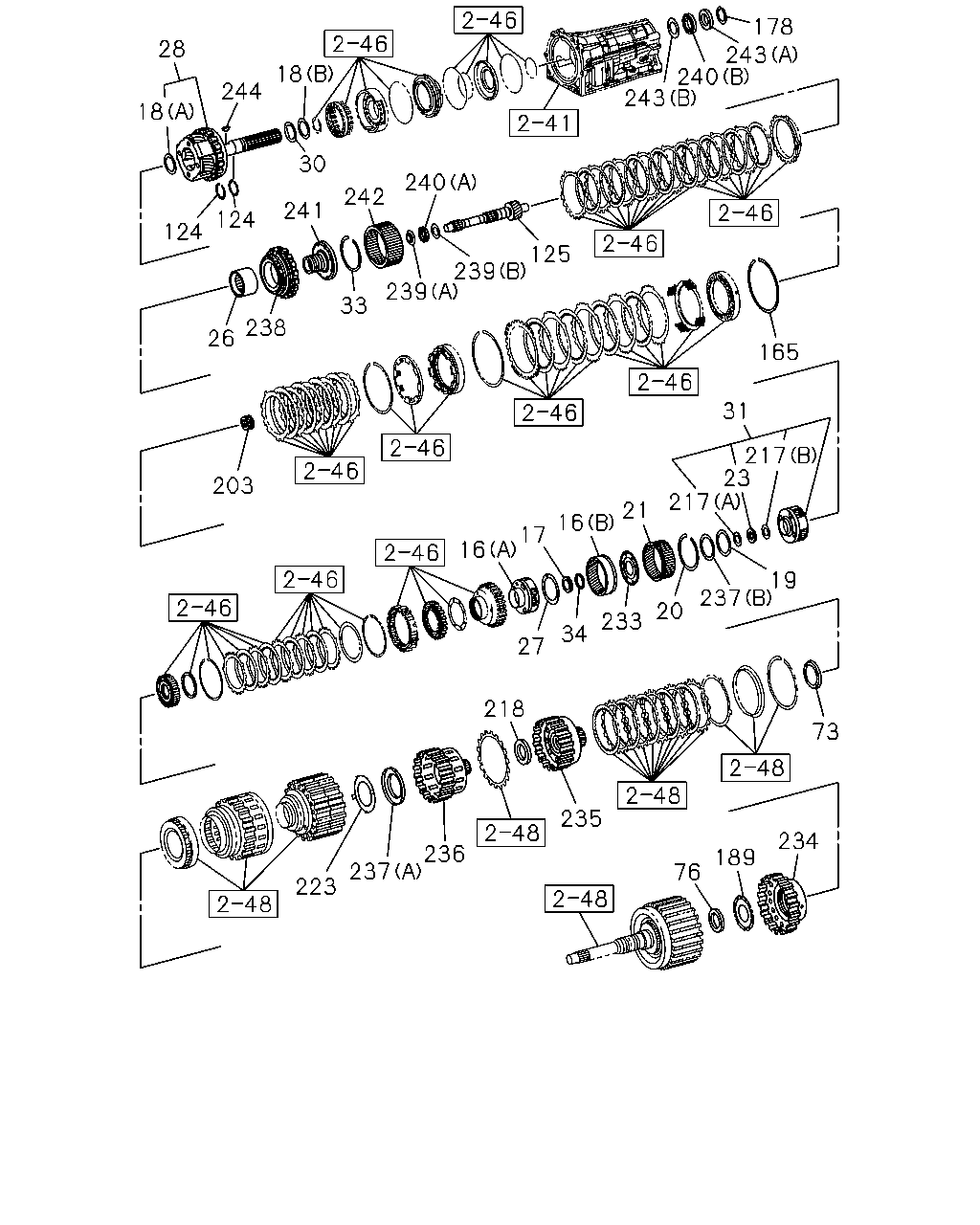

çizim 443868
18 28 18 244 30 241 124 124 242 240 243 240 243 178 165 31 217 23 217 21 16 17 16 203 26 238 33 239 239 125 19 237 20 233 34 27 218 73 234 189 76 236 237 223 235
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) THA 		8-98189-682-0 01 1 1409-
16 GEAR ASM; FRT PLANETARY,A/T
(B) THA 		8-98189-686-0 01 1 1409-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 THA 		8-98189-684-0 01 1 1409-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) THA 		8-98189-708-0 01 1 1409-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) THA 		8-98189-712-0 01 1 1409-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
THA 		8-98189-692-0 01 1 1409-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 THA 		8-98189-691-0 01 1 1409-
21 GEAR; PLANETARY,INTERNAL FRT,A/T
THA 		8-98189-688-0 01 1 1409-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
THA 		8-98189-695-0 01 1 1409-
26 RACE; ONEWAY CLU,A/T
THA 		8-98189-701-0 01 1 1409-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 THA 		8-98189-683-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98189-707-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-707-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-774-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-774-0 01 1 1409-
28 GEAR ASM; RR PLANETARY,A/T
4X4<TFS***> THA 		8-98189-784-0 01 1 1409-
30 RACE; THRUST BRG,RR PLANETARY FLANGE
THA 		8-98189-711-0 01 1 1409-
31 GEAR ASM; INTERNAL,PLANETARY,A/T
THA 		8-98189-694-0 01 1 1409-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 THA 		8-98189-710-0 01 1 1409-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/
THA 		8-98189-685-0 01 1 1409-
73 WASHER; THRUST,CARRIER
ID=74 THA 		8-98189-679-0 01 1 1409-
76 BEARING; THRUST,CARRIER
THA 		8-98189-673-0 01 1 1409-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=33 THA 		8-98189-775-0 02 1 1409-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=33 THA 		8-98189-775-0 02 1 1409-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR
THA 		8-98189-698-0 01 1 1409-
165 RING; RET
ID=151 THA 		8-98189-702-0 01 1 1409-
178 RING; RET
4X2<TFB***> ID=34 THA 		8-98189-730-0 01 1 1409-
189 RACE; INNER,LOW CLU
ID=23 THA 		8-98189-670-0 01 1 1409-
203 GEAR; SUN
Z=31 THA 		8-98189-699-0 01 1 1409-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) THA 		8-98189-696-0 01 1 1409-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) THA 		8-98189-697-0 01 1 1409-
218 BEARING; THRUST,INTERNAL GEAR
THA 		8-98189-680-0 01 1 1409-
223 RACE; BRG,CARRIER
THA 		8-98189-675-0 01 1 1409-
233 FLANGE; FR PLANETARY
THA 		8-98189-687-0 01 1 1409-
234 HUB; FORWARD CLUTCH
THA 		8-98189-674-0 01 1 1409-
235 HUB; REVERSE CLUTCH
THA 		8-98189-681-0 01 1 1409-
236 HUB; CLUTCH
THA 		8-98189-678-0 01 1 1409-
237 BEARING; THRUST
(A) THA 		8-98189-676-0 01 1 1409-
237 BEARING; THRUST
(B) THA 		8-98189-693-0 01 1 1409-
238 CLUTCH ASM; 1WAY
THA 		8-98189-700-0 01 1 1409-
239 RACE; INTERMEDIATE SHAFT
(A) THA 		8-98189-703-0 01 1 1409-
239 RACE; INTERMEDIATE SHAFT
(B) THA 		8-98189-704-0 01 1 1409-
240 BEARING; THRUST NEEDLE ROLLER
4X2<TFB***> (B) THA 		8-98189-729-0 01 1 1409-
240 BEARING; THRUST NEEDLE ROLLER
(A) THA 		8-98189-705-0 01 1 1409-
241 FLANGE; RR PLANETARY
THA 		8-98189-706-0 01 1 1409-
242 GEAR; RR PLANETARY
THA 		8-98189-709-0 01 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=3.8 THA 		8-98189-716-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=3.9 THA 		8-98189-717-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.0 THA 		8-98189-718-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.1 THA 		8-98189-719-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.2 THA 		8-98189-720-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=3.85 THA 		8-98189-721-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=3.95 THA 		8-98189-722-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.05 THA 		8-98189-723-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.15 THA 		8-98189-724-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.25 THA 		8-98189-725-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.30 THA 		8-98189-726-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (A) T=4.35 THA 		8-98189-727-0 AR 1 1409-
243 RACE; THRUST BEARING
4X2<TFB***> (B) T=2.0 THA 		8-98189-728-0 01 1 1409-
244 KEY; WOODRUF,PLANETARY GEAR
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-94479-904-0 01 1 1409-
244 KEY; WOODRUF,PLANETARY GEAR
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-94479-904-0 01 1 1409-
