Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

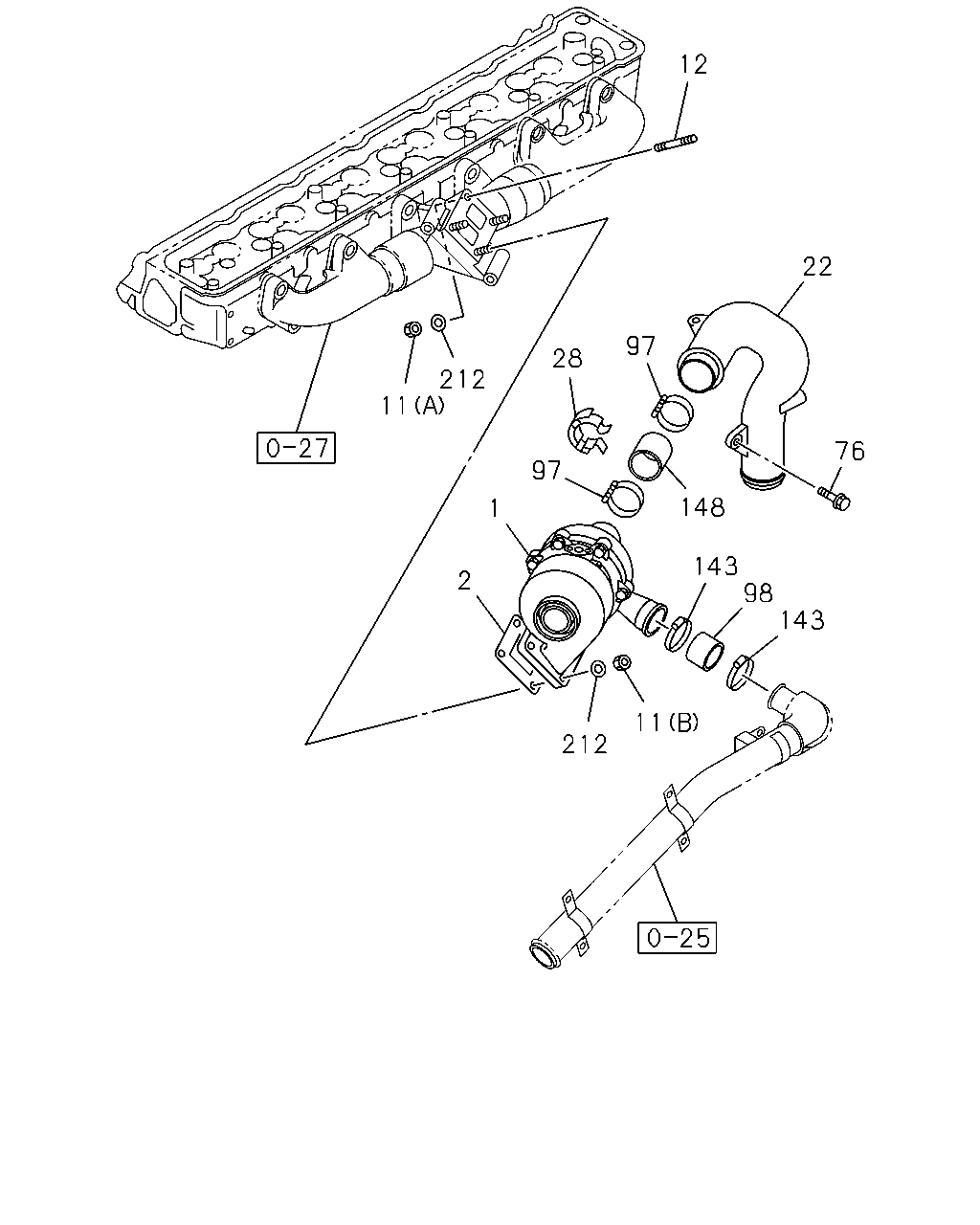

0-36 — TURBOCHARGER SYSTEM
(#14828) — 16 parça
12
22
97
28
212
11
76
97
148
1
143
98
143
2
11
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
1-14400-356-1
01
1
0711-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-181-0
01
1
0711-
11
NUT; TURBOCHARGER
(A) M10
1-09420-005-0
01
1
0711-
11
NUT; TURBOCHARGER
(B) M10 P=1.5 H=8
9-09842-007-0
03
1
0711-
12
STUD; TURBOCHARGER
M10X30,M10X22.5 L=45
9-04731-030-0
01
1
0711-
22
DUCT; INL,ACL TO TURBOCHARGER
1-14134-161-1
01
1
0711-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
1-14181-221-0
01
1
0711-
76
BOLT; AIR DUCT
M10X90 FLANGE
0-28051-090-0
02
1
0711-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=86
9-09915-592-0
02
1
0711-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
0711-1408
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98245-240-0
01
1
1409-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76
1-09707-203-0
04
1
0711-0809
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76
1-09707-203-0
02
1
0810-0811
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
0812-
148
HOSE; TURBOCHARGER,INL
1-09360-403-1
01
1
0711-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
0711-
