Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

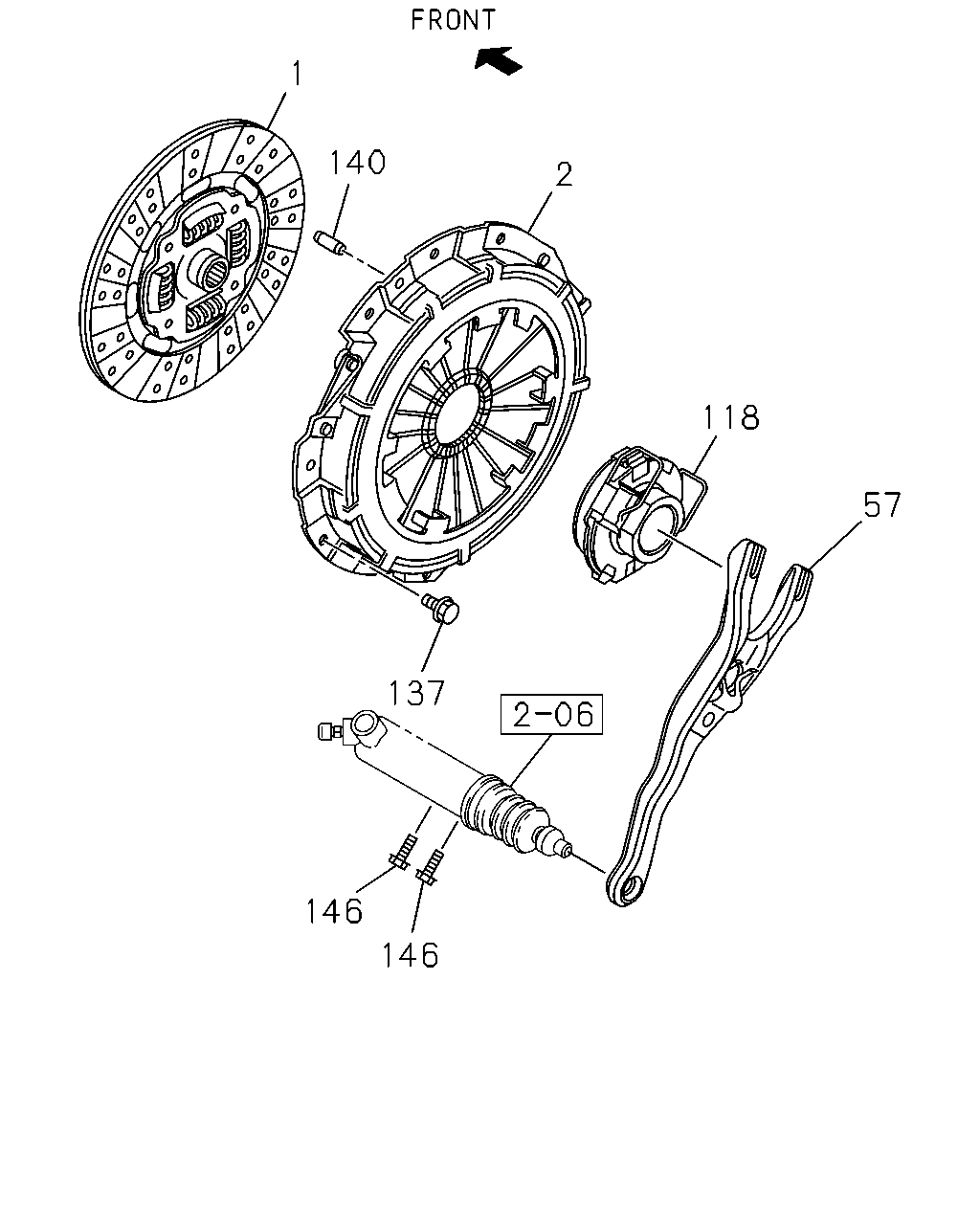

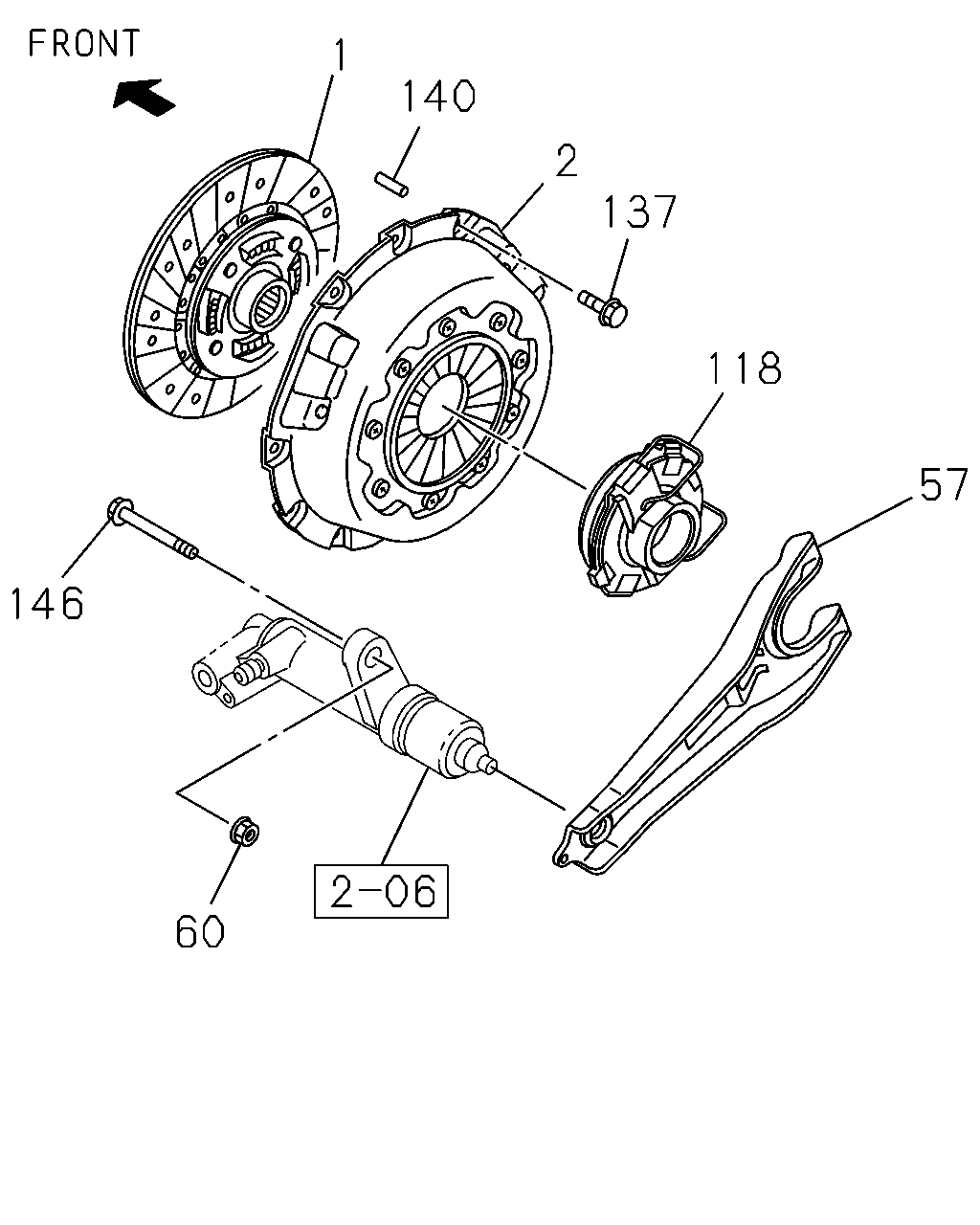

2-01 — CLUTCH
(#148264) — 33 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀
[201A] M/T MUA (17 parça)
[201A] M/T MUX (16 parça)
▶
60
146
57
118
137
2
140
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA
8-97946-585-1
01
1
1409-
●
●
1
DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA
8-98156-299-2
01
1
1409-
●
2
PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA
8-97947-516-0
01
1
1409-
●
●
2
PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-97946-586-2
01
1
1409-1409
●
2
PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-98283-194-0
01
1
1409-
●
57
FORK; SHIFT,CLU
M/T MUA 5 SPEED 5H<MWQ> IMA
8-97365-654-0
01
1
1409-
●
●
57
FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-97946-622-1
01
1
1409-
●
60
NUT; SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ> M12 FLANGE THA
0-91180-112-0
01
1
1409-
●
●
●
118
BEARING; CLU RELEASE
M/T MUA 5 SPEED 5H<MWQ> NSK ID=44.1 OD=78 IMA
8-98096-168-0
01
1
1409-
●
●
118
BEARING; CLU RELEASE
M/T MUX 5 SPEED 5S<MZJ> NSK ID=44.1 OD=78 IMA
8-98169-826-1
01
1
1409-
●
137
BOLT; CLU COVER
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA
0-28050-816-0
06
1
1409-
●
●
137
BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA
0-28050-816-0
08
1
1409-
●
140
PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA
8-97945-592-0
04
1
1410-
●
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA
8-97945-592-0
02
1
1409-1409
●
●
●
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ> OD=6 L=27 THA
8-97945-592-0
02
1
1410-
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5H<MWQ> M12X90 FLANGE THA
0-28051-290-0
02
1
1409-
●
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X25 FLANGE THA
0-28651-025-0
02
1
1409-
●
146
146
137
57
118
2
140
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA
8-97946-585-1
01
1
1409-
●
●
1
DISC; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA
8-98156-299-2
01
1
1409-
●
2
PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5H<MWQ> THA
8-97947-516-0
01
1
1409-
●
●
2
PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-97946-586-2
01
1
1409-1409
●
2
PLATE ASM; PRESSURE,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-98283-194-0
01
1
1409-
●
57
FORK; SHIFT,CLU
M/T MUA 5 SPEED 5H<MWQ> IMA
8-97365-654-0
01
1
1409-
●
●
57
FORK; SHIFT,CLU
M/T MUX 5 SPEED 5S<MZJ> THA
8-97946-622-1
01
1
1409-
●
118
BEARING; CLU RELEASE
M/T MUA 5 SPEED 5H<MWQ> NSK ID=44.1 OD=78 IMA
8-98096-168-0
01
1
1409-
●
●
118
BEARING; CLU RELEASE
M/T MUX 5 SPEED 5S<MZJ> NSK ID=44.1 OD=78 IMA
8-98169-826-1
01
1
1409-
●
137
BOLT; CLU COVER
M/T MUA 5 SPEED 5H<MWQ> M8X16 FLANGE THA
0-28050-816-0
06
1
1409-
●
●
137
BOLT; CLU COVER
M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA
0-28050-816-0
08
1
1409-
●
140
PIN; STRAIGHT
M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA
8-97945-592-0
04
1
1410-
●
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=6 L=27 THA
8-97945-592-0
02
1
1409-1409
●
●
●
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5H<MWQ> OD=6 L=27 THA
8-97945-592-0
02
1
1410-
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5H<MWQ> M12X90 FLANGE THA
0-28051-290-0
02
1
1409-
●
●
●
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUX 5 SPEED 5S<MZJ> M10X25 FLANGE THA
0-28651-025-0
02
1
1409-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
