◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#148263) — 26 parça
çizim 443223
12 84 428 115 337 59 115 2 36 1 271 58 70 329
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
THA 		8-98065-528-1 01 1 1409- ●
1 PIPE; EXH
THA 		8-98140-583-1 01 1 1409- ● ●
2 GASKET; PIPE TO MANIF
ID=65 THA 		8-97263-052-0 01 1 1409- ● ● ●
12 SILENCER ASM; EXH
THA 		8-98125-376-3 01 1 1409- ●
12 SILENCER ASM; EXH
THA 		8-98140-589-2 01 1 1409- ●
12 SILENCER ASM; EXH
THA 		8-98140-590-2 01 1 1409- ●
36 NUT; EXH PIPE
M10 FLANGE IMA 		8-97096-192-1 02 1 1409- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 1409- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 1409- ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1409- ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1409- ● ● ●
115 RUBBER; MTG,SILENCER
(A) THA 		8-97289-169-0 01 1 1409- ● ● ●
115 RUBBER; MTG,SILENCER
(B) THA 		8-98124-470-0 02 1 1409- ● ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1409- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1409- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1409- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-98124-470-0 01 1 1409- ● ● ●

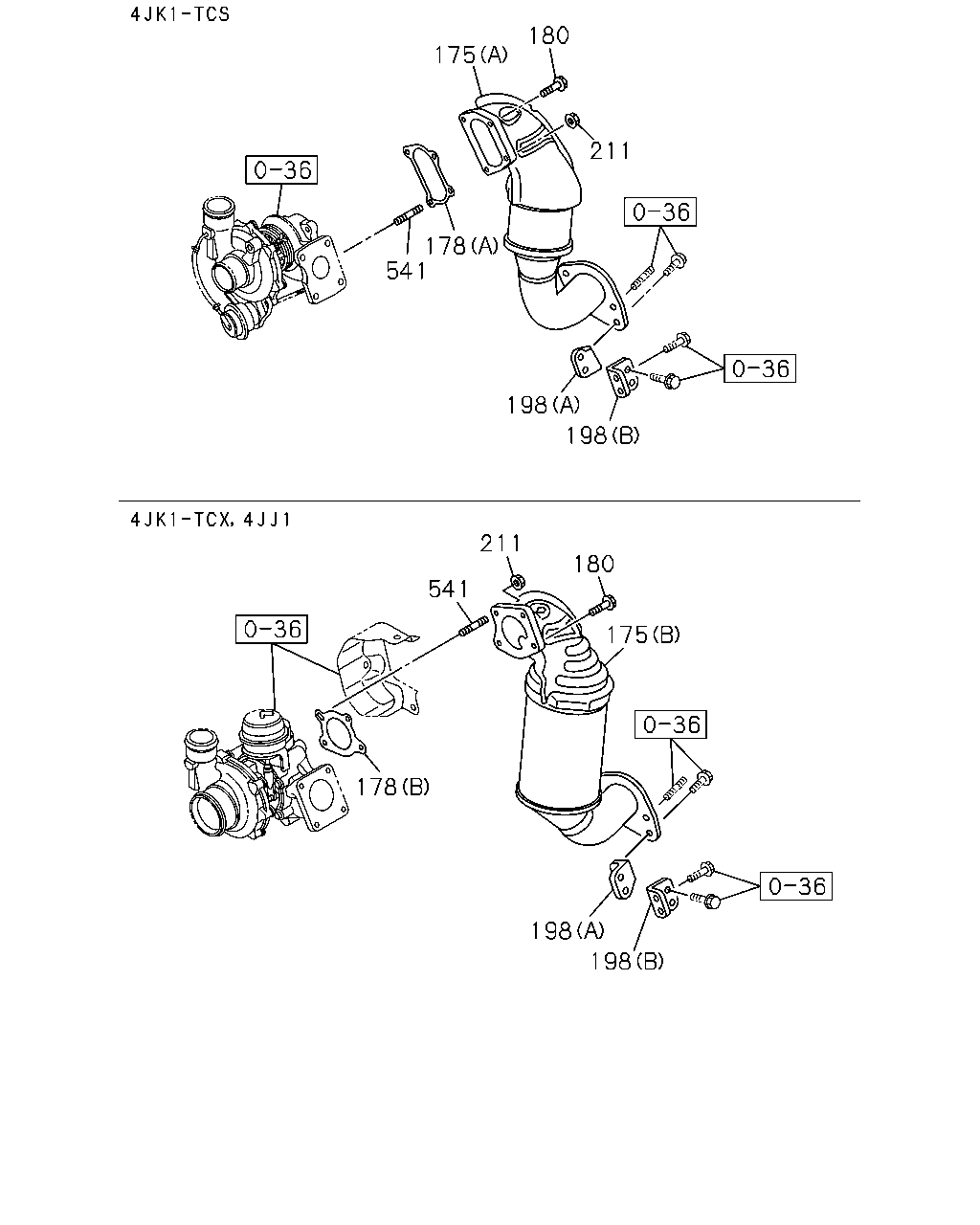

çizim 443225
198 198 175 180 211 541 178 198 198 541 178 211 180 175
BalonParca AdiParca NoAdetTipApplied Date A B C
175 CONVERTER; CATALYST
(A) THA 		8-98199-767-0 01 1 1409- ●
175 CONVERTER; CATALYST
(B) THA 		8-98132-074-2 01 1 1409- ● ●
178 GASKET; CONV TO MANIF
(A) THA 		8-97312-284-1 01 1 1409- ●
178 GASKET; CONV TO MANIF
(B) THA 		8-98132-538-0 01 1 1409- ● ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE IMA 		8-97378-077-0 02 1 1409- ● ● ●
198 BRACKET; CONV MTG
(B) THA 		8-98196-696-1 01 1 1409- ● ● ●
198 BRACKET; CONV MTG
(A) THA 		8-98203-739-0 01 1 1409- ● ● ●
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1409- ● ● ●
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1409- ● ● ●
