1-41 — FUEL PIPING; CHASSIS (#148262) — 57 parça

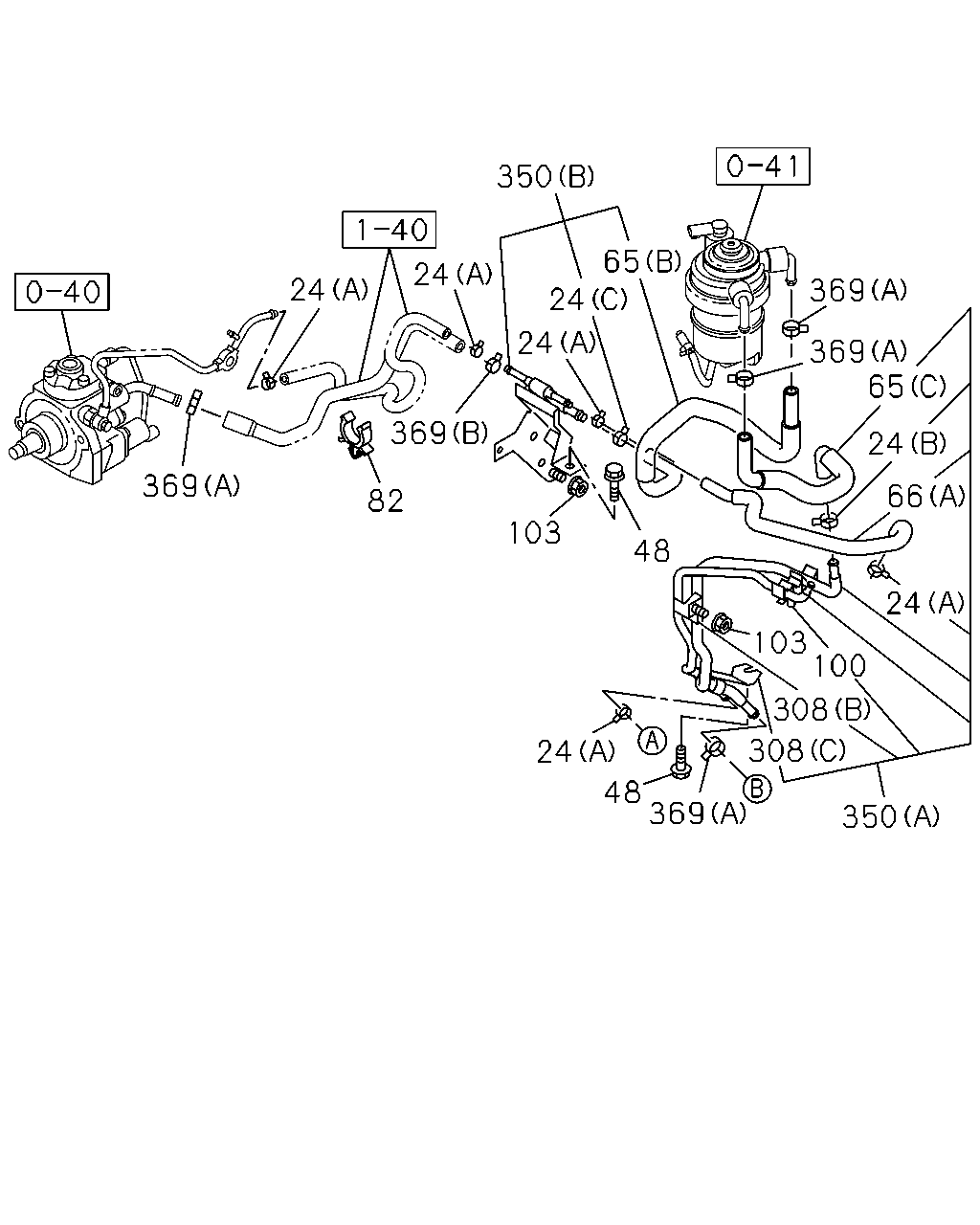

369 82 369 103 24 24 350 65 24 24 48 24 48 369 350 308 100 103 308 24 66 24 65 369 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (C) ID=16 THA	8-98030-682-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	06	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98233-886-0	02	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (E) THA	8-98233-887-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (B) ID=17.2 THA	8-98052-395-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (B) ID=17.2 THA	8-98052-395-0	01	1	1409-	●	●	●
48	BOLT; BRKT PROVISIONAL PACKAGE SPEC<BCC> M6X16 FLANGE THA	0-28650-616-0	02	1	1409-1505	●	●	●
48	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1506-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) DELIVERY THA	8-98100-729-4	01	1	1409-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (C) DELIVERY THA	8-98100-731-2	01	1	1409-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98248-701-0	01	1	1409-	●	●	●
66	HOSE; FUEL,RETURN PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) RETURN THA	8-98100-720-2	01	1	1409-	●	●	●
66	HOSE; FUEL,RETURN PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98248-702-0	01	1	1409-	●	●	●
82	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> ID=17 THA	8-94382-792-1	01	1	1409-	●	●	●
100	CLIP; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> THA	8-98113-581-0	01	1	1409-	●	●	●
103	NUT; BRKT PROVISIONAL PACKAGE SPEC<BCC> M6 FLANGE THA	0-91180-106-0	02	1	1409-1505	●	●	●
103	NUT; BRKT M6 FLANGE THA	0-91180-106-0	02	1	1506-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98128-259-0	01	1	1409-1505	●	●	●
308	BRACKET; FUEL PIPE (A) THA	8-98128-259-0	01	1	1506-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98233-889-0	01	1	1409-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98233-890-0	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98113-293-6	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98248-684-0	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98248-691-0	01	1	1409-	●	●	●
369	CLAMP; HOSE,FUEL PROVISIONAL PACKAGE SPEC<BCC> (A) ID=17.2 THA	8-98052-395-0	06	1	1409-1505	●	●	●
369	CLAMP; HOSE,FUEL (A) ID=17.2 THA	8-98052-395-0	06	1	1506-	●	●	●
369	CLAMP; HOSE,FUEL PROVISIONAL PACKAGE SPEC<BCC> (B) ID=15.2 THA	8-98186-048-0	01	1	1409-	●	●	●

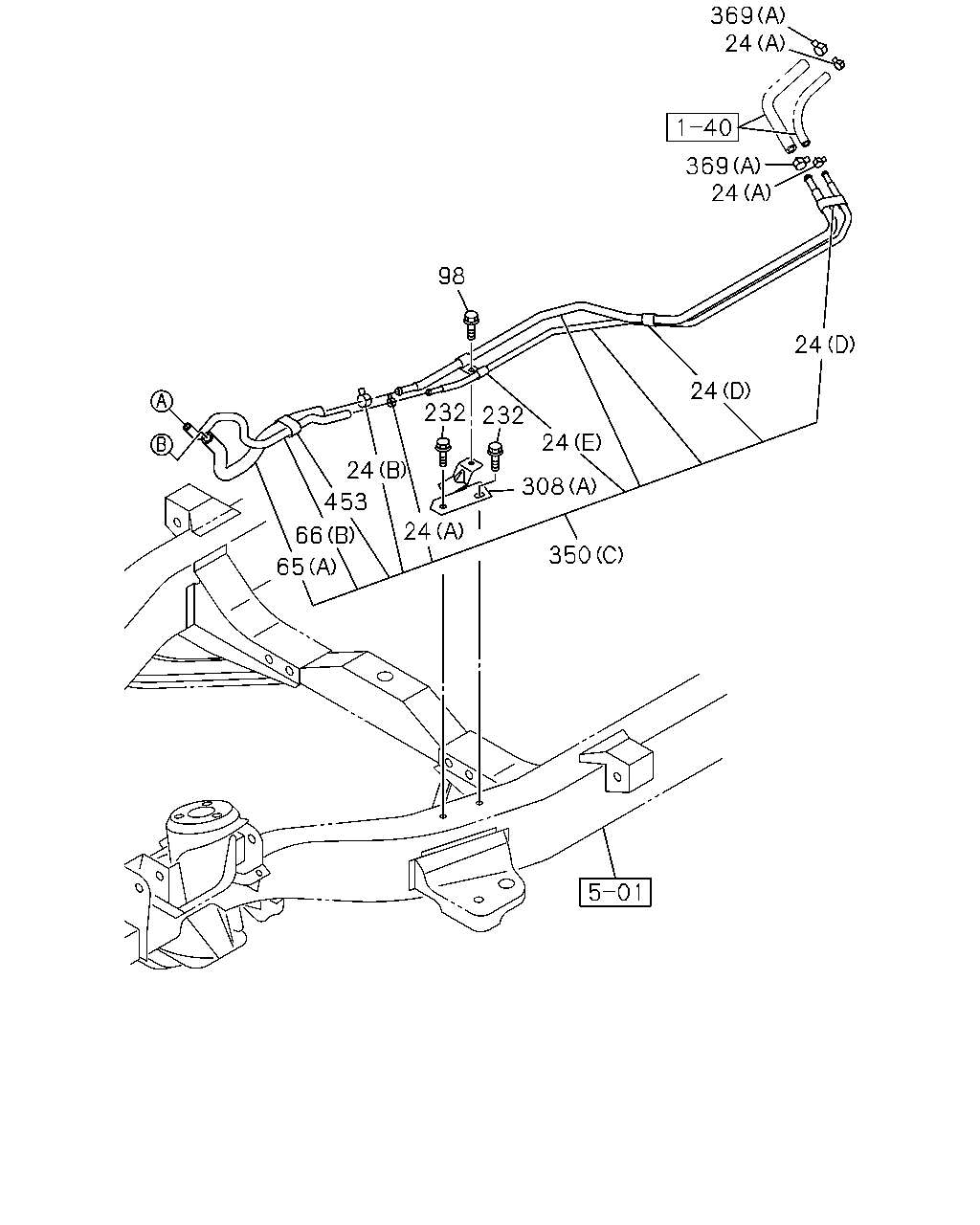

65 66 453 24 24 232 232 98 24 308 350 24 24 24 369 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (C) ID=16 THA	8-98030-682-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	06	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98233-886-0	02	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (E) THA	8-98233-887-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (A) ID=11.5 THA	8-98051-892-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (B) ID=17.2 THA	8-98052-395-0	01	1	1409-	●	●	●
24	CLIP; FUEL HOSE PROVISIONAL PACKAGE SPEC<BCC> (B) ID=17.2 THA	8-98052-395-0	01	1	1409-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) DELIVERY THA	8-98100-729-4	01	1	1409-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (C) DELIVERY THA	8-98100-731-2	01	1	1409-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98248-701-0	01	1	1409-	●	●	●
66	HOSE; FUEL,RETURN PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) RETURN THA	8-98100-720-2	01	1	1409-	●	●	●
66	HOSE; FUEL,RETURN PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98248-702-0	01	1	1409-	●	●	●
98	BOLT; BRKT,FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> M6X16 FLANGE THA	0-28650-616-0	01	1	1409-1505	●	●	●
98	BOLT; BRKT,FUEL PIPE M6X16 FLANGE THA	0-28650-616-0	01	1	1506-	●	●	●
232	BOLT; CLIP,PIPE PROVISIONAL PACKAGE SPEC<BCC> M10X25 FLANGE THA	0-28061-025-0	02	1	1409-1505	●	●	●
232	BOLT; CLIP,PIPE M10X25 FLANGE THA	0-28061-025-0	02	1	1506-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98128-259-0	01	1	1409-1505	●	●	●
308	BRACKET; FUEL PIPE (A) THA	8-98128-259-0	01	1	1506-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98233-889-0	01	1	1409-	●	●	●
308	BRACKET; FUEL PIPE PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98233-890-0	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98113-293-6	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98248-684-0	01	1	1409-	●	●	●
350	PIPE; FUEL,DEL & RET PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98248-691-0	01	1	1409-	●	●	●
369	CLAMP; HOSE,FUEL PROVISIONAL PACKAGE SPEC<BCC> (A) ID=17.2 THA	8-98052-395-0	06	1	1409-1505	●	●	●
369	CLAMP; HOSE,FUEL (A) ID=17.2 THA	8-98052-395-0	06	1	1506-	●	●	●
369	CLAMP; HOSE,FUEL PROVISIONAL PACKAGE SPEC<BCC> (B) ID=15.2 THA	8-98186-048-0	01	1	1409-	●	●	●
453	BAND; FLEX HOSE PROVISIONAL PACKAGE SPEC<BCC> THA	8-98233-888-0	01	1	1409-	●	●	●
