Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#148261) — 42 parça

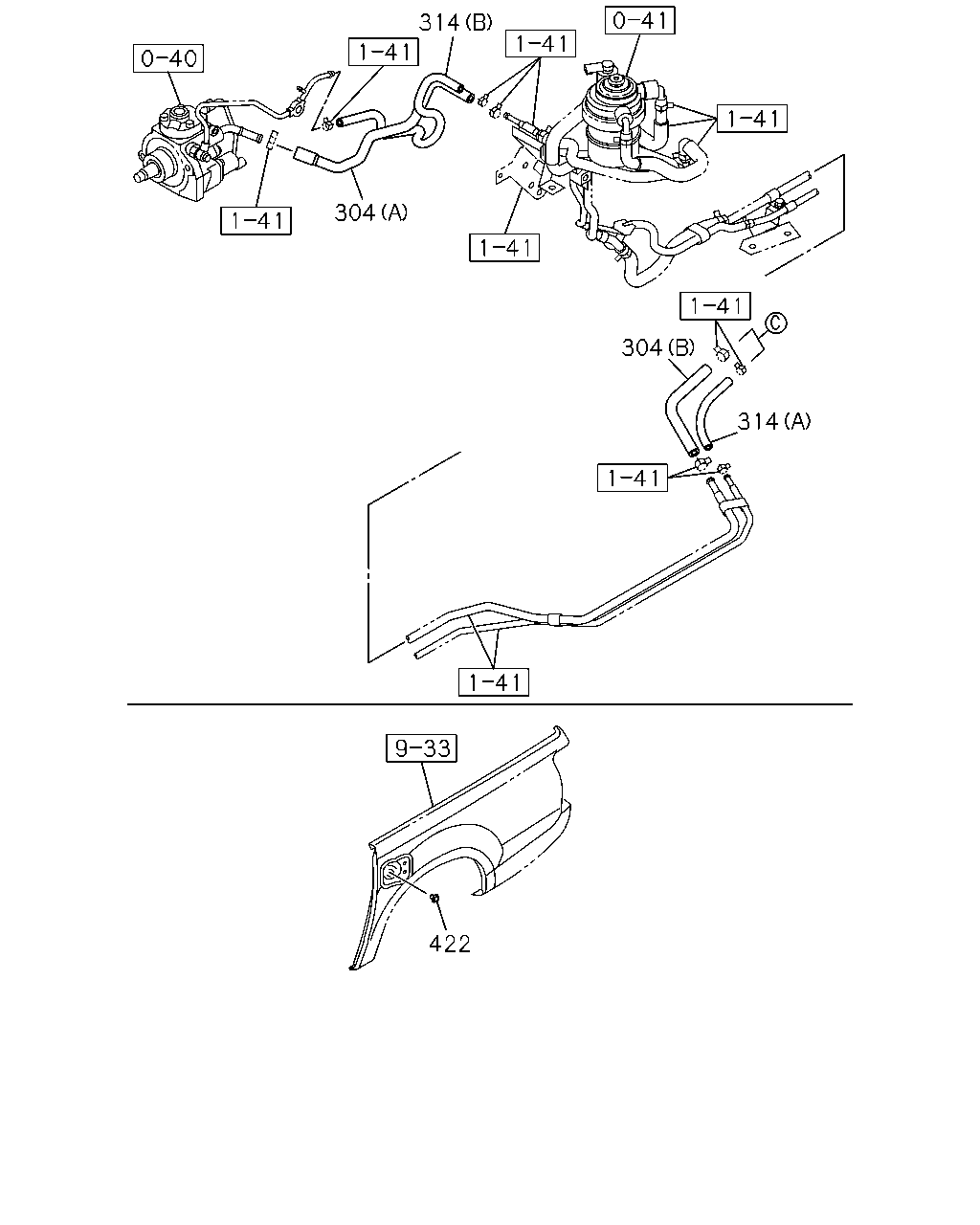

304 314 304 314 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98164-019-0	01	1	1409-1505	●	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-98164-019-0	01	1	1506-	●	●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98222-042-1	01	1	1409-	●	●	●
314	HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98222-040-0	01	1	1409-	●	●	●
314	HOSE; RUBBER,FUEL RETURN PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98258-246-0	01	1	1409-1505	●	●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-98258-246-0	01	1	1506-	●	●	●
422	PLUG; FUEL TANK REAR BODY DBL WALL CTR PULL<E63> THA	8-98154-084-0	01	1	1409-	●	●	●

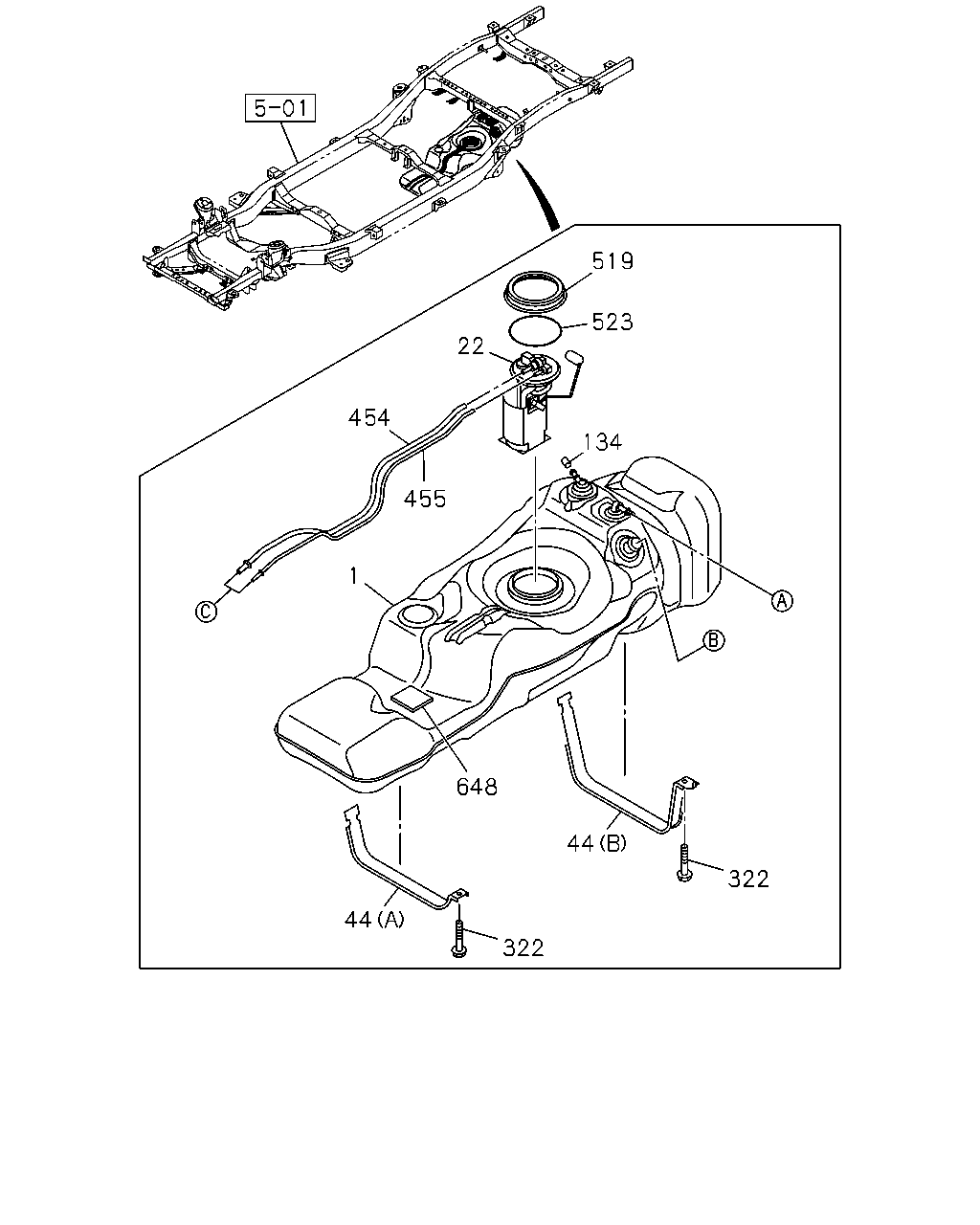

519 523 134 22 454 455 1 648 44 322 44 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 76L THA	8-97947-077-3	01	1	1409-	●	●	●
22	UNIT; FUEL TANK THA	8-97947-151-3	01	1	1409-	●	●	●
44	BAND; FUEL TANK (A) THA	8-97947-085-4	01	1	1409-	●	●	●
44	BAND; FUEL TANK (B) THA	8-97947-086-2	01	1	1409-	●	●	●
134	CAP; VALVE,FUEL TANK THA	8-98223-574-0	01	1	1409-	●	●	●
322	BOLT; BRKT FIX M10X50 FLANGE THA	8-97301-165-0	02	1	1409-	●	●	●
322	BOLT; BRKT FIX REAR BODY DELETE<8HH> M12X40 FLANGE THA	0-28051-240-0	01	1	1409-	●	●	●
454	PIPE; FUEL,DELIVERY THA	8-97947-152-0	01	1	1409-	●	●	●
455	PIPE; FUEL,RETURN THA	8-97947-153-0	01	1	1409-	●	●	●
519	RETAINER; FUEL PUMP THA	8-97947-157-0	01	1	1409-	●	●	●
523	SEAL; FUEL SENSOR ID=125 OD=135 THA	8-97947-154-0	01	1	1409-	●	●	●
648	RUBBER THA	8-98191-468-0	01	1	1409-	●	●	●

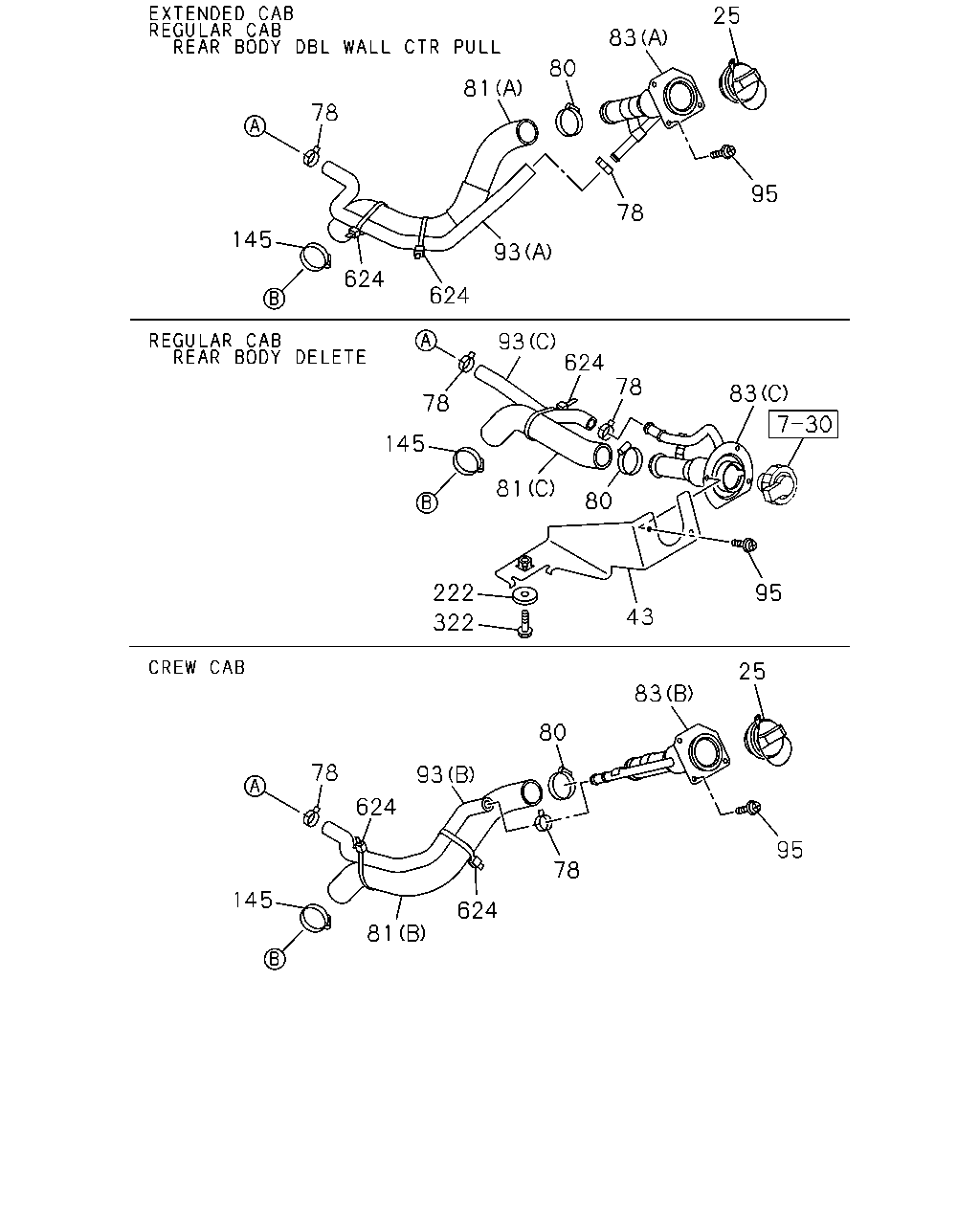

25 83 80 81 78 78 95 93 624 624 145 78 93 78 83 95 80 43 81 222 322 145 83 25 95 78 80 93 81 624 624 78 145 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL<E63> EXC. FUEL TANK CAP W/LOCK<N05> IMA	8-98088-024-0	01	1	1409-1510	●	●	●
25	CAP; FILLER,FUEL TANK REAR BODY DBL WALL CTR PULL<E63> EXC. FUEL TANK CAP W/LOCK<N05> IMA	8-98327-664-0	01	1	1511-	●	●	●
43	BRACKET; FUEL TANK REAR BODY DELETE<8HH> THA	8-97947-120-0	01	1	1409-	●	●	●
78	CLIP; BREATHER HOSE ID=20.8 THA	8-97944-127-0	01	1	1409-	●	●	●
78	CLIP; BREATHER HOSE ID=20.8 THA	8-97944-127-0	01	1	1409-	●	●	●
80	CLIP; FILLER HOSE ID=30-45 THA	8-98115-807-0	01	1	1409-	●	●	●
81	HOSE; FUEL FILLER 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> 4X4 EXTENDED CAB<TFS5CF> 4X4 REGULAR CAB<TFS5SF> REAR BODY DELETE<8HH> (A) THA	8-97947-177-2	01	1	1409-	●	●	●
81	HOSE; FUEL FILLER REAR BODY DELETE<8HH> (C) THA	8-97947-481-0	01	1	1409-	●	●	●
81	HOSE; FUEL FILLER CREW CAB<TF*W> (B) THA	8-97947-192-0	01	1	1409-	●	●	●
83	NECK; FUEL FILLER 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> 4X4 EXTENDED CAB<TFS5CF> 4X4 REGULAR CAB<TFS5SF> REAR BODY DELETE<8HH> (A) THA	8-97947-175-1	01	1	1409-	●	●	●
83	NECK; FUEL FILLER REAR BODY DELETE<8HH> (C) THA	8-97947-479-2	01	1	1409-	●	●	●
83	NECK; FUEL FILLER CREW CAB<TF*W> (B) THA	8-97947-181-0	01	1	1409-	●	●	●
93	HOSE; BREATHER,FUEL TANK 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> 4X4 EXTENDED CAB<TFS5CF> 4X4 REGULAR CAB<TFS5SF> REAR BODY DELETE<8HH> (A) THA	8-97947-176-2	01	1	1409-	●	●	●
93	HOSE; BREATHER,FUEL TANK REAR BODY DELETE<8HH> (C) THA	8-97947-480-1	01	1	1409-	●	●	●
93	HOSE; BREATHER,FUEL TANK CREW CAB<TF*W> (B) THA	8-97947-193-0	01	1	1409-	●	●	●
95	SCREW; FILLER NECK REAR BODY DBL WALL CTR PULL<E63> IMA	8-98139-595-0	03	1	1409-	●	●	●
95	SCREW; FILLER NECK REAR BODY DELETE<8HH> IMA	8-98139-595-0	02	1	1409-	●	●	●
145	CLIP; HOSE,FILLER NECK ID=30-45 THA	8-97947-244-0	01	1	1409-	●	●	●
222	WASHER; BRKT,FUEL TANK REAR BODY DELETE<8HH> ID=13 OD=40 T=6 THA	8-98098-458-0	01	1	1409-	●	●	●
322	BOLT; BRKT FIX M10X50 FLANGE THA	8-97301-165-0	02	1	1409-	●	●	●
322	BOLT; BRKT FIX REAR BODY DELETE<8HH> M12X40 FLANGE THA	0-28051-240-0	01	1	1409-	●	●	●
624	CLIP; BAND REAR BODY DBL WALL CTR PULL<E63> L=330 IMA	5-09709-118-0	02	1	1409-	●	●	●
624	CLIP; BAND REAR BODY DELETE<8HH> L=330 IMA	5-09709-118-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
