1-35 — CHARGE AIR COOLER (#148260) — 25 parça

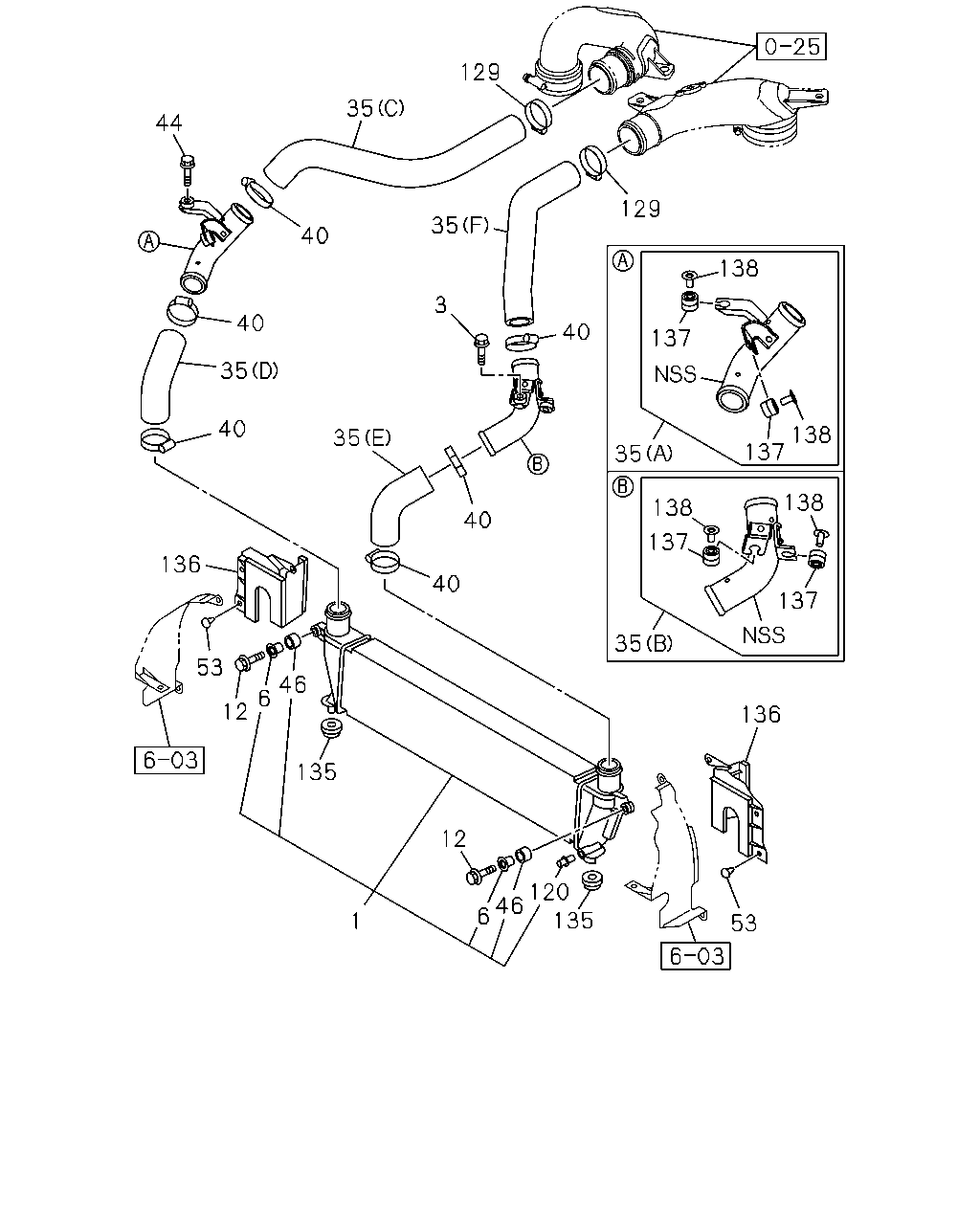

çizim 443650
129 129 40 40 40 40 40 35 35 35 35 136 53 12 135 6 1 46 12 6 135 46 53 136 120 35 137 137 137 137 138 138 138 138 35 3 44 40
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COOLER; CHARGE AIR
THA 		8-98093-027-4 01 1 1409- ● ●
1 COOLER; CHARGE AIR
THA 		8-98090-627-4 01 1 1409- ●
3 BOLT; CHARGE AIR COOLER
M6X33 W/PL WASHER THA 		8-98048-997-0 02 1 1409- ● ● ●
6 COLLAR; MTG,CHARGE AIR COOLER
THA 		8-97942-932-0 02 1 1409- ● ● ●
12 BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER THA 		8-98136-077-0 02 1 1409- ● ● ●
35 HOSE; CONNECTING
(A) THA 		8-98065-553-1 01 1 1409- ● ● ●
35 HOSE; CONNECTING
(B) THA 		8-98065-554-1 01 1 1409- ● ● ●
35 HOSE; CONNECTING
(C) THA 		8-98065-695-2 01 1 1409- ● ● ●
35 HOSE; CONNECTING
(D) THA 		8-98065-696-2 01 1 1409- ● ● ●
35 HOSE; CONNECTING
(E) THA 		8-98065-697-2 01 1 1409- ● ● ●
35 HOSE; CONNECTING
(F) THA 		8-98065-698-2 01 1 1409- ● ● ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 02 1 1409- ● ● ●
40 CLIP; RUBBER HOSE
ID=45-65 THA 		8-98133-396-0 04 1 1409- ● ● ●
44 BOLT; PIPE
M6X33 W/PL WASHER THA 		8-98048-997-0 02 1 1409- ● ● ●
46 RUBBER; MTG,CHARGE AIR COOLER
THA 		8-97942-930-0 02 1 1409- ● ● ●
53 CLIP; AIR DUCT
OD=22 L=10.7 THA 		8-94215-211-0 06 1 1409- ● ● ●
120 PIPE; WATER DRAIN
THA 		8-98189-894-0 01 1 1409- ● ● ●
129 CLAMP; HOSE
ID=45-65 THA 		8-98133-396-0 02 1 1409- ● ● ●
135 RUBBER; CUSHION
THA 		8-97249-541-1 02 1 1409- ● ● ●
136 SEAL; CHARGE AIR COOLER
THA 		8-98166-396-0 01 1 1409- ● ● ●
136 SEAL; CHARGE AIR COOLER
THA 		8-98166-398-0 01 1 1409- ● ● ●
137 RUBBER; PIPE
THA 		8-98137-144-0 02 1 1409- ● ● ●
137 RUBBER; PIPE
THA 		8-98137-144-0 02 1 1409- ● ● ●
138 COLLAR; RUBBER,PIPE
THA 		8-98137-143-0 02 1 1409- ● ● ●
138 COLLAR; RUBBER,PIPE
THA 		8-98137-143-0 02 1 1409- ● ● ●
