Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

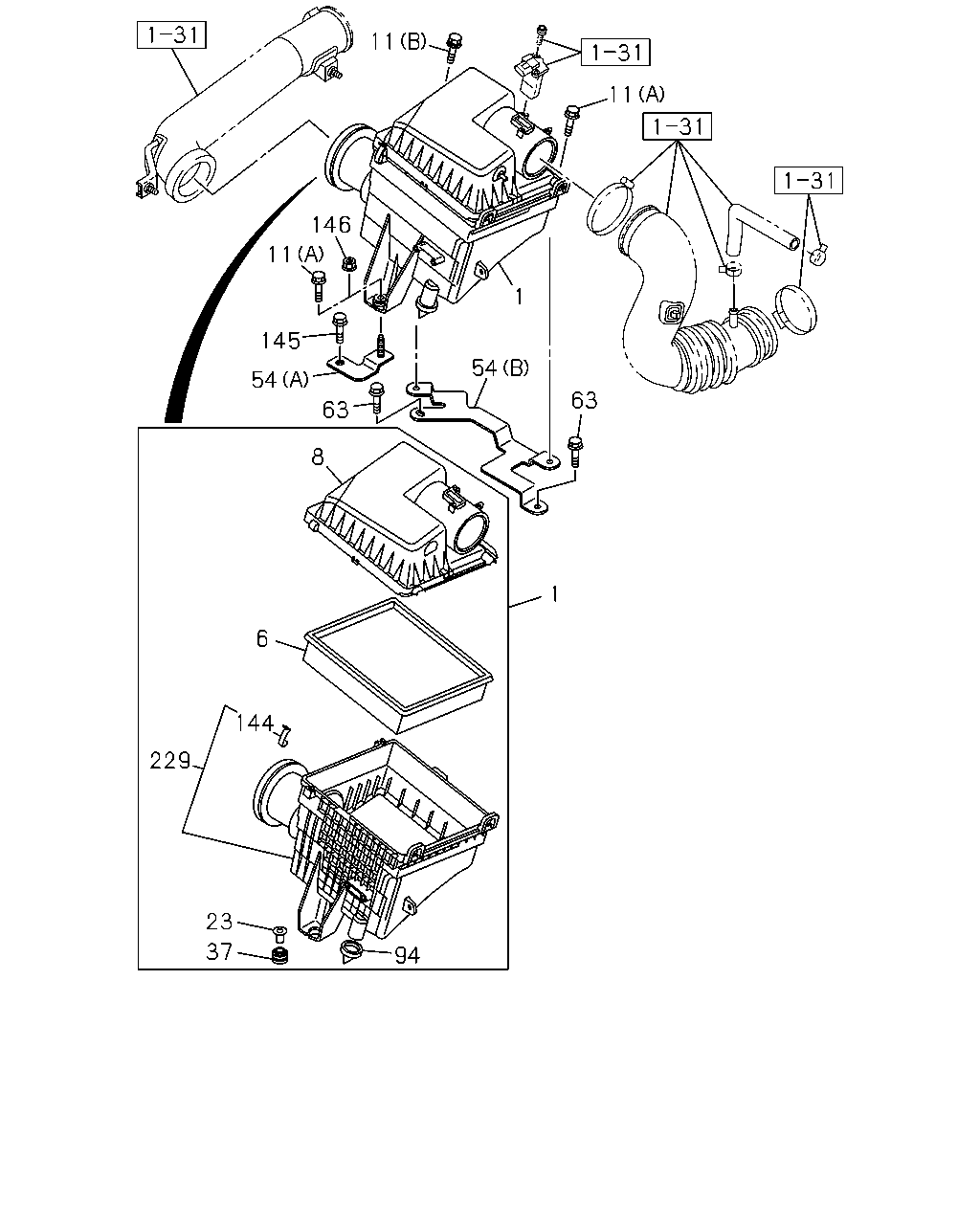

1-30 — AIR CLEANER
(#148258) — 23 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
11
146
11
145
54
54
63
1
144
229
6
23
37
94
1
63
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CLEANER ASM; AIR
THA
8-98103-916-5
01
1
1409-
●
1
CLEANER ASM; AIR
THA
8-98114-219-5
01
1
1409-
●
1
CLEANER ASM; AIR
THA
8-98104-505-5
01
1
1409-
●
6
FILTER; ACL
THA
8-98140-266-0
01
1
1409-
●
●
6
FILTER; ACL
THA
8-98140-265-0
01
1
1409-
●
8
COVER ASM; ACL
THA
8-98140-264-0
01
1
1409-
●
8
COVER ASM; ACL
THA
8-98141-385-0
01
1
1409-
●
8
COVER ASM; ACL
THA
8-98140-261-0
01
1
1409-
●
11
BOLT; ACL
EXC. REFRIGERATION KIT<7FH> (A) M8X35 FLANGE THA
0-28650-835-0
03
1
1409-
●
11
BOLT; ACL
(A) M8X35 FLANGE THA
0-28650-835-0
03
1
1409-
●
●
11
BOLT; ACL
REFRIGERATION KIT<7FH> (A) M8X35 FLANGE THA
0-28650-835-0
01
1
1409-
●
11
BOLT; ACL
REFRIGERATION KIT<7FH> (B) M8X35 W/LK&PL WASHER IMA
1-09030-073-0
01
1
1409-
●
23
COLLAR; ACL STAY
THA
8-98140-270-0
03
1
1409-
●
●
●
37
RUBBER; MTG,ACL
THA
8-98140-269-0
03
1
1409-
●
●
●
54
BRACKET; ACL
REFRIGERATION KIT<7FH> (A) THA
8-98202-338-1
01
1
1409-
●
54
BRACKET; ACL
REFRIGERATION KIT<7FH> (B) THA
8-98202-339-0
01
1
1409-
●
63
BOLT; BRKT
REFRIGERATION KIT<7FH> M8X16 FLANGE THA
8-97948-261-0
02
1
1409-
●
94
VALVE; VACUATOR
THA
8-94447-157-0
01
1
1409-
●
●
●
144
CLIP; ACL
THA
8-97324-624-0
02
1
1409-
●
●
●
145
BOLT; BRKT TO FRAME
REFRIGERATION KIT<7FH> M8X16 FLANGE THA
8-97948-261-0
01
1
1409-
●
146
NUT; BRKT TO FRAME
REFRIGERATION KIT<7FH> M8 FLANGE THA
0-91180-108-0
01
1
1409-
●
229
BODY ASM; ACL
THA
8-98140-267-0
01
1
1409-
●
●
229
BODY ASM; ACL
THA
8-98140-268-0
01
1
1409-
●
