1-11 — RADIATOR HOSE AND SUB TANK (#148257) — 42 parça

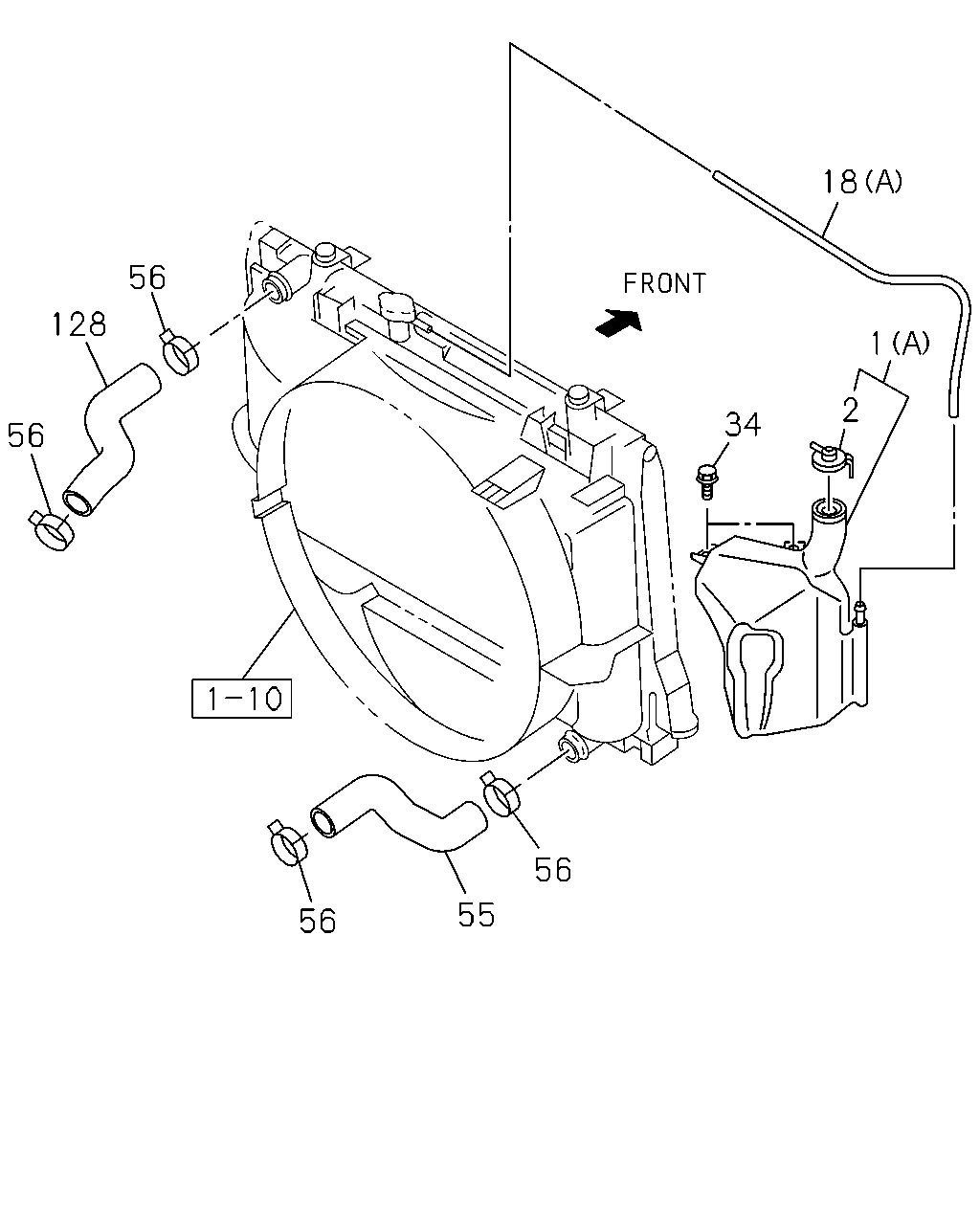

18 1 2 34 56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD EXC. REFRIGERATION KIT<7FH> (A) THA	8-98095-701-2	01	1	1409-	●
1	TANK; SURGE,RAD (A) THA	8-98095-701-2	01	1	1409-		●	●
1	TANK; SURGE,RAD REFRIGERATION KIT<7FH> (B) THA	8-97941-501-3	01	1	1409-	●
2	CAP; SURGE TANK EXC. REFRIGERATION KIT<7FH> THA	8-98189-898-0	01	1	1409-	●
2	CAP; SURGE TANK THA	8-98189-898-0	01	1	1409-		●	●
2	CAP; SURGE TANK REFRIGERATION KIT<7FH> THA	8-97333-354-0	01	1	1409-	●
18	HOSE; RAD TO SURGE TANK EXC. REFRIGERATION KIT<7FH> (A) ID=7 OD=12 L=580 THA	8-98102-344-2	01	1	1409-	●
18	HOSE; RAD TO SURGE TANK (A) ID=7 OD=12 L=580 THA	8-98102-344-2	01	1	1409-		●	●
18	HOSE; RAD TO SURGE TANK REFRIGERATION KIT<7FH> (B) THA	8-98228-487-0	01	1	1409-	●
34	BOLT; RESERVE TANK EXC. REFRIGERATION KIT<7FH> M6X20 W/WASHER THA	8-98056-282-0	02	1	1409-	●
34	BOLT; RESERVE TANK M6X20 W/WASHER THA	8-98056-282-0	02	1	1409-		●	●
34	BOLT; RESERVE TANK REFRIGERATION KIT<7FH> M6X20 W/WASHER THA	8-98056-282-0	01	1	1409-	●
55	HOSE; WATER,RAD OUTLET PROVISIONAL PACKAGE SPEC<BCC> THA	8-98222-235-0	01	1	1409-	●	●
55	HOSE; WATER,RAD OUTLET PROVISIONAL PACKAGE SPEC<BCC> THA	8-98222-236-0	01	1	1409-			●
56	CLIP; WATER HOSE,RAD ID=40.5 IMA	8-97313-472-0	02	1	1409-1505	●	●	●
56	CLIP; WATER HOSE,RAD PROVISIONAL PACKAGE SPEC<BCC> ID=40.5 IMA	8-97313-472-0	02	1	1409-1505	●	●	●
56	CLIP; WATER HOSE,RAD ID=40.5 IMA	8-97313-472-0	04	1	1506-	●	●	●
128	HOSE; WATER,RAD INL THA	8-98090-629-2	01	1	1409-	●	●	●

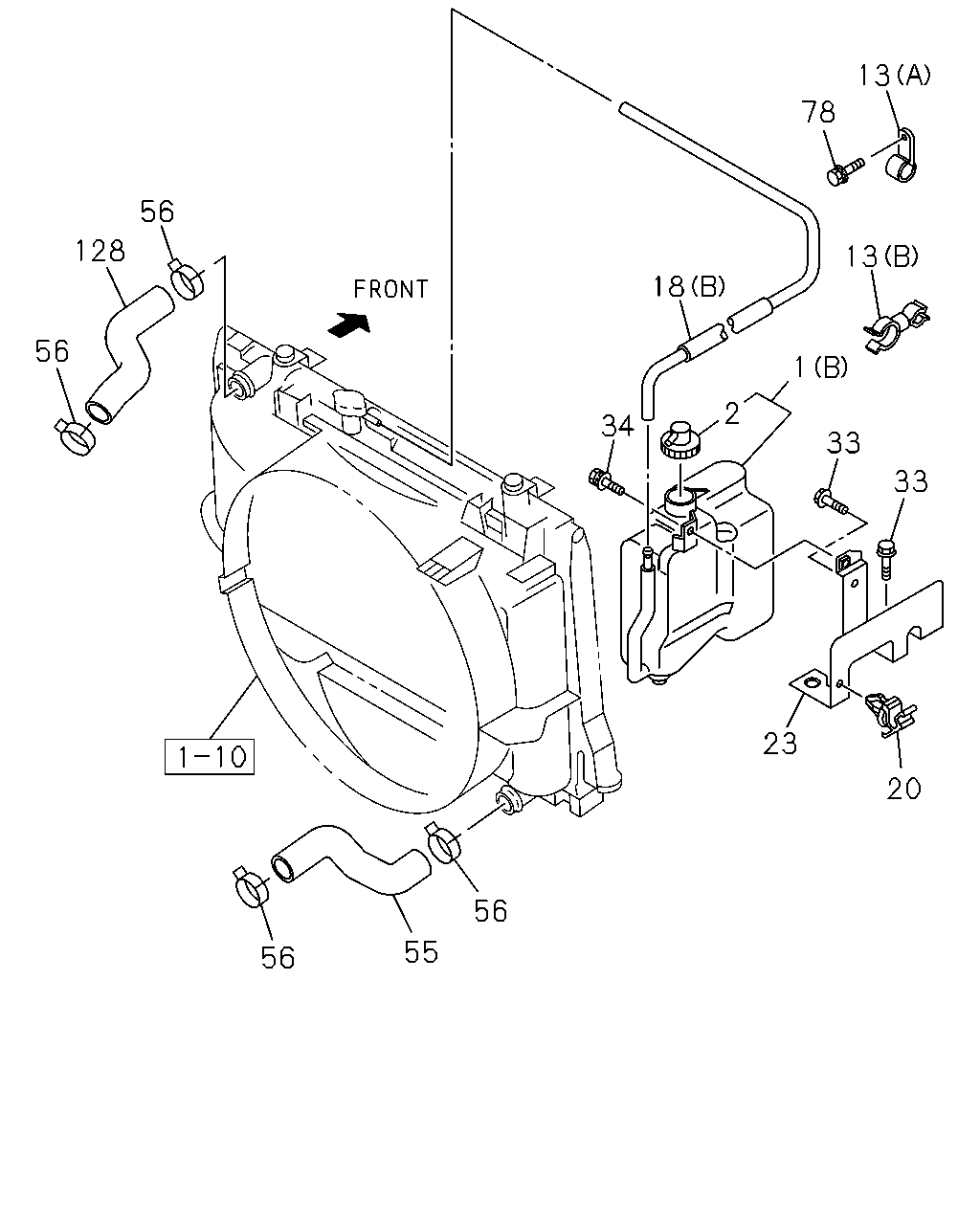

56 128 56 56 55 56 23 20 33 33 1 2 34 18 13 78 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD EXC. REFRIGERATION KIT<7FH> (A) THA	8-98095-701-2	01	1	1409-	●
1	TANK; SURGE,RAD (A) THA	8-98095-701-2	01	1	1409-		●	●
1	TANK; SURGE,RAD REFRIGERATION KIT<7FH> (B) THA	8-97941-501-3	01	1	1409-	●
2	CAP; SURGE TANK EXC. REFRIGERATION KIT<7FH> THA	8-98189-898-0	01	1	1409-	●
2	CAP; SURGE TANK THA	8-98189-898-0	01	1	1409-		●	●
2	CAP; SURGE TANK REFRIGERATION KIT<7FH> THA	8-97333-354-0	01	1	1409-	●
13	CLIP; HOSE,SURGE TANK REFRIGERATION KIT<7FH> (A) ID=13 L=20 IMA	0-95235-232-0	01	1	1409-	●
13	CLIP; HOSE,SURGE TANK REFRIGERATION KIT<7FH> (B) ID=10.5 & 18 IMA	8-94381-420-0	01	1	1409-	●
18	HOSE; RAD TO SURGE TANK EXC. REFRIGERATION KIT<7FH> (A) ID=7 OD=12 L=580 THA	8-98102-344-2	01	1	1409-	●
18	HOSE; RAD TO SURGE TANK (A) ID=7 OD=12 L=580 THA	8-98102-344-2	01	1	1409-		●	●
18	HOSE; RAD TO SURGE TANK REFRIGERATION KIT<7FH> (B) THA	8-98228-487-0	01	1	1409-	●
20	CLIP; HOSE,RAD REFRIGERATION KIT<7FH> ID=4.8 IMA	8-94128-483-0	01	1	1409-	●
23	BRACKET; RESERVE TANK REFRIGERATION KIT<7FH> THA	8-98202-471-0	01	1	1409-	●
33	BOLT; BRKT REFRIGERATION KIT<7FH> M6X12 FLANGE THA	0-28050-612-0	03	1	1409-	●
34	BOLT; RESERVE TANK EXC. REFRIGERATION KIT<7FH> M6X20 W/WASHER THA	8-98056-282-0	02	1	1409-	●
34	BOLT; RESERVE TANK M6X20 W/WASHER THA	8-98056-282-0	02	1	1409-		●	●
34	BOLT; RESERVE TANK REFRIGERATION KIT<7FH> M6X20 W/WASHER THA	8-98056-282-0	01	1	1409-	●
55	HOSE; WATER,RAD OUTLET PROVISIONAL PACKAGE SPEC<BCC> THA	8-98222-235-0	01	1	1409-	●	●
55	HOSE; WATER,RAD OUTLET PROVISIONAL PACKAGE SPEC<BCC> THA	8-98222-236-0	01	1	1409-			●
56	CLIP; WATER HOSE,RAD ID=40.5 IMA	8-97313-472-0	02	1	1409-1505	●	●	●
56	CLIP; WATER HOSE,RAD PROVISIONAL PACKAGE SPEC<BCC> ID=40.5 IMA	8-97313-472-0	02	1	1409-1505	●	●	●
56	CLIP; WATER HOSE,RAD ID=40.5 IMA	8-97313-472-0	04	1	1506-	●	●	●
78	BOLT; CLIP,HOSE REFRIGERATION KIT<7FH> M6X20 W/WASHER THA	8-98056-282-0	01	1	1409-	●
128	HOSE; WATER,RAD INL THA	8-98090-629-2	01	1	1409-	●	●	●
