Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

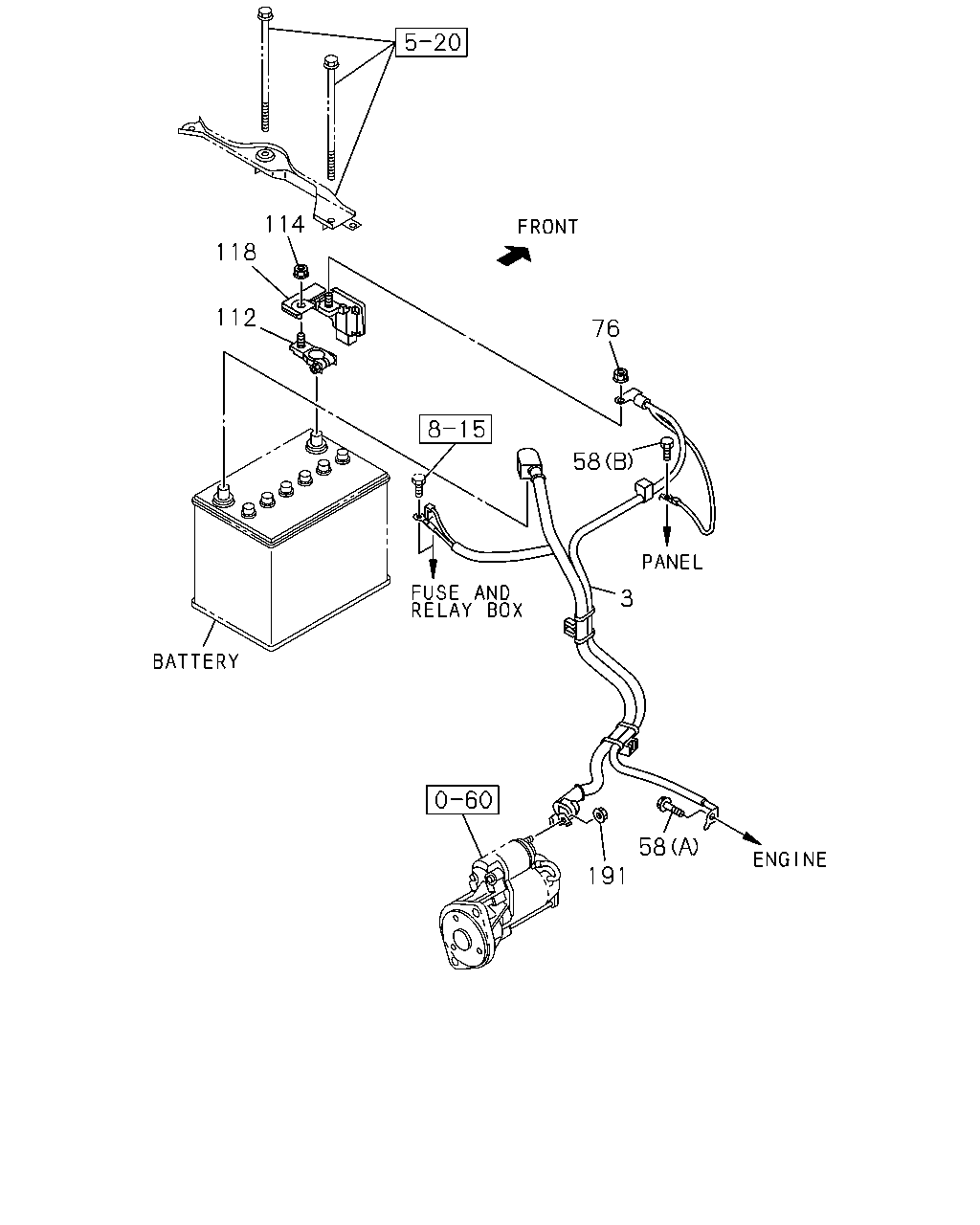

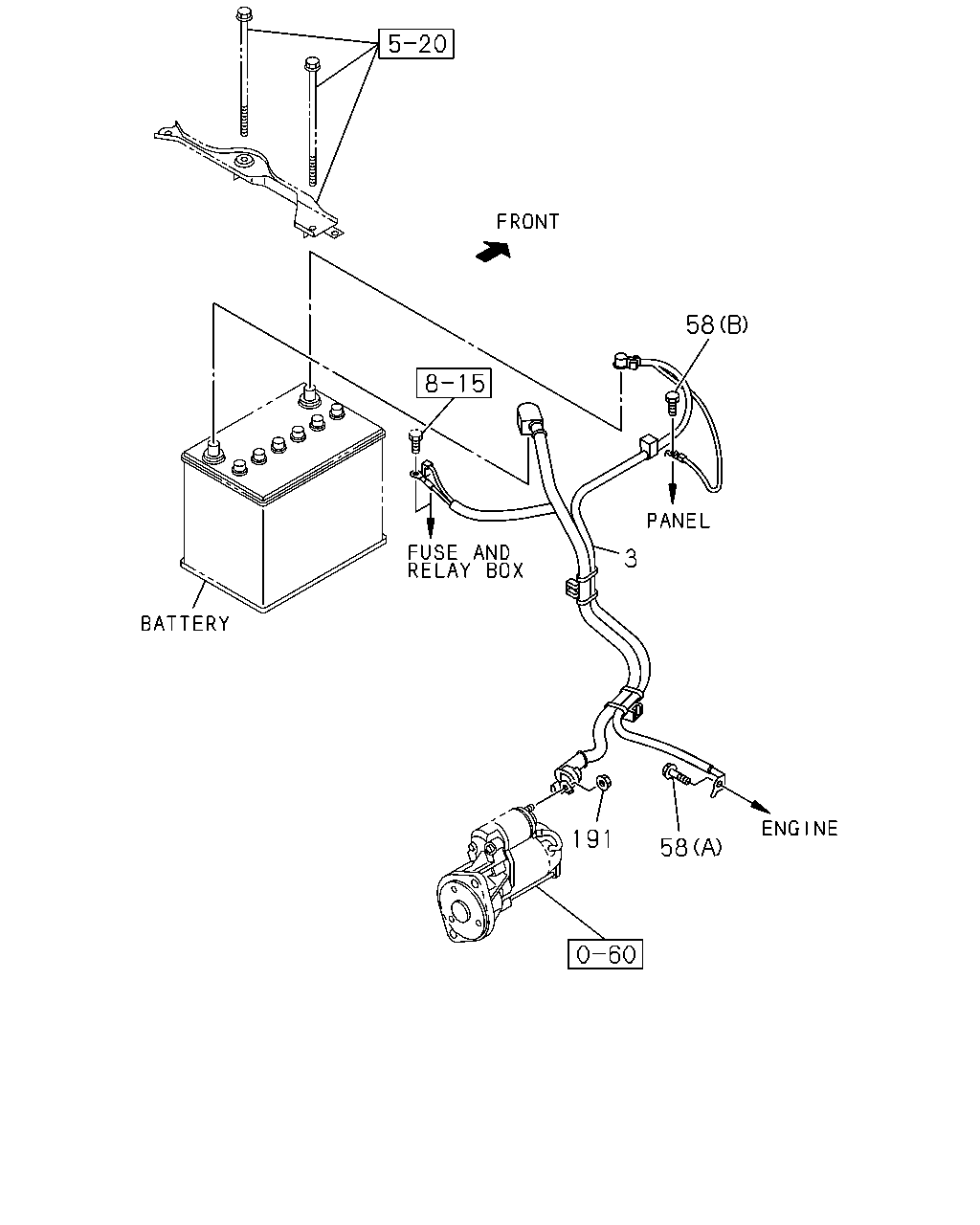

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#148252) — 16 parça

3 58 191 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 75D26L<7TT> THA	8-98238-380-2	01	1	1409-	●	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 75D26L<7TT> THA	8-98222-814-3	01	1	1409-			●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (A) M10X20 FLANGE THA	0-28651-020-0	01	1	1409-	●	●	●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (B) M6X16 W/LK&PL WASHER IMA	8-97086-823-0	01	1	1409-1501	●	●	●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (B) M6X14 W/PL WASHER IMA	8-98164-836-0	01	1	1502-	●	●	●
191	NUT; STARTER BATTERY 75D26L<7TT> M8 FLANGE THA	0-91180-108-0	01	1	1409-	●	●	●

76 3 58 191 58 114 118 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 75D26L<7TT> THA	8-98238-380-2	01	1	1409-	●	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 75D26L<7TT> THA	8-98222-814-3	01	1	1409-			●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (A) M10X20 FLANGE THA	0-28651-020-0	01	1	1409-	●	●	●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (B) M6X16 W/LK&PL WASHER IMA	8-97086-823-0	01	1	1409-1501	●	●	●
58	BOLT; CABLE,BATTERY BATTERY 75D26L<7TT> (B) M6X14 W/PL WASHER IMA	8-98164-836-0	01	1	1502-	●	●	●
76	NUT; BATTERY CABLE BATTERY 75D26L<7TT> M8 FLANGE THA	0-91180-108-0	01	1	1409-	●	●	●
112	TERMINAL; BATTERY BATTERY 75D26L<7TT> <-> THA	8-98228-976-0	01	1	1409-	●	●	●
114	NUT; CABLE,BATTERY TERMINAL M8 FLANGE THA	0-91180-108-0	01	1	1409-			●
118	SENSOR; BATTERY THA	8-98228-977-0	01	1	1409-			●
191	NUT; STARTER BATTERY 75D26L<7TT> M8 FLANGE THA	0-91180-108-0	01	1	1409-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
