◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#148251) — 57 parça

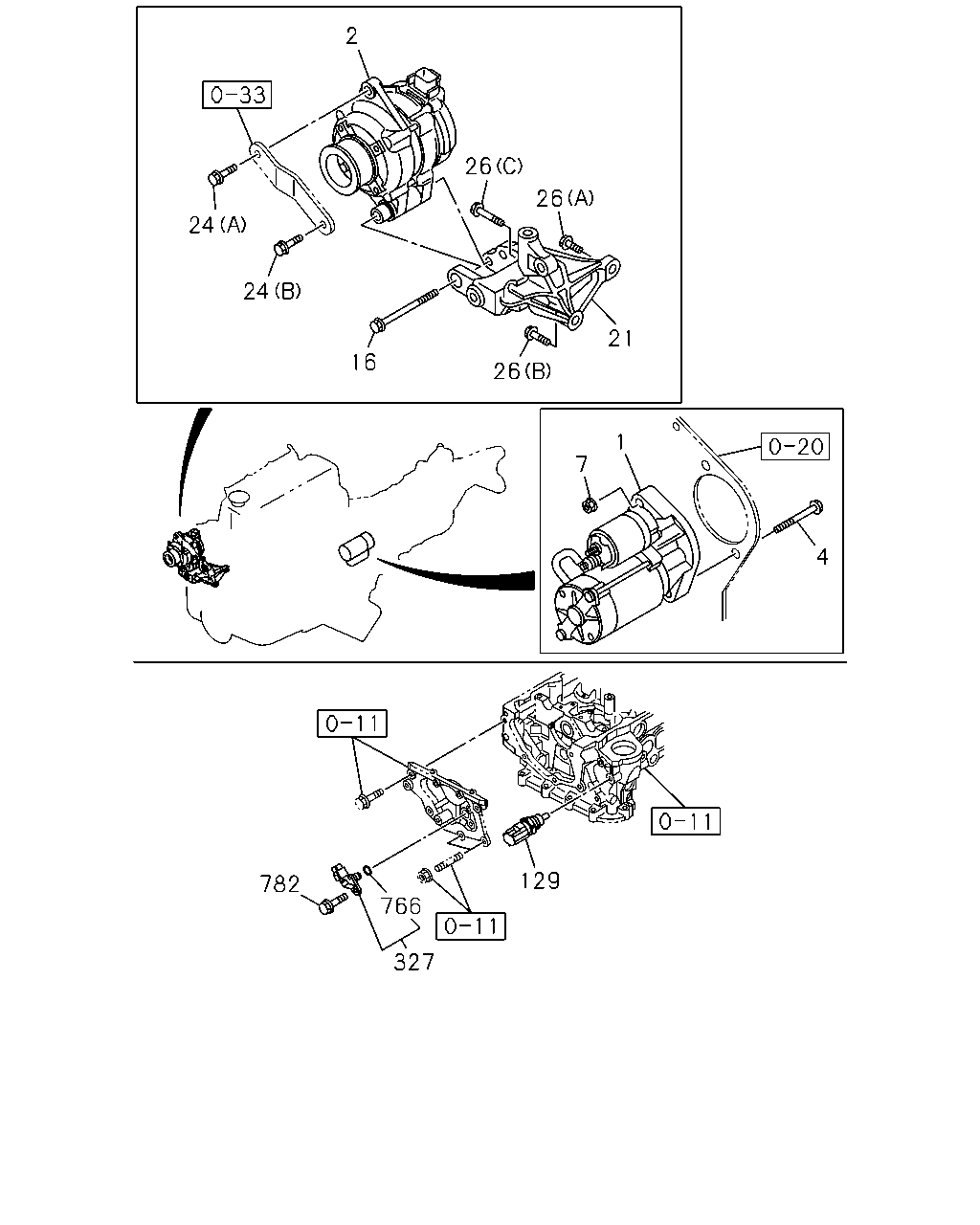

çizim 443148
2 24 24 16 26 21 26 26 7 1 4 129 327 766 782
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1409- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-813-0 01 1 1409-1411 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-813-0 01 1 1412-1412 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-813-0 01 1 1501- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-812-0 01 1 1409-1411 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-812-0 01 1 1501- ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 1409- ● ● ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 1409- ● ● ●
16 BOLT; GEN
M10X95 FLANGE THA 		8-98236-407-0 01 1 1409- ● ● ●
21 BRACKET; GEN
THA 		8-98275-351-0 01 1 1409- ● ● ●
24 BOLT; GEN BRKT
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1409- ● ● ●
24 BOLT; GEN BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1409- ● ● ●
26 BOLT; GEN BRKT
(A) M10X25 FLANGE THA 		0-28051-025-0 01 1 1409- ● ● ●
26 BOLT; GEN BRKT
(B) M10X35 FLANGE THA 		0-28051-035-0 01 1 1409- ● ● ●
26 BOLT; GEN BRKT
(C) M10X45 FLANGE THA 		0-28051-045-0 01 1 1409- ● ● ●
129 SENSOR; GLOW PLUG,THERMO
MITSUBISHI IMA 		8-98023-883-0 01 1 1409-1412 ● ● ●
129 SENSOR; GLOW PLUG,THERMO
NISHIDA IMA 		8-98260-257-0 01 1 1501- ● ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-98019-024-0 01 1 1409- ● ● ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1409- ● ● ●
782 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1409- ● ● ●

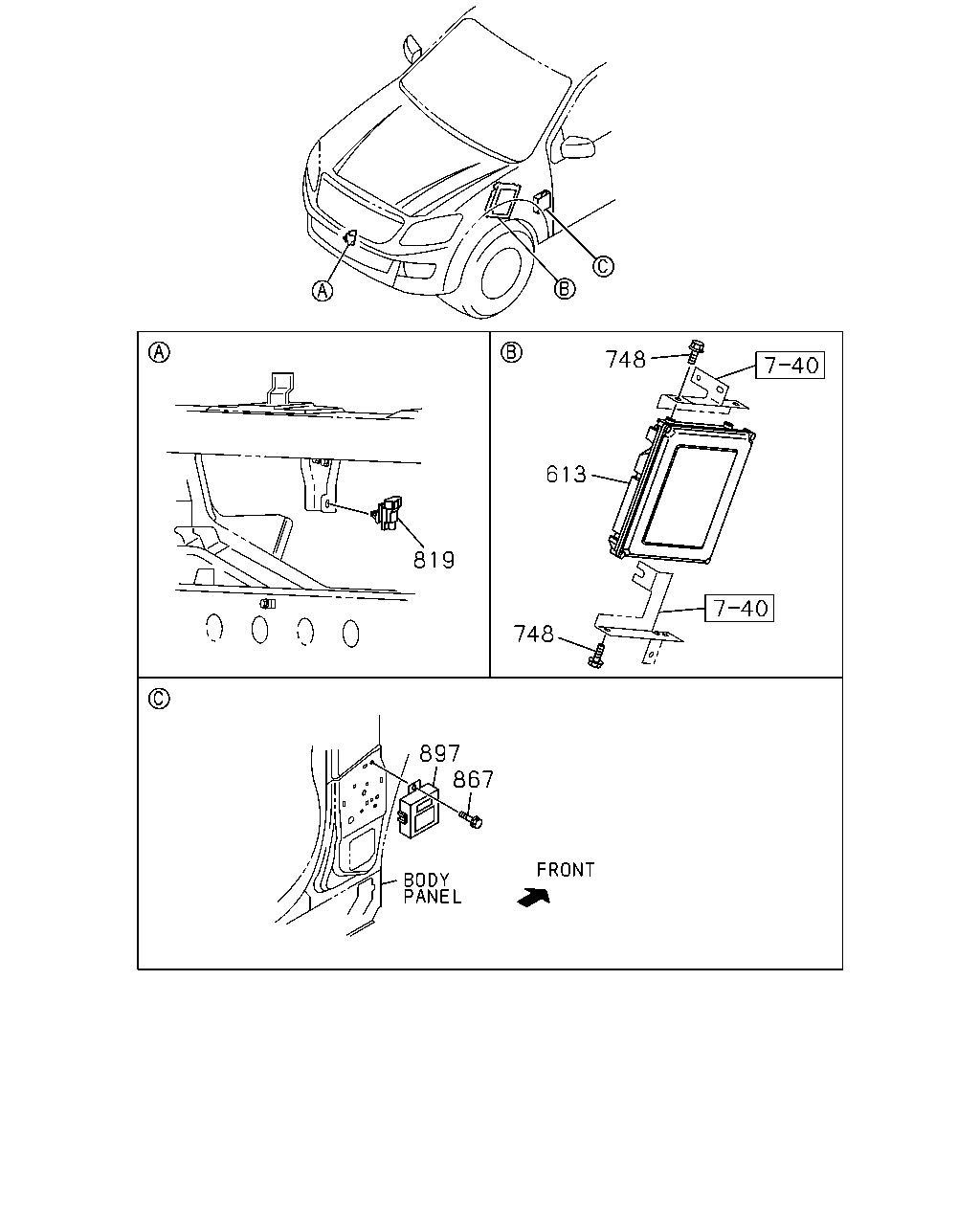

çizim 443158
819 613 748 748 897 867
BalonParca AdiParca NoAdetTipApplied Date A B C
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-067-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-068-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-069-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-069-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-070-5 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> THA 		8-98260-277-1 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-050-5 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-053-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98260-278-1 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> THA 		8-98260-278-1 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98260-279-1 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-057-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-057-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-059-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-060-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-060-5 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-063-5 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> THA 		8-98260-275-1 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-025-4 01 1 1409- ●
613 CONTROL UNIT; ENG
A/T 5 SPEED-AISIN<MA1> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-027-4 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98260-276-1 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> THA 		8-98260-276-1 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-029-4 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-029-4 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-032-4 01 1 1409- ●
613 CONTROL UNIT; ENG
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-032-4 01 1 1409- ●
613 CONTROL UNIT; ENG
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> PROVISIONAL PACKAGE SPEC<BCC> THAILAND EQUIPMENT<B03> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-033-4 01 1 1409- ●
748 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1409- ● ● ●
819 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> IMA 		8-98008-687-0 01 1 1409- ● ● ●
867 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1409- ● ● ●
897 DRM
THA 		8-98221-054-4 01 1 1409- ● ● ●

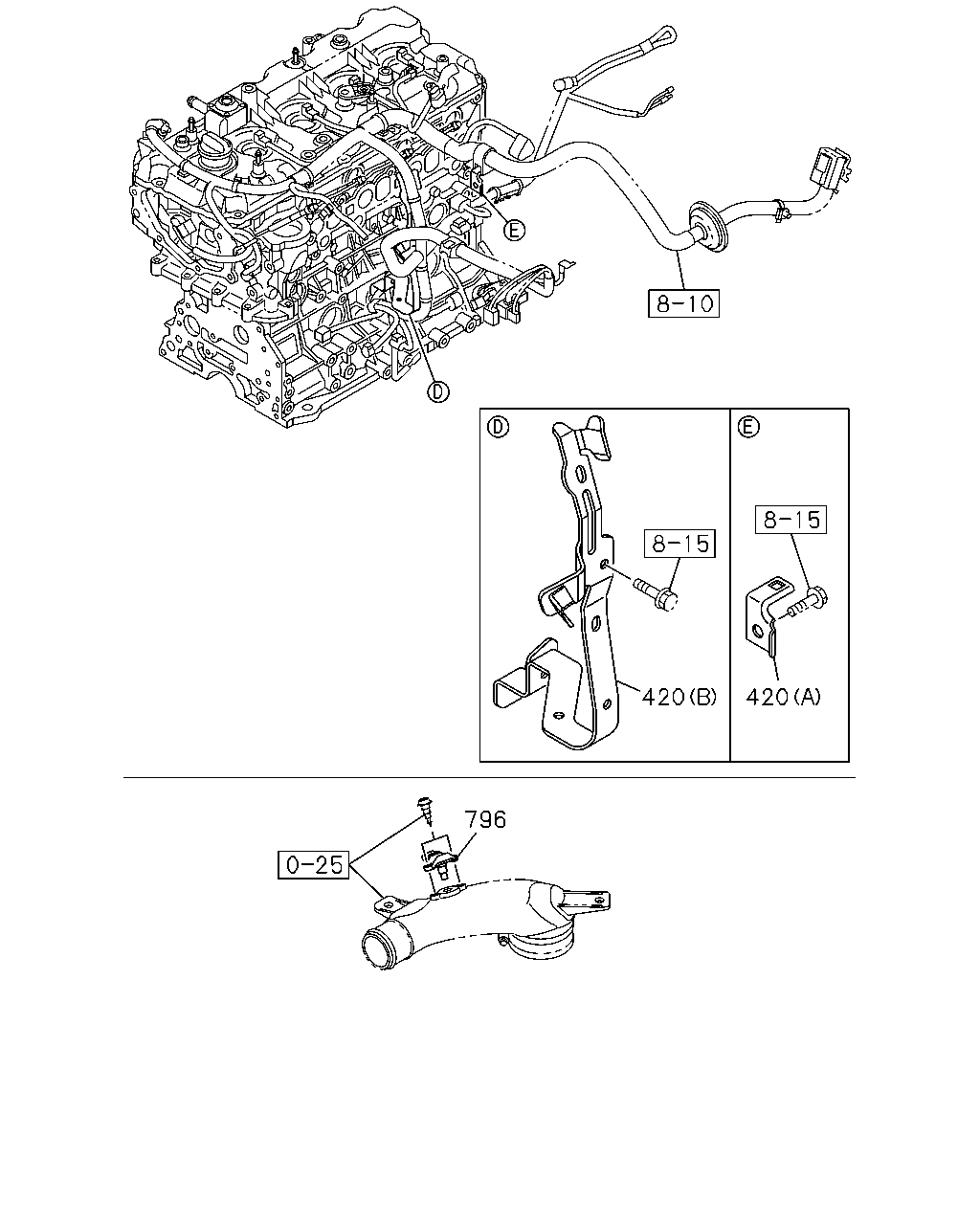

çizim 443655
420 420 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 BRACKET; HARNESS
(A) THA 		8-98179-101-0 01 1 1409- ● ● ●
420 BRACKET; HARNESS
(B) THA 		8-98226-846-1 01 1 1409- ● ● ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 1409- ● ●

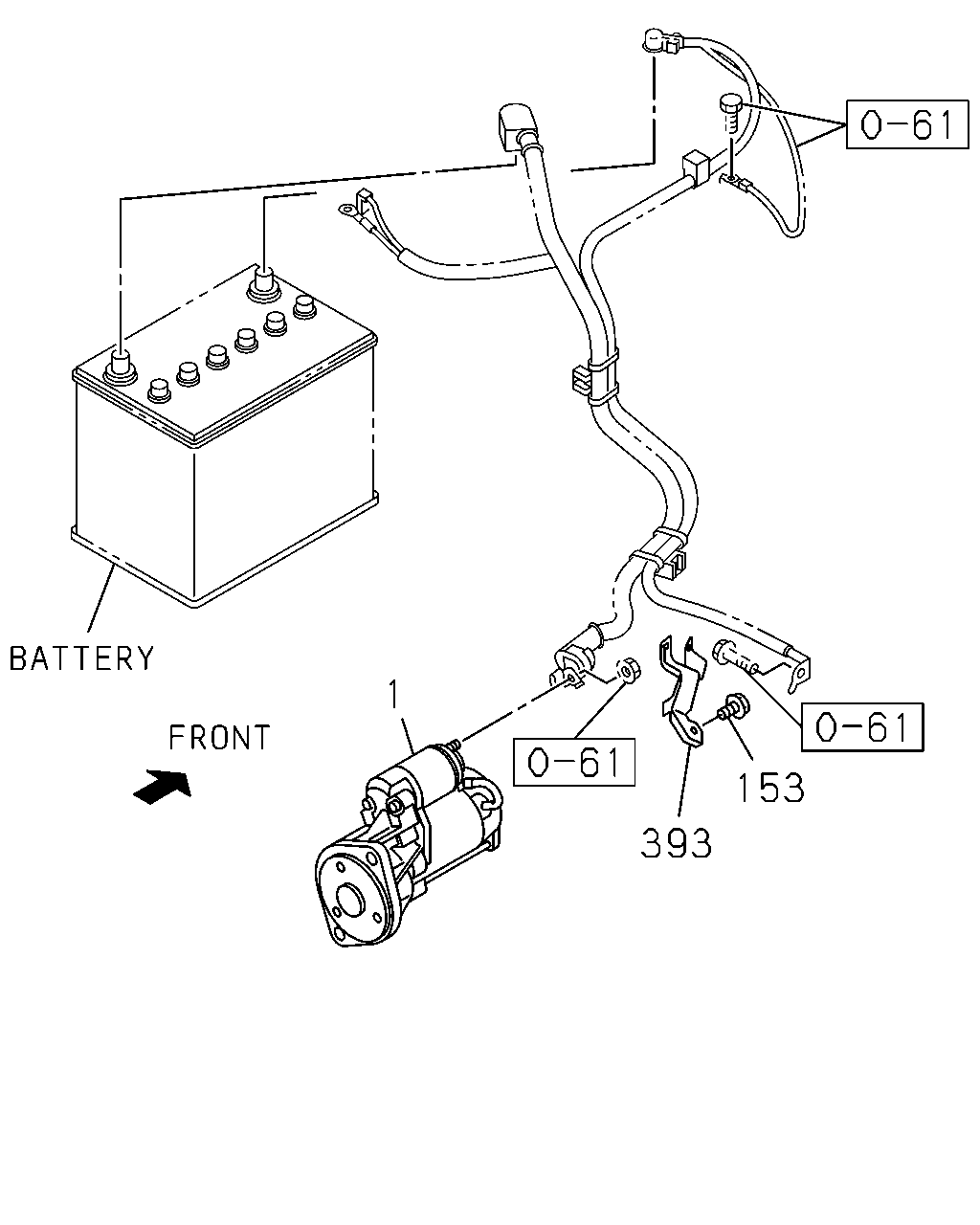

çizim 444050
153 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1409- ● ● ●
153 BOLT; BRKT FIX
M6X10 FLANGE THA 		8-98043-527-0 01 1 1409- ● ● ●
393 BRACKET; HARNESS TO BODY
THA 		8-98102-992-4 01 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
