51579 - TFR/TFS THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#148250) — 28 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀

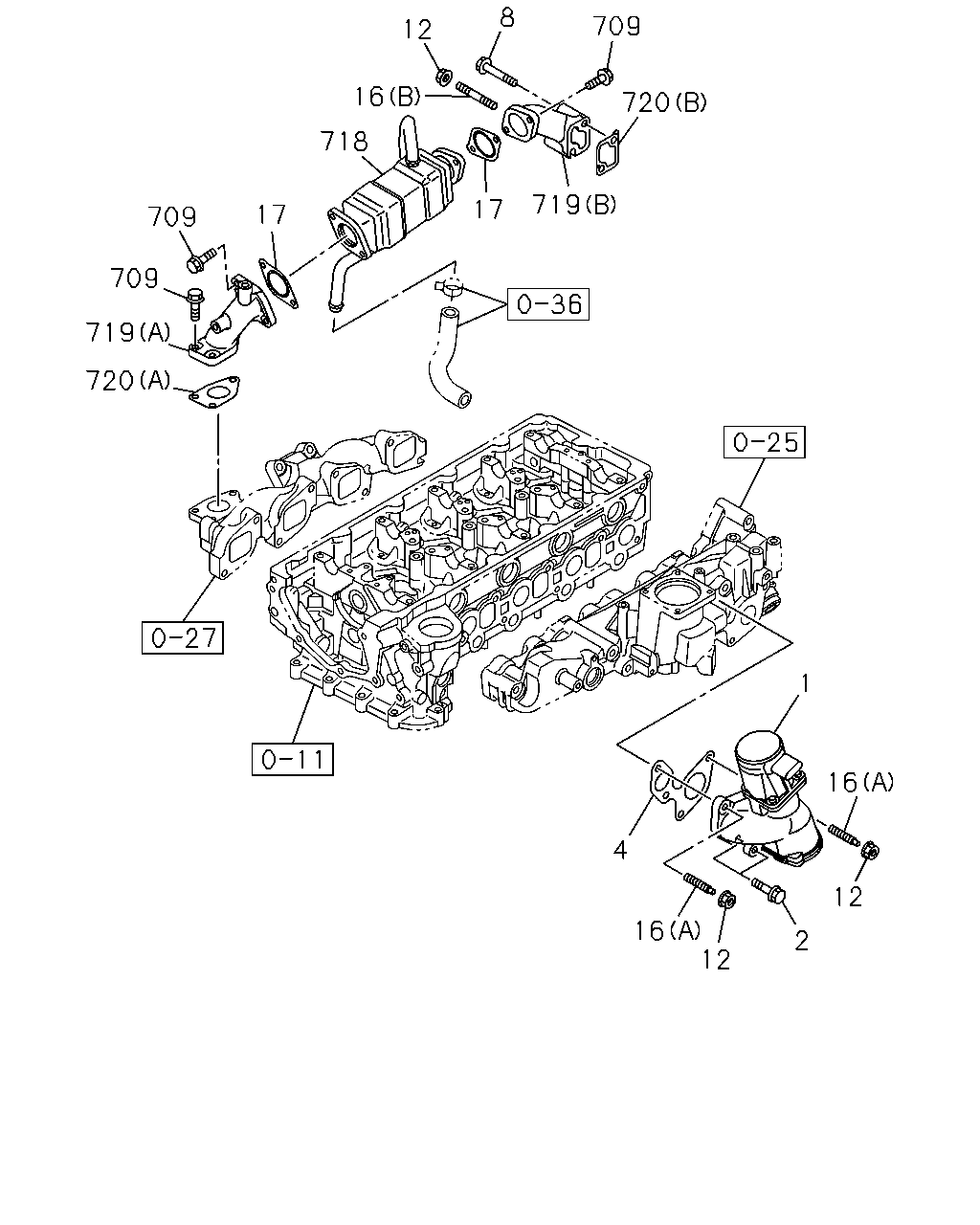

[057A] EGR (15 parça)

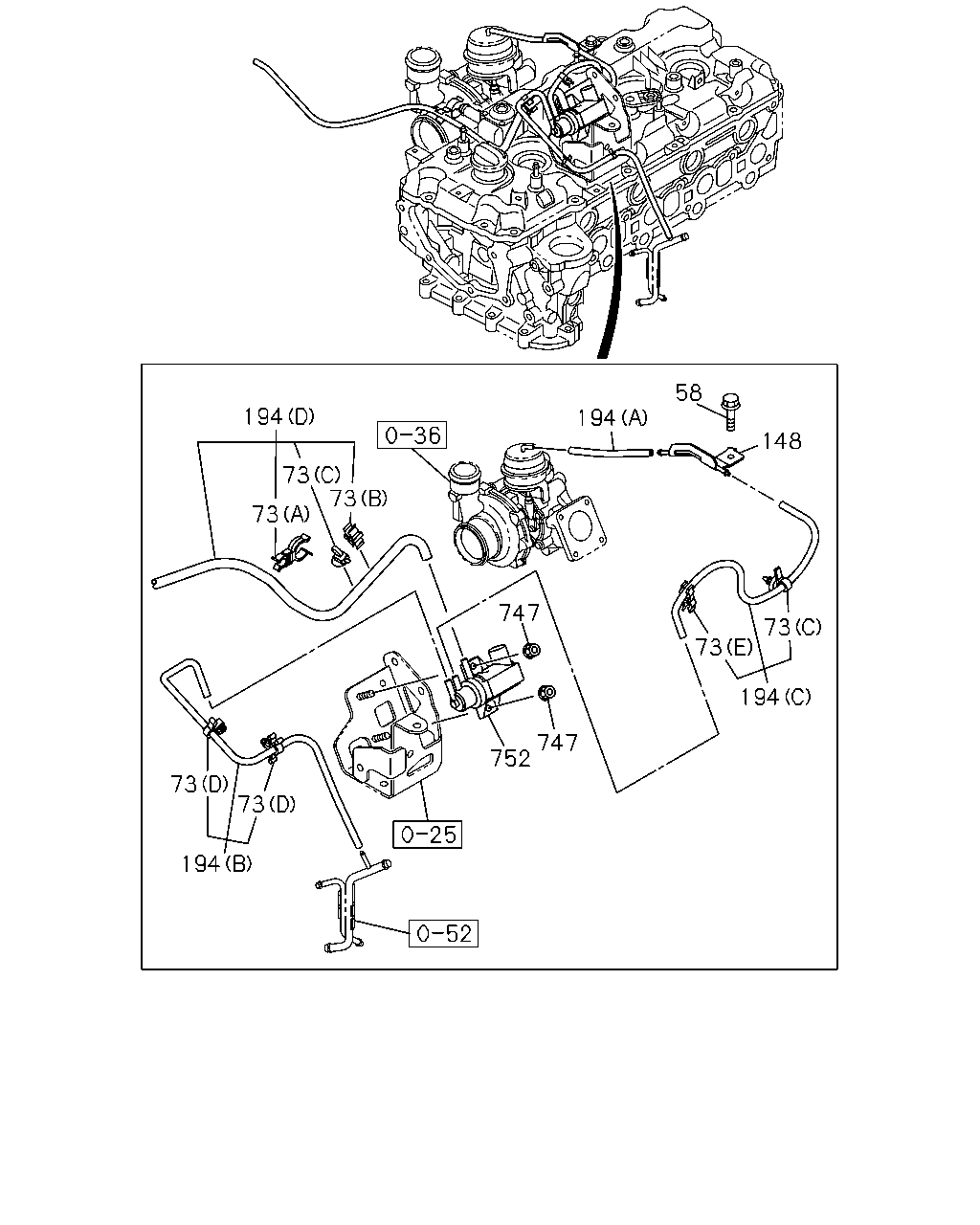

[057A] EVRV AND VACUUM HOSE (13 parça)
▶
12
8
709
709
709
719
719
718
720
17
17
16
1
16
12
2
12
16
4
720
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; EGR
THA
8-98259-279-0
01
1
1409-
●
●
1
VALVE; EGR
THA
8-98133-202-3
01
1
1409-
●
2
BOLT; EGR VLV
M8X25 FLANGE THA
0-28650-825-0
02
1
1409-
●
●
●
4
GASKET; EGR VLV
THA
8-97356-711-3
01
1
1409-
●
●
●
8
BOLT; EGR ADAPTER
M8X60 FLANGE THA
0-28050-860-0
01
1
1409-
●
●
●
12
NUT; EGR VLV
M8 FLANGE THA
0-91180-208-0
03
1
1409-
●
●
●
16
STUD; EGR VLV
(B) L=60 THA
0-40210-860-0
01
1
1409-
●
●
●
16
STUD; EGR VLV
(A) M8X22 L=40 THA
0-49140-822-0
02
1
1409-
●
●
●
17
GASKET; EGR PIPE
THA
8-97357-684-3
02
1
1409-
●
●
●
709
BOLT; EGR COOLER
M8X23 FLANGE IMA
8-97378-077-0
07
1
1409-
●
●
●
718
COOLER; EGR
THA
8-98205-852-0
01
1
1409-
●
●
●
719
PIPE; EGR
(A) THA
8-98228-255-0
01
1
1409-
●
●
●
719
PIPE; EGR
(B) THA
8-98228-257-0
01
1
1409-
●
●
●
720
GASKET; COOLER
(A) THA
8-98017-551-0
01
1
1409-
●
●
●
720
GASKET; COOLER
(B) THA
8-98228-303-0
01
1
1409-
●
●
●
747
747
752
194
73
73
73
194
58
148
73
73
194
73
73
194
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
58
BOLT; PIPE
M8X16 FLANGE THA
0-28050-816-0
01
1
1409-
●
●
73
CLIP; VAC HOSE
(B) ID=11.8 & 7.5 IMA
1-09709-182-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(D) ID=6.5 THA
8-94257-639-0
02
1
1506-
●
●
73
CLIP; VAC HOSE
(E) ID=7.5 & 7.5 THA
8-97019-084-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(A) ID=21 & 9.8 IMA
8-97309-945-0
01
1
1506-
●
●
73
CLIP; VAC HOSE
(C) THA
8-98324-179-0
02
1
1506-
●
●
148
PIPE; VAC
THA
8-98132-082-0
01
1
1409-
●
●
194
HOSE; VAC
(A) THA
0-14040-110-0
01
1
1409-
●
●
194
HOSE; VAC
(B) THA
8-98228-439-0
01
1
1409-
●
●
194
HOSE; VAC
(C) THA
8-98239-037-0
01
1
1409-
●
●
194
HOSE; VAC
(D) THA
8-98239-038-1
01
1
1409-
●
●
747
NUT; VAC REG VALVE
M6 FLANGE THA
0-91180-106-0
02
1
1409-
●
●
752
VALVE; EVRV
IMA
8-98239-935-0
01
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
