0-50 — OIL COOLER AND OIL FILTER (#148247) — 21 parça

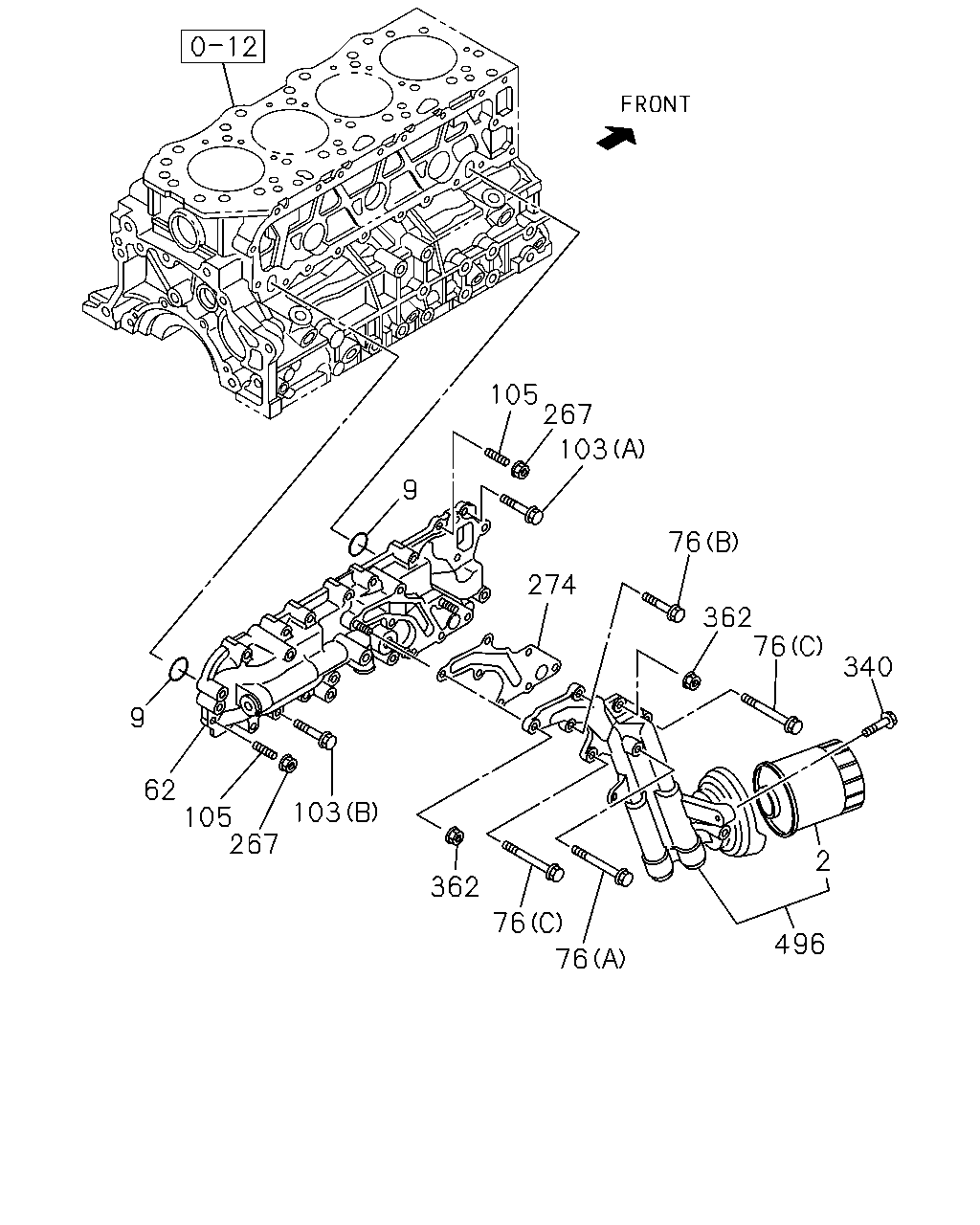

çizim 443118
105 9 267 103 76 274 9 62 105 267 103 362 76 76 496 2 340 76 362
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ELEMENT; OIL FILTER
THA 		8-98165-071-0 01 1 1409- ● ● ●
9 GASKET; CENTER BOLT
ID=26.2 THA 		9-09566-226-0 02 1 1409- ● ● ●
62 COOLER ASM; OIL
THA 		8-98251-175-0 01 1 1409- ● ● ●
76 BOLT; OIL FILTER
(A) M8X100 FLANGE THA 		0-28050-800-0 01 1 1409- ● ● ●
76 BOLT; OIL FILTER
(B) M8X25 FLANGE THA 		0-28050-825-0 02 1 1409- ● ● ●
76 BOLT; OIL FILTER
(C) M8X80 FLANGE THA 		0-28050-880-0 02 1 1409- ● ● ●
103 BOLT; OIL COOLER
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 1409- ● ● ●
103 BOLT; OIL COOLER
(B) M8X45 FLANGE THA 		0-28050-845-0 13 1 1409- ● ● ●
105 STUD; OIL COOLER
M8X20 L=32 THA 		0-41010-820-0 02 1 1409- ● ● ●
267 NUT; OIL COOLER
M8 FLANGE THA 		0-91180-208-0 02 1 1409- ● ● ●
274 GASKET; OIL FILTER
THA 		8-98226-841-0 01 1 1409- ● ● ●
340 BOLT; BRKT
M8X40 FLANGE THA 		0-28650-840-0 01 1 1409- ● ● ●
362 NUT; OIL FILTER
M8 FLANGE THA 		0-91180-208-0 02 1 1409- ● ● ●
496 FILTER ASM; OIL
THA 		8-98226-423-1 01 1 1409- ● ● ●
çizim 443941
582 278 201 278 342 462
BalonParca AdiParca NoAdetTipApplied Date A B C
201 PIPE; VINYL,OIL DRAIN
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98199-904-0 01 1 1409- ● ● ●
278 CLAMP; RUBBER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=14 IMA 		8-97173-221-0 02 1 1409- ● ● ●
342 HOSE; OIL DRAIN
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98199-910-0 01 1 1409- ● ● ●
462 CLIP; HOSE,DRAIN
EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-97025-737-1 01 1 1409- ● ● ●
582 TRAY; OIL
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> HIGH RIDE SUSPENSION<7YC> THA 		8-98235-616-3 01 1 1409- ● ● ●
582 TRAY; OIL
4X4<TFS***> PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98235-616-3 01 1 1409- ● ● ●
582 TRAY; OIL
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98236-507-2 01 1 1409- ● ● ●
