Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

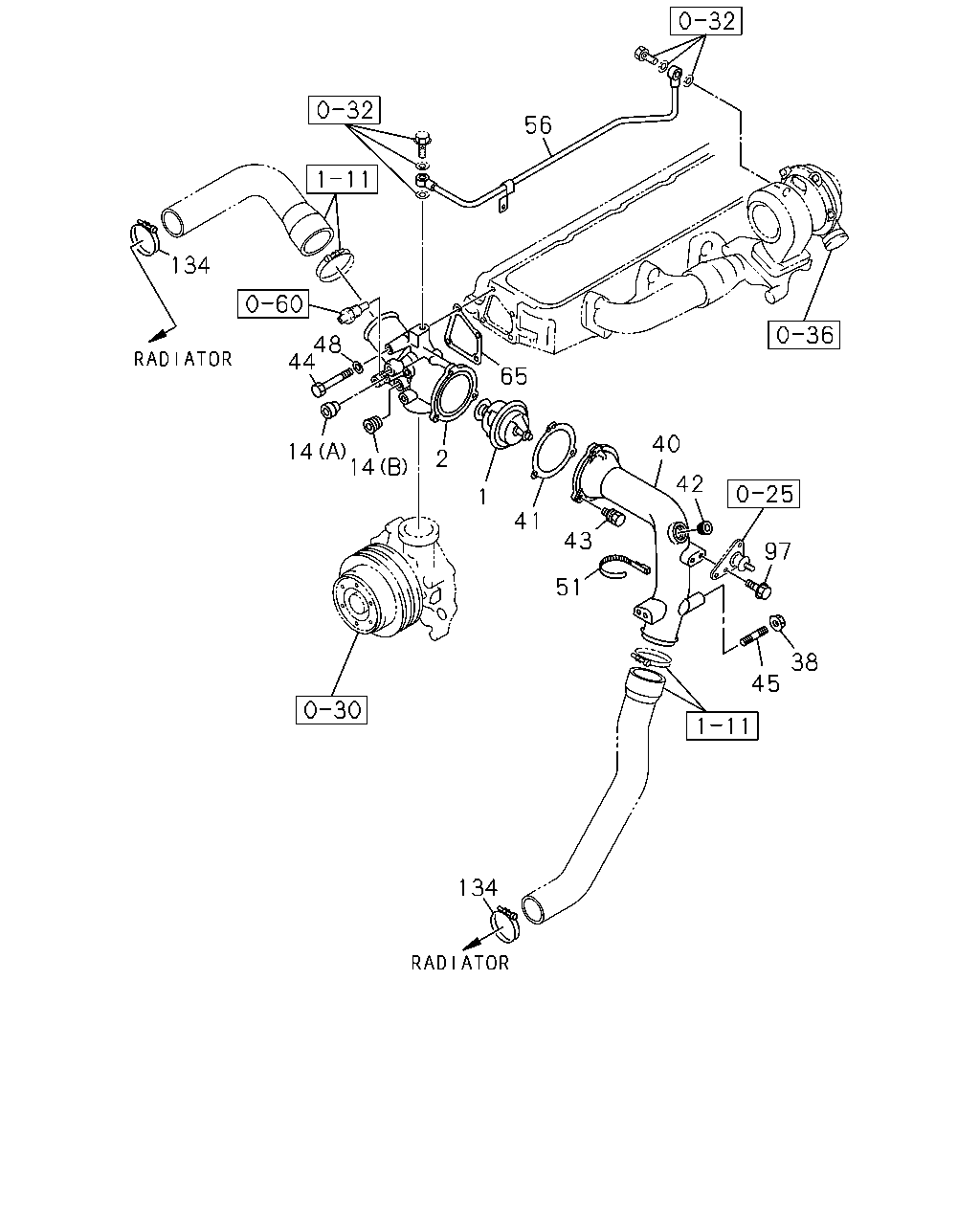

0-31 — THERMOSTAT AND HOUSING
(#14824) — 18 parça
56
134
48
44
65
40
14
14
2
42
1
41
43
97
51
38
45
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
76.5 CELSIUS
1-13770-085-0
01
1
0711-
2
HOUSING; THERMOSTAT
1-13716-180-0
01
1
0711-
14
PLUG; SW
(A) PT1/4
1-09605-019-0
01
1
0711-
14
PLUG; SW
(B) PT3/8 T=8.0
1-09605-066-0
01
1
0711-
38
NUT; DUCT,SUCTION
M10 FLANGE
0-91180-110-0
01
1
0711-
40
DUCT; WATER,SUCTION
1-13711-675-0
01
1
0711-
41
GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-13742-026-0
01
1
0711-
42
PLUG; WATER DUCT
PT3/4
9-09664-005-0
01
1
0711-
43
BOLT; WATER DUCT
M8X28 W/LK&PL WASHER
0-50140-828-0
03
1
0711-0906
43
BOLT; WATER DUCT
M8X28 W/LK&PL WASHER
0-50640-828-0
03
1
0907-
44
BOLT; HSG TO HD
M8X100
0-10855-800-0
04
1
0711-
45
STUD; DUCT
M10X20 L=35
9-04411-020-0
01
1
0711-
48
WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16
0-91610-508-0
04
1
0711-
51
CLIP; JOINT,THERMOSTAT
L=300
1-09707-001-1
01
1
0711-
56
PIPE; WATER,THERMOSTAT HSG
1-13721-628-0
01
1
0711-
65
GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-13743-028-0
01
1
0711-
97
BOLT; PIPE STAY
M10X20 FLANGE
0-28151-020-0
02
1
0711-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
02
1
0711-
