Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#148238) — 20 parça
Tümü

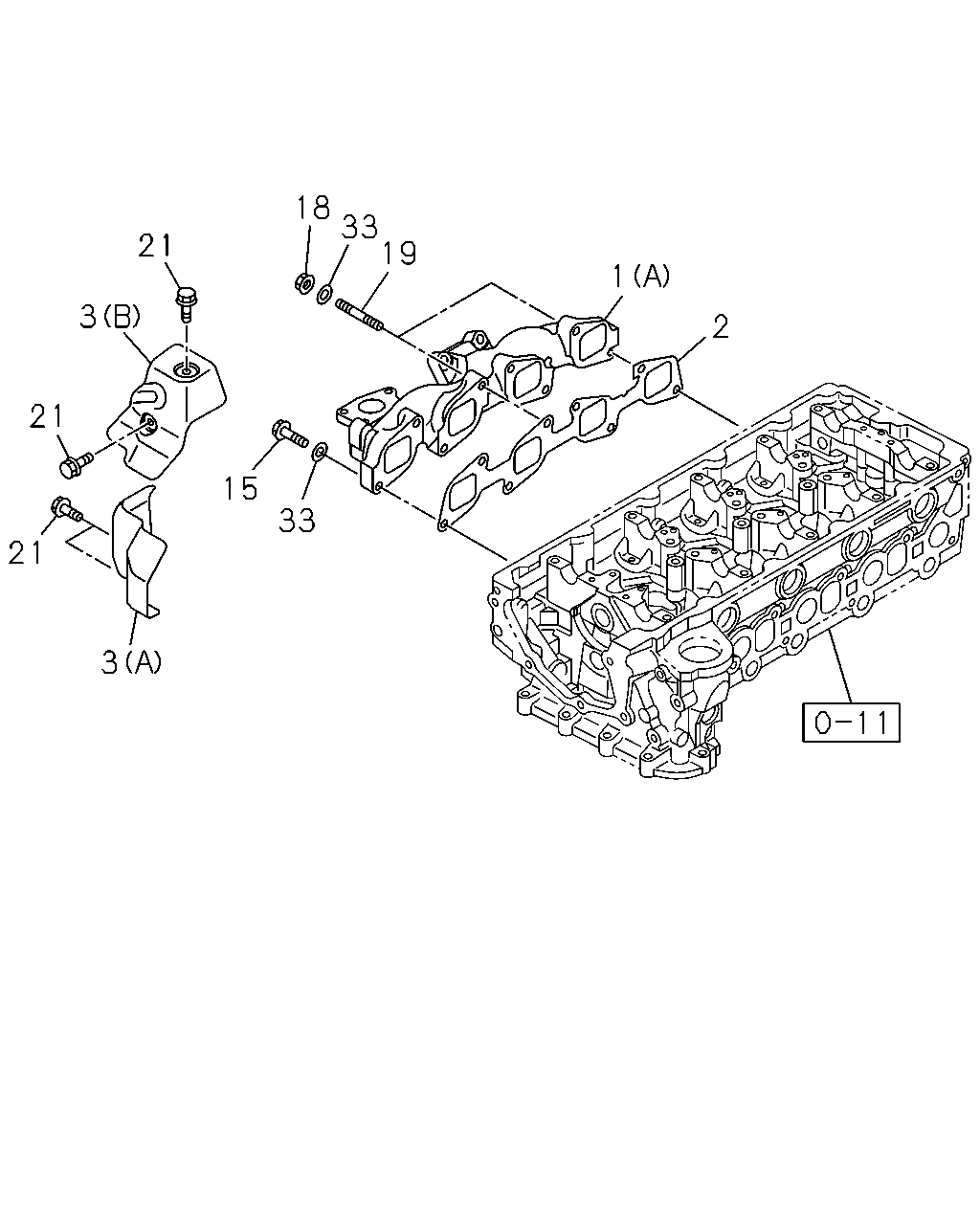

A - 4JK1-TCS ENG

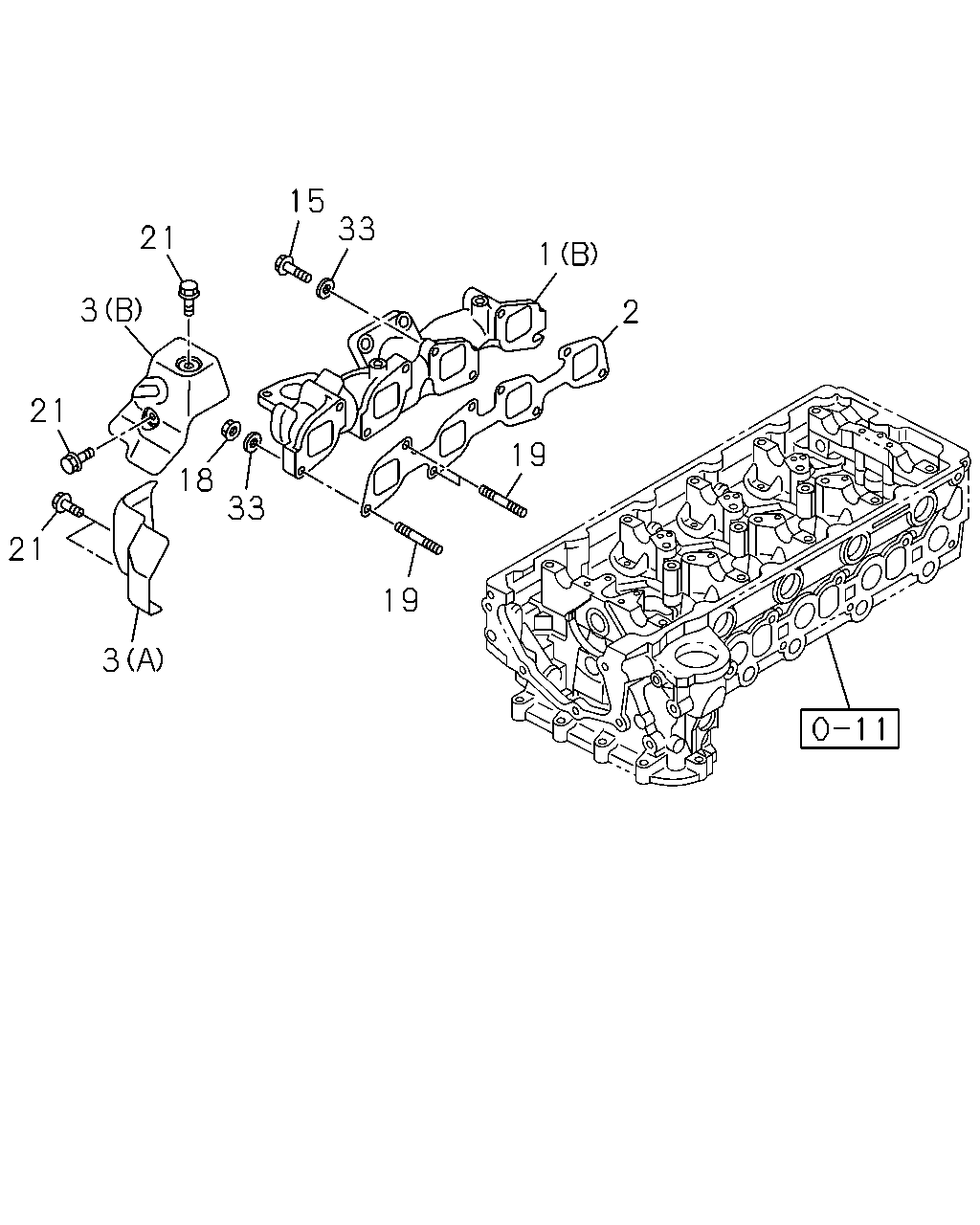

B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀
[027A] 4JK1-TCS (10 parça)
[027A] 4JK1-TCX,4JJ1 (10 parça)
▶
3
21
18
33
19
1
2
33
15
3
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; EXHAUST
(A) THA
8-98192-221-0
01
1
1409-
●
1
MANIFOLD; EXHAUST
(B) THA
8-98132-039-2
01
1
1409-
●
●
2
GASKET; EXH MANIF TO HD
THA
8-98229-782-0
01
1
1409-
●
●
●
3
PROTECTOR; HEAT,EXH MANIF
(A) THA
8-98228-431-2
01
1
1409-
●
●
●
3
PROTECTOR; HEAT,EXH MANIF
(B) THA
8-98238-449-1
01
1
1409-
●
●
●
15
BOLT; EXH MANIF
M10X30 FLANGE IMA
8-98032-158-0
06
1
1409-
●
●
●
18
NUT; EXH MANIF
M10 FLANGE IMA
8-97381-617-0
02
1
1409-
●
●
●
19
STUD; MANIF TO CYL HD
M10X33 L=48 THA
8-97379-383-0
02
1
1409-
●
●
●
21
BOLT; HEAT PROTECTOR
M8X12 FLANGE THA
0-28050-812-0
04
1
1409-
●
●
●
33
WASHER; EXH MANIF
ID=10.5 THA
5-09500-013-0
08
1
1409-
●
●
●
1
2
19
19
33
18
3
21
21
3
21
15
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; EXHAUST
(A) THA
8-98192-221-0
01
1
1409-
●
1
MANIFOLD; EXHAUST
(B) THA
8-98132-039-2
01
1
1409-
●
●
2
GASKET; EXH MANIF TO HD
THA
8-98229-782-0
01
1
1409-
●
●
●
3
PROTECTOR; HEAT,EXH MANIF
(A) THA
8-98228-431-2
01
1
1409-
●
●
●
3
PROTECTOR; HEAT,EXH MANIF
(B) THA
8-98238-449-1
01
1
1409-
●
●
●
15
BOLT; EXH MANIF
M10X30 FLANGE IMA
8-98032-158-0
06
1
1409-
●
●
●
18
NUT; EXH MANIF
M10 FLANGE IMA
8-97381-617-0
02
1
1409-
●
●
●
19
STUD; MANIF TO CYL HD
M10X33 L=48 THA
8-97379-383-0
02
1
1409-
●
●
●
21
BOLT; HEAT PROTECTOR
M8X12 FLANGE THA
0-28050-812-0
04
1
1409-
●
●
●
33
WASHER; EXH MANIF
ID=10.5 THA
5-09500-013-0
08
1
1409-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
