Isuzu WW
▶
PICKUP
▶
TFR
▶
51579 - TFR/TFS THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#148237) — 25 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀
[025A] NO.1 (19 parça)
[025A] NO.2 (6 parça)
▶

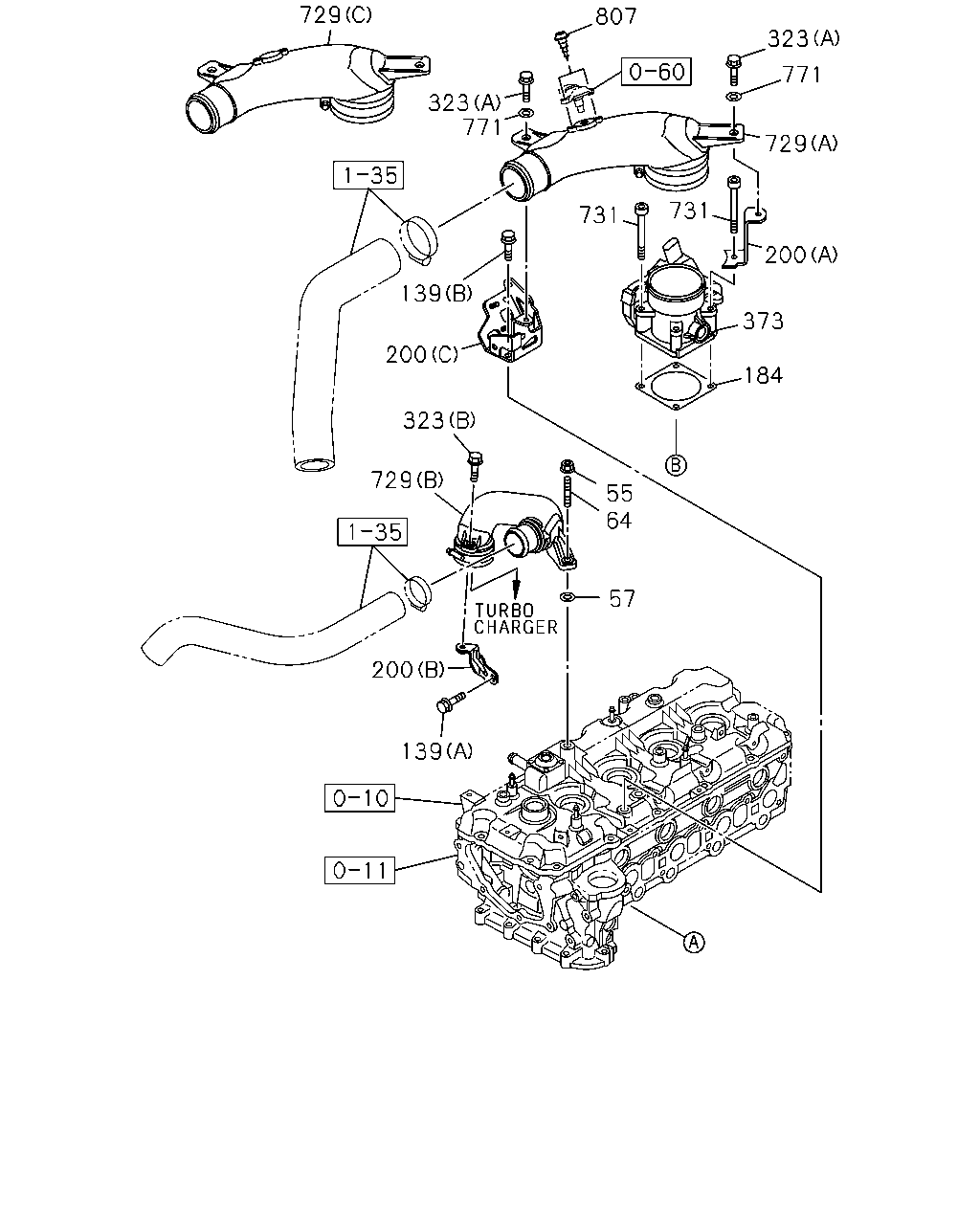

139
200
57
64
55
729
323
200
139
771
323
729
807
731
731
184
373
200
729
771
323
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
55
NUT; INL PIPE
M8 FLANGE THA
0-91180-208-0
01
1
1409-
●
●
●
57
WASHER; PL
ID=8.4 OD=22 THA
0-91614-708-0
01
1
1409-
●
●
●
64
STUD; INL PIPE
M8X30 L=41 IMA
0-41010-830-0
01
1
1409-
●
●
●
139
BOLT; BRKT FIX
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1409-
●
●
●
139
BOLT; BRKT FIX
(B) M8X20 FLANGE THA
0-28650-820-0
03
1
1409-
●
●
●
184
GASKET; T/V
THA
8-98096-968-0
01
1
1409-
●
●
●
200
BRACKET; AIR DUCT
(C) THA
8-98228-446-1
01
1
1409-
●
200
BRACKET; AIR DUCT
(A) THA
8-98154-158-2
01
1
1409-
●
●
●
200
BRACKET; AIR DUCT
(B) THA
8-98228-262-0
01
1
1409-
●
●
●
200
BRACKET; AIR DUCT
(C) THA
8-98228-445-2
01
1
1409-
●
●
323
BOLT; DUCT
(A) M6X16 FLANGE THA
0-28050-616-0
02
1
1409-
●
●
●
323
BOLT; DUCT
(B) M8X25 FLANGE THA
0-28050-825-0
01
1
1409-
●
●
●
373
THROTTLE ASM; INT
THA
8-98131-738-3
01
1
1409-
●
●
●
729
DUCT; INLET
(C) THA
8-98117-650-1
01
1
1409-
●
729
DUCT; INLET
(B) THA
8-98228-260-1
01
1
1409-
●
●
●
729
DUCT; INLET
(A) THA
8-98117-651-1
01
1
1409-
●
●
731
BOLT; THROTTLE ASM
M6X50 HEX SOCKET THA
0-58330-650-0
04
1
1409-
●
●
●
771
WASHER; DUCT
ID=6.4 OD=18 IMA
0-91610-706-0
02
1
1409-
●
●
●
807
SCREW; SENSOR
M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1409-
●
●

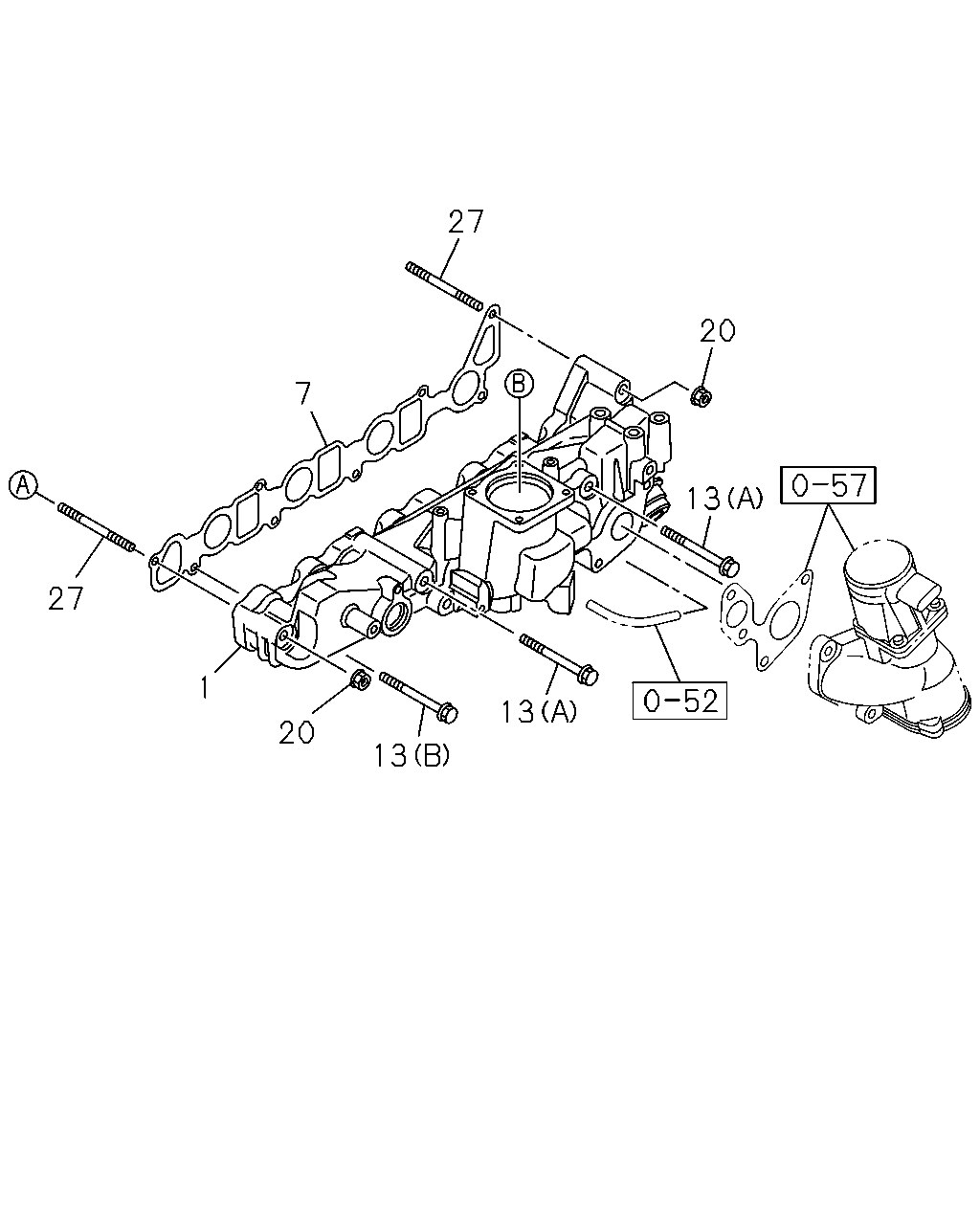

27
20
13
13
13
20
1
27
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MANIFOLD; INL
THA
8-98228-251-0
01
1
1409-
●
●
●
7
GASKET; INL MANIF TO HD
IMA
8-98212-999-0
01
1
1409-
●
●
●
13
BOLT; INL MANIF
(A) M8X110 FLANGE THA
0-28055-811-0
02
1
1409-
●
●
●
13
BOLT; INL MANIF
(B) M8X70 12-POINT HEAD THA
8-97101-065-0
04
1
1409-
●
●
●
20
NUT; INL MANIF
M8 FLANGE THA
0-91180-208-0
02
1
1409-
●
●
●
27
STUD; INL MANIF
M8X71 L=83 THA
8-97367-083-0
02
1
1409-
●
●
●
