◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#148236) — 46 parça
çizim 443055
10 10 52 52 20 10 52 10 20 20 78 52 10 20
BalonParca AdiParca NoAdetTipApplied Date A B C
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) M10 FLANGE THA 		0-91180-210-0 02 1 1409- ● ●
10 NUT; MTG RUBBER
(B) M12 FLANGE THA 		0-91180-212-0 02 1 1409- ● ● ●
10 NUT; MTG RUBBER
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1409- ● ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> (E) M10X25 FLANGE THA 		0-28651-025-0 04 1 1409- ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> (F) M10X55 FLANGE THA 		8-98035-672-0 02 1 1409- ● ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
(B) M10X30 FLANGE THA 		8-98013-800-0 04 1 1409- ● ● ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> (H) M8X35 FLANGE THA 		0-28650-835-0 04 1 1409- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE THA 		0-28051-020-0 06 1 1409- ● ● ●
20 BOLT; ENG FOOT
(C) M14X20 FLANGE IMA 		0-28851-420-0 01 1 1409- ● ● ●
20 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER THA 		0-50741-035-0 01 1 1409- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98270-984-0 01 1 1409- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> (D) THA 		8-98270-987-0 01 1 1409- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98270-988-0 01 1 1409- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB<TFB*W*> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> (B) THA 		8-98270-988-0 01 1 1409- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98270-985-0 01 1 1409- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-98238-912-0 01 1 1409- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB<TFS*W*> A/T 5 SPEED-AISIN<MA1> (B) THA 		8-98238-913-0 01 1 1409- ● ●
78 BRACKET; ENG MTG,RR
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> THA 		8-98164-580-2 01 1 1409- ● ●

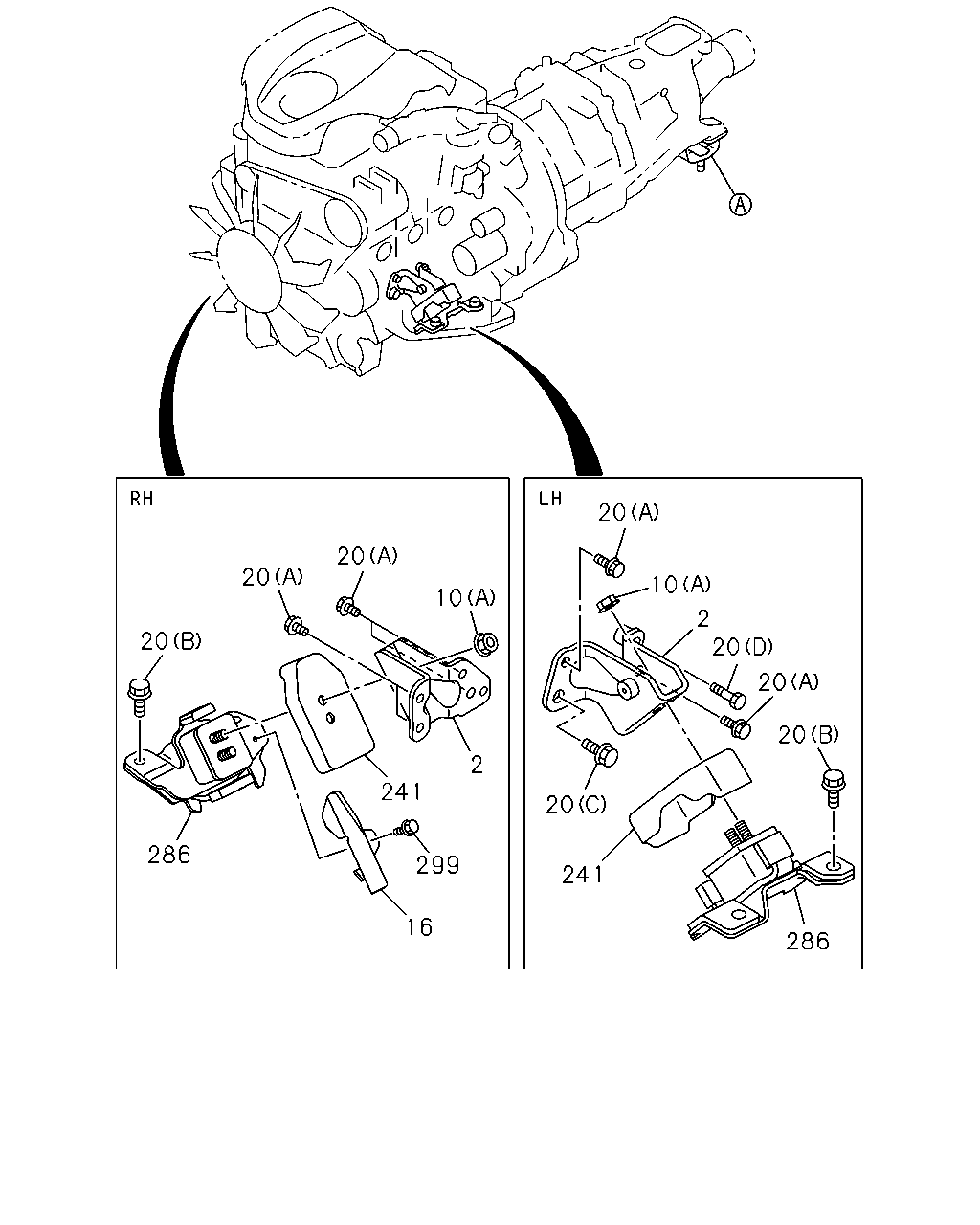

çizim 443068
20 20 20 286 16 299 241 10 2 241 20 20 10 2 20 20 20 286
BalonParca AdiParca NoAdetTipApplied Date A B C
2 FOOT; ENG
THA 		8-98132-100-0 01 1 1409- ● ● ●
2 FOOT; ENG
THA 		8-98132-101-0 01 1 1409- ● ● ●
10 NUT; MTG RUBBER
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) M10 FLANGE THA 		0-91180-210-0 02 1 1409- ● ●
10 NUT; MTG RUBBER
(B) M12 FLANGE THA 		0-91180-212-0 02 1 1409- ● ● ●
10 NUT; MTG RUBBER
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1409- ● ● ●
16 PROTECTOR; HEAT,ENG MTG,FRT
THA 		8-98182-916-1 01 1 1409- ● ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> (E) M10X25 FLANGE THA 		0-28651-025-0 04 1 1409- ● ●
20 BOLT; ENG FOOT
4X2<TFB***> A/T 5 SPEED-AISIN<MA1> (F) M10X55 FLANGE THA 		8-98035-672-0 02 1 1409- ● ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X2<TFB***> M/T MUX 5 SPEED 5S<MZJ> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
4X4<TFS***> A/T 5 SPEED-AISIN<MA1> (G) M10X35 FLANGE THA 		0-28751-035-0 02 1 1409- ●
20 BOLT; ENG FOOT
(B) M10X30 FLANGE THA 		8-98013-800-0 04 1 1409- ● ● ●
20 BOLT; ENG FOOT
4X4<TFS***> M/T MUX 5 SPEED 5S<MZJ> (H) M8X35 FLANGE THA 		0-28650-835-0 04 1 1409- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE THA 		0-28051-020-0 06 1 1409- ● ● ●
20 BOLT; ENG FOOT
(C) M14X20 FLANGE IMA 		0-28851-420-0 01 1 1409- ● ● ●
20 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER THA 		0-50741-035-0 01 1 1409- ● ● ●
241 COVER; ENG MTG
A/T 5 SPEED-AISIN<MA1> THA 		8-98194-507-1 01 1 1409- ● ●
241 COVER; ENG MTG
A/T 5 SPEED-AISIN<MA1> THA 		8-98194-508-1 01 1 1409- ● ●
241 COVER; ENG MTG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-956-2 01 1 1409- ● ● ●
241 COVER; ENG MTG
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98101-957-1 01 1 1409- ● ● ●
286 MOUNTING ASM; ENGINE
THA 		8-98075-376-2 01 1 1409- ● ● ●
286 MOUNTING ASM; ENGINE
THA 		8-98250-592-0 01 1 1409- ● ● ●
299 BOLT
M6X10 FLANGE THA 		0-28050-610-0 01 1 1409- ● ● ●
