◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51579 - TFR/TFS THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#148234) — 63 parça

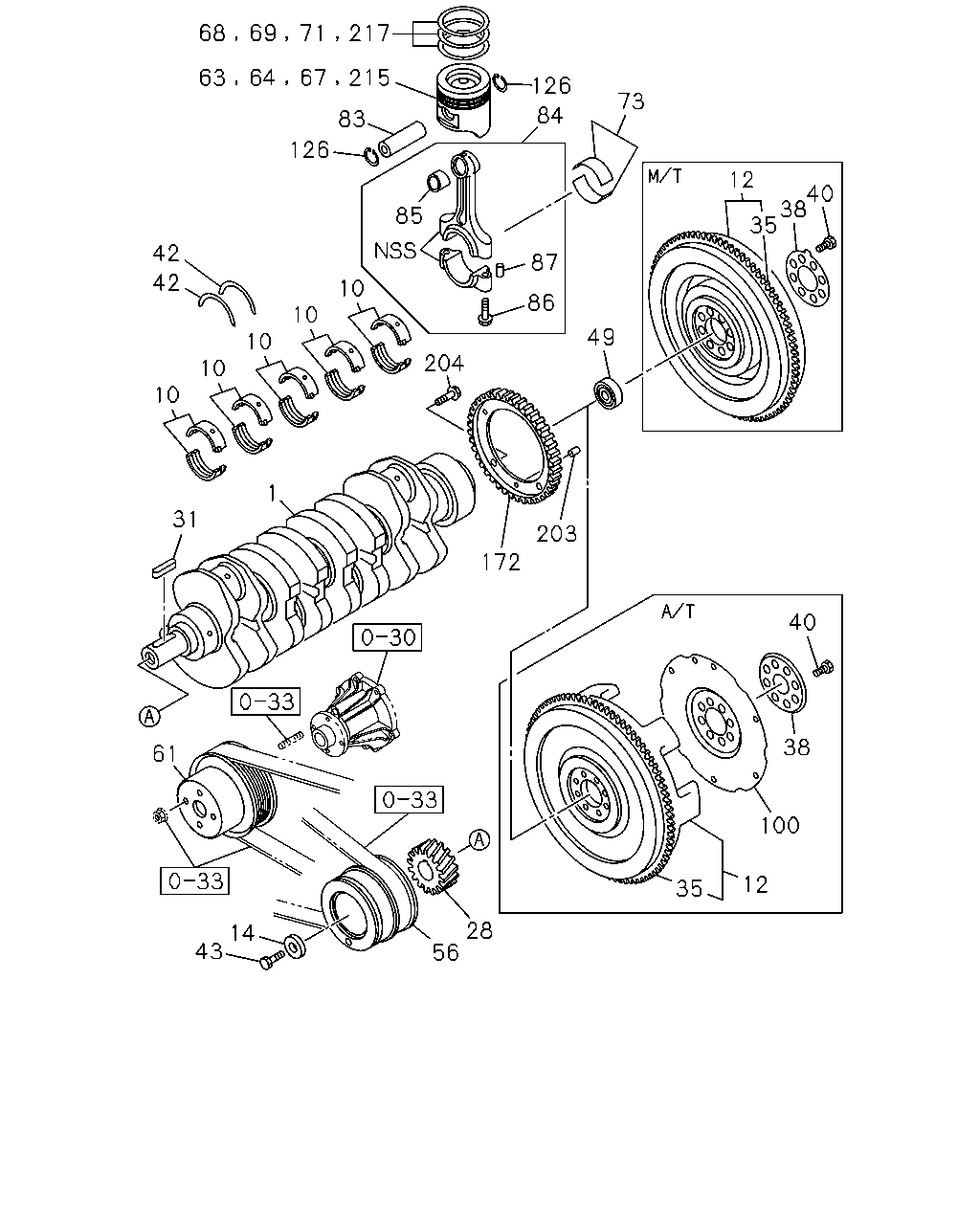

çizim 443773
68 69 71 217 215 67 64 63 126 83 126 84 73 85 87 86 12 35 38 40 49 203 172 40 38 100 12 35 28 56 14 43 61 31 1 10 10 10 10 10 42 42 204
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT
THA 		8-98131-999-1 01 1 1409- ● ●
1 CRANKSHAFT
THA 		8-97311-632-1 01 1 1409- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN THA 		8-97388-502-0 05 1 1409- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK THA 		8-97388-503-0 05 1 1409- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE THA 		8-97388-504-0 05 1 1409- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW THA 		8-97388-505-0 05 1 1409- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
RED THA 		8-97388-506-0 05 1 1409- ● ● ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-180-0 01 1 1409- ● ●
12 FLYWHEEL
A/T 5 SPEED-AISIN<MA1> THA 		8-98132-505-0 01 1 1409- ● ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-653-1 01 1 1409-1409 ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98283-475-0 01 1 1410- ●
14 WASHER; PULLEY DAMPER
REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=40 IMA 		8-98101-010-0 01 1 1409- ●
14 WASHER; PULLEY DAMPER
EXC. REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1409- ●
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1409- ● ●
28 GEAR; CR/SHF
Z=44 THA 		8-97312-199-1 01 1 1409- ● ● ●
31 KEY; FEATHER,CR/SHF
IMA 		9-08030-743-0 01 1 1409- ● ● ●
35 GEAR; RING
M/T MUA 5 SPEED 5H<MWQ> Z=108 THA 		8-97912-516-1 01 1 1409- ● ●
35 GEAR; RING
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1409- ● ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> IMA 		8-98195-090-0 01 1 1409- ● ●
38 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94133-970-1 01 1 1409- ● ● ●
40 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> M13X78 IMA 		8-97080-561-1 08 1 1409- ● ●
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M13X36 THA 		8-97941-069-0 08 1 1409- ● ● ●
42 WASHER; THRUST,CR/SHF
THA 		8-97354-055-1 02 1 1409- ● ● ●
43 BOLT; CR/SHF PULLEY
REFRIGERATION KIT<7FH> M16X69 IMA 		8-98246-605-0 01 1 1409- ●
43 BOLT; CR/SHF PULLEY
EXC. REFRIGERATION KIT<7FH> M16X43 THA 		8-97373-852-1 01 1 1409- ●
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1409- ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NSK THA 		8-97920-344-2 01 1 1409- ● ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NACHI THA 		8-97922-552-1 01 1 1409- ● ● ●
56 PULLEY; CR/SHF DAMPER
REFRIGERATION KIT<7FH> 3-GROOVE THA 		8-98101-013-0 01 1 1409- ●
56 PULLEY; CR/SHF DAMPER
EXC. REFRIGERATION KIT<7FH> 2-GROOVE THA 		8-98183-902-0 01 1 1409- ●
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1409- ● ●
61 PULLEY; FAN DRIVE
1-GROOVE THA 		8-98131-628-0 01 1 1409- ● ● ●
63 PISTON
GRADE=A THA 		8-98228-070-0 04 1 1409- ● ●
63 PISTON
GRADE=B THA 		8-98228-071-0 04 1 1409- ● ●
63 PISTON
GRADE=C THA 		8-98228-072-0 04 1 1409- ● ●
63 PISTON
GRADE=A THA 		8-98228-067-0 04 1 1409- ●
63 PISTON
GRADE=B THA 		8-98228-068-0 04 1 1409- ●
63 PISTON
GRADE=C THA 		8-98228-069-0 04 1 1409- ●
64 PISTON; O/S=0.50
THA 		8-98230-240-0 04 1 1409- ● ●
64 PISTON; O/S=0.50
THA 		8-98230-237-0 04 1 1409- ●
67 PISTON; O/S=0.25
THA 		8-98230-239-0 04 1 1409- ● ●
67 PISTON; O/S=0.25
THA 		8-98230-236-0 04 1 1409- ●
68 RING SET; PISTON,STANDARD
STD THA 		8-98171-040-0 04 1 1409- ● ●
68 RING SET; PISTON,STANDARD
STD THA 		8-98171-044-0 04 1 1409- ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-042-0 04 1 1409- ● ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-046-0 04 1 1409- ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-041-0 04 1 1409- ● ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-045-0 04 1 1409- ●
73 METAL SET; CONN ROD,STANDARD
THA 		8-97388-735-0 04 1 1409- ● ● ●
83 PIN; PISTON
THA 		8-98150-333-0 04 1 1409- ● ● ●
84 ROD ASM; CONN
THA 		8-97357-716-3 04 1 1409- ● ● ●
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1409- ● ● ●
86 BOLT; CONNROD
M11X44.5 IMA 		8-98048-538-0 08 1 1409- ● ● ●
87 PIN; CONNROD BIG END
OD=5 L=8 THA 		9-08160-508-0 08 1 1409- ● ● ●
100 PLATE; FLEX
A/T 5 SPEED-AISIN<MA1> IMA 		8-98192-379-0 01 1 1409- ● ●
126 RING; SNAP,PISTON PIN
OD=37.5 IMA 		8-94460-687-0 08 1 1409- ● ● ●
172 ROTOR; CRANK SENSOR
IMA 		8-98163-693-0 01 1 1409- ● ● ●
203 PIN; ROTOR
OD=5 L=8 THA 		9-08160-508-0 01 1 1409- ● ● ●
204 BOLT; ROTOR
THA 		8-97944-142-1 03 1 1409- ● ● ●
215 PISTON; O/S=0.75
THA 		8-98230-241-0 04 1 1409- ● ●
215 PISTON; O/S=0.75
THA 		8-98230-238-0 04 1 1409- ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-043-0 04 1 1409- ● ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-047-0 04 1 1409- ●
