0-11 — CYLINDER HEAD (#148230) — 36 parça

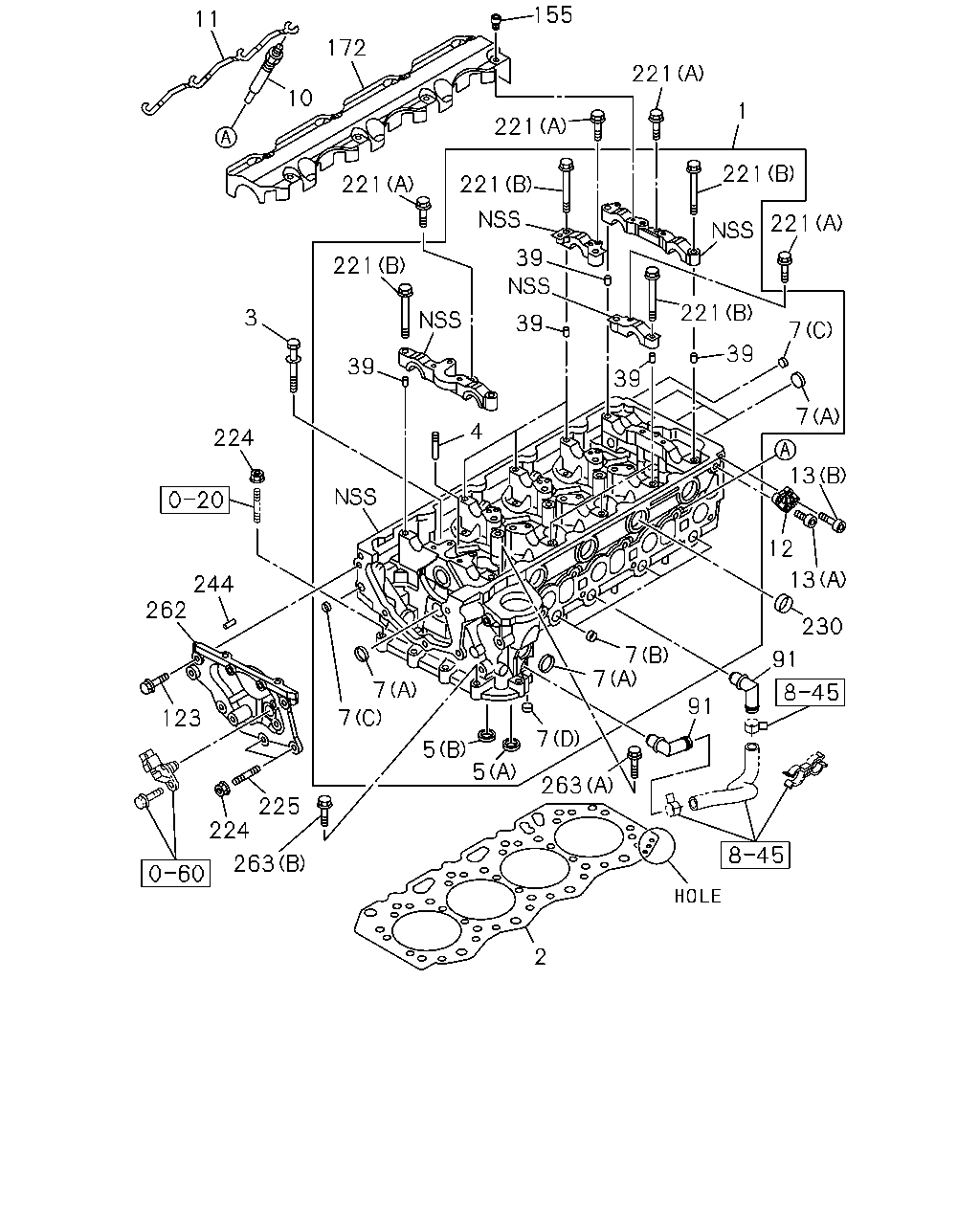

çizim 443952
2 263 91 91 230 13 12 13 7 7 39 221 221 221 1 221 155 221 221 39 39 39 7 7 7 5 5 7 7 4 39 221 221 172 10 11 3 224 244 262 263 224 225 123
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
THA 		8-98238-315-0 01 1 1409-1410 ● ● ●
1 HEAD ASM; CYL
IMA 		8-98270-378-1 01 1 1411- ● ● ●
2 GASKET; CYL HD
OVER SIZE IMA 		8-97388-314-0 01 1 1409- ● ● ●
2 GASKET; CYL HD
STD GRADE A T=1.11 1-HOLE THA 		8-98228-333-0 01 1 1409-1411 ● ● ●
2 GASKET; CYL HD
STD GRADE A T=1.14 1-HOLE THA 		8-98261-318-0 01 1 1412- ● ● ●
2 GASKET; CYL HD
STD GRADE B T=1.16 2-HOLE THA 		8-98228-334-0 01 1 1409-1411 ● ● ●
2 GASKET; CYL HD
STD GRADE B T=1.19 2-HOLE THA 		8-98261-319-0 01 1 1412- ● ● ●
2 GASKET; CYL HD
STD GRADE C T=1.21 3-HOLE THA 		8-98228-335-0 01 1 1409-1411 ● ● ●
2 GASKET; CYL HD
STD GRADE C T=1.24 3-HOLE THA 		8-98261-320-0 01 1 1412- ● ● ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1409- ● ● ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 1409- ● ● ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 1409- ● ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 1409- ● ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 06 1 1409- ● ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 IMA 		5-11219-011-0 02 1 1409- ● ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=8 IMA 		8-97233-429-0 01 1 1409- ● ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=24 IMA 		8-97333-120-0 05 1 1409- ● ● ●
10 PLUG; GLOW
NGK THA 		8-98117-567-1 04 1 1409- ● ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1409- ● ● ●
12 HANGER; ENG,RR
THA 		8-98239-364-0 01 1 1409- ● ● ●
13 BOLT; HANGER
(A) M8X20 HEX SOCKET IMA 		0-58330-820-0 01 1 1409- ● ● ●
13 BOLT; HANGER
(B) M8X30 HEX SOCKET IMA 		0-58330-830-0 01 1 1409- ● ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 26 1 1409- ● ● ●
91 PIPE; HTR
THA 		8-98228-414-0 02 1 1409- ● ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 03 1 1409- ● ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 08 1 1409- ● ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98250-484-0 01 1 1409- ● ● ●
221 BOLT; BRKT
(A) M6X30 FLANGE IMA 		0-28050-630-0 08 1 1409- ● ● ●
221 BOLT; BRKT
(B) M8X85 THA 		1-09044-074-0 21 1 1409- ● ● ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 1409- ● ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 1409- ● ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 1409- ● ● ●
244 PIN; HEAD GASKET
OD=5 L=10 IMA 		9-08150-510-0 01 1 1409- ● ● ●
262 COVER; CYL HEAD
THA 		8-98243-226-0 01 1 1409- ● ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 1409- ● ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1409- ● ● ●
