◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11131 - FVM(INDONESIA)6SD1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#14823) — 28 parça

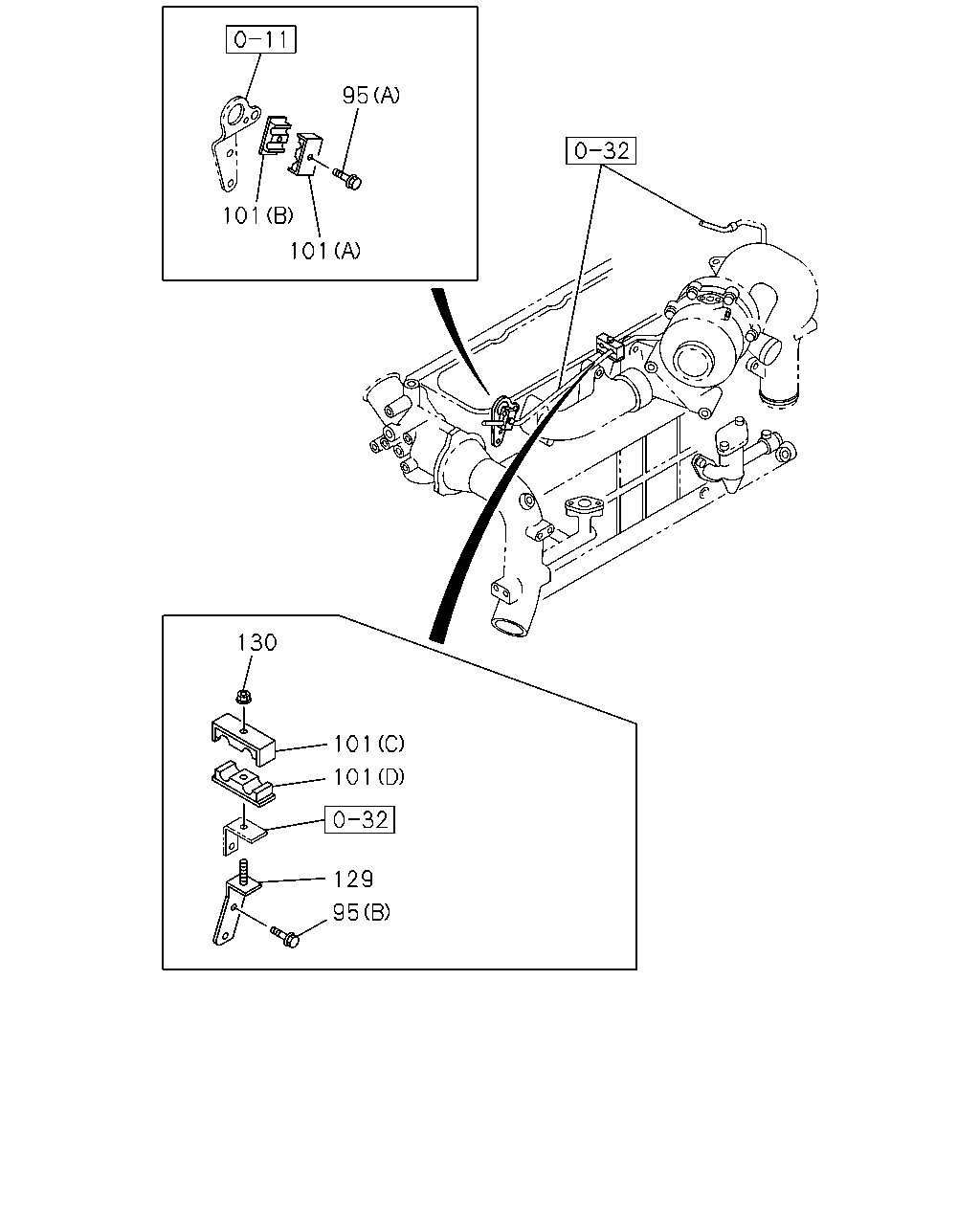

çizim 144285
95 101 101 130 101 101 129 95
BalonParca AdiParca NoAdetTipApplied Date
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0711-
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0711-
101 CLIP; WATER PIPE
(A) 		1-09701-172-3 01 1 0711-
101 CLIP; WATER PIPE
(B) 		1-09701-173-2 01 1 0711-
101 CLIP; WATER PIPE
(C) 		1-09701-230-1 01 1 0711-
101 CLIP; WATER PIPE
(D) 		1-09701-231-1 01 1 0711-
129 BRACKET; CLIP 1-13319-038-0 01 1 0711-
130 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0711-

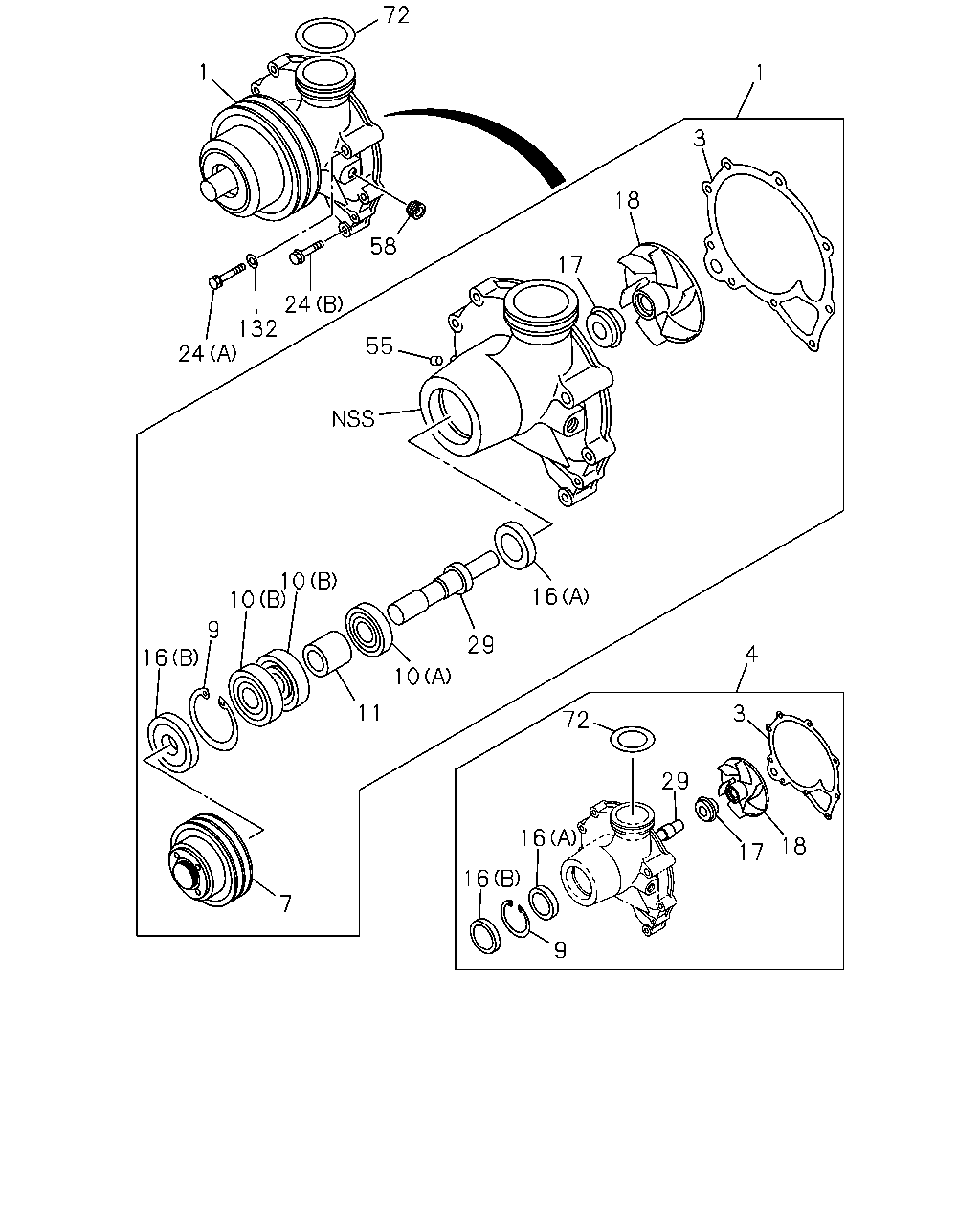

çizim 144296
72 1 1 3 18 58 17 24 132 55 24 10 10 16 9 16 29 4 10 11 3 72 29 16 18 17 16 7 9
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 0711-
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 0711-
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 0711-
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 0711-
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0711-
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 0711-
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 0711-
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 0711-
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-388-0 01 1 0711-
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-389-0 01 1 0711-
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0711-
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 0711-
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0711-
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 0711-0906
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907-
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 0711-
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 0711-
58 PLUG; HTR
PT3/8 T=8.0 		1-09605-066-0 01 1 0711-
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 0711-
132 WASHER; PL,WATER PUMP
ID=10.5 		0-91610-510-0 02 1 0711-
