0-10 — CYLINDER HEAD COVER (#148229) — 15 parça

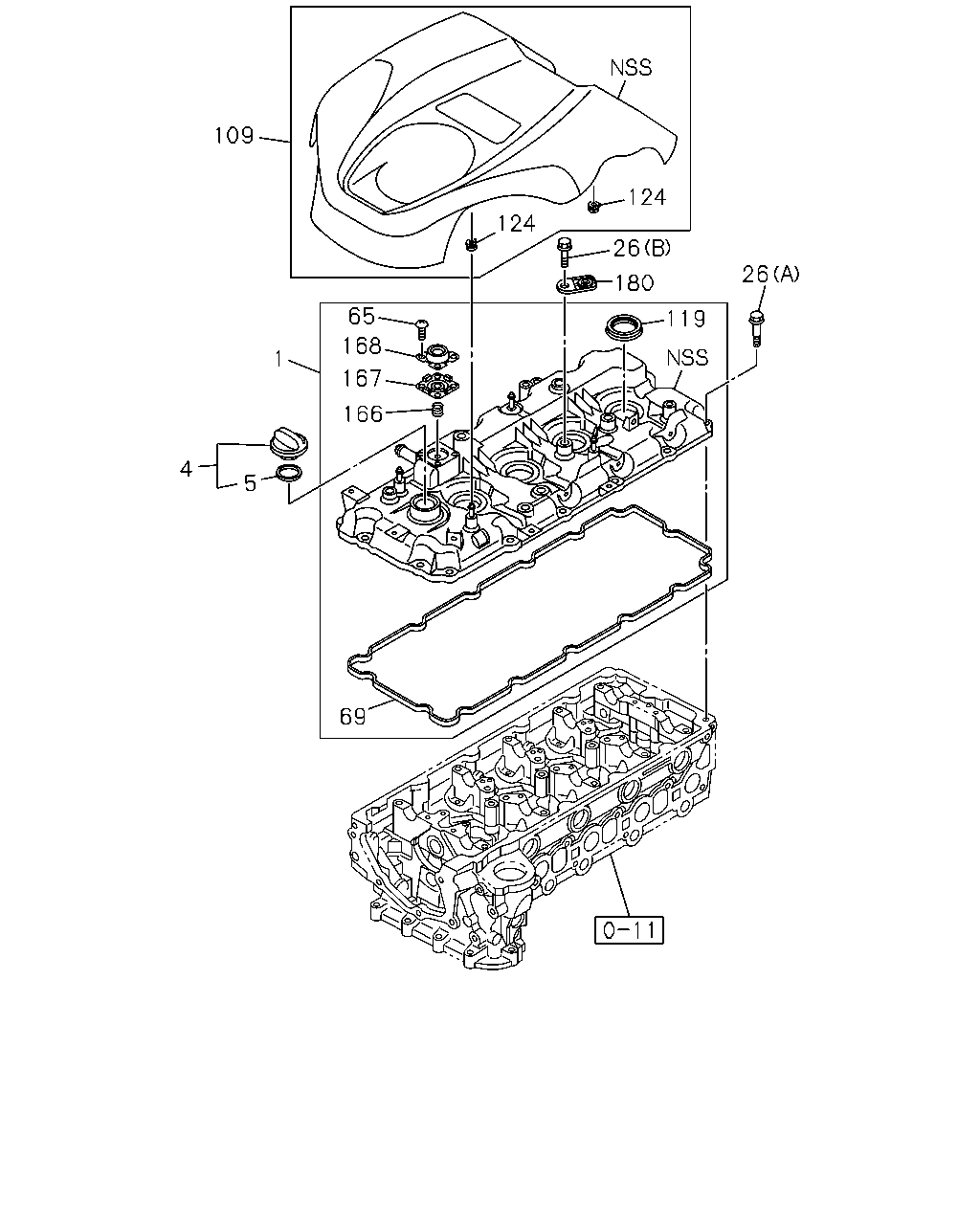

çizim 443016
109 166 167 168 65 1 5 4 69 119 26 26 124 180 124
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD
THA 		8-98228-367-4 01 1 1409- ● ● ●
4 CAP; OIL FILLER
THA 		8-98026-084-0 01 1 1409- ● ● ●
5 GASKET; OIL FILLER
ID=32 OD=40 THA 		8-97918-298-0 01 1 1409- ● ● ●
26 BOLT; CYL HD COVER
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 1409- ● ● ●
26 BOLT; CYL HD COVER
(A) M6X25.7 FLANGE THA 		8-98228-370-0 15 1 1409- ● ● ●
65 SCREW; ADAPTER
M4X10 THA 		8-98209-387-0 04 1 1409- ● ● ●
69 GASKET; HD TO COVER
THA 		8-98228-369-0 01 1 1409- ● ● ●
109 COVER; ENG
THA 		8-98147-400-0 01 1 1409- ●
109 COVER; ENG
THA 		8-98147-401-0 01 1 1409- ● ●
119 COVER; SEAL,NOZZLE
THA 		8-98228-371-0 04 1 1409- ● ● ●
124 RUBBER; MTG,COVER
THA 		8-98269-869-0 04 1 1409- ● ● ●
166 SPRING; VENTILATOR
IMA 		8-97088-445-0 01 1 1409- ● ● ●
167 DIAPHRAGM; VENTILATOR
THA 		8-98003-164-0 01 1 1409- ● ● ●
168 COVER; VENTILATOR
THA 		8-98234-092-0 01 1 1409- ● ● ●
180 DAMPENER; CYL HEAD
THA 		8-98244-154-0 01 1 1409- ● ● ●
