Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#148225) — 45 parça

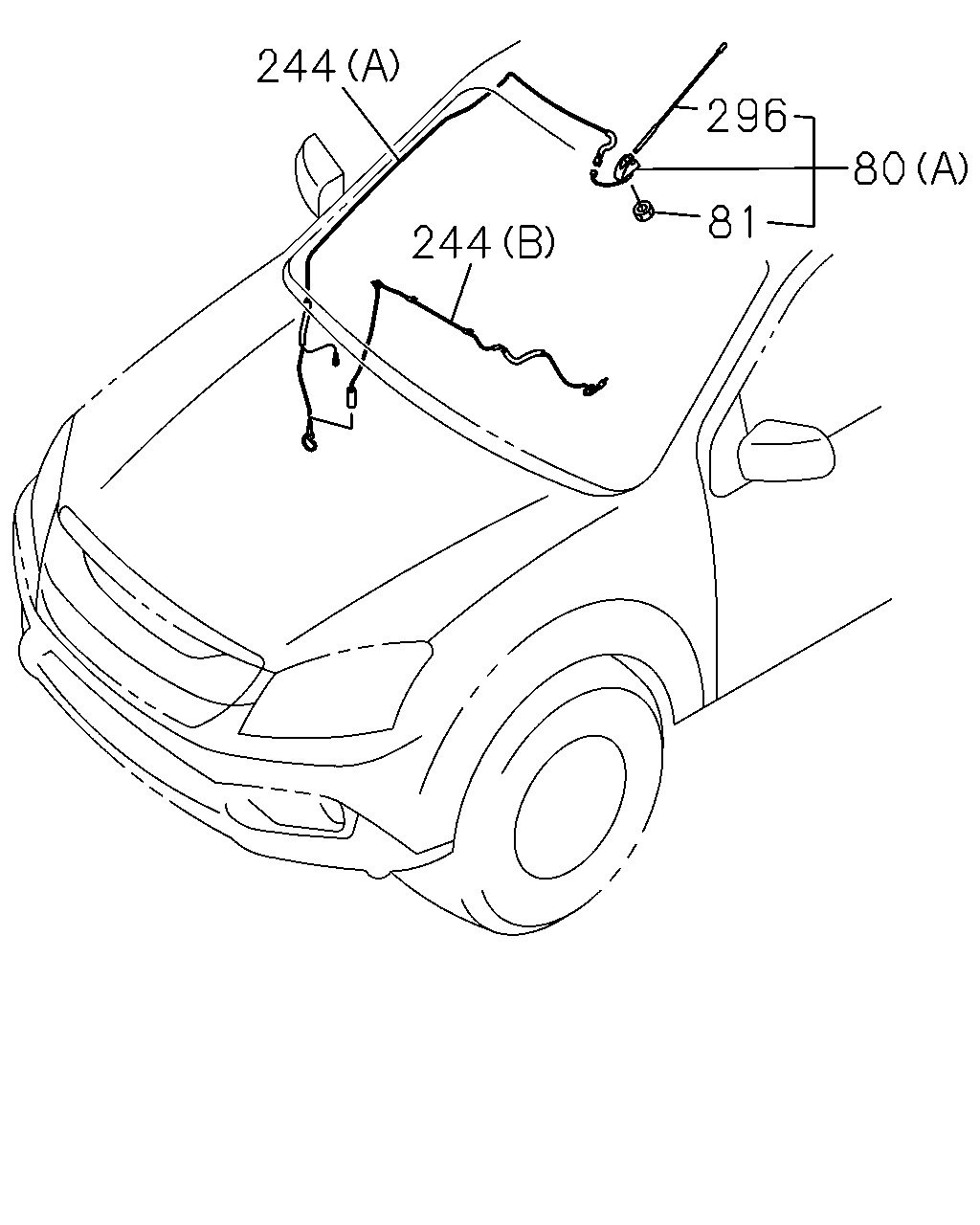

244 244 81 80 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98053-048-0	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR COSMIC BLACK MICA(523) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK	8-97424-303-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) WHITE	8-97424-304-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR TITANIUM SILVER MET(529) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) SILVER	8-97424-305-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR SILKY WHITE PEARL(531) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) WHITE	8-97424-306-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR ULURU BROWN MET(544) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BROWN	8-97424-307-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) LIGHT BLUE	8-97424-308-1	01	1	1409-	●	●
81	09.647 NUT; ANTENNA POLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)	8-98165-971-0	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-98192-896-2	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98053-051-1	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98218-163-0	01	1	1409-	●	●
296	09.665 ROD; ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)	8-98165-969-0	01	1	1409-	●	●

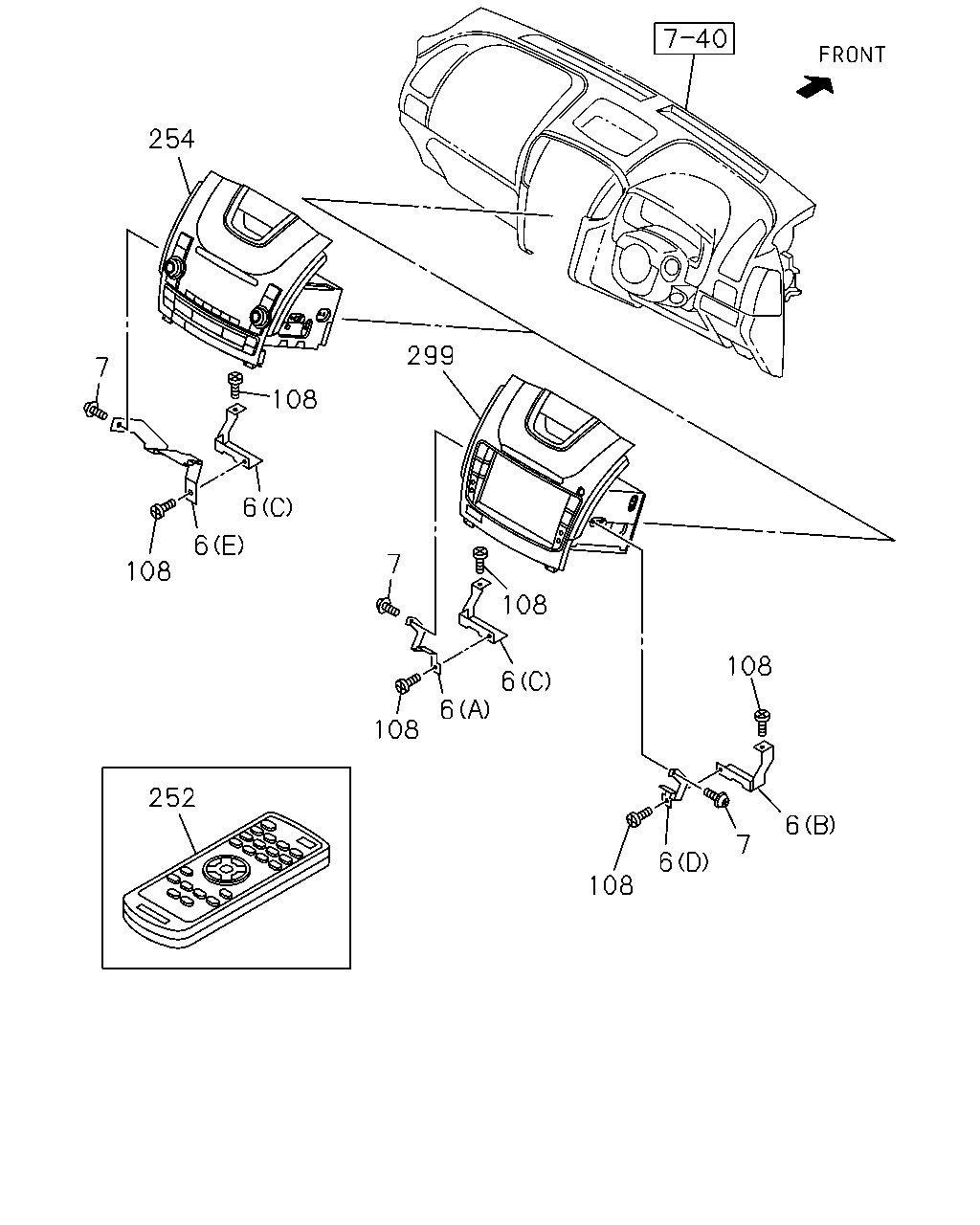

254 7 108 6 6 108 299 7 108 6 6 108 252 108 6 7 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A)	8-98102-186-2	01	1	1409-	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B)	8-98102-187-3	01	1	1409-	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D)	8-98109-822-2	01	1	1409-	●	●
6	09.645 BRACKET; RADIO TO PANEL AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E)	8-98227-139-1	01	1	1409-	●	●
6	09.645 BRACKET; RADIO TO PANEL (C)	8-98106-390-3	01	1	1409-	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1409-	●	●
7	09.650 SCREW; RADIO AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1409-	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 08.083 M5X16 TAPPING	8-98167-449-0	04	1	1409-	●	●
108	09.645 SCREW; BRKT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING	8-98167-449-0	02	1	1409-	●	●
252	09.663 REMOTE CONTROL UNIT; AUDIO 2ND SEAT DVD MONITOR<U48>	8-98243-897-0	01	1	1409-	●	●
254	09.645 RADIO CONTROL ASM; STEREO,AM-FM AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)	8-98241-356-2	01	1	1409-	●	●
299	09.766 DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98287-434-0	01	1	1409-1504	●	●
299	09.766 DISPLAY; MULTI AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98309-243-0	01	1	1505-	●	●

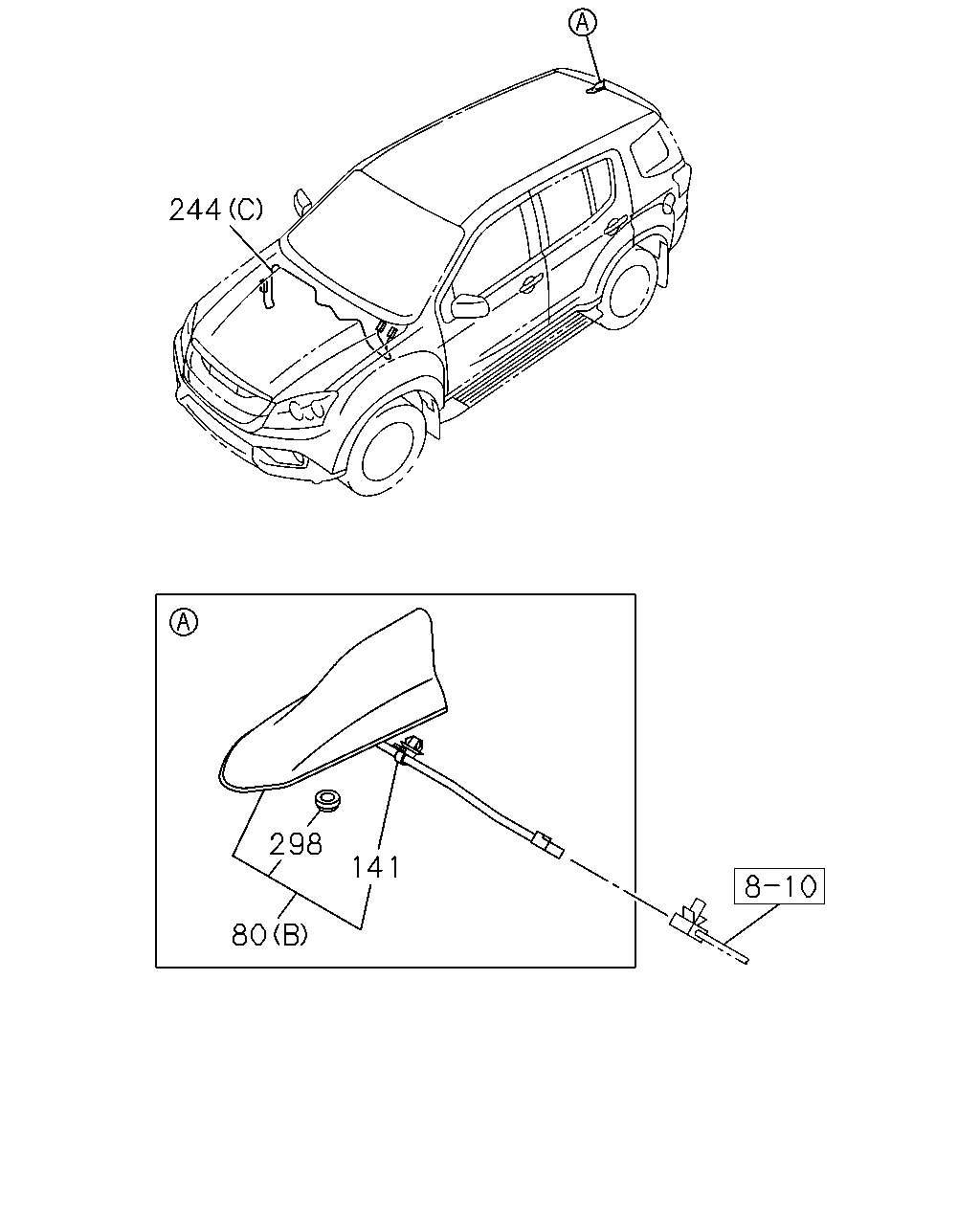

244 298 141 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	09.645 ANTENNA AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98053-048-0	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR COSMIC BLACK MICA(523) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK	8-97424-303-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR SPLASH WHITE(527) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) WHITE	8-97424-304-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR TITANIUM SILVER MET(529) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) SILVER	8-97424-305-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR SILKY WHITE PEARL(531) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) WHITE	8-97424-306-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR ULURU BROWN MET(544) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BROWN	8-97424-307-1	01	1	1409-	●	●
80	09.645 ANTENNA BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) LIGHT BLUE	8-97424-308-1	01	1	1409-	●	●
141	03.162 CLIP; ANTENNA CABLE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98224-054-0	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C)	8-98192-896-2	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B)	8-98053-051-1	01	1	1409-	●	●
244	09.647 CABLE; FEEDER AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A)	8-98218-163-0	01	1	1409-	●	●
298	09.647 NUT; ANTENNA AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY)	8-98219-125-0	01	1	1409-	●	●

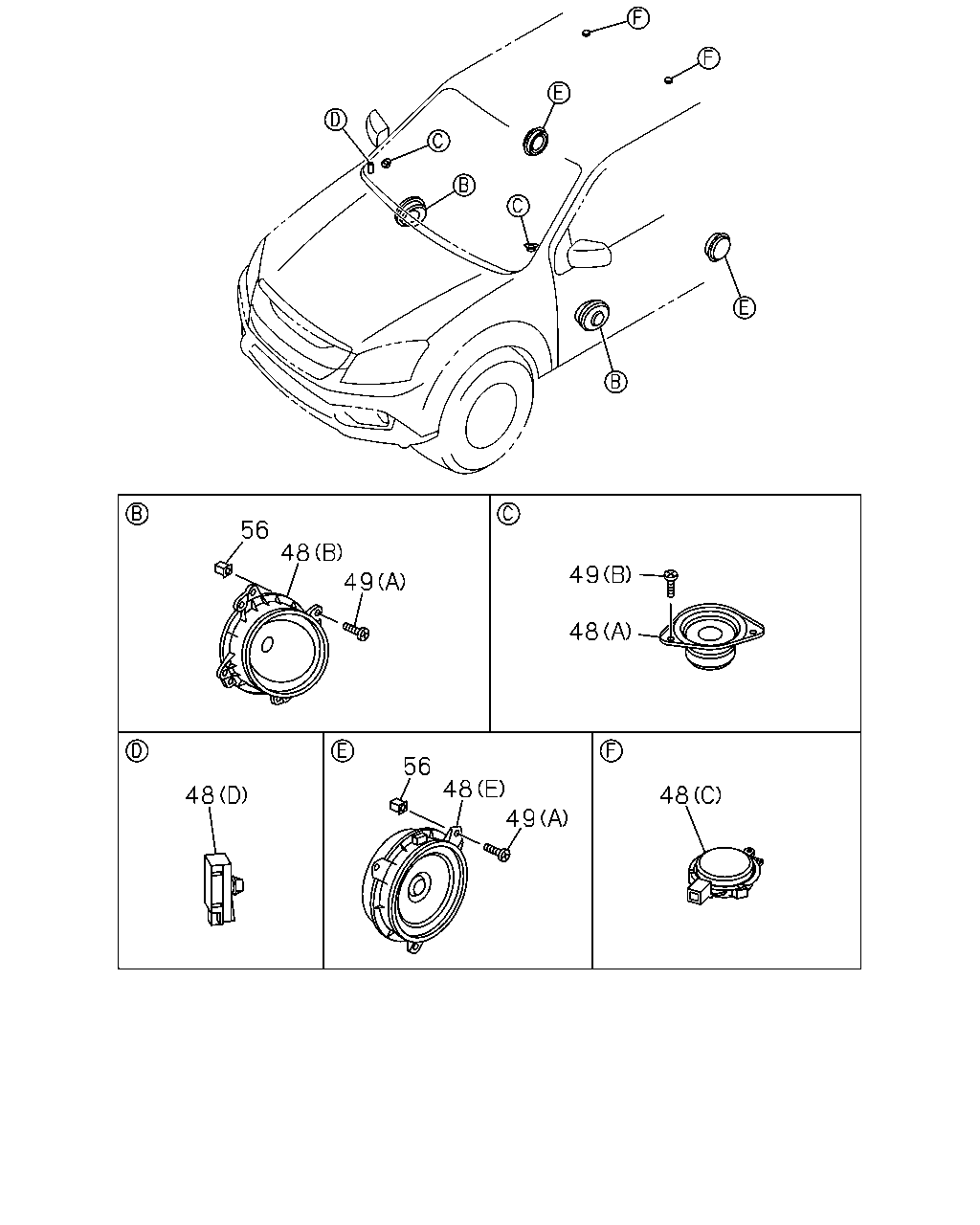

56 48 49 49 48 56 48 48 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (B)	8-98052-937-0	02	1	1409-	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (A)	8-98052-940-0	02	1	1409-	●	●
48	09.650 SPEAKER; AUDIO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (E)	8-98052-941-0	02	1	1409-	●	●
48	09.650 SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (C)	8-98052-942-0	02	1	1409-	●	●
48	09.650 SPEAKER; AUDIO 8-SPEAKER SYSTEM CUSTOM<U87> (D)	8-98064-704-0	01	1	1409-	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING	8-98167-449-0	04	1	1409-	●	●
49	09.655 SCREW; SPEAKER 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING	8-98184-363-0	14	1	1409-	●	●
56	09.655 NUT; SPEAKER,RADIO OR STEREO 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87>	8-98163-895-0	14	1	1409-	●	●
