Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#148223) — 45 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

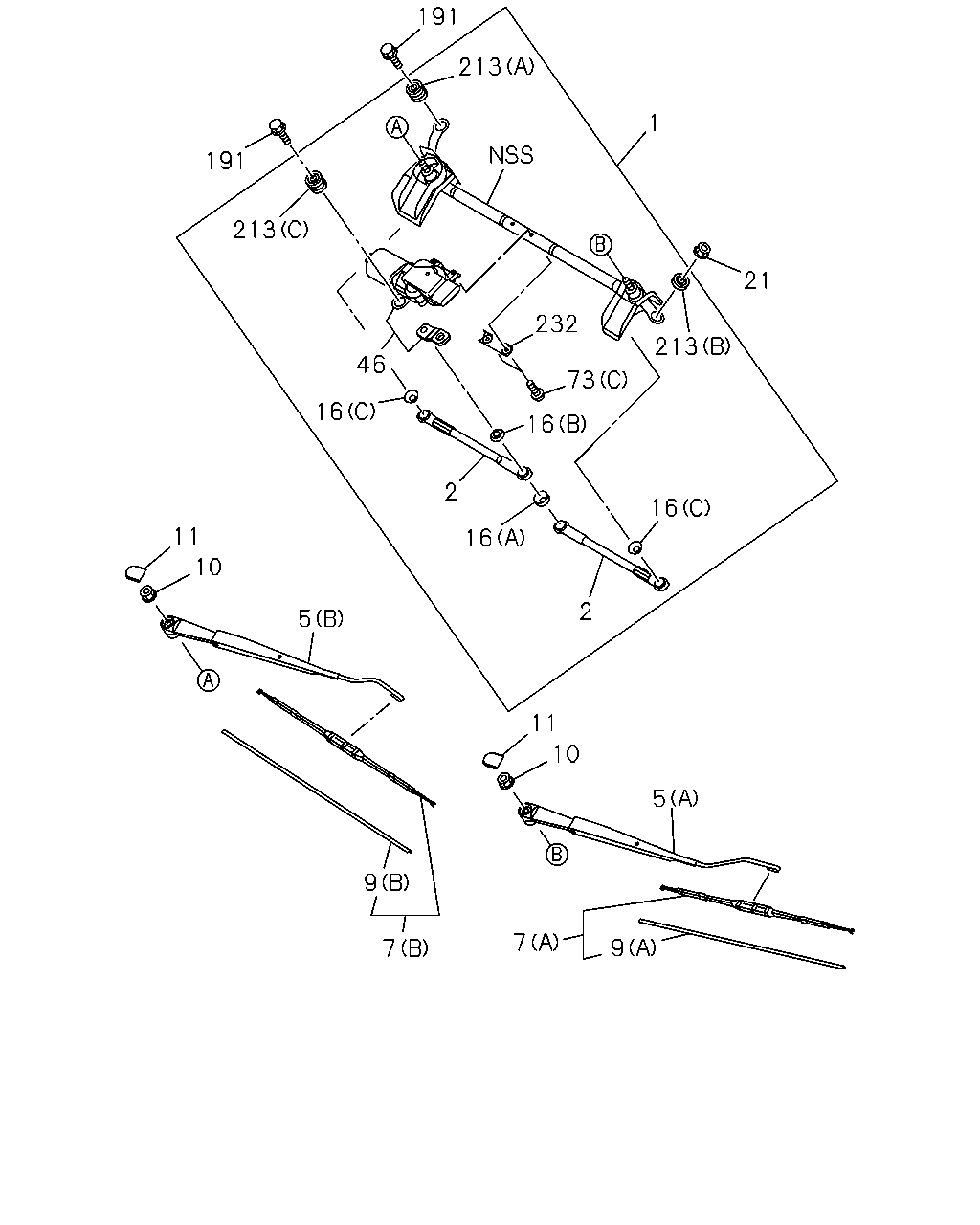

[880A] ARM AND MOTOR (24 parça)

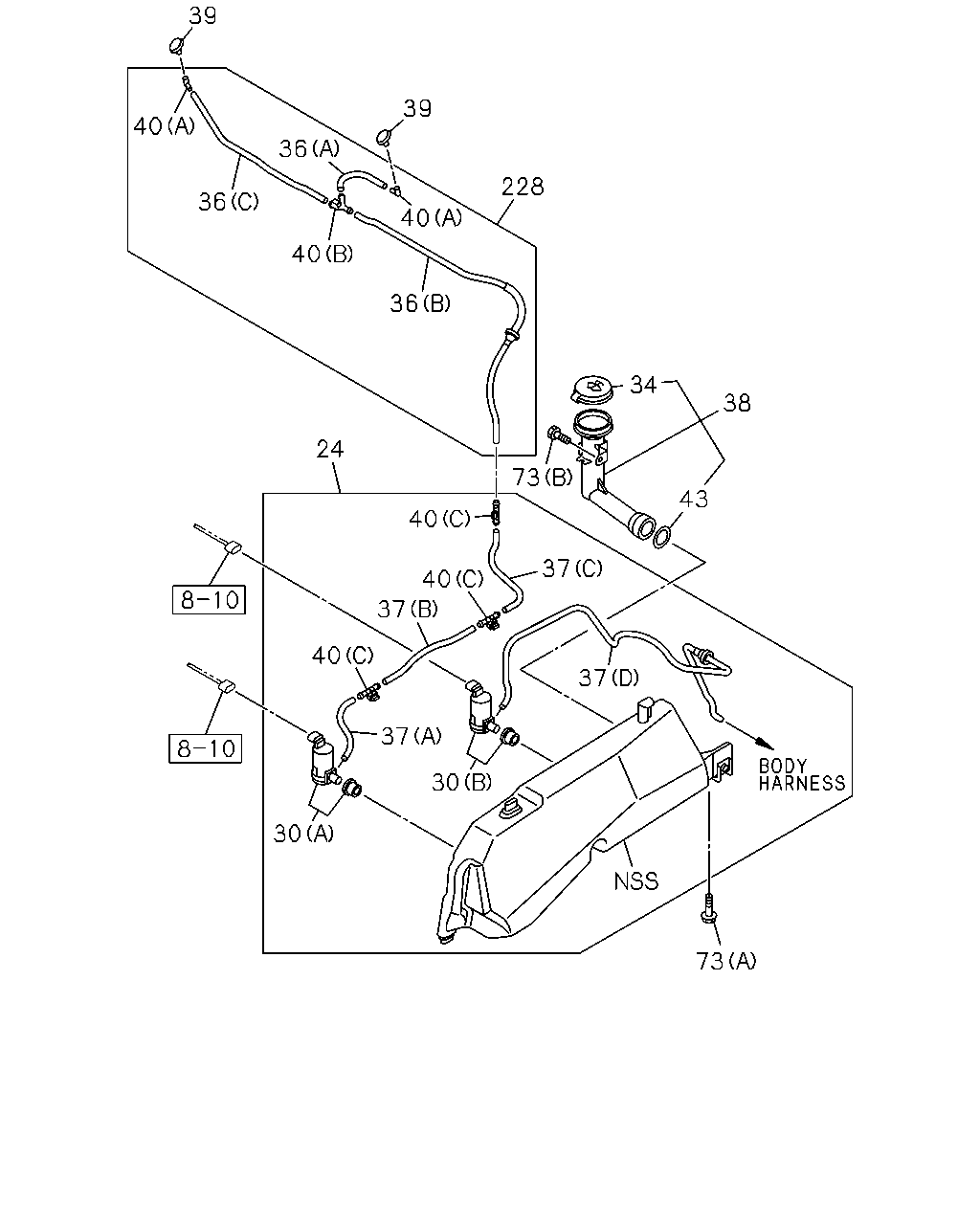

[880A] TANK AND NOZZLE (21 parça)
▶
191
191
213
213
1
21
213
73
16
232
46
16
2
16
2
16
11
10
5
11
10
5
9
7
7
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.063 LINK ASM; FRT WIPER
8-98057-449-1
01
1
1409-
●
●
2
16.063 LINK; FRT WIPER
8-98193-801-0
01
1
1409-
●
●
2
16.063 LINK; FRT WIPER
8-98193-802-0
01
1
1409-
●
●
5
16.063 ARM; WIPER
(B)
8-98193-629-0
01
1
1409-
●
●
5
16.063 ARM; WIPER
(A)
8-98193-813-0
01
1
1409-
●
●
7
16.062 BLADE; WIPER
(B) L=550
8-97349-900-0
01
1
1409-
●
●
7
16.062 BLADE; WIPER
(A) L=450
8-98193-815-0
01
1
1409-
●
●
9
16.062 RUBBER; FRT WIPER BLADE
(B) L=550
8-97349-901-0
01
1
1409-
●
●
9
16.062 RUBBER; FRT WIPER BLADE
(A) L=450
8-98193-819-0
01
1
1409-
●
●
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE
8-98049-367-0
02
1
1409-
●
●
11
16.063 COVER; WIPER ARM
8-98101-104-0
02
1
1409-
●
●
16
16.063 SEAL; BALL JOINT
(A)
8-98193-845-0
01
1
1409-
●
●
16
16.063 SEAL; BALL JOINT
(B)
8-98193-846-0
01
1
1409-
●
●
16
16.063 SEAL; BALL JOINT
(C)
8-98193-847-0
02
1
1409-
●
●
21
16.063 NUT; WIPER LINK PIVOT
16.065 M6 W/DISHED WASHER
8-98049-368-0
01
1
1409-
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98142-507-0
01
1
1409-
●
●
73
16.063 BOLT
03.895 (A) M6X16 FLANGE
8-98049-357-0
01
1
1409-
●
●
73
16.063 BOLT
02.762 (B) M6X18 TAPPING W/LK&PL WASHER
8-98062-140-0
01
1
1409-
●
●
73
16.063 BOLT
(C) M6X32
8-98193-851-0
02
1
1409-
●
●
191
16.063 BOLT; WIPER LINK
M6X33 W/PL WASHER
8-98048-997-0
02
1
1409-
●
●
213
16.065 RUBBER; MTG
(A)
8-98193-848-0
01
1
1409-
●
●
213
16.065 RUBBER; MTG
(B)
8-98193-849-0
01
1
1409-
●
●
213
16.065 RUBBER; MTG
(C)
8-98193-850-0
01
1
1409-
●
●
232
05.125 PLATE; FIXING
8-98196-564-0
01
1
1409-
●
●
39
39
228
36
40
36
40
36
40
34
38
43
73
37
37
40
40
24
37
40
37
30
73
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
16.065 TANK ASM; WASHER
8-98189-112-0
01
1
1409-
●
●
30
16.065 MOTOR ASM; FRT WASHER TANK
(A)
8-97314-350-0
01
1
1409-
●
●
30
16.065 MOTOR ASM; FRT WASHER TANK
(B)
8-98268-427-0
01
1
1409-
●
●
34
16.065 CAP; WASHER TANK
8-98194-286-0
01
1
1409-
●
●
36
16.065 HOSE; WASHER
(A) L=110
8-98193-807-1
01
1
1409-
●
●
36
16.065 HOSE; WASHER
(B) L=630
8-98193-808-1
01
1
1409-
●
●
36
16.065 HOSE; WASHER
(C) L=380
8-98193-809-1
01
1
1409-
●
●
37
16.065 TUBE ASM; WASHER TANK
(A) L=130
8-98193-853-0
01
1
1409-
●
●
37
16.065 TUBE ASM; WASHER TANK
(B) L=190
8-98193-854-0
01
1
1409-
●
●
37
16.065 TUBE ASM; WASHER TANK
(C) L=200
8-98193-855-0
01
1
1409-
●
●
37
16.065 TUBE ASM; WASHER TANK
(D)
8-98268-278-0
01
1
1409-
●
●
38
16.065 HOSE; JOINT,TANK
8-98057-456-0
01
1
1409-
●
●
39
16.065 NOZZLE; WINDSHIELD WASHER
8-98067-859-3
02
1
1409-
●
●
40
16.065 JOINT; WASHER HOSE
(C)
8-97314-270-0
03
1
1409-
●
●
40
16.065 JOINT; WASHER HOSE
(B)
8-97855-163-0
01
1
1409-
●
●
40
16.065 JOINT; WASHER HOSE
(A)
8-98193-805-0
02
1
1409-
●
●
43
16.065 RUBBER; GASKET,TANK
8-98194-287-0
01
1
1409-
●
●
73
16.063 BOLT
03.895 (A) M6X16 FLANGE
8-98049-357-0
01
1
1409-
●
●
73
16.063 BOLT
02.762 (B) M6X18 TAPPING W/LK&PL WASHER
8-98062-140-0
01
1
1409-
●
●
73
16.063 BOLT
(C) M6X32
8-98193-851-0
02
1
1409-
●
●
228
16.065 HOSE ASM; WASHER
8-98057-506-1
01
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
