Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶

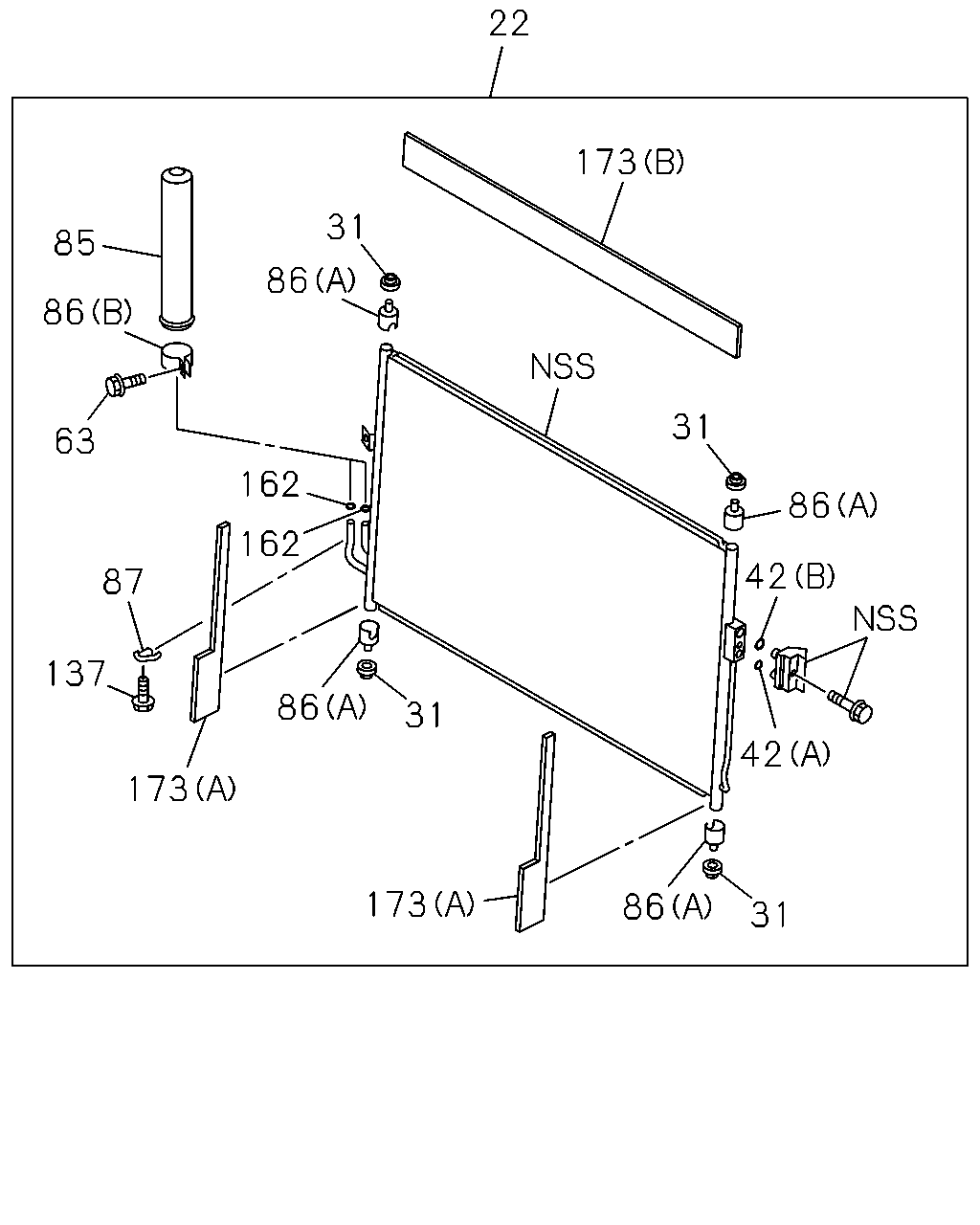

8-75 — CONDENSER
(#148222) — 14 parça
Tümü
A - UCB5VC
B - UCS5VC
22
173
31
86
42
42
31
86
173
31
86
173
137
87
162
162
86
31
85
86
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
09.190 CONDENSER ASM; A/C
REAR COOLER WO/HEATER<C69>
8-98235-191-0
01
1
1409-
●
●
22
09.190 CONDENSER ASM; A/C
EXC. REAR COOLER WO/HEATER<C69>
8-98052-634-3
01
1
1409-
●
●
31
09.190 RUBBER; MTG,CONDENSER
8-98193-616-0
04
1
1409-
●
●
42
09.190 GASKET; CONDENSER
(A) ID=8
8-98193-614-0
01
1
1409-
●
●
42
09.190 GASKET; CONDENSER
(B) ID=12
8-98193-615-0
01
1
1409-
●
●
63
09.175 BOLT; RECEIVER TANK
M5X16
8-98193-604-0
01
1
1409-
●
●
85
09.172 DRYER; RECEIVER
8-98233-381-0
01
1
1409-
●
●
86
09.196 BRACKET; RECEIVER DRYER
(B)
8-98193-599-0
01
1
1409-
●
●
86
09.196 BRACKET; RECEIVER DRYER
(A)
8-98193-618-0
04
1
1409-
●
●
87
09.196 BRACKET; RECEIVER DRYER
8-98193-602-0
01
1
1409-
●
●
137
09.196 BOLT; BRKT,DRYER
M6X12
8-98193-603-0
01
1
1409-
●
●
162
09.195 GASKET; PIPE TO DRYER
09.190 ID=8
8-98193-614-0
02
1
1409-
●
●
173
09.190 INSULATOR; CONDENSER
REAR COOLER WO/HEATER<C69> (A)
8-98250-018-0
02
1
1409-
●
●
173
09.190 INSULATOR; CONDENSER
(B)
8-98233-382-0
01
1
1409-
●
●
