◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#148218) — 35 parça

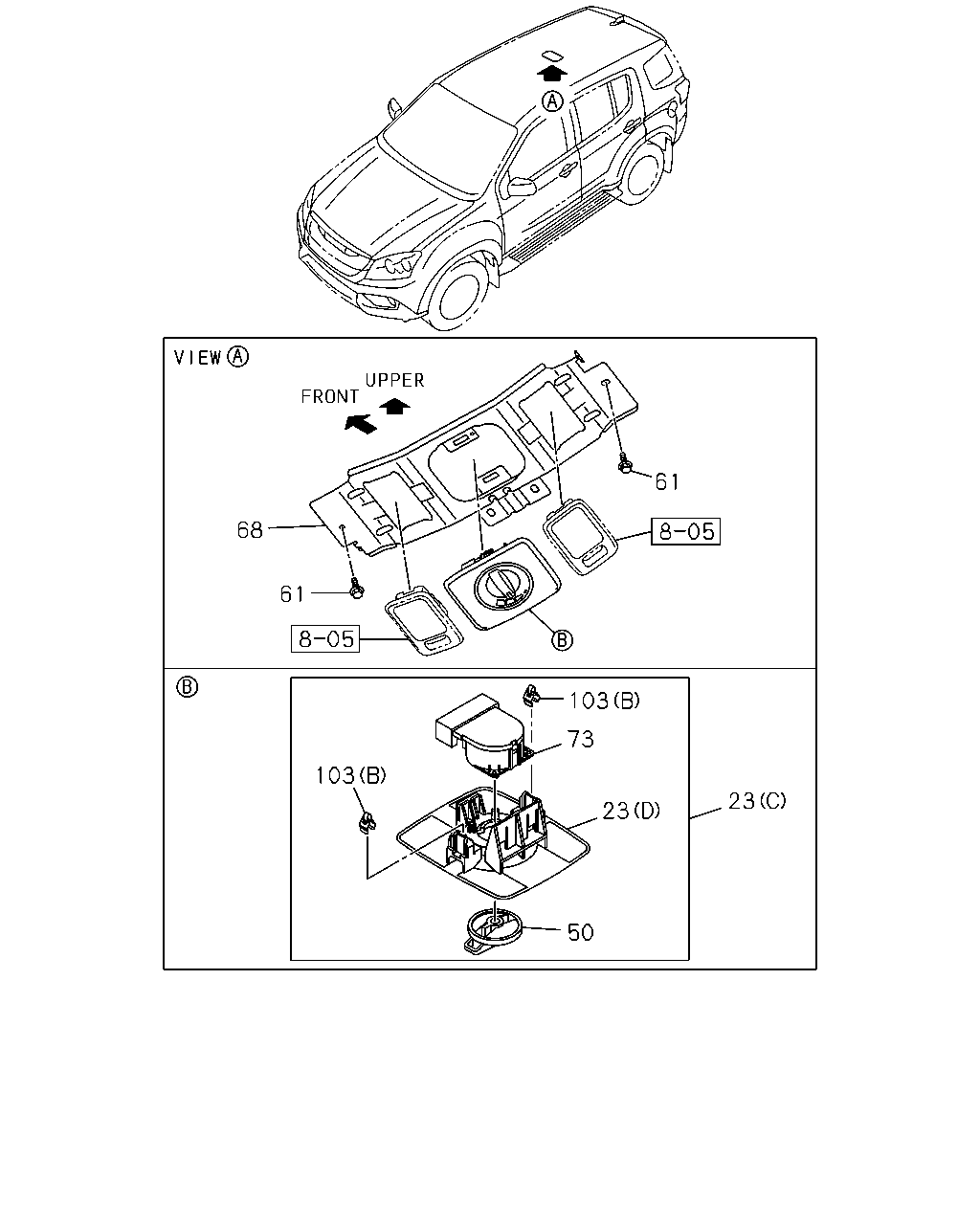

çizim 443960
68 61 61 103 73 23 23 103 50
BalonParca AdiParca NoAdetTipApplied Date A B
23 08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98052-644-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98103-522-5 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) 		8-98198-067-0 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) 		8-98250-024-0 01 1 1409- ● ●
50 08.852 KNOB; CONT PANEL
REAR COOLER WO/HEATER<C69> 		8-98250-549-0 01 1 1409- ● ●
61 08.849 BOLT; CONT LEVER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409- ● ●
68 08.849 BRACKET; BEZEL 8-98198-068-0 01 1 1409- ● ●
73 02.895 SWITCH; FAN,CONT PANEL
REAR COOLER WO/HEATER<C69> 		8-97386-830-0 01 1 1409- ● ●
103 08.854 CLIP
REAR COOLER WO/HEATER<C69> (B) 		8-97386-832-0 02 1 1409- ● ●
103 08.854 CLIP
16.165 (A) 		8-98164-677-0 04 1 1409- ● ●
çizim 444357
23 103 69 69 103 105 94
BalonParca AdiParca NoAdetTipApplied Date A B
23 08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98052-644-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98103-522-5 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) 		8-98198-067-0 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) 		8-98250-024-0 01 1 1409- ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1409- ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98164-668-0 01 1 1409- ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98141-789-0 01 1 1409- ● ●
103 08.854 CLIP
REAR COOLER WO/HEATER<C69> (B) 		8-97386-832-0 02 1 1409- ● ●
103 08.854 CLIP
16.165 (A) 		8-98164-677-0 04 1 1409- ● ●
105 08.852 SWITCH ASM; A/C
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98164-678-0 01 1 1409- ● ●

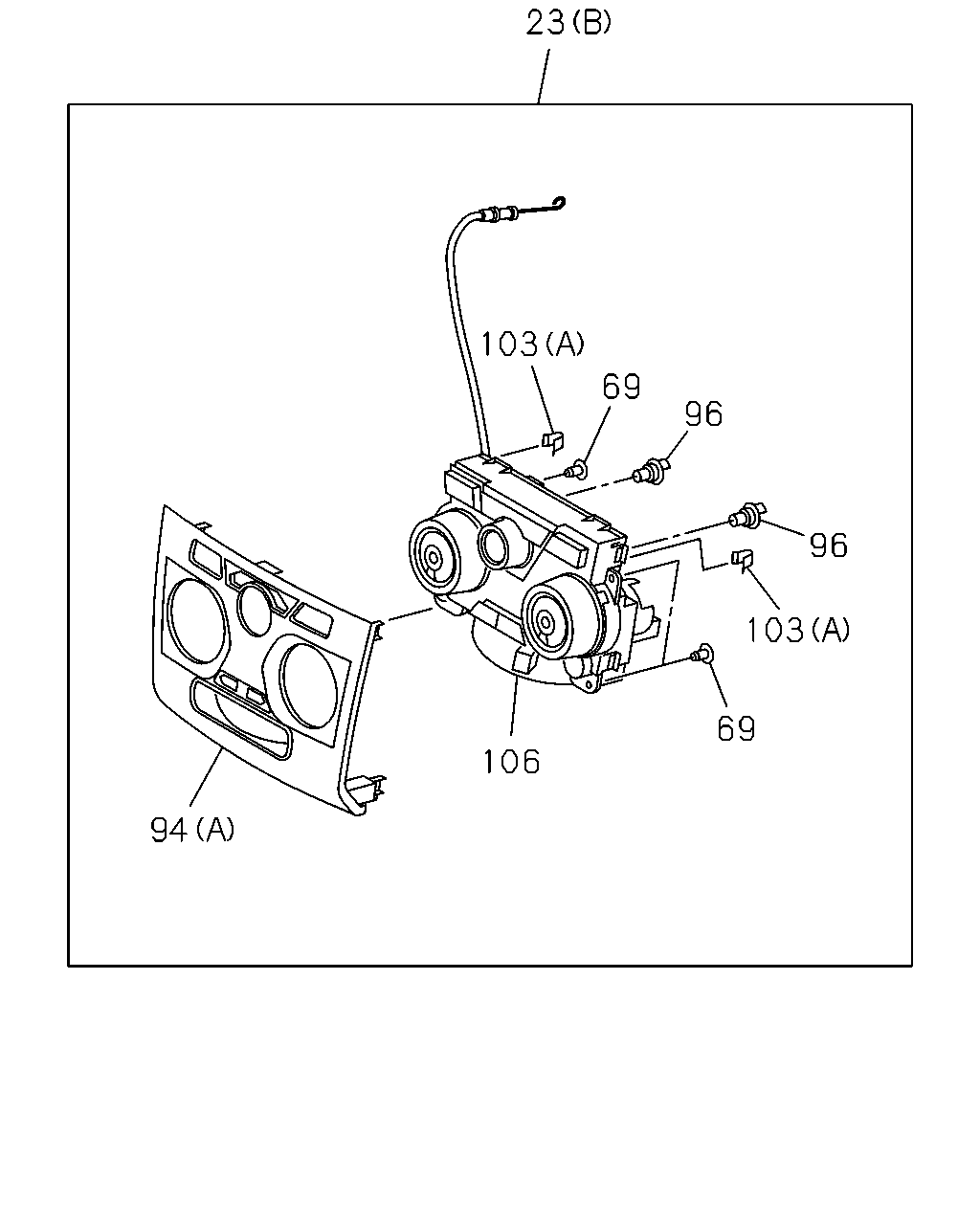

çizim 444375
23 103 96 69 96 103 69 106 94
BalonParca AdiParca NoAdetTipApplied Date A B
23 08.852 BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-520-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> (B) 		8-98052-644-4 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98103-522-5 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (C) 		8-98198-067-0 01 1 1409- ● ●
23 08.852 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (D) 		8-98250-024-0 01 1 1409- ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1409- ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98164-668-0 01 1 1409- ● ●
94 08.849 PANEL; BEZEL
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98141-789-0 01 1 1409- ● ●
96 08.852 BULB ASM; BEZEL
AIR CONDITIONER MANUAL CONT(C60) 		8-98156-188-0 02 1 1409- ● ●
103 08.854 CLIP
REAR COOLER WO/HEATER<C69> (B) 		8-97386-832-0 02 1 1409- ● ●
103 08.854 CLIP
16.165 (A) 		8-98164-677-0 04 1 1409- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
KNOB DECORATION W/CHROME RING<BY9> AIR CONDITIONER MANUAL CONT(C60) 		8-98142-035-0 01 1 1409- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. KNOB DECORATION W/CHROME RING<BY9> 		8-98142-041-0 01 1 1409- ● ●
