◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#148217) — 59 parça

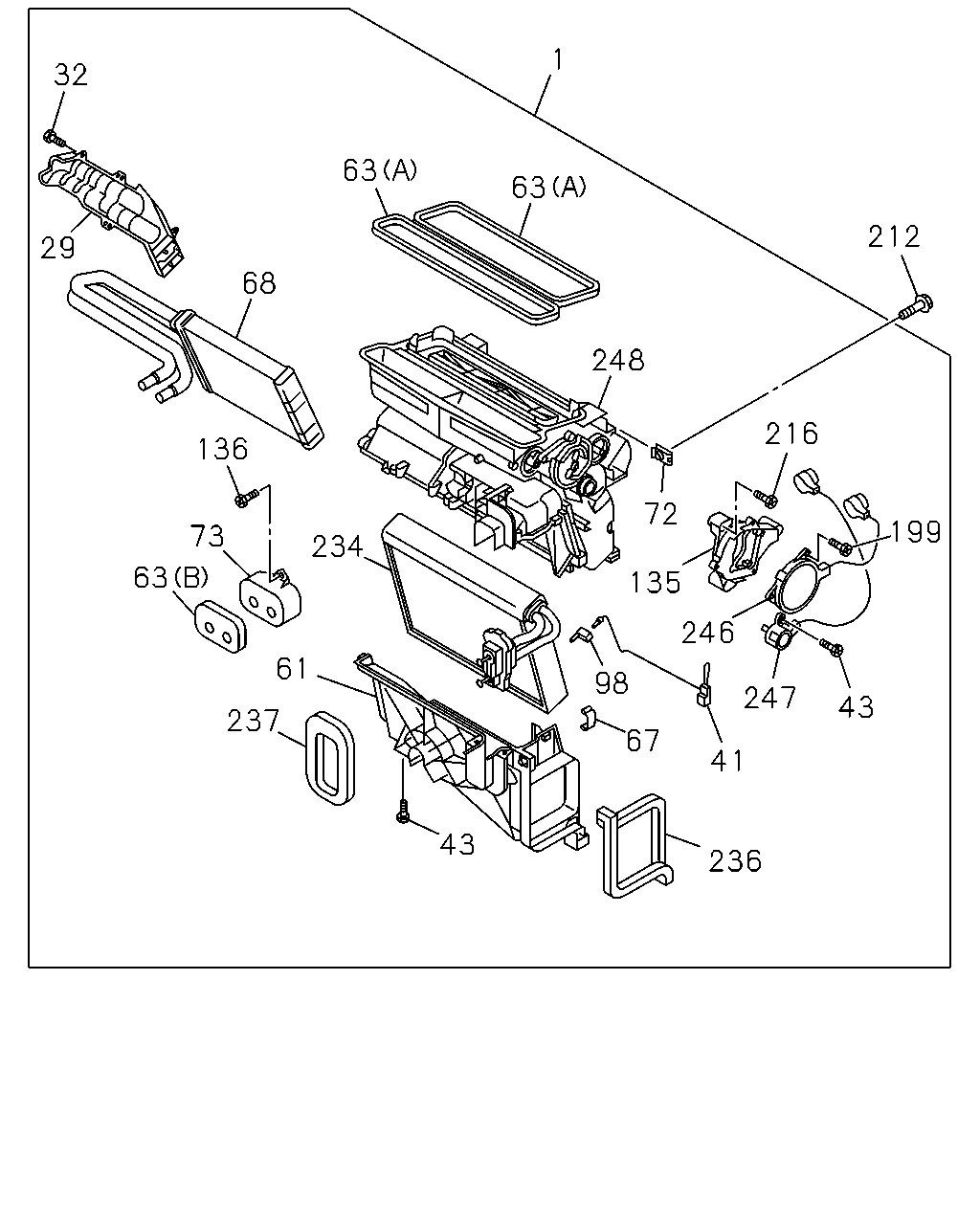

çizim 444298
1 212 63 63 248 216 72 199 135 246 247 43 98 67 41 236 43 237 63 61 234 136 73 68 29 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-034-1 01 1 1409- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-150-1 01 1 1409- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1409- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1409- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1409- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1409- ● ●
61 08.854 CASE; HTR UNIT 8-98233-572-0 01 1 1409- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1409- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1409- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1409- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1409- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1409- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1409- ● ●
98 08.854 CLIP; HTR UNIT 8-98157-122-0 01 1 1409- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1409- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1409- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1409- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1409- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1409- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1409- ● ●
234 08.854 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1409- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1409- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1409- ● ●
246 08.852 ACTUATOR; MODE
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1409- ● ●
247 08.852 ACTUATOR; TEMP
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1409- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-569-0 01 1 1409- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-571-0 01 1 1409- ● ●

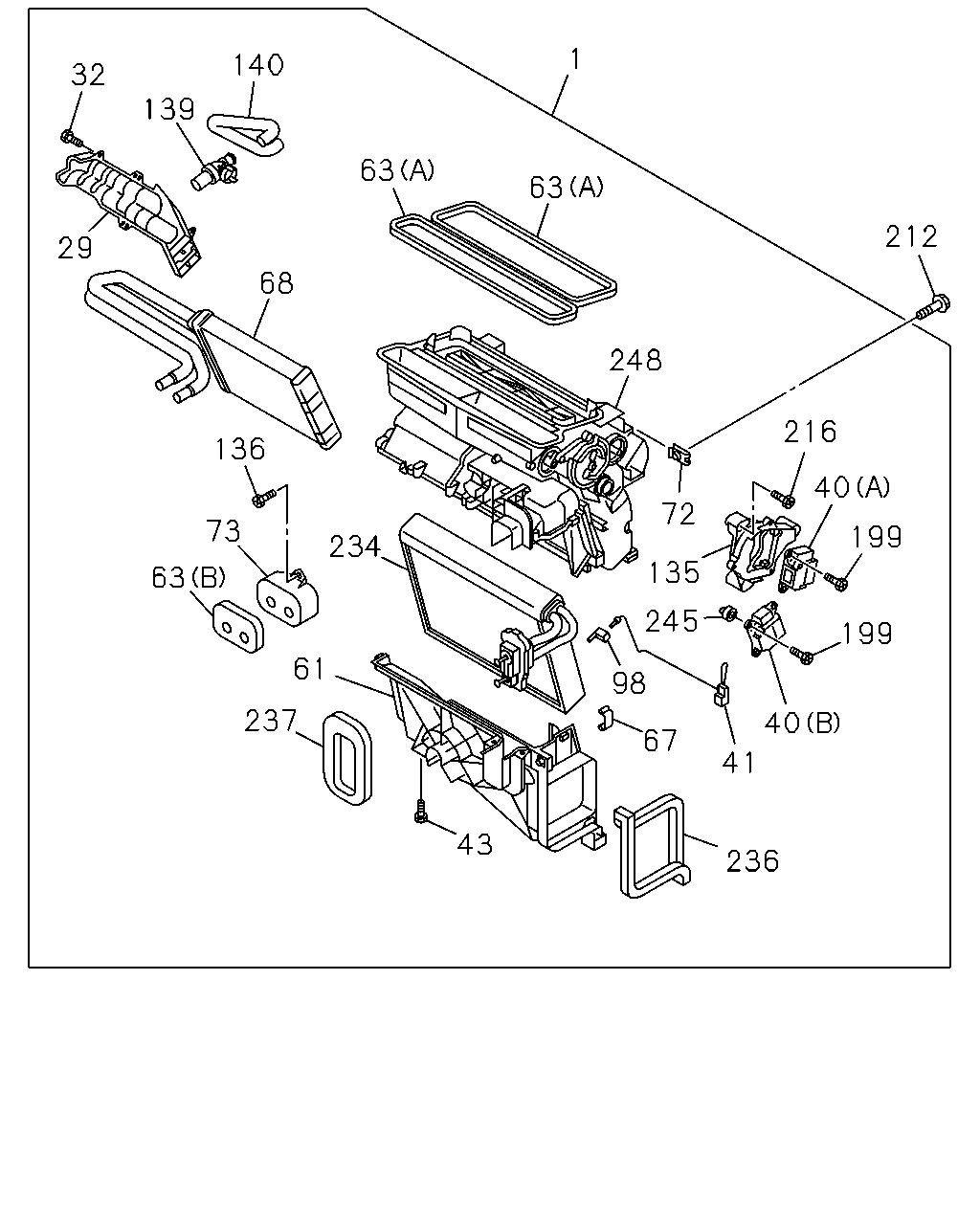

çizim 444495
1 140 139 32 29 68 63 63 212 248 216 199 40 72 135 245 98 67 41 199 40 236 61 237 63 234 136 73 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-034-1 01 1 1409- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-150-1 01 1 1409- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1409- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1409- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1409- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1409- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1409- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1409- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1409- ● ●
61 08.854 CASE; HTR UNIT 8-98233-572-0 01 1 1409- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1409- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1409- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1409- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1409- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1409- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1409- ● ●
98 08.854 CLIP; HTR UNIT 8-98157-122-0 01 1 1409- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1409- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1409- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1409- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98274-187-0 01 1 1409- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1409- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1409- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1409- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1409- ● ●
234 08.854 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1409- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1409- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1409- ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1409- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-569-0 01 1 1409- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-571-0 01 1 1409- ● ●
