Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

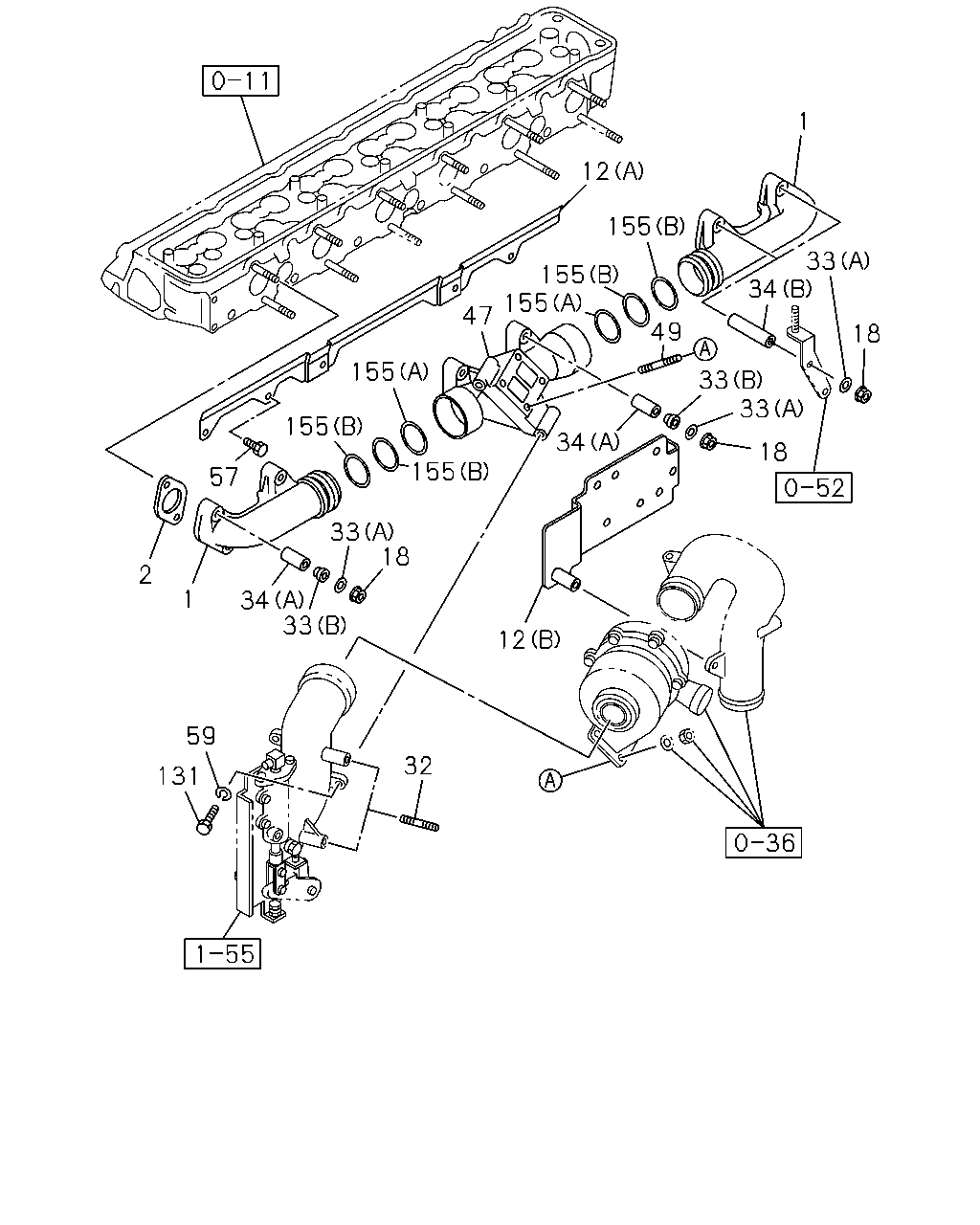

0-27 — EXHAUST MANIFOLD
(#14821) — 17 parça
1
12
155
33
34
155
155
47
49
18
155
33
33
155
34
18
155
57
33
18
2
1
34
33
12
59
32
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; EXHAUST
1-14141-685-4
02
1
0711-
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-144-1
06
1
0711-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
1-14119-396-0
01
1
0711-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B)
1-14181-234-0
01
1
0711-
18
NUT; EXH MANIF
M10 FLANGE
0-91180-210-0
12
1
0711-
32
STUD; EXH PIPE
M10X60 L=75
0-44011-060-0
02
1
0711-
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
12
1
0711-
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
08
1
0711-
34
COLLAR; DIST,EXH MANIF
(A) L=43
1-14149-048-1
08
1
0711-
34
COLLAR; DIST,EXH MANIF
(B) L=83
1-14149-134-0
04
1
0711-
47
MANIFOLD; EXH,CENTER
1-14141-880-0
01
1
0711-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=40
9-04731-025-0
03
1
0711-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X12 FLANGE
0-28050-812-0
01
1
0711-
59
WASHER; LK,EXH PIPE
ID=10
1-09503-033-1
02
1
0711-
131
BOLT; MTG
9-09804-206-0
02
1
0711-
155
RING; SEAL,EXH MANIF
(A)
1-14149-151-0
02
1
0711-
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
04
1
0711-
