◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#148201) — 59 parça

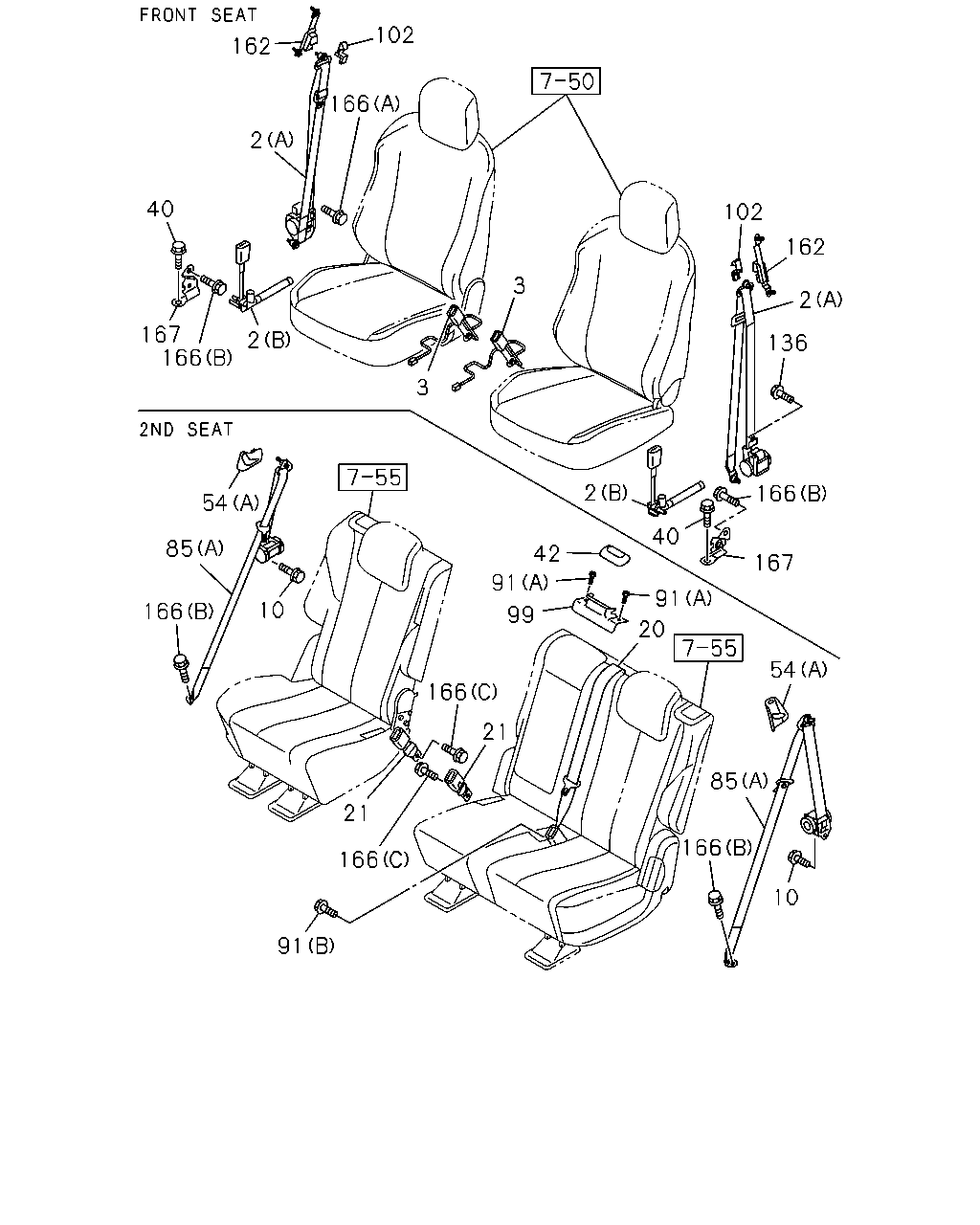

çizim 443649
162 102 166 2 40 167 2 166 3 3 102 2 162 136 166 167 40 2 42 91 99 91 20 54 85 166 10 21 21 166 166 10 166 85 54 91
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-339-1 01 1 1409- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-333-1 01 1 1409- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-334-0 01 1 1409- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-335-0 01 1 1409- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97425-488-1 01 1 1409- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97425-489-1 01 1 1409- ● ●
10 16.714 BOLT; RETRACTOR
16.682 3RD SEAT M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1409- ● ●
10 16.714 BOLT; RETRACTOR
2ND SEAT M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE 8-97425-703-2 01 1 1409- ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 01 1 1409-1506 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 01 1 1409-1506 ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97425-695-0 02 1 1507- ● ●
40 16.545 BOLT; BRKT,ANCHOR
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1409- ● ●
42 16.578 COVER; SEAT BELT
BLACK 		8-97429-757-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(A) GRAY 		8-97424-343-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(A) GRAY 		8-97424-344-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(B) GRAY 		8-97424-353-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(B) GRAY 		8-97424-354-0 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-347-1 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-348-1 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-349-1 01 1 1409-1410 ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-246-0 01 1 1411- ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-350-1 01 1 1409-1410 ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-247-0 01 1 1411- ● ●
91 16.714 BOLT; RR SEAT BELT
(B) 		8-98253-633-0 01 1 1409- ● ●
91 16.714 BOLT; RR SEAT BELT
(A) 		8-98253-636-0 02 1 1409- ● ●
99 16.714 BRACKET; SEAT BELT 8-98253-602-0 01 1 1409- ● ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1409- ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1409- ● ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1409-1506 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1409-1506 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 02 1 1507- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1409- ● ●
167 16.714 PLATE; ANCHOR 8-98216-137-2 01 1 1409- ● ●
167 16.714 PLATE; ANCHOR 8-98216-138-2 01 1 1409- ● ●

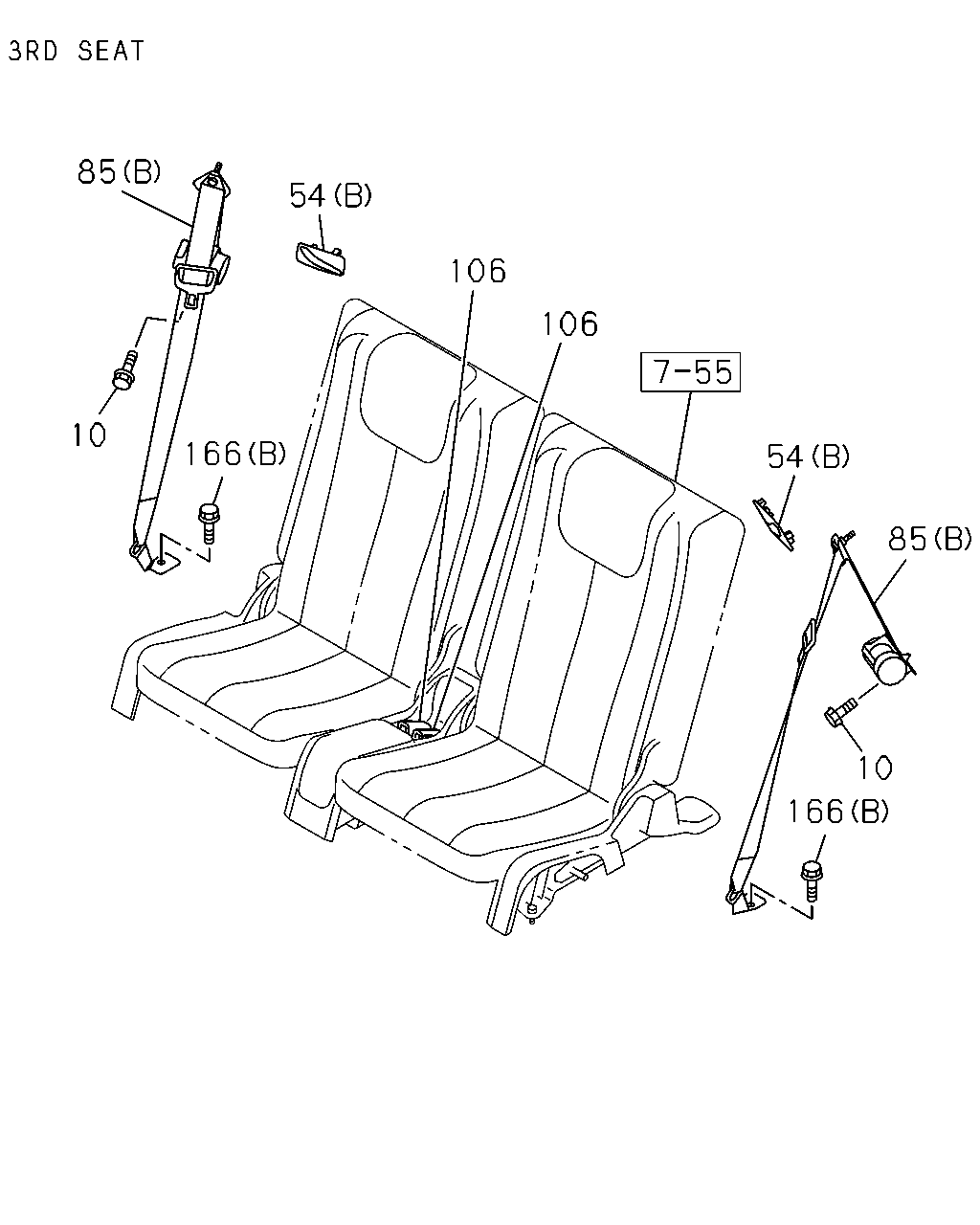

çizim 443924
85 10 166 54 106 106 54 85 10 166
BalonParca AdiParca NoAdetTipApplied Date A B
10 16.714 BOLT; RETRACTOR
16.682 3RD SEAT M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1409- ● ●
10 16.714 BOLT; RETRACTOR
2ND SEAT M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(A) GRAY 		8-97424-343-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(A) GRAY 		8-97424-344-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(B) GRAY 		8-97424-353-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
(B) GRAY 		8-97424-354-0 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-347-1 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(A) DARK GRAY 		8-97424-348-1 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-349-1 01 1 1409-1410 ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-246-0 01 1 1411- ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97424-350-1 01 1 1409-1410 ● ●
85 16.714 BELT; SEAT,RR OUTER
(B) DARK GRAY 		8-97466-247-0 01 1 1411- ● ●
106 16.714 BELT; SEAT,3RD SEAT,BUCKLE SIDE
BLACK 		8-97425-499-1 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1409-1506 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 01 1 1409-1506 ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(C) 		8-98253-633-0 02 1 1507- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1409- ● ●
