Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#148199) — 178 parça

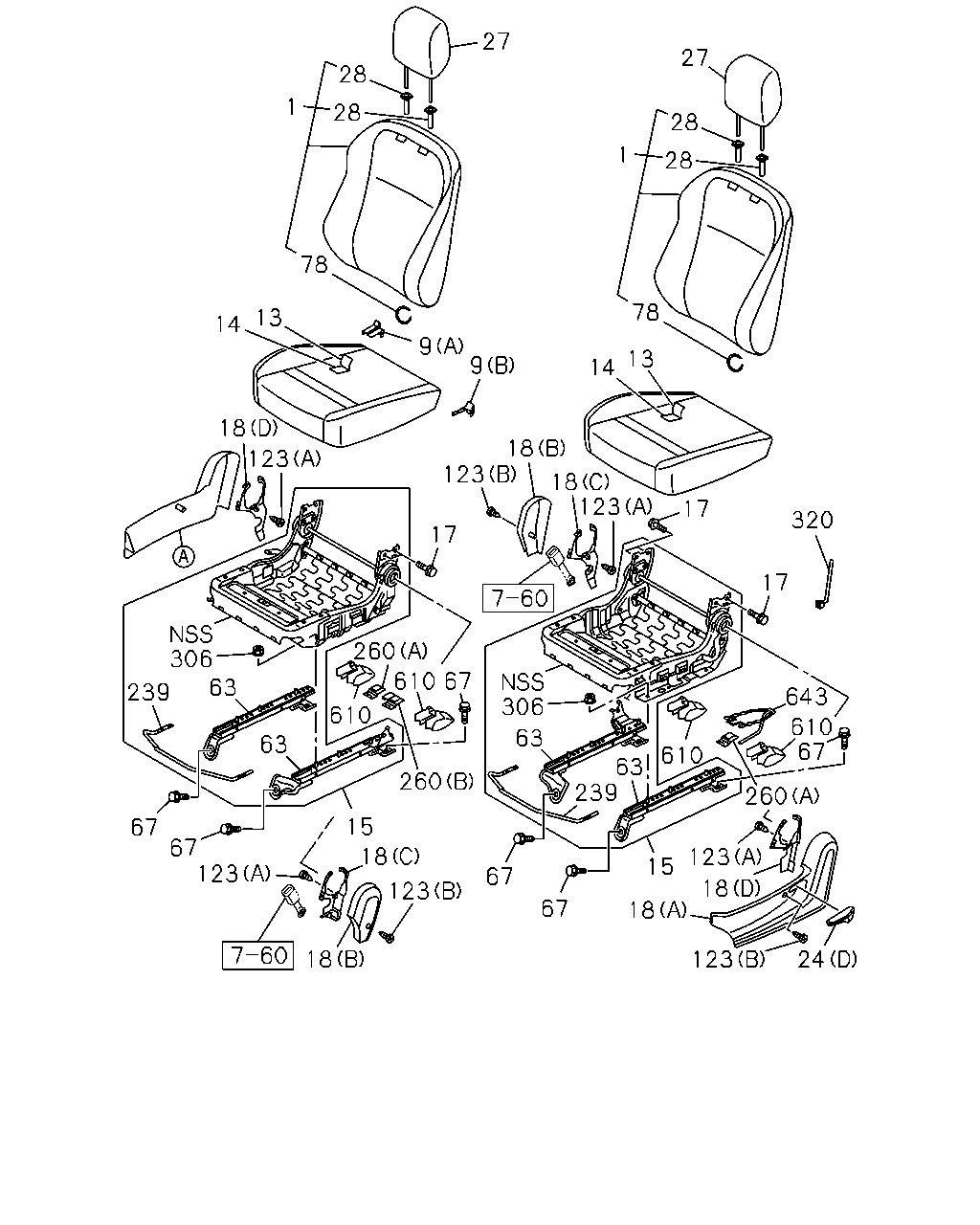

1 28 28 27 27 28 28 1 78 14 13 18 123 18 123 17 320 17 17 123 18 14 13 78 9 9 306 239 63 63 67 67 123 15 260 18 123 67 67 18 15 123 18 260 610 63 239 63 306 610 67 260 610 67 610 643 18 123 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-293-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-291-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-377-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-379-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-373-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-375-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-314-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-313-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-561-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-702-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-559-0	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98245-144-0	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98245-145-1	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98245-143-1	01	1	1409-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1409-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1409-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-097-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-607-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-609-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-582-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-585-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-611-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) BLACK	8-97424-612-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-591-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98245-147-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98245-149-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER	8-98224-309-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98224-313-1	01	1	1409-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1409-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1409-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.724	8-98220-068-0	16	1	1409-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 16.724	8-98220-068-0	18	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	04	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1409-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1409-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98220-104-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A)	8-98224-267-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1409-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1409-	●	●
306	16.682 NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE	8-98220-087-0	07	1	1409-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1409-	●	●
320	16.679 CLIP; BAND,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.686	8-98220-048-0	01	1	1409-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1409-	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1409-	●	●

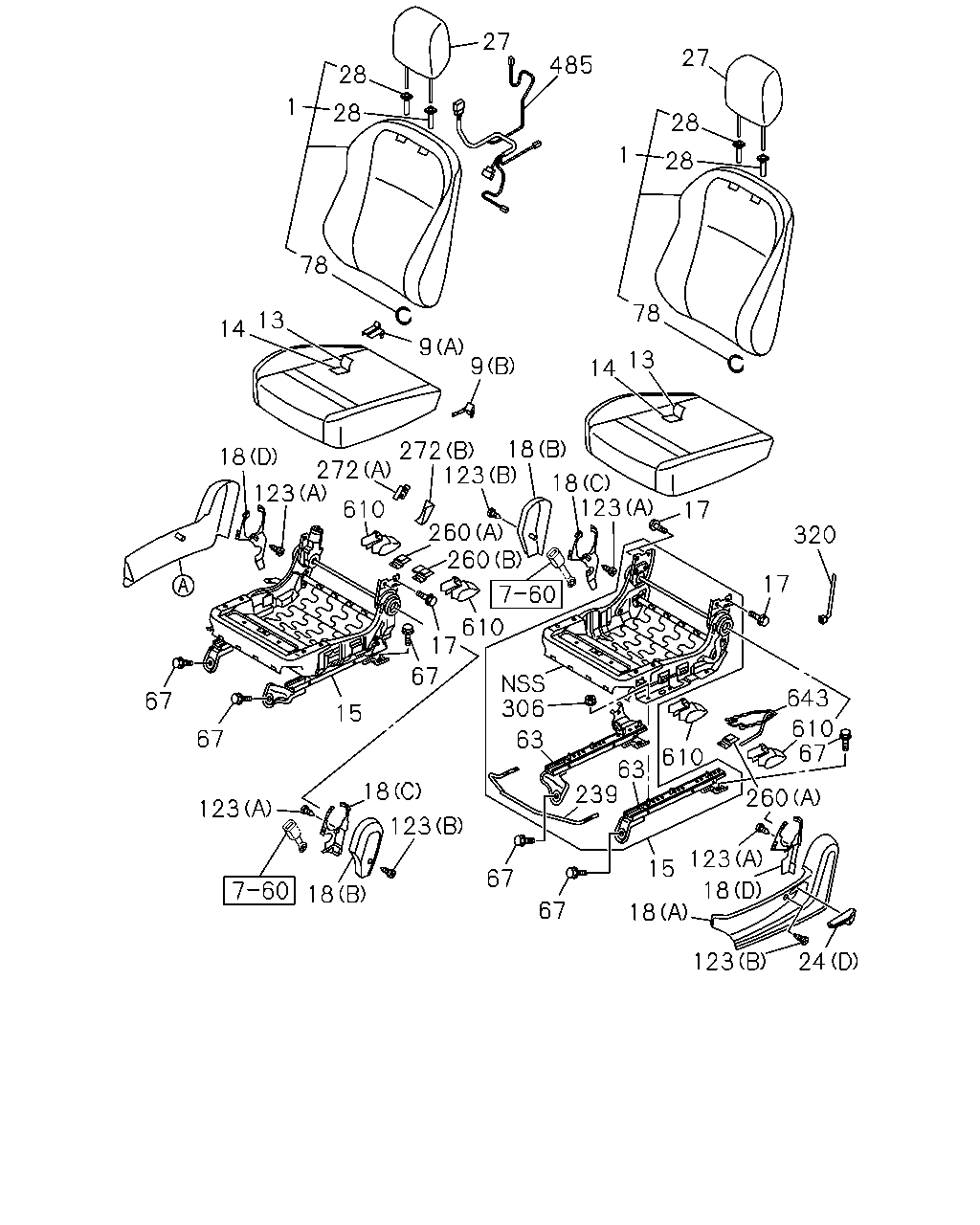

1 28 28 27 485 27 28 28 1 78 13 14 9 9 78 13 14 18 123 272 272 18 123 18 123 17 17 320 643 610 67 260 610 63 239 63 306 67 17 610 260 260 67 67 123 18 15 610 123 15 18 67 67 123 18 18 123 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-293-0	01	1	1409-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-291-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-377-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-379-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) OUTER BLACK	8-97428-373-0	01	1	1409-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) INNER BLACK	8-97428-375-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-314-0	01	1	1409-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97428-313-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-561-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>	8-98187-711-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-702-0	01	1	1409-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98187-559-0	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98245-144-0	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98245-145-1	01	1	1409-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98245-143-1	01	1	1409-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1409-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1409-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-097-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-607-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-609-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-582-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-585-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-611-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) BLACK	8-97424-612-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-591-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	01	1	1409-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-664-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1409-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98245-147-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98245-149-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> OUTER	8-98224-309-1	01	1	1409-	●	●
63	16.682 ADJUSTER; SEAT SLIDE FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> INNER	8-98224-313-1	01	1	1409-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1409-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1409-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.724	8-98220-068-0	16	1	1409-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> 16.724	8-98220-068-0	18	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	04	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1409-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1409-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98220-104-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A)	8-98224-267-0	01	1	1409-	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1409-	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97428-381-0	01	1	1409-	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) BLACK	8-97428-383-0	01	1	1409-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1409-	●	●
306	16.682 NUT; SEAT ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE	8-98220-087-0	07	1	1409-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	02	1	1409-	●	●
320	16.679 CLIP; BAND,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> 16.686	8-98220-048-0	01	1	1409-	●	●
485	16.682 HARNESS; FRT SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98224-265-0	01	1	1409-	●	●
610	16.682 COVER; LEG,FRT SEAT BLACK	8-97416-785-4	04	1	1409-	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1409-	●	●

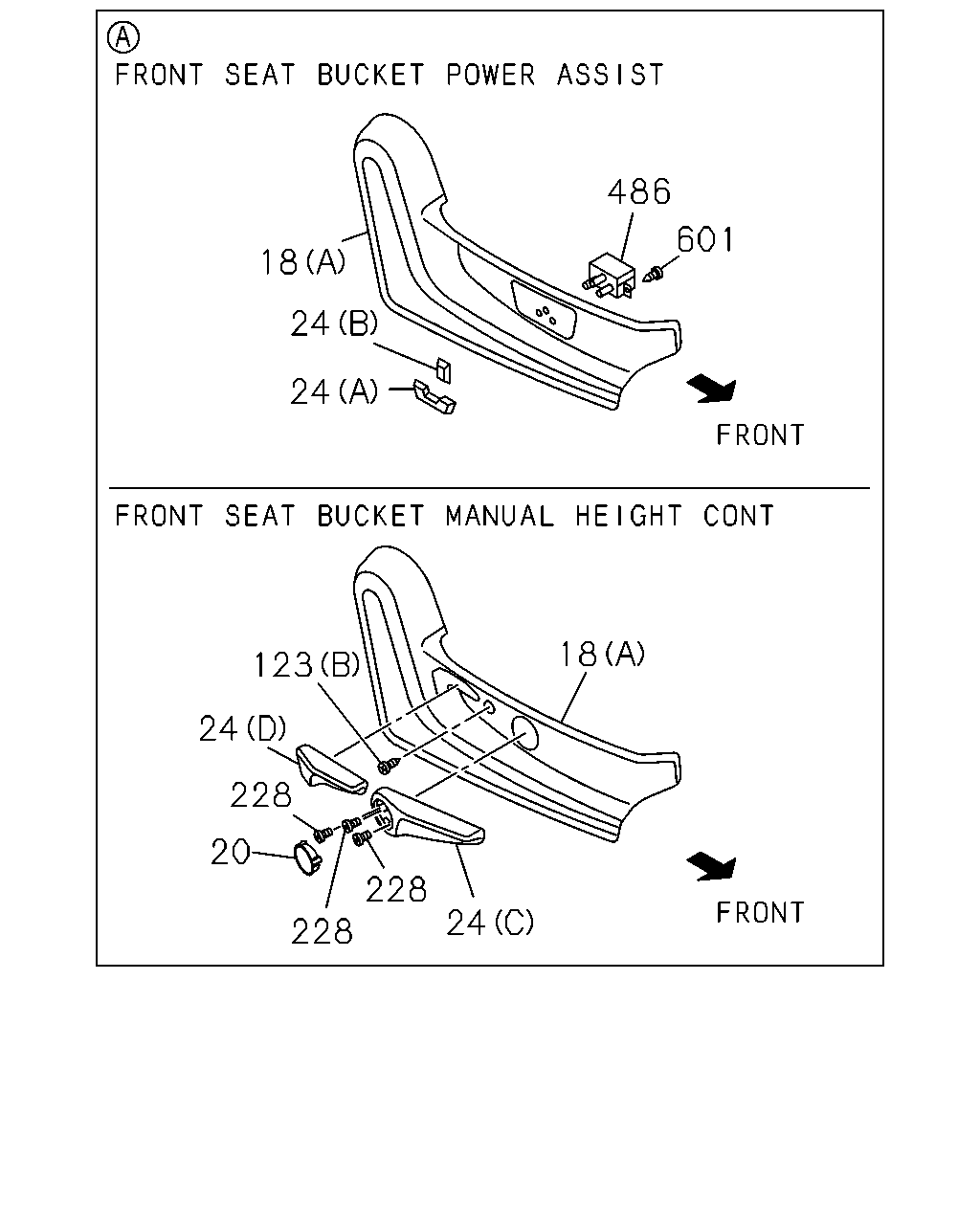

18 486 24 601 24 123 18 24 228 20 228 24 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-097-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-607-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-609-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-094-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-582-0	01	1	1409-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-585-0	01	1	1409-	●	●
20	16.682 CAP; RECLINING ADJ FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97424-598-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (A) BLACK	8-97424-611-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) BLACK	8-97424-612-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (D) BLACK	8-97424-591-0	01	1	1409-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (C) BLACK	8-97424-595-0	01	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	04	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1409-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> (B) M4X10	8-98220-086-0	05	1	1409-	●	●
228	16.714 SCREW; KNOB FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M5X10	8-98224-268-0	03	1	1409-	●	●
486	16.682 SWITCH; POWER SEAT FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>	8-98224-262-0	01	1	1409-	●	●
601	16.682 SCREW; SWITCH FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M4X12	8-98224-269-0	02	1	1409-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
