◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#148198) — 50 parça

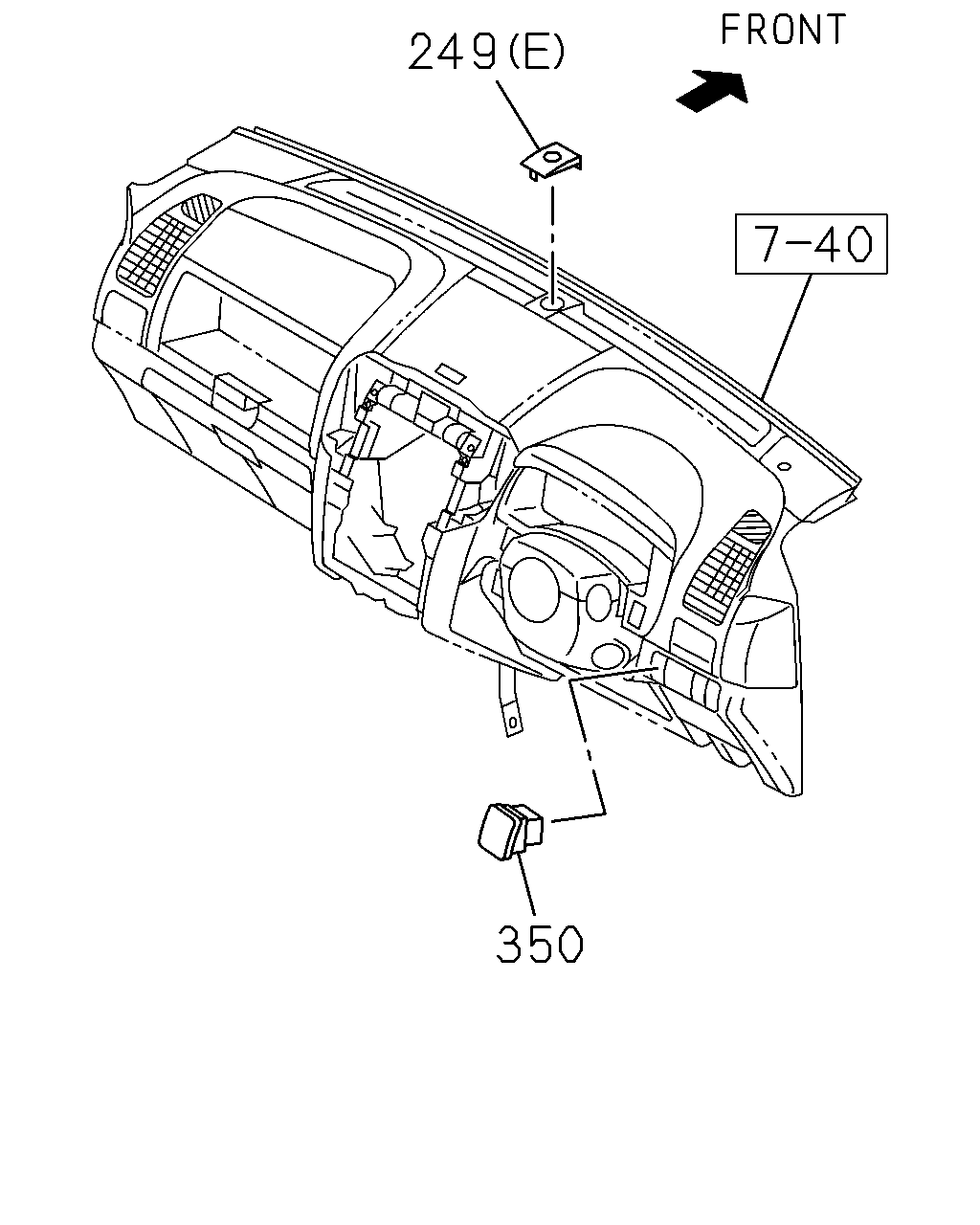

çizim 444006
249 350
BalonParca AdiParca NoAdetTipApplied Date A B
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1409- ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1409- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) BLACK 		8-97417-418-1 01 1 1409- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-152-1 01 1 1409- ● ●
249 16.674 COVER
(F) BLACK 		8-97416-660-1 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) BLACK 		8-97417-414-2 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-150-2 01 1 1409- ●
249 16.674 COVER
(G) BLACK 		8-97416-659-2 01 1 1409- ●
350 16.650 COVER; CONSOLE 8-98103-424-2 01 1 1409- ● ●
350 16.650 COVER; CONSOLE
EXC. REAR COOLER WO/HEATER<C69> 		8-98103-424-2 01 1 1409- ● ●
350 16.650 COVER; CONSOLE 8-98103-424-2 02 1 1409- ● ●

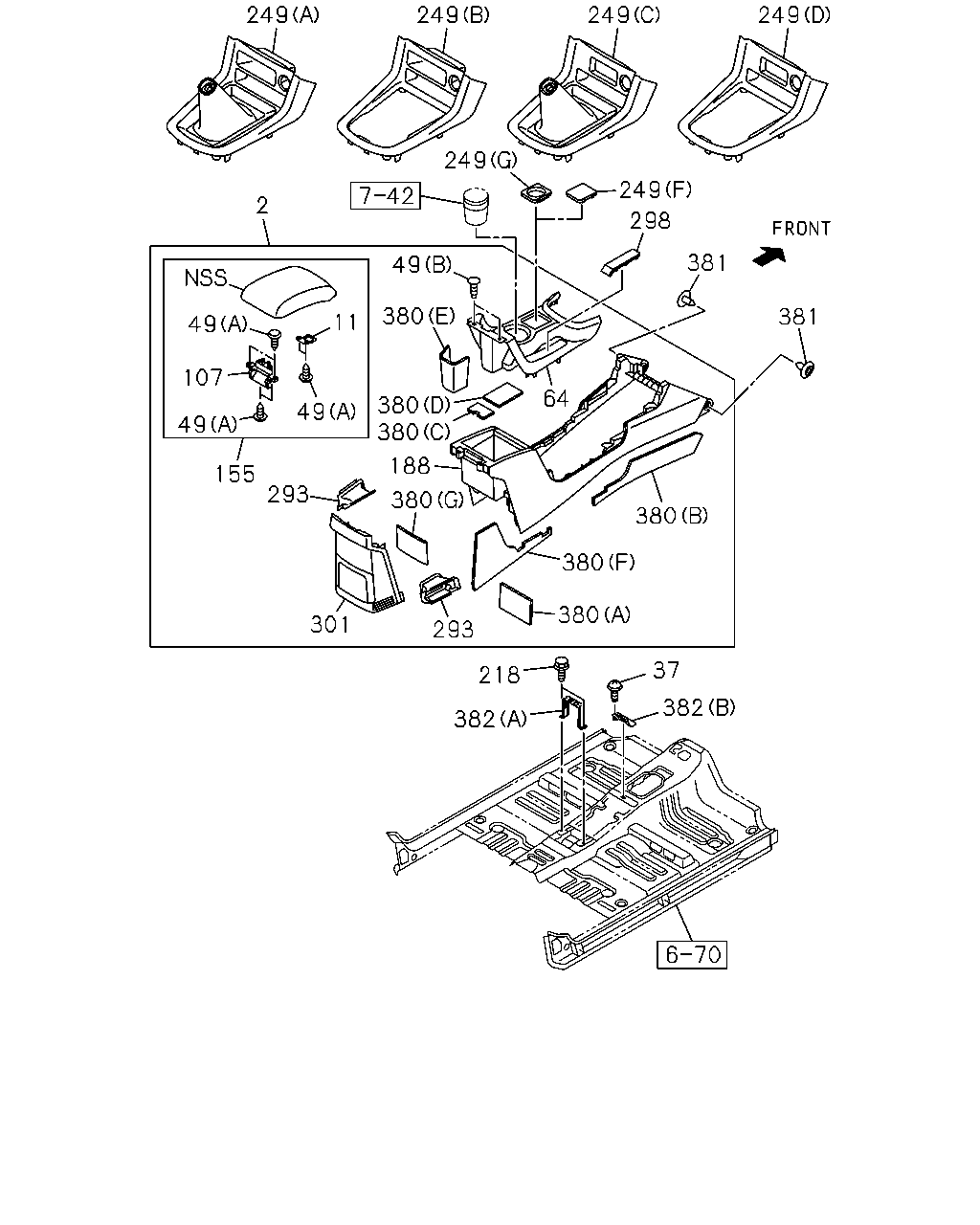

çizim 444069
249 249 249 249 249 2 249 298 381 381 49 107 11 49 49 155 301 293 293 380 188 380 380 380 49 64 380 380 380 218 382 37 382
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-330-1 01 1 1409- ● ●
11 16.650 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1409- ● ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> 01.269 M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1409- ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1409- ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1409- ● ●
64 16.650 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1409- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1409- ● ●
155 16.650 LID; PARCEL BOX
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1409- ● ●
188 16.650 CONSOLE; RR
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1409- ● ●
218 16.650 BOLT; BRKT
FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1409- ● ●
249 16.674 COVER
AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1409- ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1409- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) BLACK 		8-97417-418-1 01 1 1409- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-152-1 01 1 1409- ● ●
249 16.674 COVER
(F) BLACK 		8-97416-660-1 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) BLACK 		8-97417-414-2 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-150-2 01 1 1409- ●
249 16.674 COVER
(G) BLACK 		8-97416-659-2 01 1 1409- ●
293 16.650 DUCT
FLOOR CONSOLE W/LID<D55> 		8-98134-786-0 01 1 1409- ● ●
293 16.650 DUCT
FLOOR CONSOLE W/LID<D55> 		8-98134-787-0 01 1 1409- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
BLACK 		8-97416-651-2 01 1 1409- ● ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1409- ● ●
380 16.650 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1409- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
BLACK 		8-97360-070-0 02 1 1409- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1409- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FLOOR CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1409- ● ●

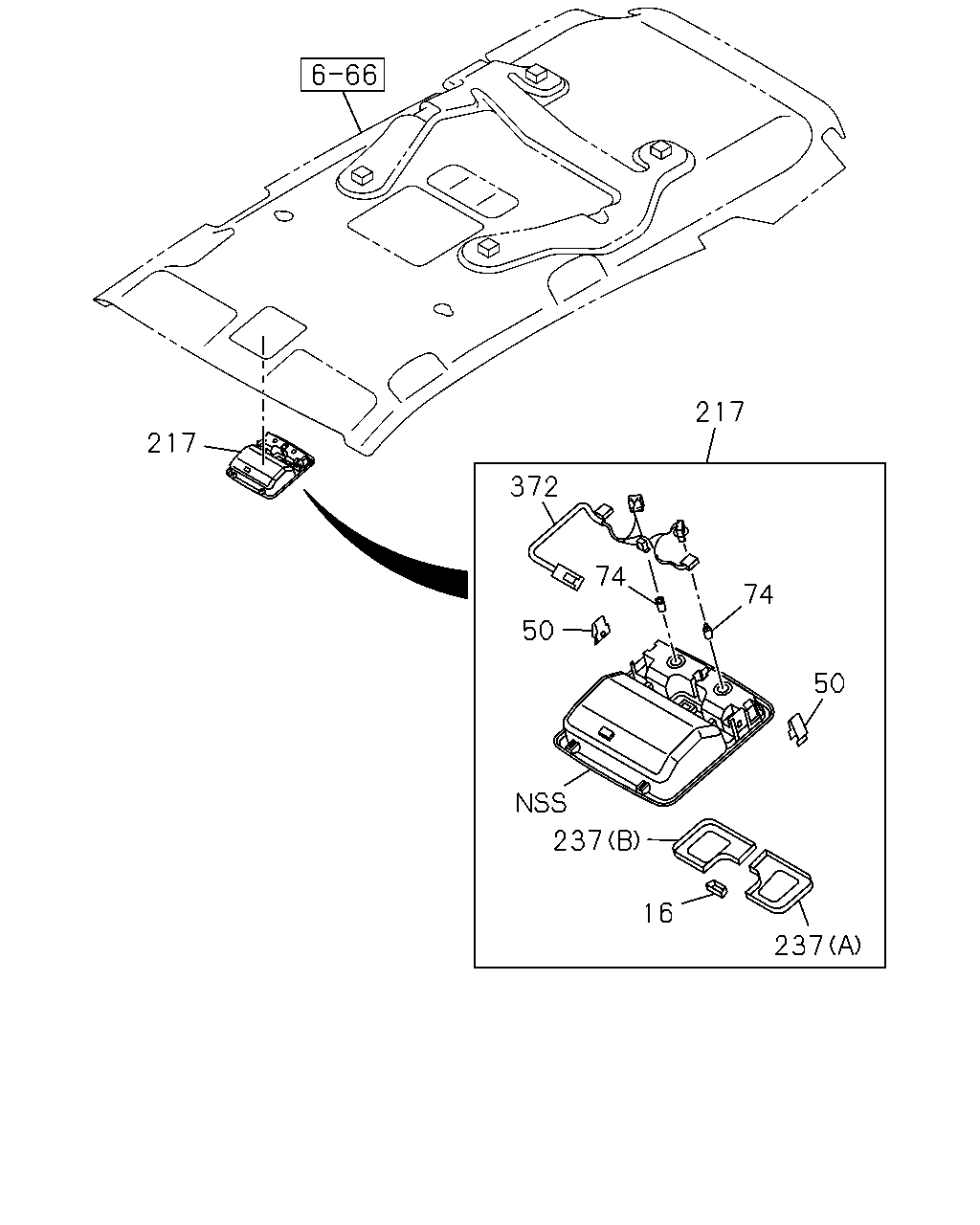

çizim 444271
217 217 372 74 74 50 50 237 16 237
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.650 KNOB ASM
GRAY 		8-97423-261-0 01 1 1409- ● ●
50 04.010 CLIP; CONSOLE 8-98192-891-0 02 1 1409- ● ●
74 08.991 BULB; CONSOLE
12V 5W 		8-94124-595-0 02 1 1409- ● ●
217 16.745 CONSOLE; HEADER
GRAY 		8-97416-690-5 01 1 1409- ● ●
237 16.650 LENS; HEADER CONSOLE
(A) 		8-98192-893-0 01 1 1409- ● ●
237 16.650 LENS; HEADER CONSOLE
(B) 		8-98192-894-0 01 1 1409- ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO 8-98192-890-0 01 1 1409- ● ●
