◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#148194) — 17 parça

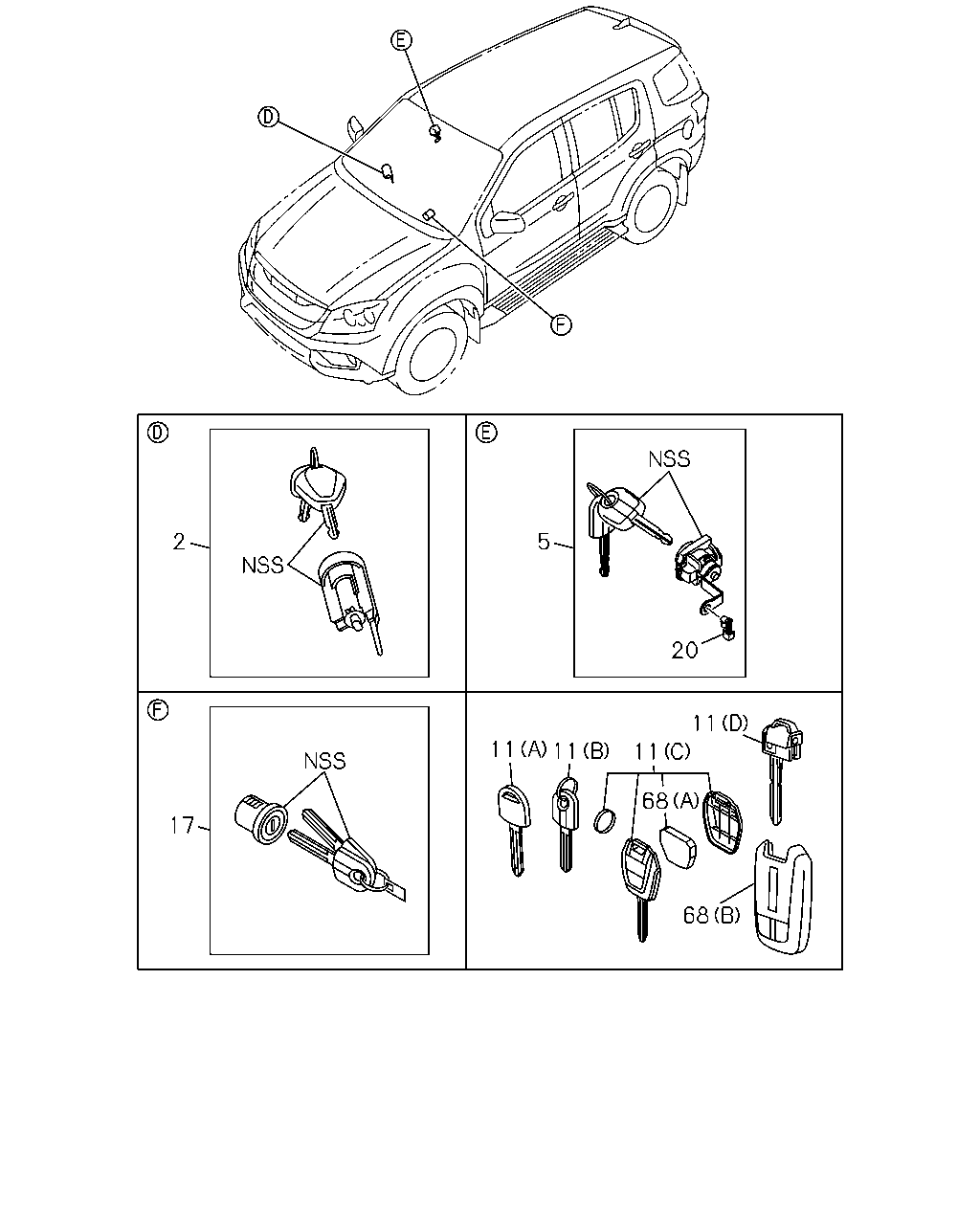

çizim 443715
5 2 17 11 11 11 11 68 68 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.188 BARREL ASM; W/KEY,STRG LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98274-647-0 01 1 1409- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98193-736-0 01 1 1409- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98274-649-0 01 1 1409- ● ●
11 02.187 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> (B) IMMOBILIZER 		8-98007-939-2 AR 1 1409- ● ●
11 02.187 KEY; BLANK
PASSIVE ENTRY AND START SYSTEM<AP3> (D) 		8-98257-831-0 AR 1 1409- ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) IMMOBILIZER 		8-98274-332-0 AR 1 1409- ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) 		8-97350-352-0 AR 1 1409- ● ●
11 02.187 KEY; BLANK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98274-338-0 AR 1 1409- ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98193-735-0 01 1 1409- ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98274-648-0 01 1 1409- ● ●
20 16.328 SNAP; DOOR LOCK CYL
WHITE 		8-97350-044-0 01 1 1409- ● ●
68 02.440 TRANSMITTER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98243-995-0 02 1 1409-1505 ● ●
68 02.440 TRANSMITTER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98306-420-0 02 1 1506- ● ●
68 02.440 TRANSMITTER; DOOR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) 		8-98102-844-1 01 1 1409- ● ●

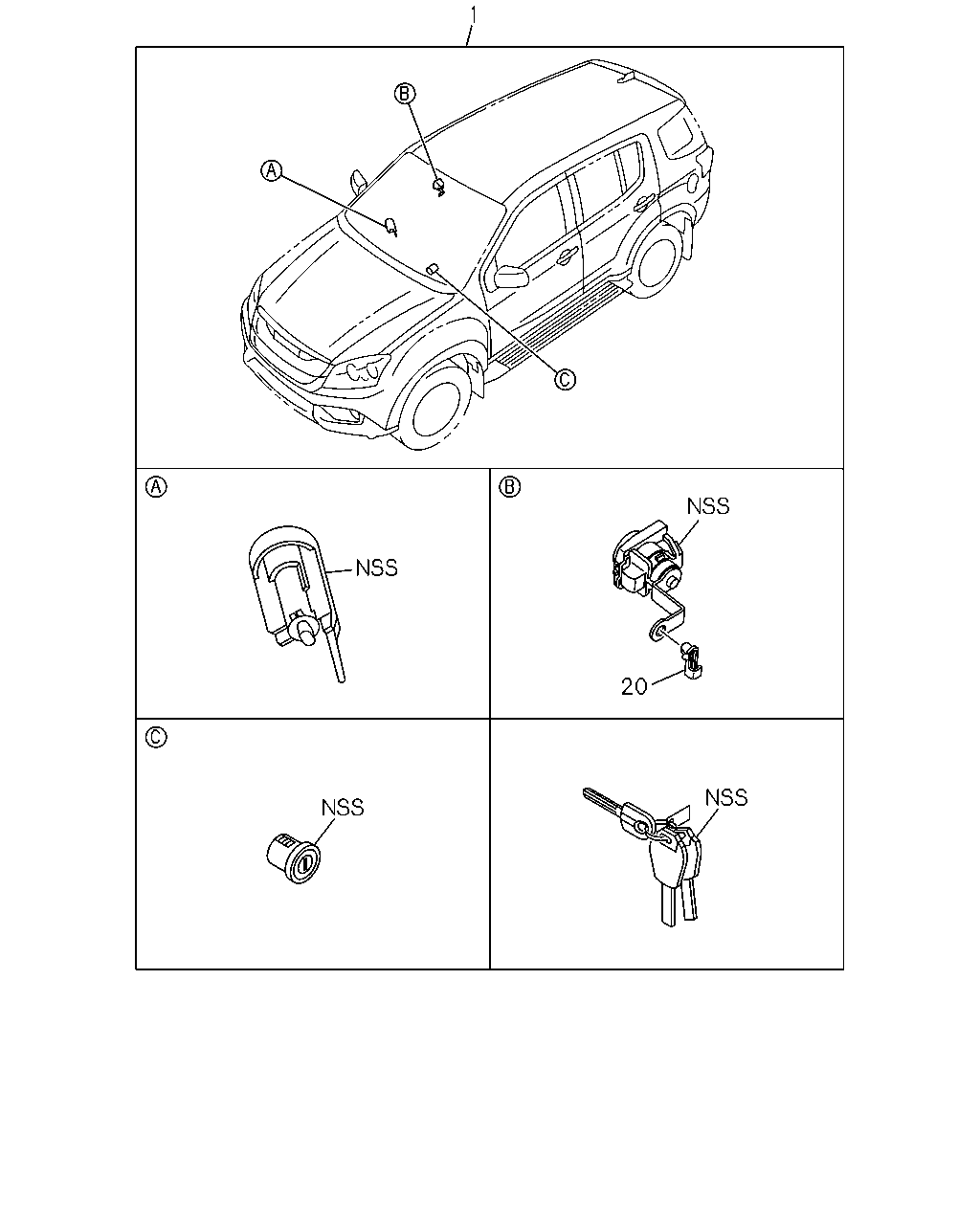

çizim 444203
1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.188 CYLINDER SET; CAR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98258-073-0 01 1 1409- ● ●
1 02.188 CYLINDER SET; CAR LOCK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98274-586-0 01 1 1409- ● ●
20 16.328 SNAP; DOOR LOCK CYL
WHITE 		8-97350-044-0 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
