Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

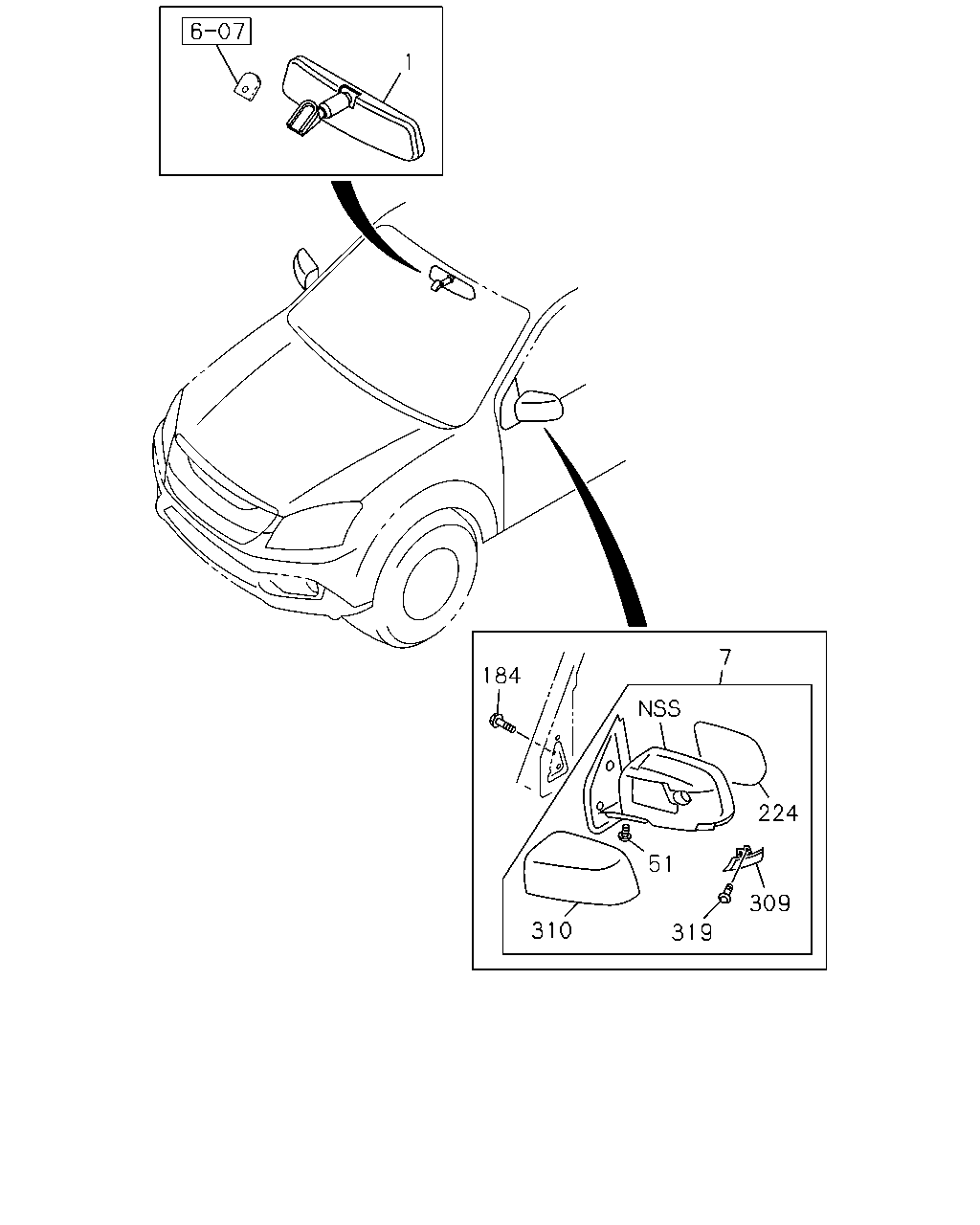

7-20 — MIRROR AND MIRROR STAY
(#148193) — 16 parça
Tümü
A - UCB5VC
B - UCS5VC
1
7
51
224
309
319
310
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.068 MIRROR; ROOM
8-97237-560-0
01
1
1409-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98065-333-4
01
1
1409-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98065-334-4
01
1
1409-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98193-672-0
01
1
1409-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98200-733-0
01
1
1409-
●
●
51
16.069 SCREW; MIRROR
8-98193-685-0
02
1
1409-
●
●
184
16.069 BOLT; MIRROR
17.455 M6X14 FLANGE
8-97247-698-0
06
1
1409-
●
●
224
16.068 MIRROR; DOOR
8-98193-681-0
01
1
1409-
●
●
224
16.068 MIRROR; DOOR
8-98193-682-0
01
1
1409-
●
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
8-98193-683-0
01
1
1409-
●
●
309
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
8-98193-684-0
01
1
1409-
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-686-0
01
1
1409-
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>
8-98193-687-0
01
1
1409-
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98203-335-0
01
1
1409-
●
●
310
16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9>
8-98203-336-0
01
1
1409-
●
●
319
16.069 SCREW; SIDE TURN LAMP
8-98193-685-0
02
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
