Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

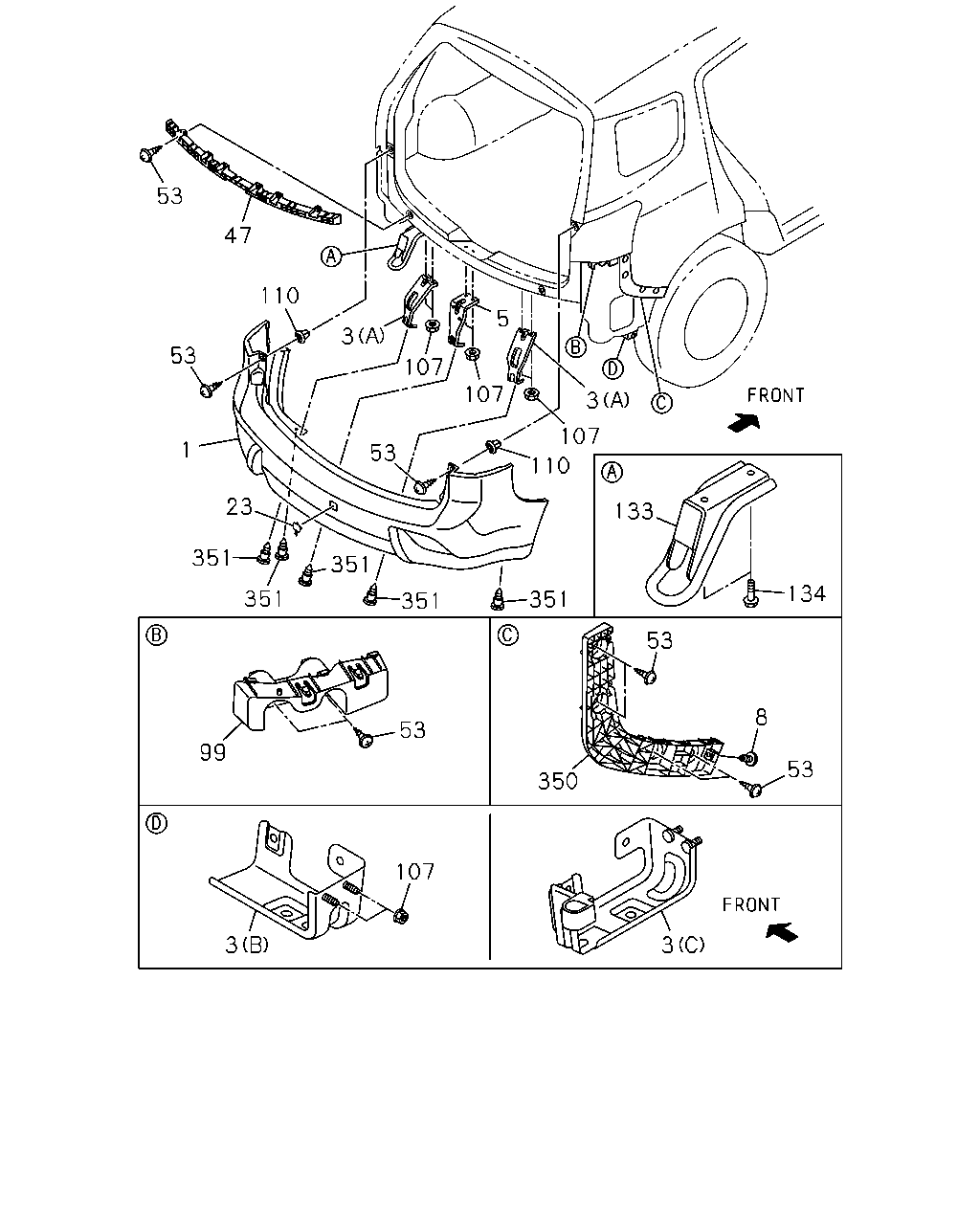

6-90 — REAR BUMPER
(#148190) — 19 parça
Tümü
A - UCB5VC
B - UCS5VC
53
53
47
110
3
1
23
351
351
351
351
351
53
107
110
107
107
3
133
134
53
8
53
350
3
107
3
99
53
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.070 BUMPER; RR
PRIMER
8-98249-952-0
01
1
1409-
●
●
3
07.875 BRACKET; BUMPER
REAR COOLER WO/HEATER<C69> (C)
8-98250-619-0
01
1
1409-
●
●
3
07.875 BRACKET; BUMPER
(A)
8-98189-786-0
02
1
1409-
●
●
3
07.875 BRACKET; BUMPER
(B)
8-98189-903-0
01
1
1409-
●
●
3
07.875 BRACKET; BUMPER
EXC. REAR COOLER WO/HEATER<C69> (B)
8-98189-902-0
01
1
1409-
●
●
5
07.829 SUPPORT; RR BUMPER
8-98189-785-0
01
1
1409-
●
●
8
07.874 BOLT; RR SIDE BUMPER
M6X20 TAPPING W/PL WASHER
8-98167-444-0
02
1
1409-
●
●
23
07.831 COVER; RR BUMPER,HOLE
PRIMER
8-98249-953-0
01
1
1409-
●
●
47
07.875 RETAINER; BUMPER RR CENTER
8-98188-351-2
01
1
1409-
●
●
53
07.875 BOLT; BUMPER SUPPORT
07.874 M6X16 TAPPING W/PL WASHER
0-74160-616-0
20
1
1409-
●
●
99
07.832 RETAINER; RR BUMPER,UPR
8-98188-352-2
01
1
1409-
●
●
99
07.832 RETAINER; RR BUMPER,UPR
8-98188-353-2
01
1
1409-
●
●
107
07.874 NUT; SUPPORT
01.062 M6 FLANGE
0-91180-106-0
10
1
1409-
●
●
110
07.832 GROMMET; BUMPER
16.346
8-97801-635-1
02
1
1409-
●
●
133
07.112 HOOK
8-98253-334-0
01
1
1409-
●
●
134
07.068 BOLT; HOOK
M10X30 FLANGE
0-28661-030-0
02
1
1409-
●
●
350
07.875 RETAINER; BUMPER RR LWR
8-98188-354-2
01
1
1409-
●
●
350
07.875 RETAINER; BUMPER RR LWR
8-98188-355-2
01
1
1409-
●
●
351
07.875 RETAINER; BUMPER SUPPORT
07.832
8-97301-188-0
05
1
1409-
●
●
