Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

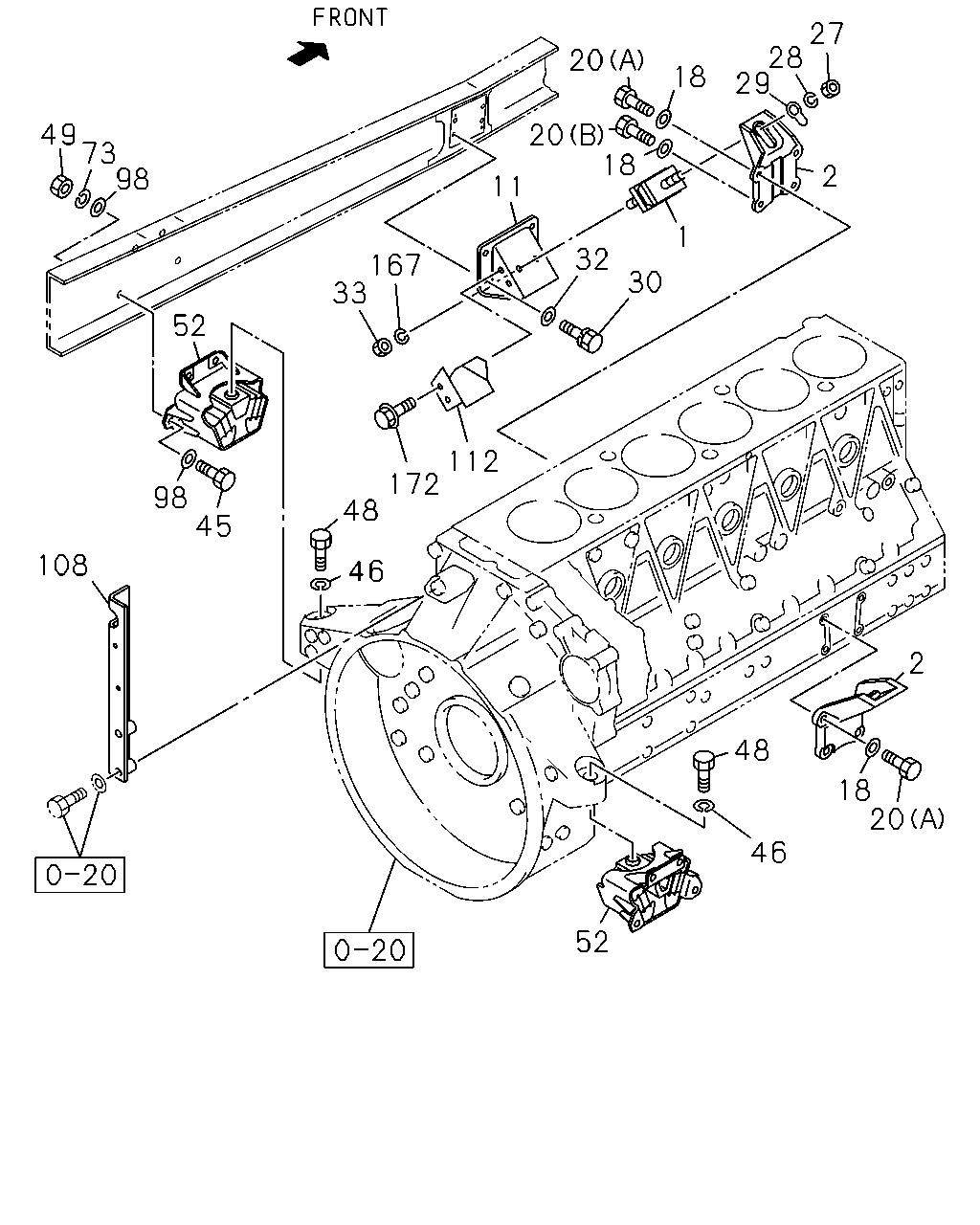

0-22 — ENGINE MOUNTING
(#14819) — 24 parça
27
28
29
20
18
20
18
49
73
98
2
11
1
32
167
33
30
52
112
172
48
98
45
108
46
2
48
18
20
46
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
0711-
2
FOOT; ENG
1-11771-172-0
02
1
0711-
11
BRACKET; CUSHION RUBBER,FRT
1-53211-226-0
02
1
0711-
18
WASHER; PL,ENG FOOT
ID=12.2
1-09503-008-0
08
1
0711-
20
BOLT; ENG FOOT
(A) M12X28.5
1-09020-100-0
04
1
0711-
20
BOLT; ENG FOOT
(B) M12X24
1-09020-101-0
04
1
0711-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
0-91110-518-0
02
1
0711-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
0-91510-518-0
02
1
0711-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
0711-
30
BOLT; BRKT TO FRAME
M12X40
0-20951-240-0
08
1
0711-
32
WASHER; PL,BRKT TO FRAME
ID=12.5
1-09503-171-0
08
1
0711-
33
NUT; CUSHION RUBBER TO BRKT
M14
0-91110-514-0
04
1
0711-
45
BOLT; CUSHION RUBBER TO FRAME
M14X50
0-20951-450-0
08
1
0711-
46
WASHER; PL,CUSHION TO ENG,RR
ID=23
0-91614-522-0
02
1
0711-
48
BOLT; CUSHION RUBBER TO ENG
M22X75
1-09020-087-2
02
1
0711-
49
NUT; CUSHION RUBBER TO FRAME
M14
0-91110-514-0
08
1
0711-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-302-0
02
1
0711-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
0-91510-814-0
08
1
0711-
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
9-09651-069-0
16
1
0711-1201
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
8-98010-627-1
16
1
1202-
108
HANGER; ENG FLYWHEEL HSG
1-11777-268-0
01
1
0711-
112
PROTECTOR; HEAT
1-53219-754-0
01
1
0711-
167
WASHER; LK,CUSHION RUBBER
ID=14.2
0-91510-514-0
04
1
0711-
172
BOLT; HEAT PROTECTOR
M8X20 FLANGE IDN
0-28650-820-0
02
1
0711-
