◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#148178) — 24 parça

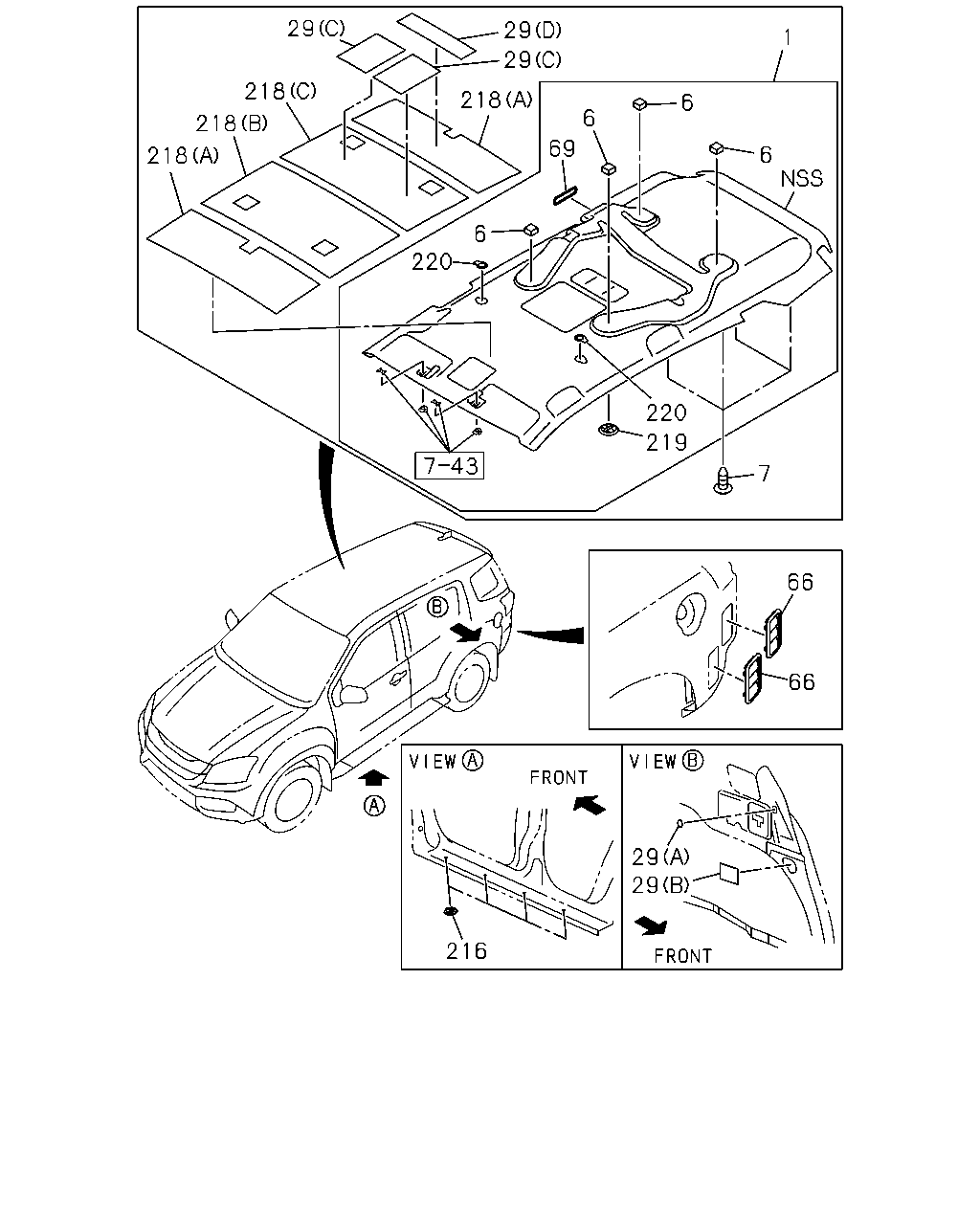

çizim 444160
29 218 218 218 220 6 69 6 6 6 220 219 7 29 218 66 66 29 29 216 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.742 LINING; HD
REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-375-5 01 1 1409- ● ●
1 16.742 LINING; HD
REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-374-5 01 1 1409- ● ●
1 16.742 LINING; HD
REAR COOLER WO/HEATER<C69> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97424-376-5 01 1 1409- ● ●
1 16.742 LINING; HD
REAR COOLER WO/HEATER<C69> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY 		8-97424-377-5 01 1 1409- ● ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> GRAY 		8-97427-667-2 01 1 1409- ● ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY 		8-97427-665-2 01 1 1409- ● ●
1 16.742 LINING; HD
2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69> GRAY 		8-97427-668-2 01 1 1409- ● ●
1 16.742 LINING; HD
8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY 		8-97427-666-2 01 1 1409- ● ●
6 16.742 SPACER; HD LINING
REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98244-491-0 04 1 1409- ● ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 04 1 1409- ● ●
29 16.742 DEADENER; ROOF PANEL
A/T 5 SPEED-AISIN(MA1) (C) 		8-98253-366-0 02 1 1409-1508 ● ●
29 16.742 DEADENER; ROOF PANEL
(C) 		8-98253-366-0 02 1 1509- ● ●
29 16.742 DEADENER; ROOF PANEL
A/T 5 SPEED-AISIN(MA1) (D) 		8-98253-367-0 01 1 1409-1508 ● ●
29 16.742 DEADENER; ROOF PANEL
(D) 		8-98253-367-0 01 1 1509- ● ●
29 16.742 DEADENER; ROOF PANEL
(A) 		8-98244-526-0 02 1 1409- ● ●
29 16.742 DEADENER; ROOF PANEL
(B) 		8-98244-527-0 02 1 1409- ● ●
66 16.576 GRILLE; AIR OUTLET 8-98190-079-2 02 1 1409- ● ●
69 16.576 SEAL; AIR OUTLET DUCT
REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98226-169-0 01 1 1409- ● ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 08 1 1409- ● ●
218 16.742 INSULATOR; ROOF
(A) 		8-98228-817-3 02 1 1409- ● ●
218 16.742 INSULATOR; ROOF
(B) 		8-98228-818-3 01 1 1409- ● ●
218 16.742 INSULATOR; ROOF
(C) 		8-98228-819-3 01 1 1409- ● ●
219 16.576 GRILLE; RR COOLER
REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97425-070-0 04 1 1409- ● ●
220 16.165 BRACKET; SPEAKER
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
