◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#148176) — 61 parça

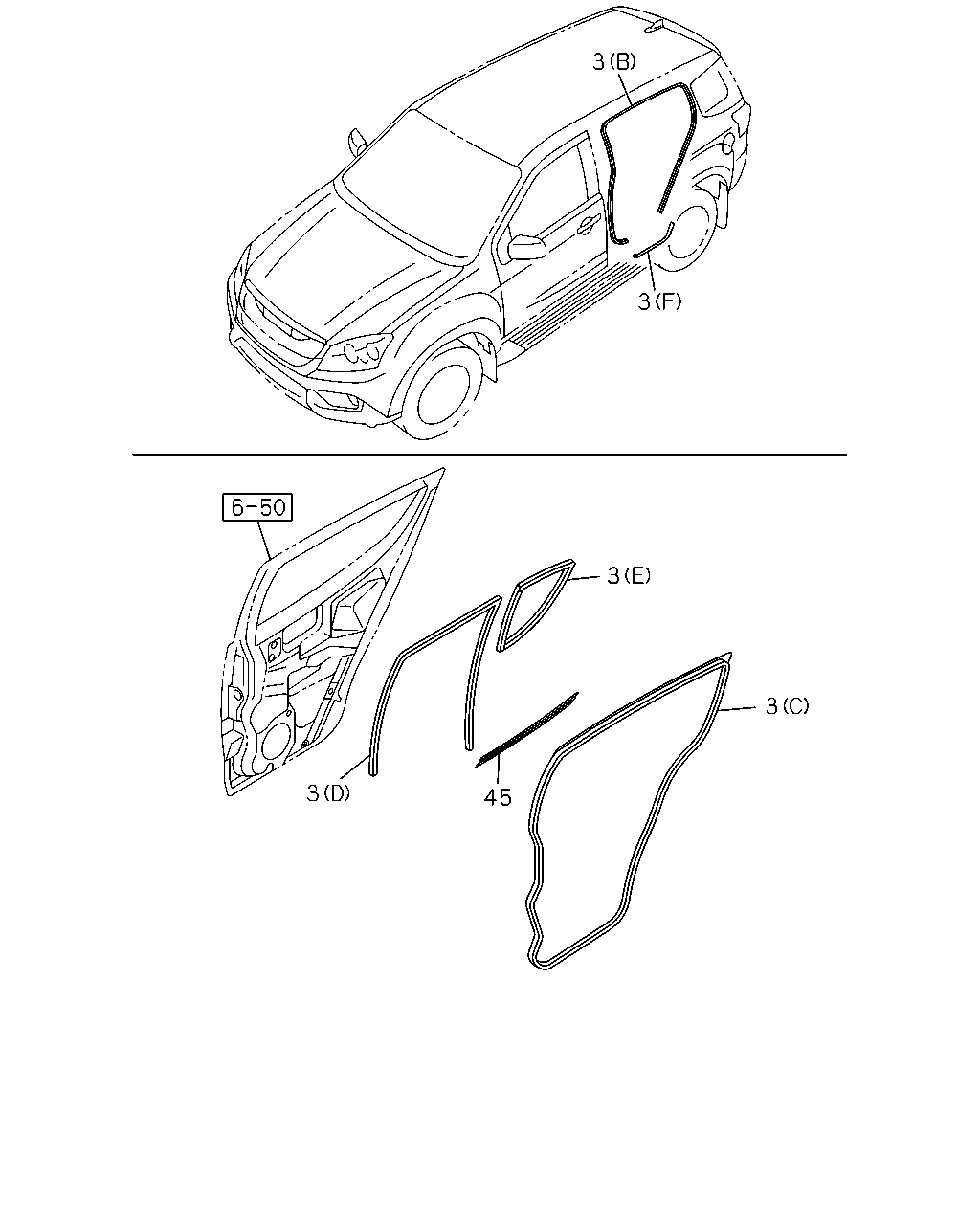

çizim 443841
3 3 3 3 45 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98189-419-0 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98189-420-0 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) 		8-98189-416-0 02 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98190-162-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98190-163-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98190-342-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98190-343-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98188-274-2 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98188-275-2 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(F) 		8-98190-209-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(F) 		8-98190-210-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(G) 		8-98188-231-4 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(G) 		8-98188-232-4 01 1 1409- ● ●
45 16.183 FINISHER; RR DOOR 8-98188-342-2 01 1 1409-1508 ● ●
45 16.183 FINISHER; RR DOOR 8-98322-878-0 01 1 1509- ● ●
45 16.183 FINISHER; RR DOOR 8-98188-343-2 01 1 1409-1508 ● ●
45 16.183 FINISHER; RR DOOR 8-98322-879-0 01 1 1509- ● ●
çizim 444034
96 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
91 16.165 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) 		8-98165-205-1 01 1 1409- ● ●
91 16.165 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) 		8-98165-206-1 01 1 1409- ● ●
91 16.165 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) 		8-98230-112-0 01 1 1409- ● ●
91 16.165 TAPE
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) 		8-98230-113-0 01 1 1409- ● ●
96 01.303 DECAL; DOOR FRAME
16.176 		8-98190-440-3 01 1 1409- ● ●
96 01.303 DECAL; DOOR FRAME
16.176 		8-98190-441-3 01 1 1409- ● ●

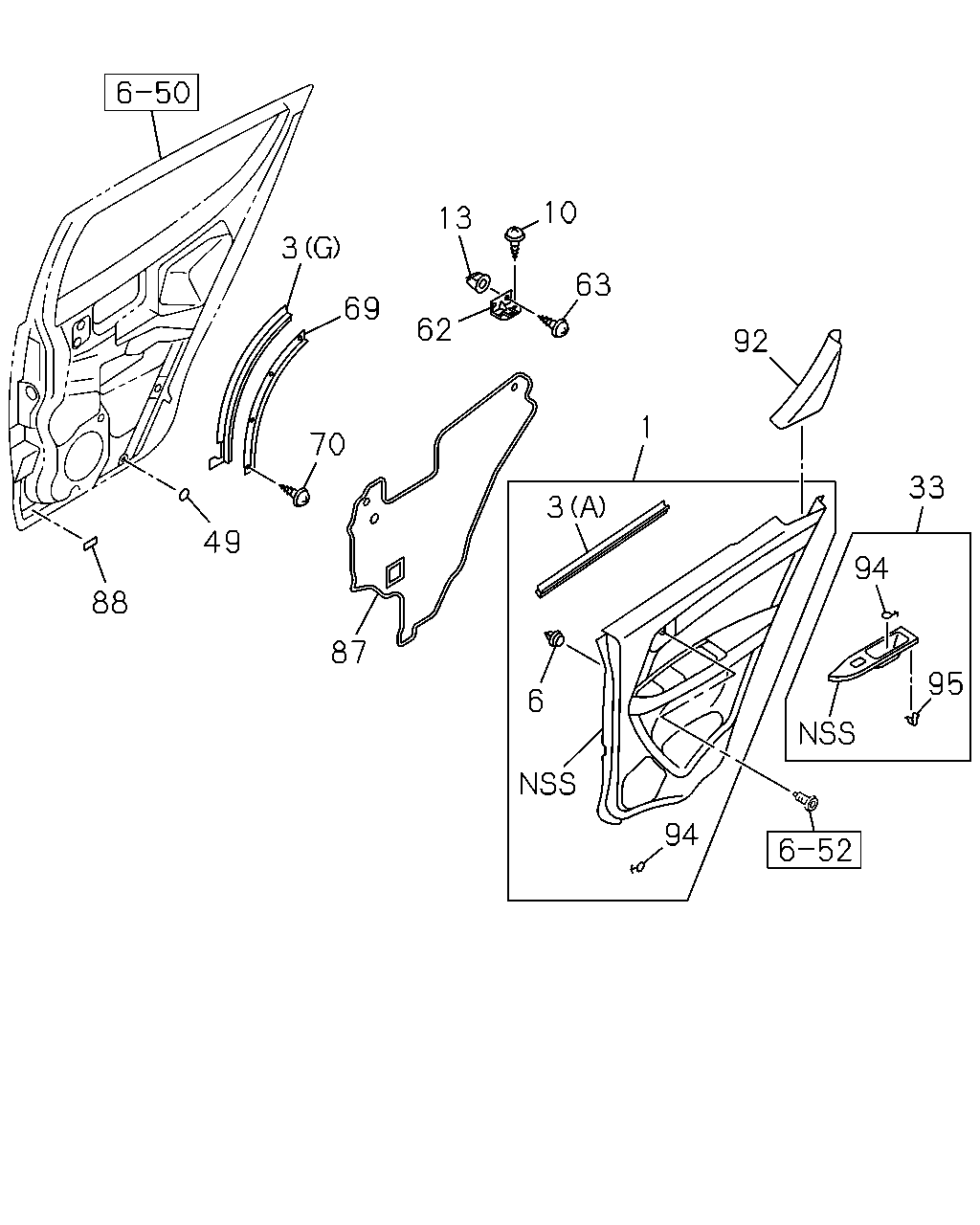

çizim 444232
3 69 13 10 63 62 70 49 88 87 1 3 6 94 94 33 95 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-672-0 01 1 1409- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY 		8-97427-675-0 01 1 1409- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-671-0 01 1 1409- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK 		8-97427-674-0 01 1 1409- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-673-0 01 1 1409- ● ●
1 16.165 PAD; TRIM,RR DOOR
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97427-676-0 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98189-419-0 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98189-420-0 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) 		8-98189-416-0 02 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98190-162-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98190-163-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98190-342-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98190-343-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98188-274-2 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(E) 		8-98188-275-2 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(F) 		8-98190-209-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(F) 		8-98190-210-1 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(G) 		8-98188-231-4 01 1 1409- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(G) 		8-98188-232-4 01 1 1409- ● ●
6 16.165 CLIP; DOOR PAD
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98160-729-0 18 1 1409- ● ●
10 16.155 SCREW; ARM REST
16.345 M5X14 TAPPING 		8-98184-363-0 02 1 1409- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 		8-94152-494-0 04 1 1409- ● ●
33 16.165 BOX; RR DOOR
BLACK 		8-97424-414-2 01 1 1409- ● ●
33 16.165 BOX; RR DOOR
BLACK 		8-97424-415-2 01 1 1409- ● ●
49 16.165 SEAL; DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> OD=25 BLACK 		1-76798-019-0 02 1 1409- ● ●
62 16.165 BRACKET 8-98117-091-1 02 1 1409- ● ●
63 16.165 BOLT
16.345 M5X14 TAPPING 		8-98184-363-0 04 1 1409- ● ●
69 16.165 COVER; WHEEL ARCH 8-98198-271-0 01 1 1409- ● ●
69 16.165 COVER; WHEEL ARCH 8-98198-272-0 01 1 1409- ● ●
70 16.166 SCREW; COVER 8-98248-243-0 08 1 1409- ● ●
87 16.165 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98189-945-0 01 1 1409- ● ●
87 16.165 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98189-946-0 01 1 1409- ● ●
88 16.270 PLUG; DOOR
16.155 		8-98197-448-0 02 1 1409- ● ●
92 16.165 PANEL; RR DOOR
GRAY 		8-97424-412-4 01 1 1409- ● ●
92 16.165 PANEL; RR DOOR
GRAY 		8-97424-413-4 01 1 1409- ● ●
94 16.165 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1409- ● ●
94 16.165 COVER; HOLDER,BOLT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97416-610-0 02 1 1409- ● ●
95 16.165 CLIP; DOOR TRIM 8-98164-677-0 02 1 1409- ● ●
