6-50 — REAR DOOR AND HINGE (#148173) — 10 parça

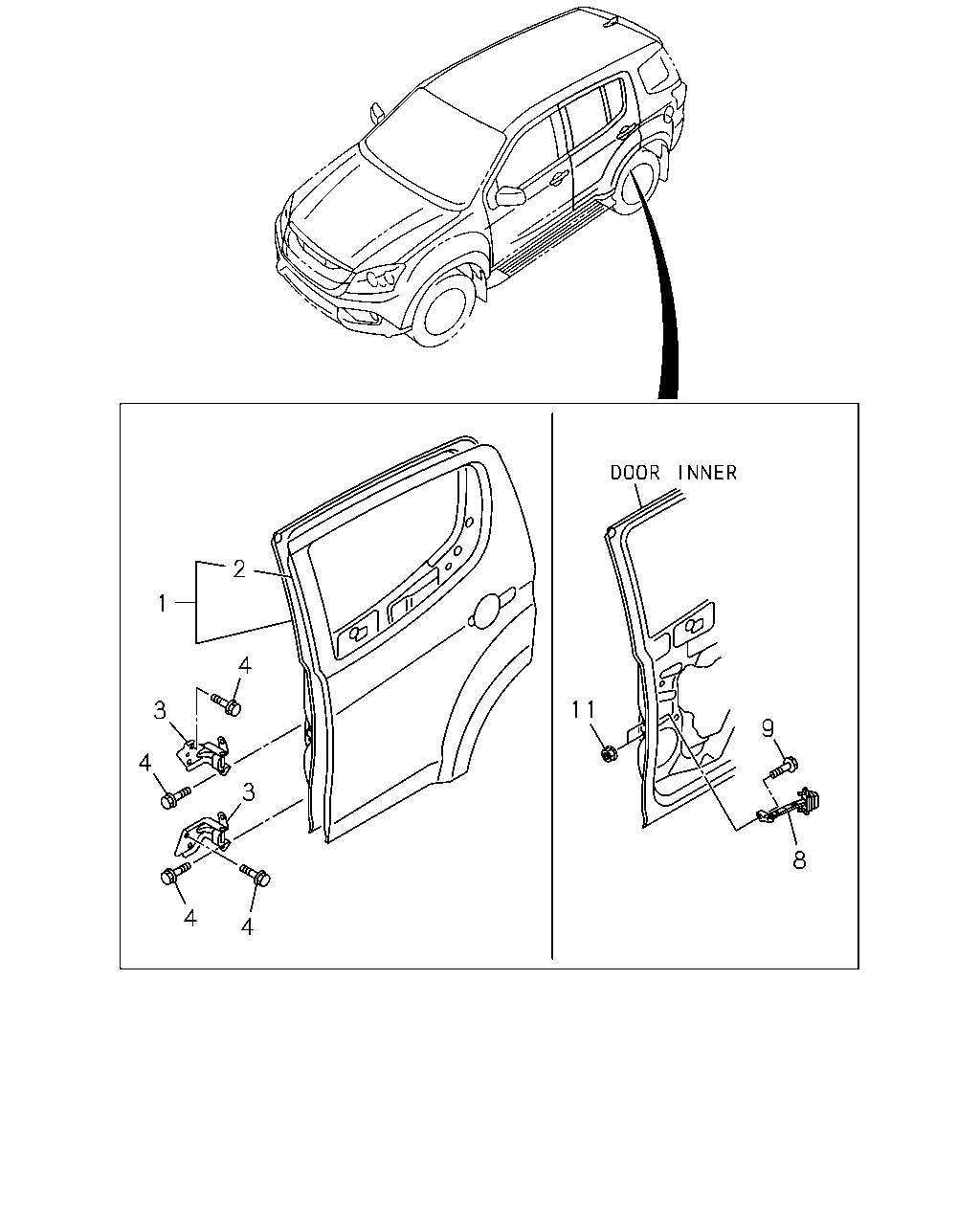

çizim 444229
2 1 3 4 3 4 4 4 11 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR 8-98208-993-0 01 1 1409- ● ●
1 16.150 DOOR ASM; REAR 8-98208-994-0 01 1 1409- ● ●
2 16.152 PANEL; RR DOOR OUTER 8-98206-072-1 01 1 1409- ● ●
2 16.152 PANEL; RR DOOR OUTER 8-98206-073-1 01 1 1409- ● ●
3 16.335 HINGE; RR DOOR
UPR RH & LWR LH 		8-98105-280-1 02 1 1409- ● ●
3 16.335 HINGE; RR DOOR
LWR RH & UPR LH 		8-98105-281-1 02 1 1409- ● ●
4 16.335 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 16 1 1409- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-98227-238-1 02 1 1409- ● ●
9 16.323 BOLT; CHECK ARM
16.320 M8X23 		8-98166-694-0 02 1 1409- ● ●
11 16.320 NUT
M6 FLANGE 		8-98049-362-0 04 1 1409- ● ●
