Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#148172) — 30 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

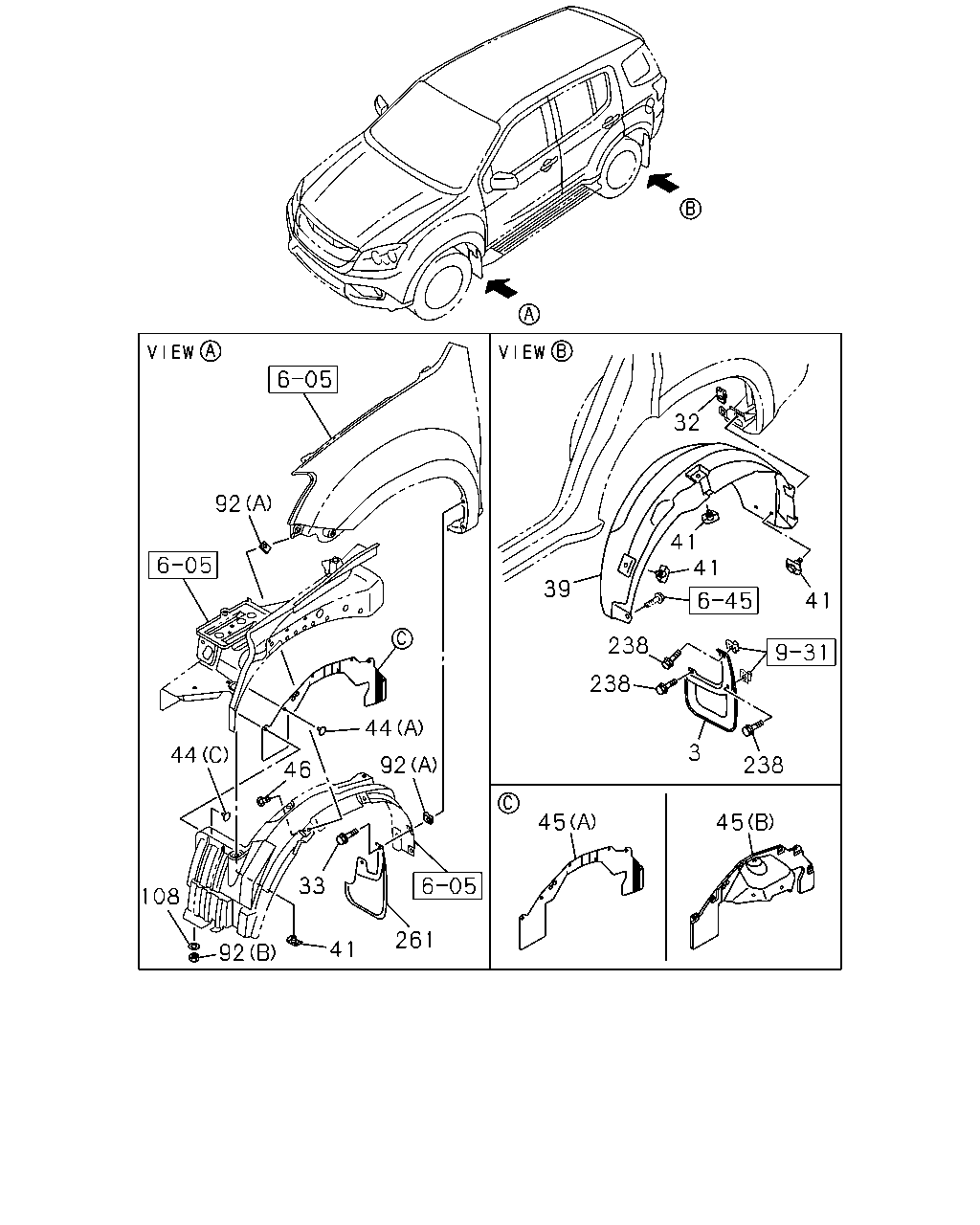

[647A] MUD GUARD (22 parça)

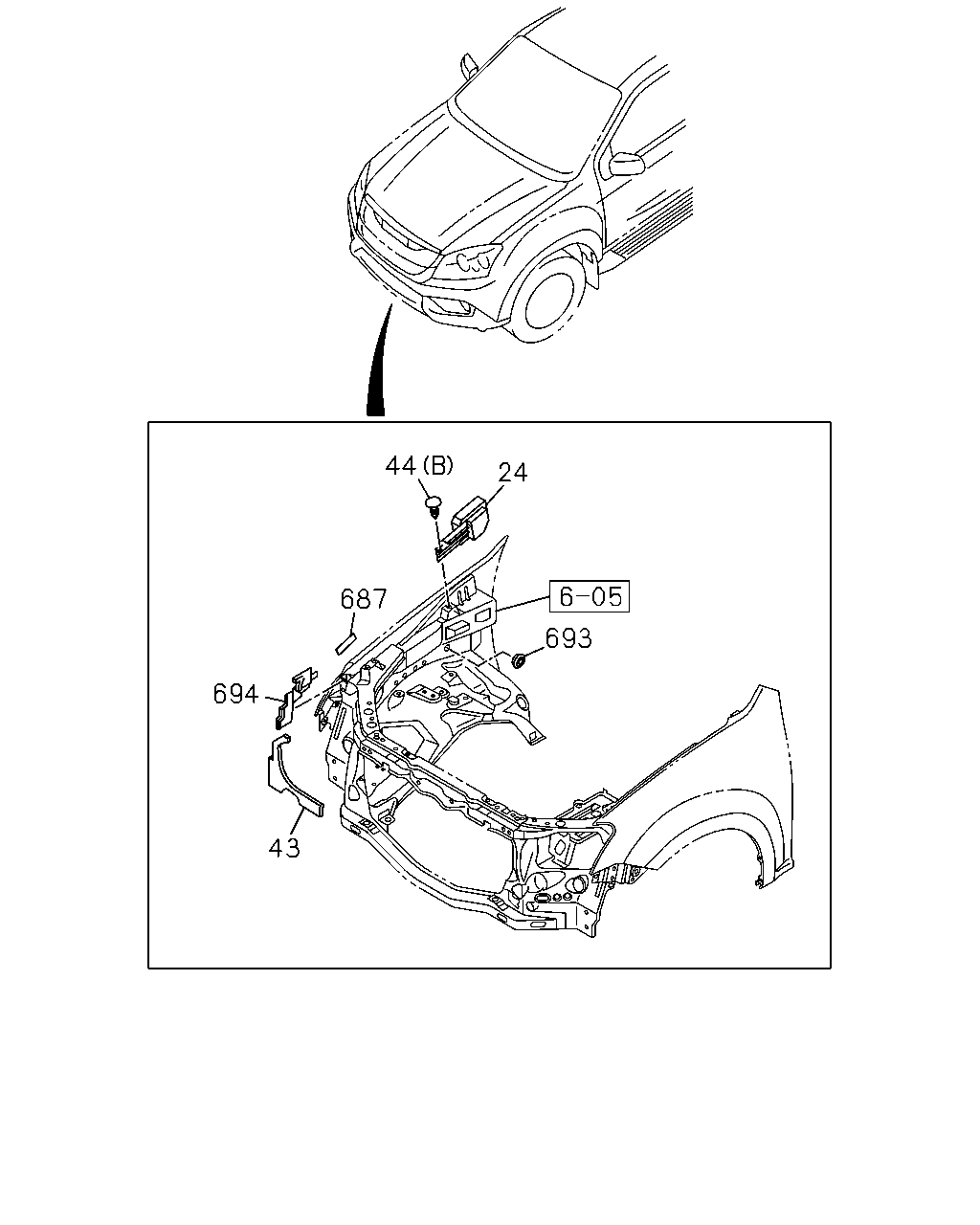

[647A] INSULATION AND PROTECTOR (8 parça)
▶
92
44
44
46
92
33
41
261
92
108
39
238
238
3
238
41
41
32
41
45
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
08.153 GUARD; MUD,RR
8-98189-866-1
01
1
1409-
●
●
3
08.153 GUARD; MUD,RR
8-98189-867-1
01
1
1409-
●
●
32
08.155 NUT; MUD GUARD
8-97125-519-0
02
1
1409-
●
●
33
08.155 BOLT; MUD COVER
07.874 M6X20 TAPPING W/PL WASHER
8-98167-444-0
06
1
1409-
●
●
39
08.131 LINER; FENDER
8-98190-330-1
01
1
1409-
●
●
39
08.131 LINER; FENDER
8-98190-331-1
01
1
1409-
●
●
41
08.155 RIVET; INNER LINER
08.154
8-94221-150-0
04
1
1409-
●
●
41
08.155 RIVET; INNER LINER
08.154
8-94221-150-0
24
1
1409-
●
●
44
08.154 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (C)
8-98226-431-1
12
1
1409-
●
●
44
08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8
8-94279-921-0
01
1
1409-
●
●
44
08.154 CLIP; ANCHOR
M/T MUX 5 SPEED 5S(MZJ) (A) OD=22 L=10.7
8-94215-211-0
10
1
1409-
●
45
08.153 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) (B)
8-98211-301-3
01
1
1409-
●
●
45
08.153 COVER; MUD,FENDER SKIRT
A/T 5 SPEED-AISIN(MA1) (B)
8-98211-302-3
01
1
1409-
●
●
45
08.153 COVER; MUD,FENDER SKIRT
M/T MUX 5 SPEED 5S(MZJ) (A)
8-98077-268-1
01
1
1409-
●
45
08.153 COVER; MUD,FENDER SKIRT
M/T MUX 5 SPEED 5S(MZJ) (A)
8-98077-270-0
01
1
1409-
●
46
08.155 SCREW; INNER LINER
07.874 M6X20 TAPPING W/PL WASHER
8-98167-444-0
04
1
1409-
●
●
92
08.155 NUT; MUD COVER
(A)
8-97125-519-0
10
1
1409-
●
●
92
08.155 NUT; MUD COVER
(B) M6 CAP NUT
8-98049-850-0
02
1
1409-
●
●
108
16.549 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6
8-98049-851-0
02
1
1409-
●
●
238
08.153 SCREW; MUD GUARD
07.874 M6X20 TAPPING W/PL WASHER
8-98167-444-0
06
1
1409-
●
●
261
08.155 RUBBER; FRT,MUD GUARD
8-98077-272-0
01
1
1409-
●
●
261
08.155 RUBBER; FRT,MUD GUARD
8-98077-274-0
01
1
1409-
●
●
44
24
687
693
694
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
08.155 PLATE; MUD COVER
8-98187-805-0
01
1
1409-
●
●
43
08.153 INSULATION; FENDER SIDE
8-98189-338-2
01
1
1409-
●
●
44
08.154 CLIP; ANCHOR
A/T 5 SPEED-AISIN(MA1) (C)
8-98226-431-1
12
1
1409-
●
●
44
08.154 CLIP; ANCHOR
16.069 (B) OD=12 L=14.8
8-94279-921-0
01
1
1409-
●
●
44
08.154 CLIP; ANCHOR
M/T MUX 5 SPEED 5S(MZJ) (A) OD=22 L=10.7
8-94215-211-0
10
1
1409-
●
687
08.155 TAPE; PROTECT
8-98191-602-1
02
1
1409-
●
●
693
08.155 GROMMET; ACCESSORY HOLE
8-98191-606-0
01
1
1409-
●
●
694
08.155 PROTECTOR; WHEEL HOUSE
8-98187-814-0
01
1
1409-
●
●
