Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-45 - MOLDING AND STRIPE
▶

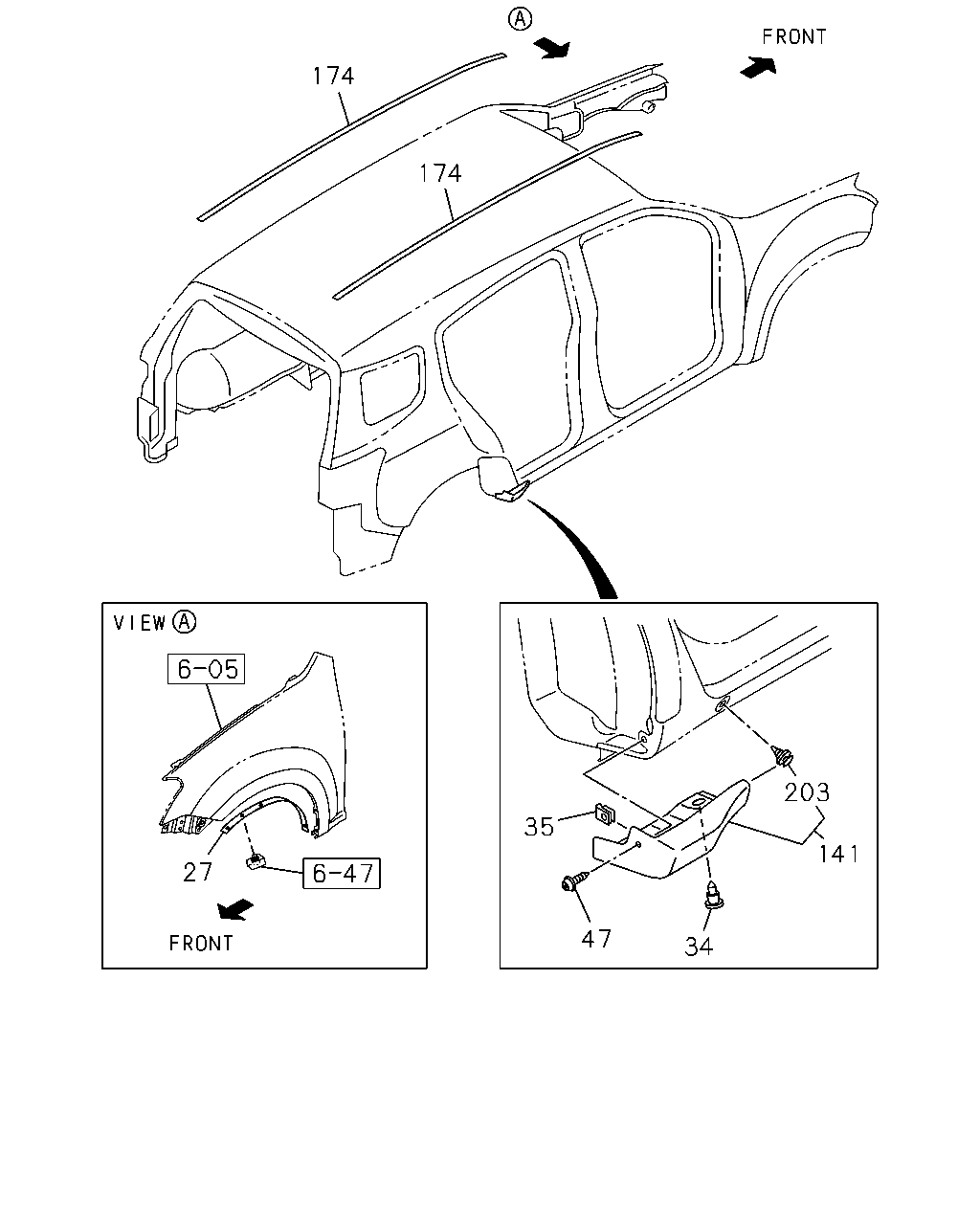

6-45 — MOLDING AND STRIPE
(#148171) — 14 parça
Tümü
A - UCB5VC
B - UCS5VC
174
174
34
141
203
35
47
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
08.132 MOLDING; FRT WHEEL ARCH,FRT
8-98177-958-3
01
1
1409-
●
●
27
08.132 MOLDING; FRT WHEEL ARCH,FRT
8-98177-959-3
01
1
1409-
●
●
34
16.642 CLIP; ROCKER MOLDING
07.832
8-97301-188-0
02
1
1409-
●
●
35
17.507 NUT; EXPANSION,ROCKER MOLDING
08.155
8-97125-519-0
02
1
1409-
●
●
47
17.507 SCREW; ROCKER MOLDING
07.874 M6X20 TAPPING W/PL WASHER
8-98167-444-0
02
1
1409-
●
●
141
08.175 COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98208-180-0
01
1
1409-
●
●
141
08.175 COVER; ROCKER,RR
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98208-181-0
01
1
1409-
●
●
141
08.175 COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98260-806-0
01
1
1409-
●
●
141
08.175 COVER; ROCKER,RR
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL>
8-98260-807-0
01
1
1409-
●
●
174
16.450 MOLDING; ROOF
EXC. ROOF RAIL<7LC>
8-98189-366-0
01
1
1409-
●
●
174
16.450 MOLDING; ROOF
EXC. ROOF RAIL<7LC>
8-98189-367-0
01
1
1409-
●
●
203
08.175 FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 07.829
8-97359-942-0
02
1
1409-
●
●
203
08.175 FASTENER; COVER
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 07.829
8-97359-942-0
02
1
1409-
●
●
203
08.175 FASTENER; COVER
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 07.829
8-97359-942-0
04
1
1409-
●
●
