Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

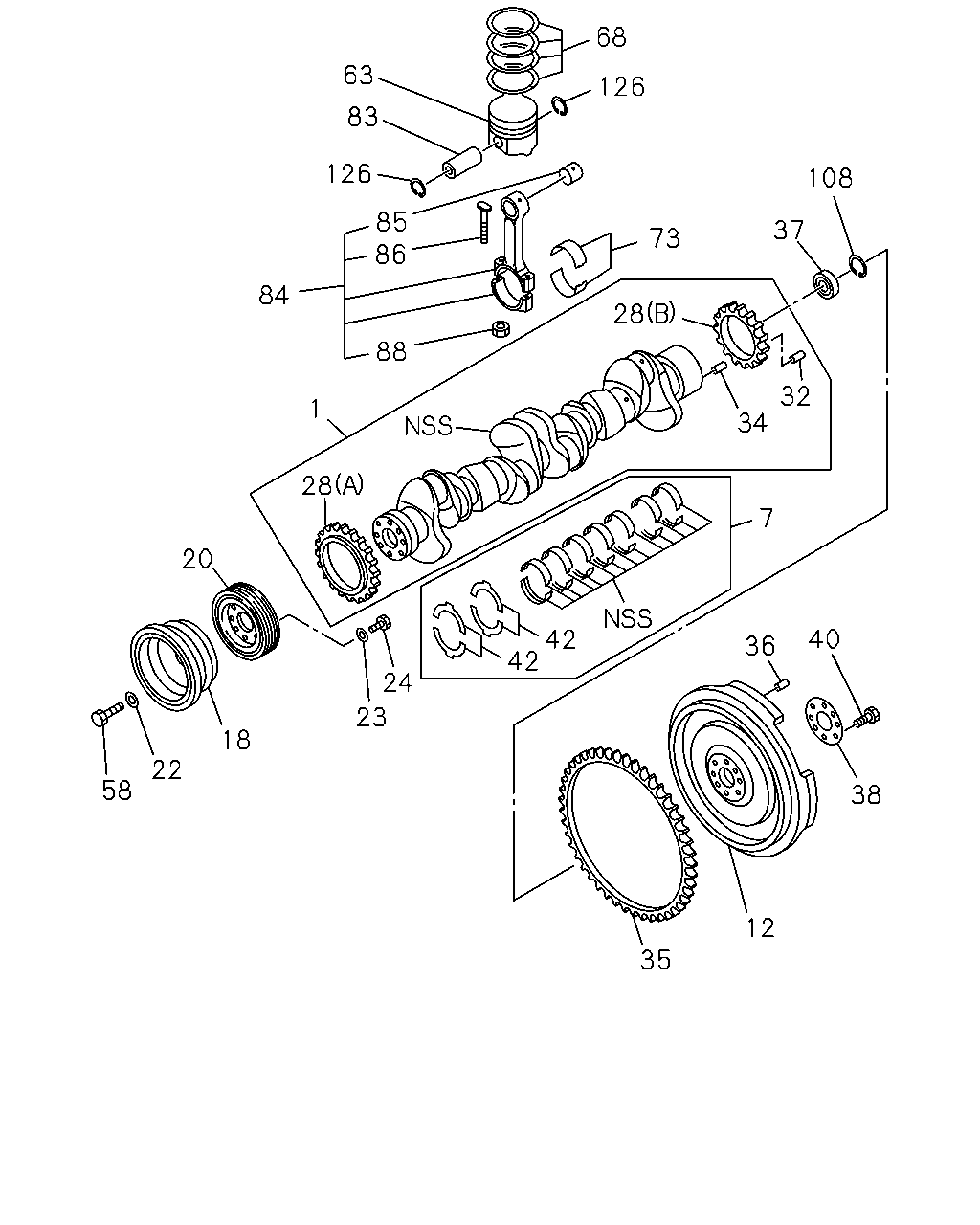

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#14817) — 31 parça
63
83
126
85
86
84
1
88
73
126
68
108
37
32
34
28
28
20
18
22
58
35
12
38
40
36
7
42
42
24
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-668-0
01
1
0711-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-087-2
01
1
0711-
12
FLYWHEEL
1-12331-162-4
01
1
0711-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-359-2
01
1
0711-
20
DAMPER; CR/SHF
1-12375-180-2
01
1
0711-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0711-
23
WASHER; DAMPER
ID=12.5
9-09851-682-0
08
1
0711-
24
BOLT; DAMPER
9-02361-220-0
08
1
0711-
28
GEAR; CR/SHF
(A) Z=53
1-12521-027-1
01
1
0711-
28
GEAR; CR/SHF
(B) Z=46
1-12521-053-1
01
1
0711-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0711-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0711-
35
GEAR; RING
Z=140
1-12333-025-0
01
1
0711-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0711-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-214-0
01
1
0711-
38
WASHER; FLYWHEEL
1-12336-005-1
01
1
0711-
40
BOLT; FLYWHEEL
1-09000-183-1
08
1
0711-0905
40
BOLT; FLYWHEEL
1-09070-146-1
08
1
0906-
42
WASHER; THRUST,CR/SHF
1-11599-007-1
02
1
0711-
58
BOLT; CR/SHF PULLEY
M16X45
9-92061-645-0
04
1
0711-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
1-12111-842-0
06
1
0711-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
1-12111-843-0
06
1
0711-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-137-1
06
1
0711-
73
METAL SET; CONN ROD,STANDARD
1-12271-084-0
06
1
0711-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-022-0
06
1
0711-
84
ROD ASM; CONN
1-12230-097-1
06
1
0711-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-021-1
06
1
0711-
86
BOLT; CONNROD
1-12235-025-1
12
1
0711-
88
NUT; CONNROD
1-09840-003-1
12
1
0711-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0711-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
12
1
0711-
