6-32 — FRONT DOOR LOCK AND HANDLE (#148167) — 153 parça

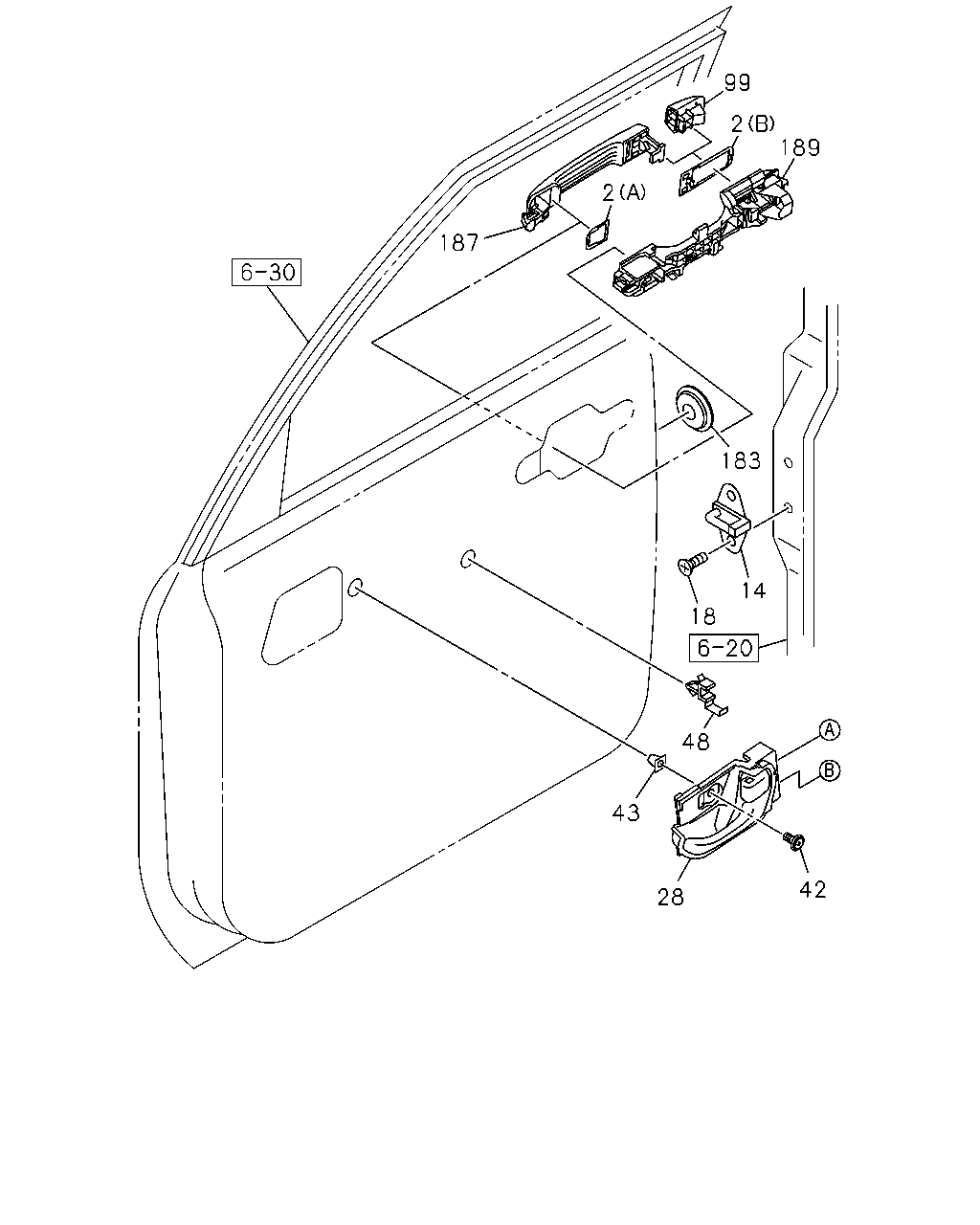

çizim 444108
187 2 2 99 189 183 18 14 48 43 28 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 01 1 1409- ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
(A) 		8-98176-466-0 01 1 1409- ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
16.360 (B) 		8-98176-467-2 01 1 1409- ● ●
2 16.350 GASKET; OUTSIDE HANDLE,DOOR
16.360 (B) 		8-98176-467-2 01 1 1409- ● ●
14 16.335 STRIKER; FRT DOOR 8-98012-203-0 02 1 1409- ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1409- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-730-3 01 1 1409- ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
BLACK 		8-97416-732-3 01 1 1409- ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
M5X14 TAPPING 		8-98184-363-0 02 1 1409- ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 		8-94152-494-0 02 1 1409- ● ●
48 16.345 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-465-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> BLACK 		8-98176-463-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> PLATED 		8-98176-462-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-462-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-454-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> BLACK 		8-97422-441-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK 		8-97422-441-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-463-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE 		8-97422-450-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-450-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-456-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> SILVER 		8-97422-443-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER 		8-97422-443-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL(531) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-464-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> WHITE 		8-97422-451-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-451-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ULURU BROWN MET(544) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN 		8-97424-510-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> BROWN 		8-97424-505-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN 		8-97424-505-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET(545) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE 		8-97424-512-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> LIGHT BLUE 		8-97424-508-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE 		8-97424-508-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> 		8-98176-460-1 01 1 1409- ● ●
99 16.270 COVER; HOLE DOOR LOCK
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> 		8-98176-460-1 01 1 1409- ● ●
183 16.445 GROMMET
12.182 OD=26 		8-94141-484-0 02 1 1409- ● ●
187 16.330 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> PLATED 		8-98211-441-0 01 1 1409- ● ●
187 16.330 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED 		8-98176-458-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> PLATED 		8-98176-458-0 01 1 1409- ● ●
187 16.330 GRIP; FRT DOOR
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 01 1 1409- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK 		8-97422-427-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BLACK 		8-97422-427-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR COSMIC BLACK MICA(523) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BLACK 		8-97422-427-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-436-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-436-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SPLASH WHITE(527) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-436-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER 		8-97422-429-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> SILVER 		8-97422-429-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR TITANIUM SILVER MET(529) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> SILVER 		8-97422-429-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-437-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-437-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-437-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-437-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> WHITE 		8-97422-437-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR SILKY WHITE PEARL(531) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> WHITE 		8-97422-437-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN 		8-97424-504-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> BROWN 		8-97424-504-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN 		8-97424-504-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN 		8-97424-504-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> BROWN 		8-97424-504-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR ULURU BROWN MET(544) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> BROWN 		8-97424-504-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE 		8-97424-507-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE 		8-97424-507-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE 		8-97424-507-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE 		8-97424-507-0 01 1 1511-1511 ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> HANDLE O/S DOOR BODY COLOR<D75> LIGHT BLUE 		8-97424-507-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
BODY COLOR FJORD BLUE MET(545) HANDLE O/S DOOR BODY COLOR<D75> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> LIGHT BLUE 		8-97424-507-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> 		8-98176-456-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> 		8-98176-456-0 01 1 1409-1510 ● ●
187 16.330 GRIP; FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. HANDLE O/S DOOR BODY COLOR<D75>, HANDLE O/S DOOR CHROME<E20> 		8-98176-456-0 01 1 1511- ● ●
187 16.330 GRIP; FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> 		8-98176-456-0 01 1 1511- ● ●
189 16.330 BRACKET; GRIP,DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98331-499-0 01 1 1511-1511 ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98331-499-0 01 1 1511- ● ●
189 16.330 BRACKET; GRIP,DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> HANDLE O/S DOOR CHROME<E20> 		8-98331-498-0 01 1 1511- ● ●
189 16.330 BRACKET; GRIP,DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98331-498-0 01 1 1511- ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-469-4 01 1 1409-1510 ● ●
189 16.330 BRACKET; GRIP,DOOR 8-98176-471-4 01 1 1409-1510 ● ●
çizim 444131
8 175 175 176 36 12 11 51 12 79
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-769-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-769-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-769-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-794-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-794-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-794-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-761-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98231-761-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-761-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98231-761-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-763-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98231-763-1 01 1 1503- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98231-764-0 01 1 1409-1502 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98231-764-1 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-994-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-022-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-022-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-086-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-021-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-021-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97349-993-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-97349-993-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-012-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98292-012-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-97351-085-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-97351-085-0 01 1 1409-1502 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98292-011-0 01 1 1503- ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98292-011-0 01 1 1503- ● ●
12 16.330 SCREW; DOOR LK
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97349-997-0 04 1 1409-1502 ● ●
12 16.330 SCREW; DOOR LK
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97349-997-0 04 1 1503- ● ●
12 16.330 SCREW; DOOR LK
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97349-997-0 04 1 1503- ● ●
12 16.330 SCREW; DOOR LK
(A) 		8-97349-997-0 02 1 1409-1502 ● ●
12 16.330 SCREW; DOOR LK
(A) 		8-97349-997-0 02 1 1409-1502 ● ●
12 16.330 SCREW; DOOR LK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97349-997-0 02 1 1503- ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) 		8-97349-997-0 02 1 1503- ● ●
12 16.330 SCREW; DOOR LK
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97349-997-0 02 1 1503- ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) 		8-97349-997-0 02 1 1503- ● ●
12 16.330 SCREW; DOOR LK
(B) M6X14.5 		8-98004-342-0 06 1 1409-1502 ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) M6X14.5 		8-98004-342-0 06 1 1503- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98193-693-0 01 1 1409-1502 ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98193-693-0 01 1 1409-1502 ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
AUTO DOOR LOCK<AU4> 		8-98193-693-0 01 1 1503- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98193-692-0 01 1 1409-1502 ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-98193-692-0 01 1 1503- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 1409-1502 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> 		8-97349-986-0 01 1 1503- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-97349-985-0 01 1 1409-1502 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> 		8-97349-985-0 01 1 1503- ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1409-1502 ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1503- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-98193-690-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (A) 		8-98193-690-0 01 1 1503- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) 		8-97349-988-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) 		8-97349-988-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-98193-688-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (A) 		8-98193-688-0 01 1 1503- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-689-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98193-689-0 01 1 1503- ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-98193-691-0 01 1 1409-1502 ● ●
175 16.341 CABLE ASM; LOCK CONTROL
AUTO DOOR LOCK<AU4> (B) 		8-98193-691-0 01 1 1503- ● ●
176 16.270 COVER; DOOR LOCK 8-97349-991-0 01 1 1409-1502 ● ●
176 16.270 COVER; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-991-0 01 1 1503- ● ●
176 16.270 COVER; DOOR LOCK 8-97349-992-0 01 1 1409-1502 ● ●
176 16.270 COVER; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-992-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
