6-30 — FRONT DOOR AND HINGE (#148165) — 12 parça

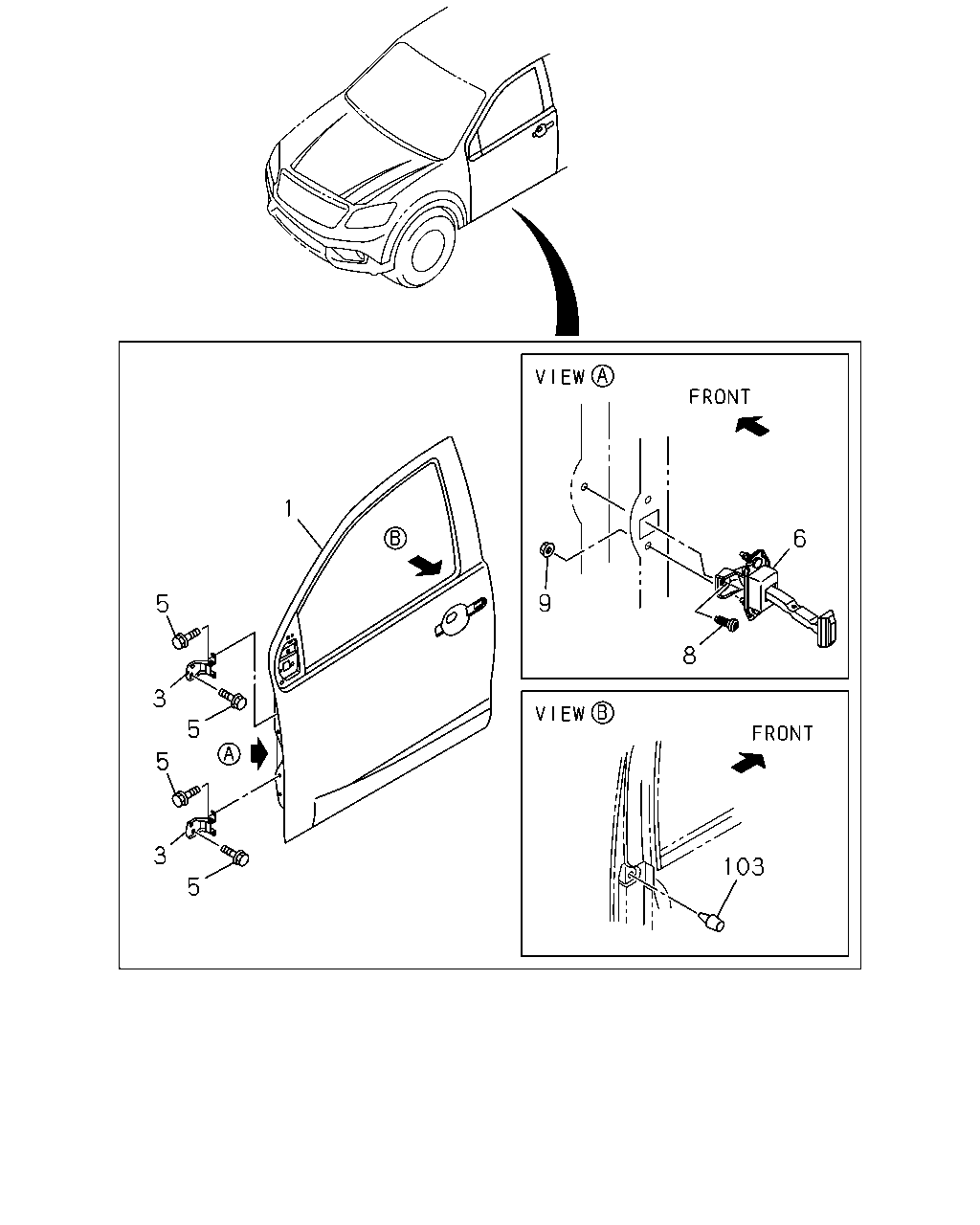

çizim 444086
103 8 6 9 1 5 5 3 5 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98108-131-4 01 1 1409-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98268-839-0 01 1 1504- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98108-132-4 01 1 1409-1503 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98268-838-0 01 1 1504- ● ●
3 16.320 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1409- ● ●
3 16.320 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1409- ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1409- ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1409- ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1409- ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1409- ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1409- ● ●
103 16.165 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1409- ● ●
